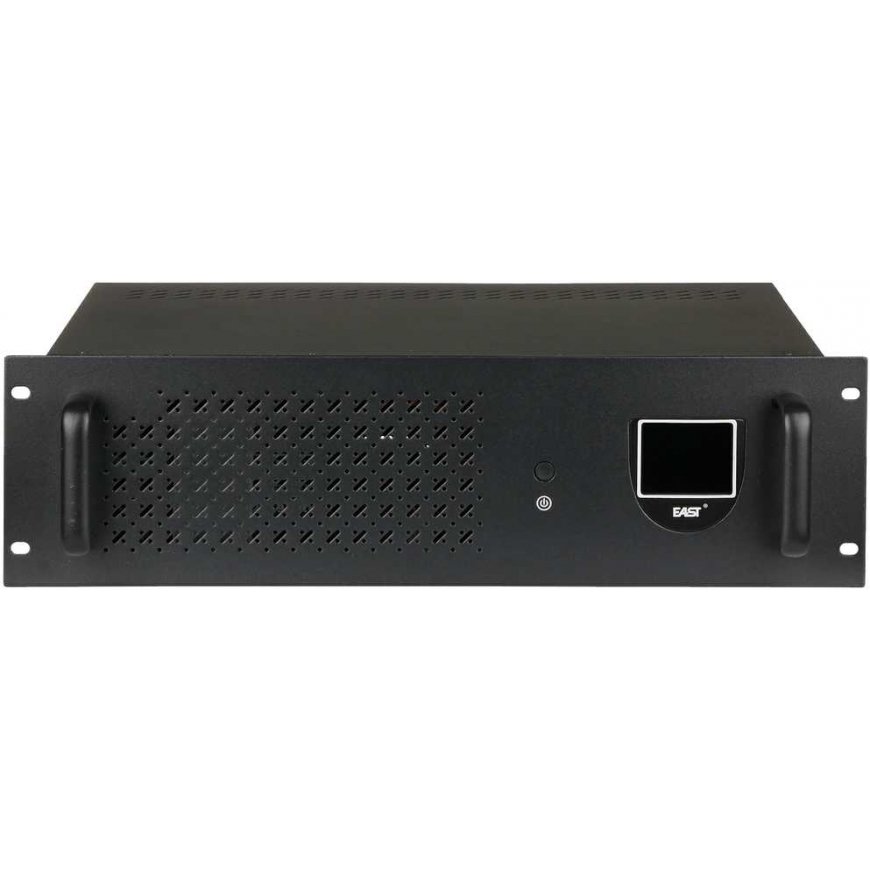

UPS POWER SUPPLY AT-UPS2000R-RACK 2000 VA EAST
3612643 AT-UPS2000R-RACK
5904501670401
Shipping 2-5 b.d.
Pay 5x81.80€The UPS AT-UPS2000R-RACK is equipped with many advanced technologies that ensure active monitoring of the power supply network.
The device is mounted in a RACK 19" cabinet.
Power supplies constantly analyze voltage, frequency, and phase shift angle, and also filter the voltage transmitted to connected devices. When a network failure is detected, the power supply immediately switches to autonomous operation mode and continues to power the equipment using energy stored in internal batteries.
The device works with power supplies with active power factor correction (APFC).
| Active power : | 1200W |
| Apparent power : | 2000 VA |
| Input voltage : | 230VAC ± 25% |
| Input frequency : | 50 / 60 Hz (automatic detection) |
| Output voltage : | 230 V AC ± 10 % (approximate sine wave) |
| Output frequency : | 50/60Hz ±1% |
| Tension adjustment : | - |
| Frequency regulation : | - |
| Switching time : | 2 ... 7 ms (typical), max. 10 ms |
| Charging time (up to 90% level) : | ≤ 8 hours |
| Battery : | 2 pcs. - 12V/9Ah |
| Battery life : | 62 minutes @ 100 W, 31 minutes @ 200 W, 16 minutes @ 300 W, 9.5 minutes @ 500 W |

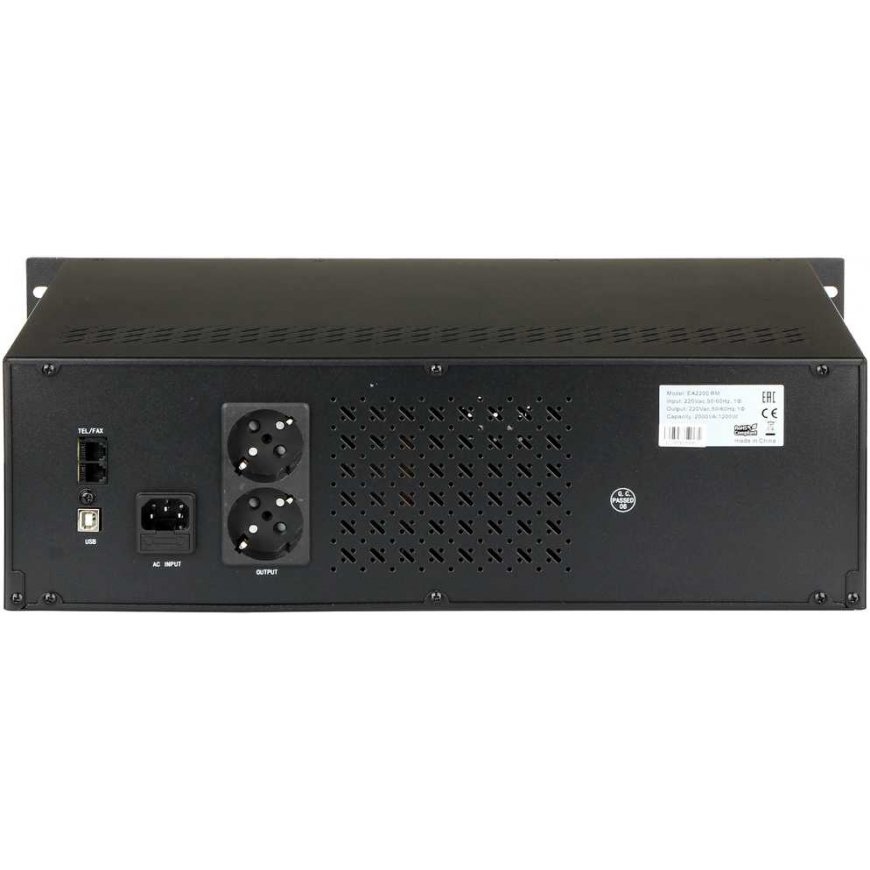

| Number of outputs : | 2 pcs. CEE 7/3 (Schuko) |
| Management software : | UPSmart (Windows 95/98/2000/XP/Vista/7/8/10, Linux) |
| Protective measures : | Fuse Surge protection Overcurrent protection Filter Ethernet |
| Working status indication : | LCD display: input/output voltage level, input frequency, battery capacity, protection, alarm, audible alarm |
| Main features : | Automatic AVR voltage regulator "Cold start" function Cooperation with generators Remote control - UPSmart application included Built-in EMI, RFI filter Excellent microprocessor control, ensuring high reliability Self-diagnostic function USB interface |
| Purpose : | monitoring systems data centers network, servers, workstations industrial equipment |
| Body type : | Rack 19" |
| Operating temperature/relative humidity : | 0 °C ... 40 °C / 0 ... 90 % |
| Weight : | 14.8 kg |
| Dimensions : | 440 x 310 x 132 mm, RACK 19", 3U |
| Manufacturer / Brand : | EAST |
| Warranty : | 2 years |
