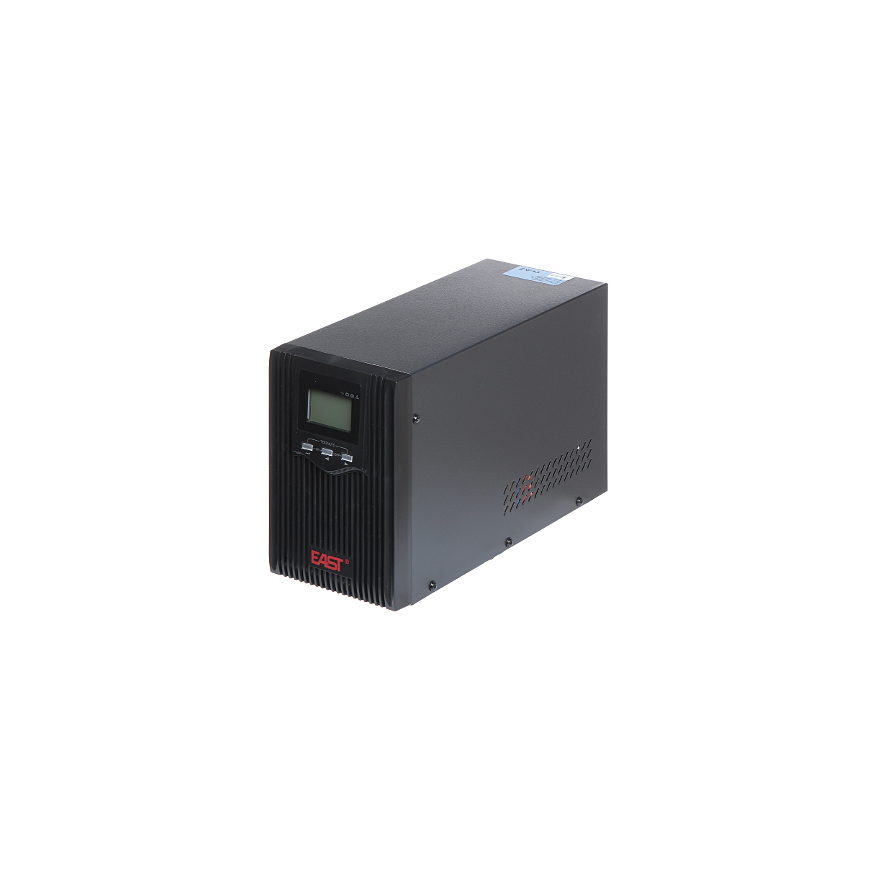

UPS POWER SUPPLY AT-UPS1500S-LCD 1500 VA EAST
3677205 AT-UPS1500S-LCD
5904194150822
Shipping 2-5 b.d.
Pay 5x95.92€The UPS AT-UPS1500S-LCD is equipped with many advanced technologies that ensure active monitoring of the power supply network.
Power supplies constantly analyze voltage, frequency, and phase shift angle, and also filter the voltage transmitted to connected devices. When a network failure is detected, the power supply immediately switches to autonomous operation mode and continues to power the equipment using energy stored in internal batteries.
The device works with power supplies with active power factor correction (APFC).
| Active power : | 1200W |
| Apparent power : | 1500 VA |
| Input voltage : | 230VAC ± 25% |
| Input frequency : | 50 / 60 Hz (automatic detection) |
| Output voltage : | 230 V AC ± 10 % (pure sine wave) |
| Output frequency : | 50/60Hz ±1% |
| Tension adjustment : | - |
| Frequency regulation : | - |
| Switching time : | ≤ 10ms |
| Charging time (up to 90% level) : | 8 o'clock |
| Battery : | 2 pcs. - 12V/9Ah |
| Estimated battery life : | 83 minutes @ 100 W, 42 minutes @ 200 W, 20 minutes @ 300 W, 9 minutes @ 500 W, 4 minutes @ 800 W, 1.5 minutes @ 1000 W, 1 minute @ 1200 W |
| Number of outputs : | 3 pcs. - 2 x CEE 7/3 (Schuko), 1 x IEC C13 |
| Management software : | UPSmart (Windows 95/98/2000/XP/Vista/7/8/10, Linux) |
| Protective measures : | Fuse From short circuit From overloads Surge protector - RJ45 Ethernet filter Overload protection discharge protection Initial voltage filtering Interference filter - EMI/RFI |
| Working status indication : | LCD display: operating mode, battery charge level, input/output voltage, overload indicator, LED diodes, Audible alarm |
| Main features : | Excellent microprocessor control for high reliability The COLD START function is for manual battery start-up Automatic voltage regulator AVR Automatic battery charging in off mode self-diagnostic function 2 x RJ45 - Input / Output USB 2.0 port - Access from a PC Remote control - UPSmart application (included) Customizable alarm Built-in EMI, RFI filter The device works with power supplies with active power factor correction (APFC) |
| Purpose : | network, servers, workstations surveillance systems smaller servers, registrars, telecommunications equipment, VoIP equipment, desktop computers, etc. |
| Body type : | Tower |
| Operating temperature/relative humidity : | 5 °C ... 40 °C / ≤ 93 % |
| Weight : | 13.7 kg |
| Dimensions : | 350 x 143 x 215 mm |
| Manufacturer / Brand : | EAST |
| Warranty : | 2 years |
