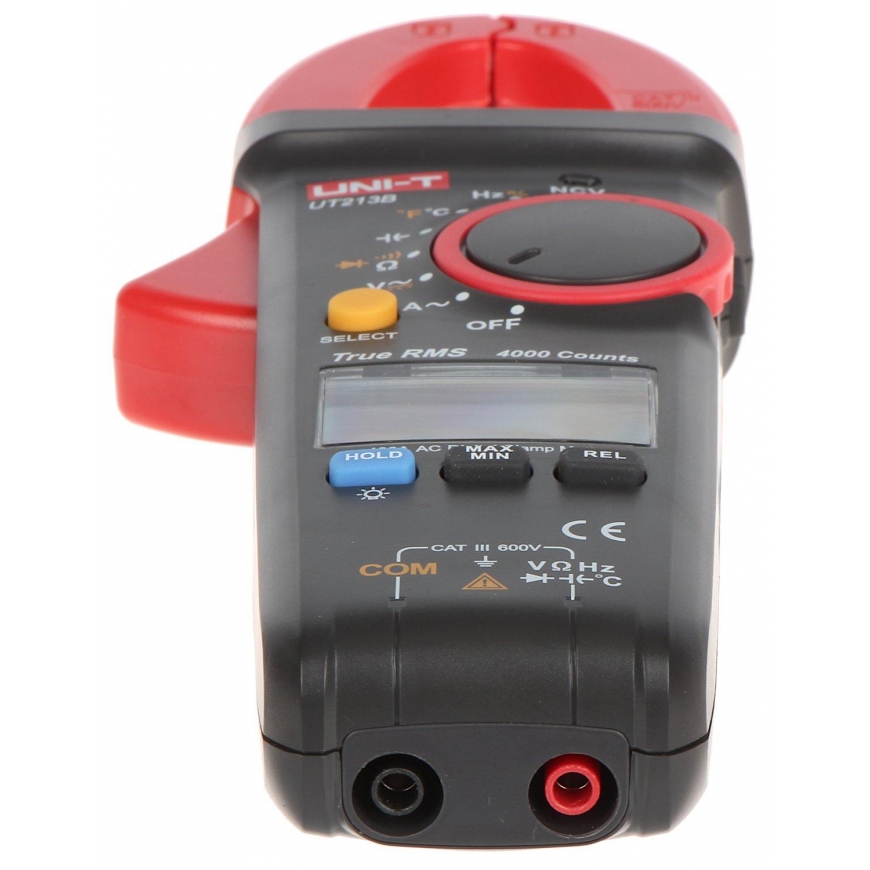

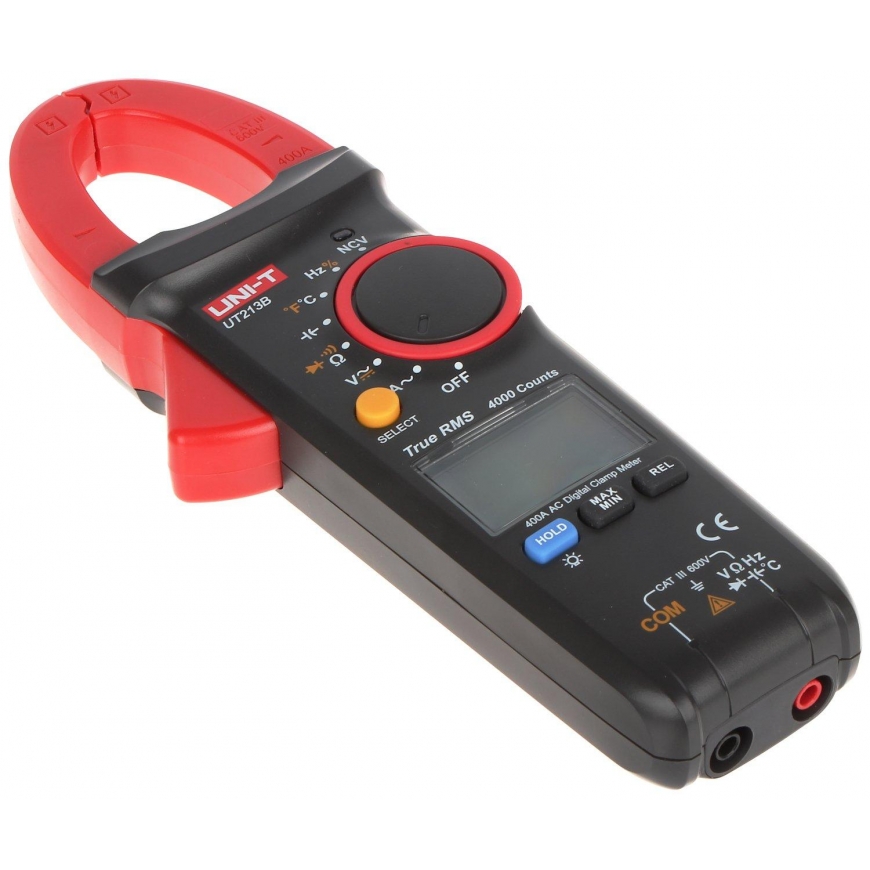

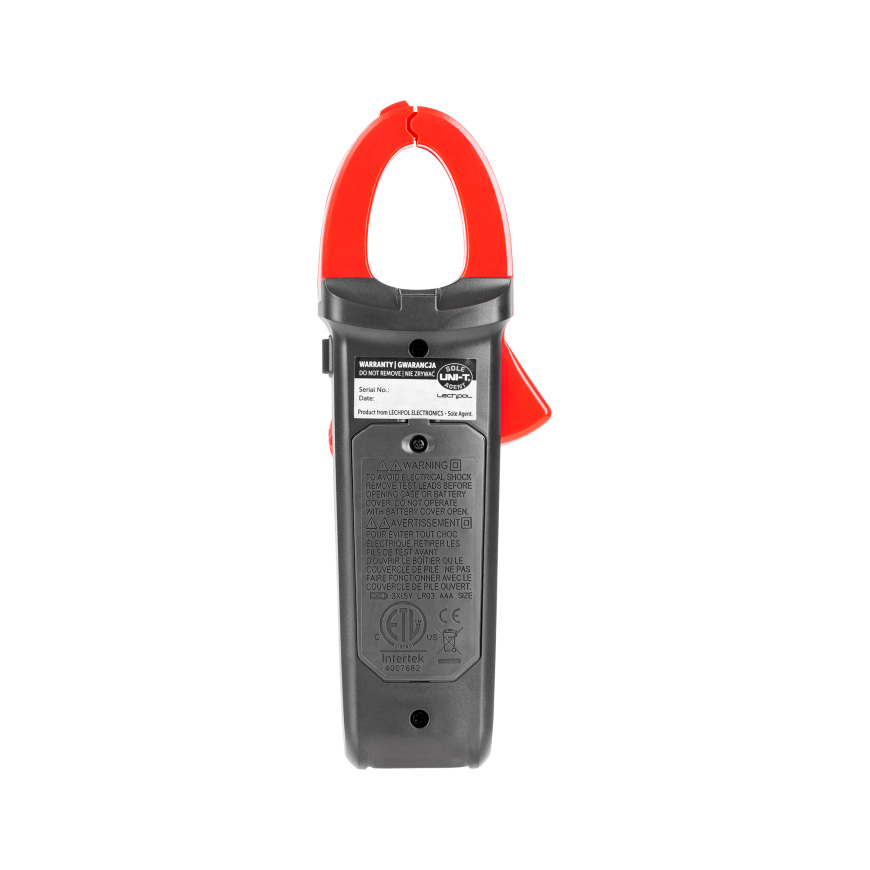

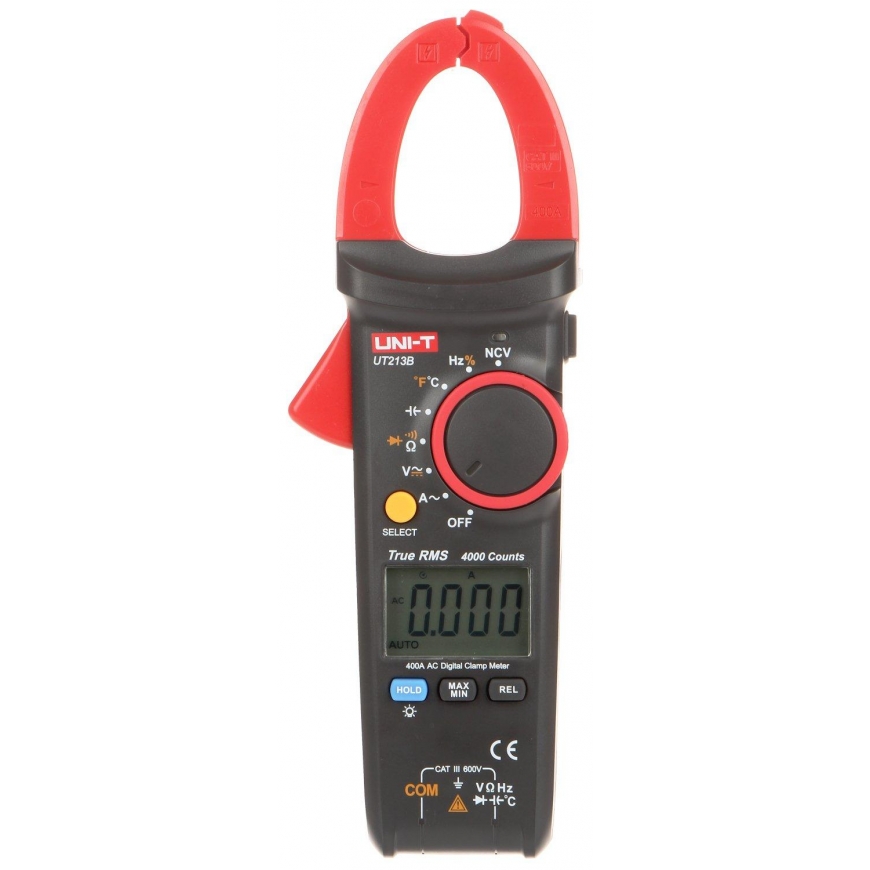

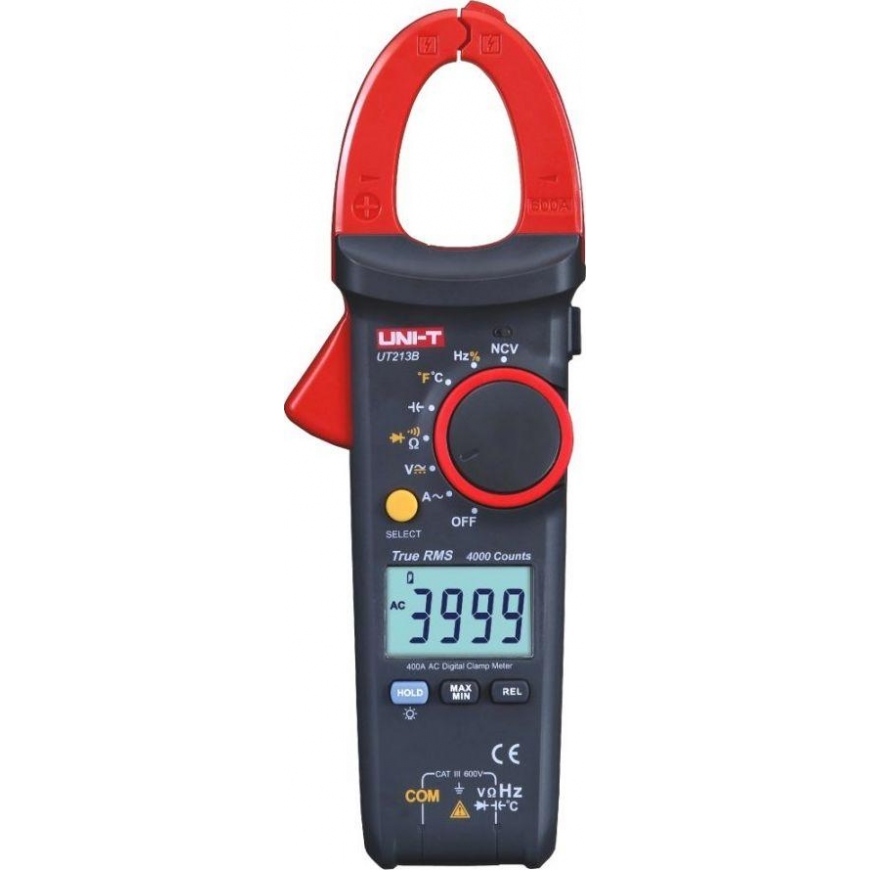

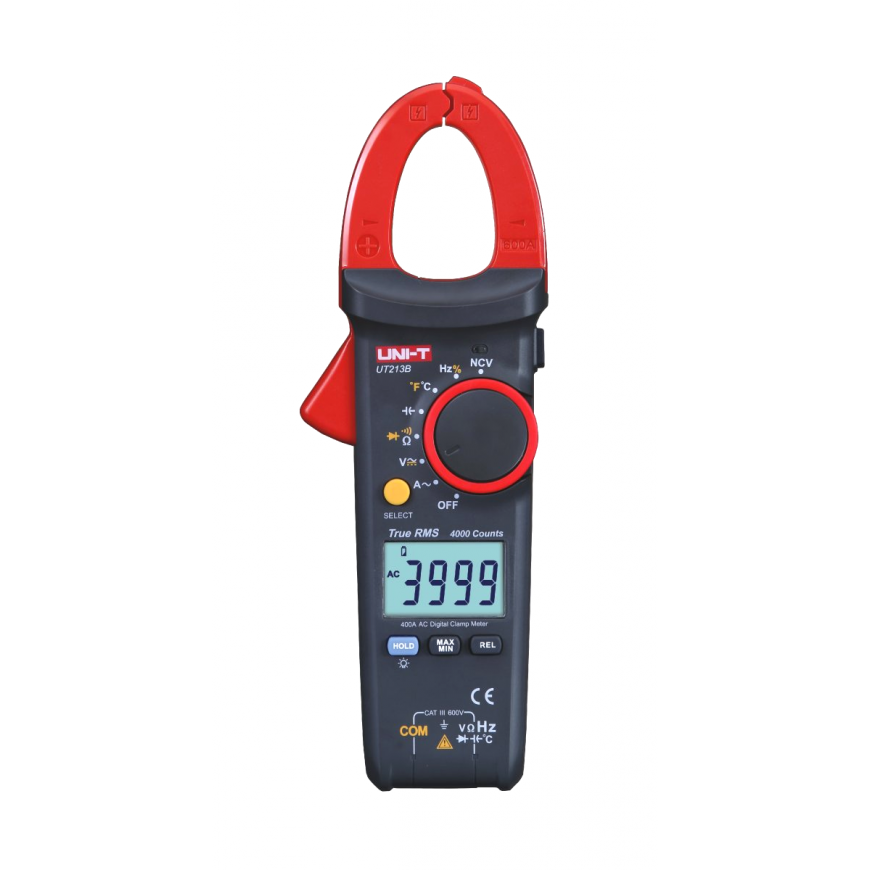

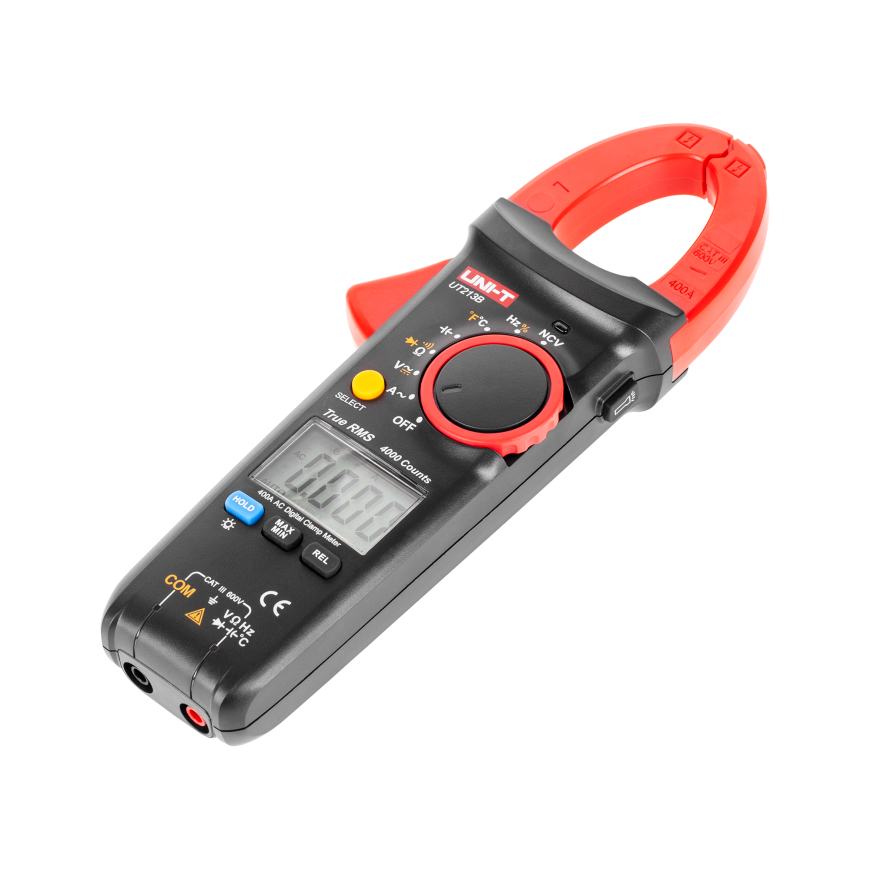

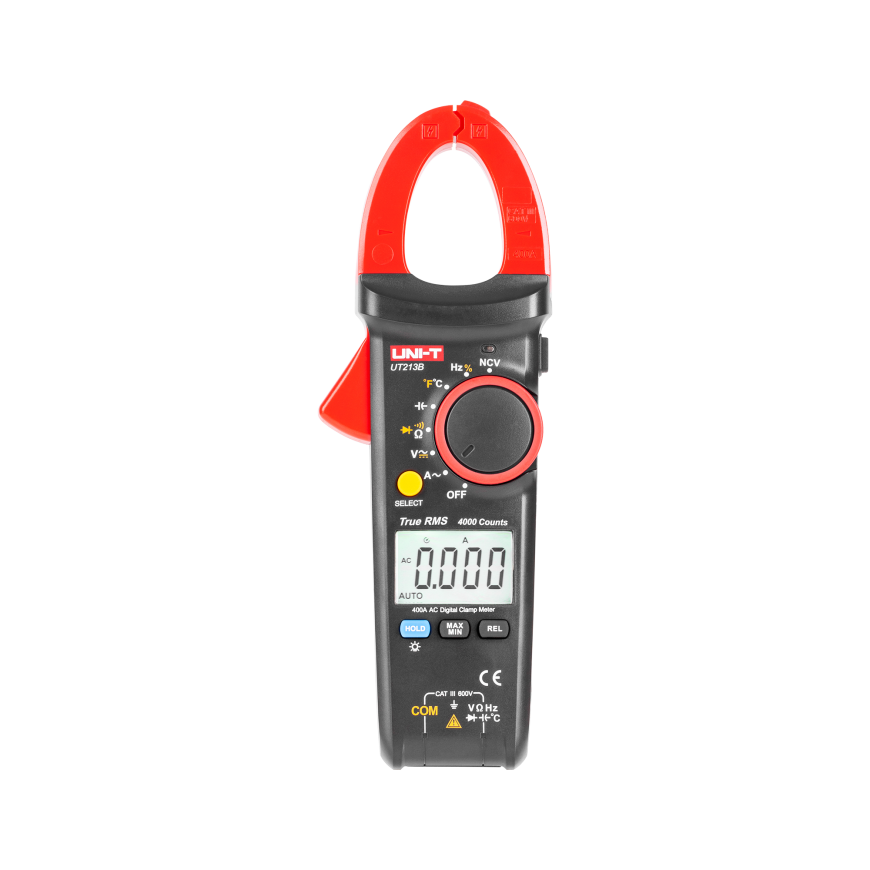

TERMINAL MEASURING DEVICE UT-213B UNI-T
49,00 €
Ikm. maksa no 2.16 €
1797714 MIE0185
Piegāde 6-10 d.d.
Šī prece Jūs ieinteresēja
The UT-213B is a universal digital multimeter with terminals that can measure high voltages.
The device measures: voltage, electric current, frequency, resistance and capacitance.
In addition, the meter has an electric field (NCV) detection function.
The meter has a True RMS converter, thanks to which it is possible to accurately measure the efficiency value of electric current and voltage, sinusoidal as well as shapeless flows.
| DC voltage measurement : | 400 mV ± (1.0% + 8) @ 0.1 mV , 4 V ± (0.8% + 1) @ 0.001 V , 40 V ± (0.8% + 3) @ 0.01 V , 400 V ± (0.8% + 3) @ 0.1 V , 600V ± (1.0% + 3) @ 1V |
| AC voltage measurement : | 4 V ± (1.2% + 5) @ 0.001 V , 40 V ± (1.2% + 5) @ 0.01 V , 400 V ± (1.2% + 5) @ 0.1 V , 600 V ± (1.5% + 5) @ 1 V |
| DC current measurement : | - |
| AC current measurement : | 4 A ± (2.5% + 30) @ 0.001 A , 40 A ± (2.5% + 5) @ 0.01 A , 400 A ± (1.8% + 9) @ 0.1 A |
| Resistance measurement : | 400 Ω ± (1.2% + 2) @ 0.1 Ω , 4 kΩ ± (1.0% + 2) @ 0.001 kΩ , 40 kΩ ± (1.0% + 2) @ 0.01 kΩ , 400 kΩ ± (1.0% + 2) @ 0.1 kΩ , 4 MΩ ± (1.2% + 3) @ 0.001 MΩ , 40 MΩ ± (2.0% + 5) @ 0.01 MΩ |
| Capacity measurement : | 40 nF ± (4.0% + 25) @ 0.01 nF , 400 nF ± (4.0% + 5) @ 0.1 nF , 4 µF ± (4.0% + 5) @ 0.001 µF , 40 µF ± (4.0% + 5) @ 0.01 µF , 400 µF ± (4.0% + 5) @ 0.1 µF , 4 mF ± 10% @ 0.001 mF 40mF @ 0.01mF |
| Inductance measurement : | - |
| Frequency measurement : | 10 Hz ... 1 MHz ± (0.1% + 4) @ 0.01 Hz ... 1 kHz |
| Temperature measurement : | °C -40 ... 40 °C ± (3% + 5) @ 1 °C 40 ... 400 °C ± (3% + 5) @ 1 °C 400 ... 1000 °C ± (1% + 3) @ 1 °C, °F -40 ... 104 °F ± (3% + 10) @ 1 °F 104 ... 752 °F ± (3% + 10) @ 1 °F 752 ... 1832 °F ± (1% + 6) @ 1 °F |
| Automatic change of measuring scale : | ✔ |
| Diode test : | ✔ |
| Audible circuit integrity alarm : | ✔ |
| RS-232 : | - |
| USB : | - |

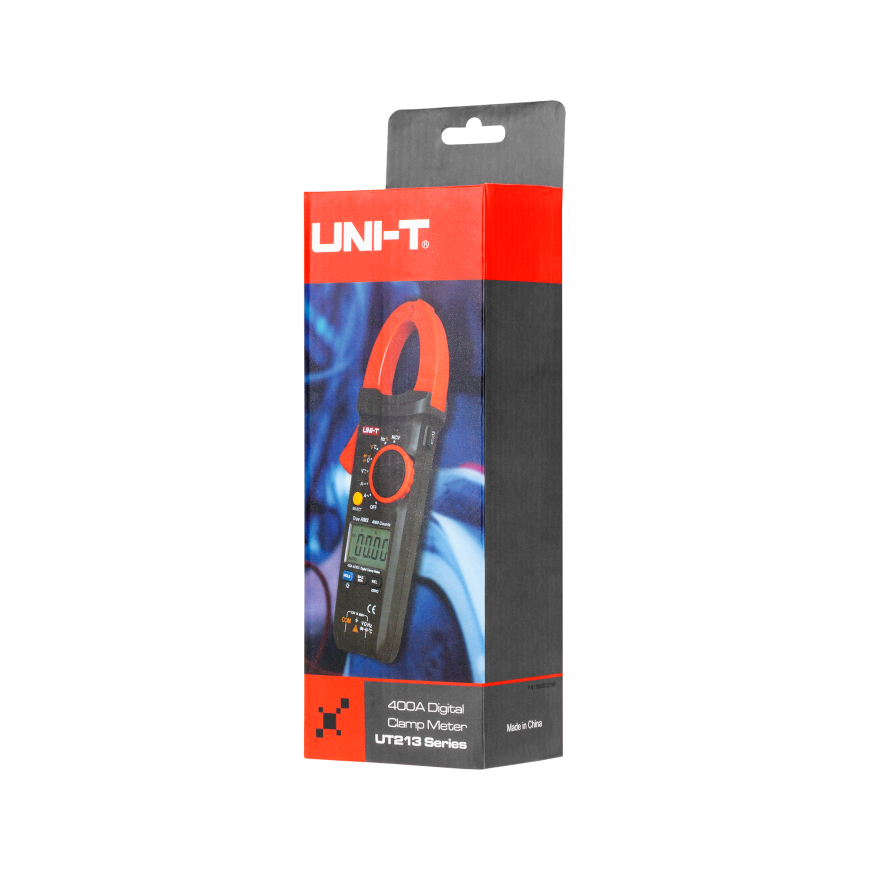

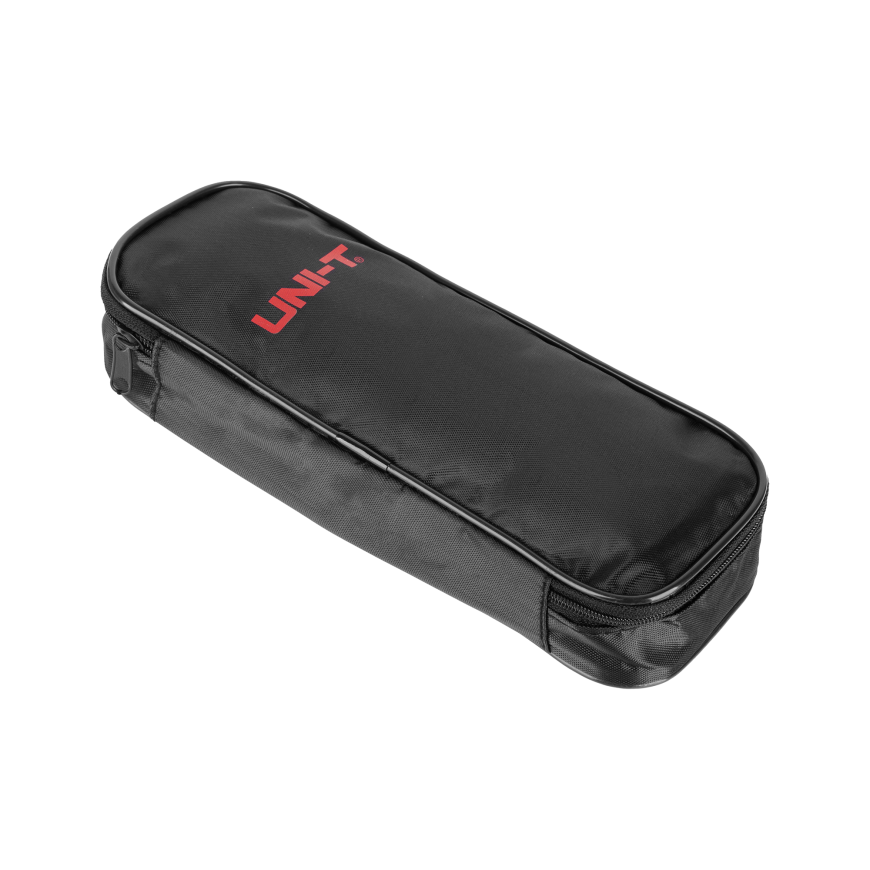

| Main features : | True RMS - accurate measurement of the real value of electric current and voltage in any form of flow, NCV - electric field detection function, REL - relative measurement mode, Freeze the highest or lowest reading, Hold - stop the meter reading, Built-in flashlight, Large, readable LCD display with with lighting, Low battery signal, Aesthetic and solid manufacturing, Comes with a practical case |

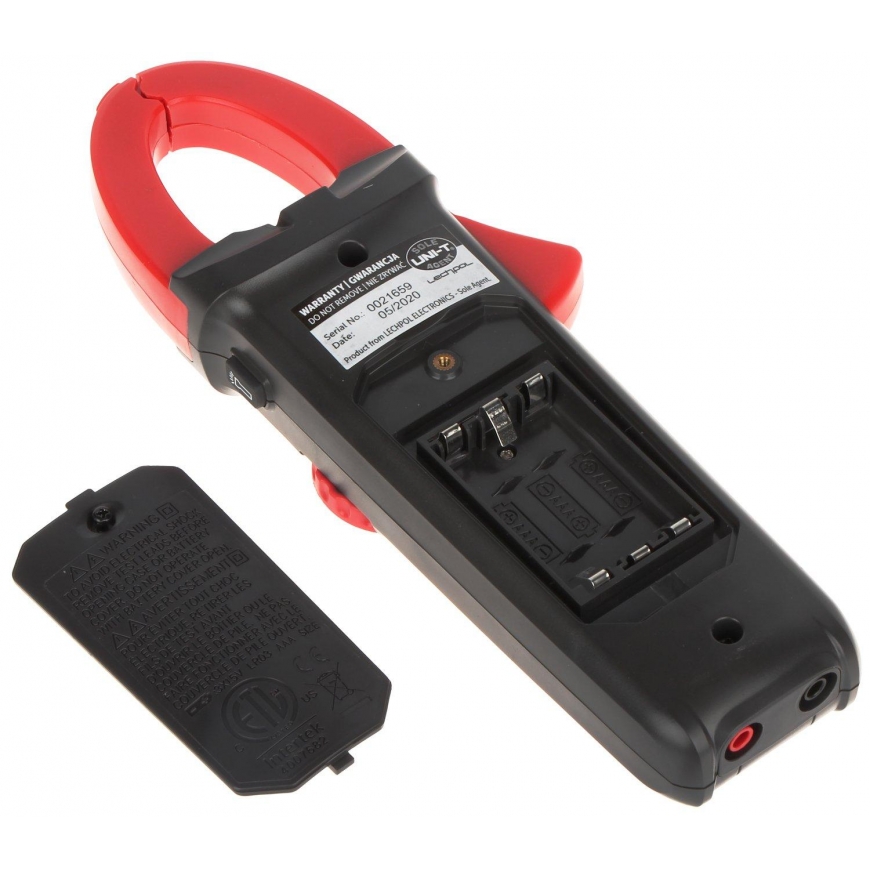

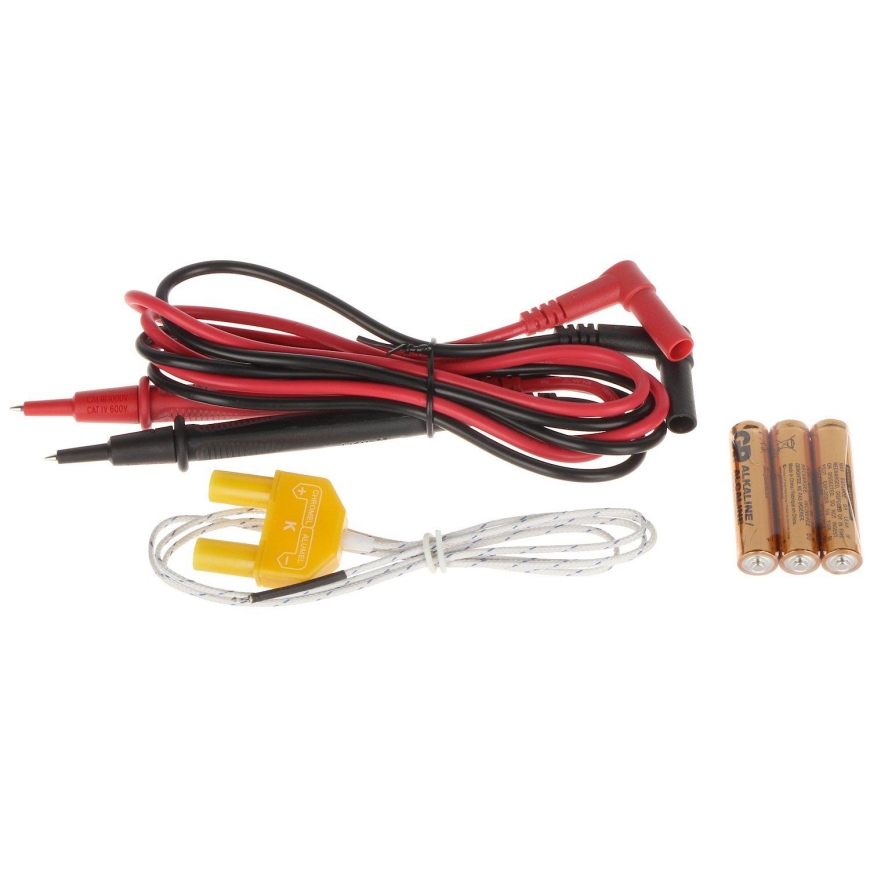

| Meals : | 3 x 1.5V batteries, AAA/LR03 type - included |
| Weight : | 0.25 kg |
| Dimensions : | 221 x 77 x 41 mm |
| Manufacturer / Brand : | UNI-T |
| Warranty : | 2 years |
