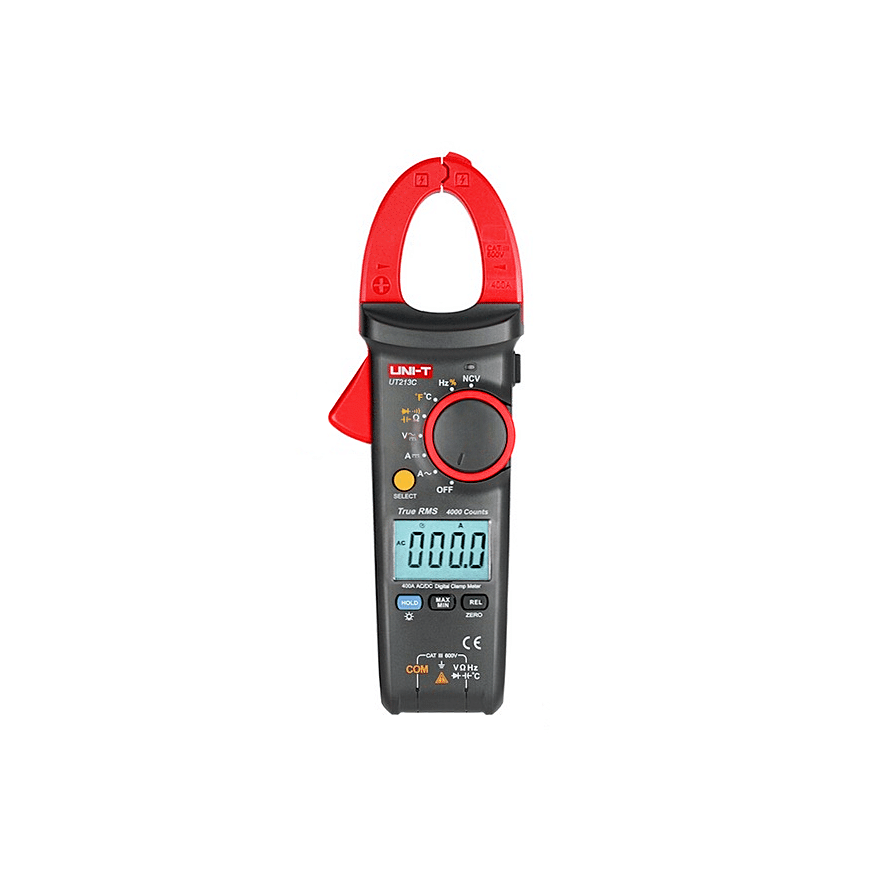

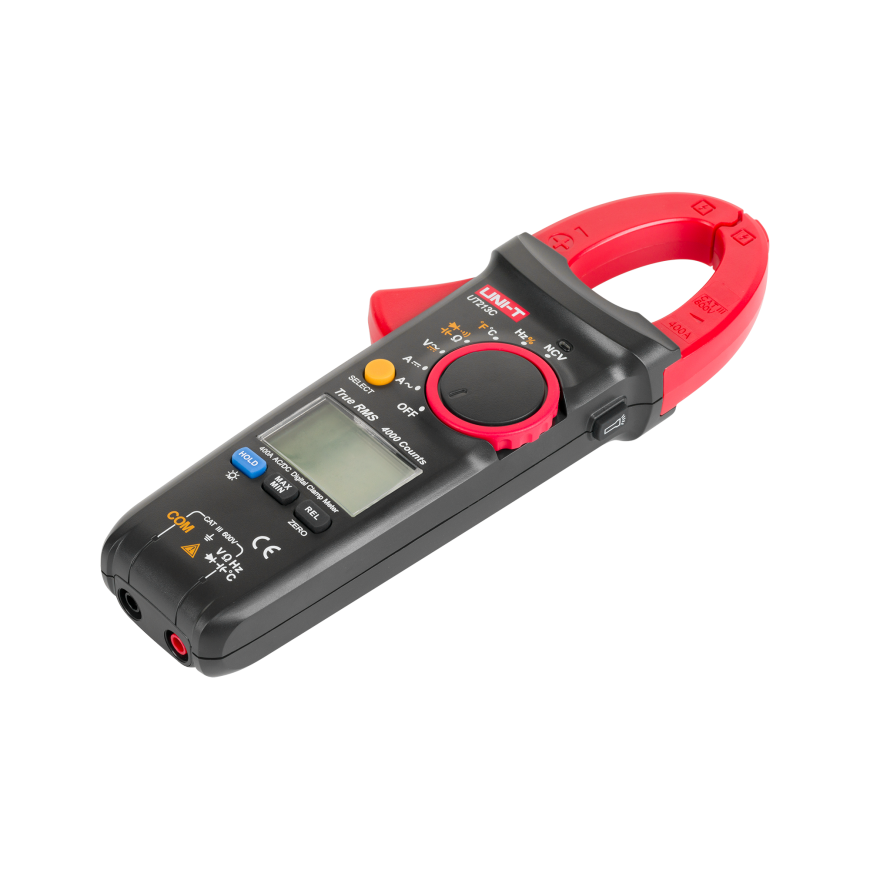

Current AC/DC measuring clamp Uni-t UT213C

Current measuring pliers Uni-t UT213C which will be useful not only for electricians, but also for electrical contractors who perform electrical tests frequently and quickly every day. The device will allow AC and DC voltage, resistance measurements and will help test circuit or diode continuity. The use of UT213C guarantees users safe and stable operation and reliability.
Technical data:

• Constant voltage: 400mV / 4V / 40V / 400V / 600V ± (0.8% + 1)
• AC voltage: 4V / 40V / 400V / 600V ± (1.2% + 5)
• Continuous current: 40 A / 400 A ± (2% + 3)
• Alternating current: 40 A / 400 A ± (1.8% + 9)
• Resistance: 400 ohms / 4 kOhm / 40 kOhm / 400 kOhm / 4 MOhm / 40 MOhm; ± (1% + 2)
• Capacitance: 40 nF / 400 nF / 4 µF / 40 µF / 400 µF / 4 mF / 40 mF ± (4% + 5)
• Frequency: 10 Hz ~ 1 MHz ± (0.1% + 4)
• Temperature: -40? ~1000? ± (1% + 3); -40? ~ 1832 ± (1% + 6)
• Diode test: about 1.5V
• Continuity check
• Fill factor
• Automatic change of measurement ranges
• Electric Field Detection (NCV)
• The last measurement is recorded
• Recording of MAX / MIN measurements
• True RMS measurement
• Relative measurement mode
• Illuminated LCD screen
• Lighting of the measuring area
• Automatic shutdown
• Low battery indicator: = <3.6V
• Maximum reading: 4000
• DC Input Impedance: > = 10 MOhm
• Terminal hole: 30 mm
• Sampling: 3 / s
• Power supply: 3x 1.5 V battery (R03)
• Screen size: 38 x 24 mm
• Dimensions: 220 x 75 x 40 mm
• Weight: 280 g

In the set:

• Batteries
• Test leads
• Temperature probe
