Hismart Grindinio heating collector 3 circuits with thermal actuators NC AC230V and flow meters

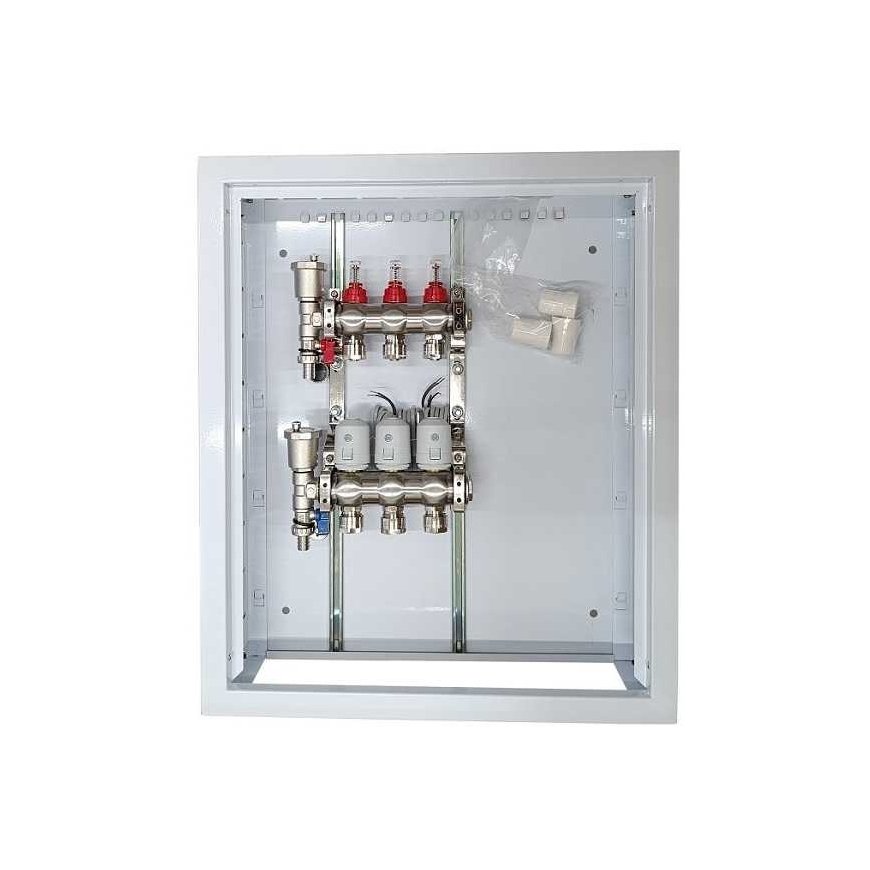

Underfloor heating manifold with 3 circuits, equipped with thermal actuators NC AC230V and flow meters. The set includes: A recessed metal box with a 3-circuit manifold, flow meters, NC AC230V thermal actuators, and two drain nodes.


Features:
The manifold is used to control the water flow in underfloor heating systems. Each pipe of the underfloor heating system is connected to the manifold, allowing for the regulation of water flow and heat output in each room of the building separately.
The electric thermal actuators are designed to control the heat distribution system of the heating equipment. They receive commands from automation devices (such as room thermostats or controllers) and regulate the distribution of water flow according to the set parameters. With the help of thermal actuators, it is possible to accurately control room temperature and reduce energy consumption.
The state of the thermal actuators is NC (normally closed). The actuators work with programmable or non-programmable room thermostats that issue an alternating current signal. Easy installation, thermal actuators are connected to the manifold via a VA80 thread adapter. The valve thread adapter VA80 allows for easy connection to a standard M30 thread, securely locking it in place. The energy consumption of each actuator is only 2W.
Included flow meters (flow indicators) are designed for monitoring water flow and pressure balancing. Manual control heads (3 pcs.) are also included.
The manifold cabinet is mounted on the wall, recessed. The doors with a latch open approximately at a 135-degree angle.


Technical specifications:
Manifold cabinet:
Installation: recessed.
Dimensions: 640x530x118mm.
Depth: 110mm.
Door dimensions: 578mm x 475mm.
Number of flow meters: 3 pcs.
Number of thermal actuators: 3 pcs.
Drain nodes: 2 pcs.
16mm pipe adapters for heating circuit: 3 pcs.
Color: light gray.

Thermal actuator:
Purpose: water heating system.
Type of operation of thermal actuators: NC (normally closed).
Operating voltage: AC 230V, 50/60Hz.
Inrush current: max. 300mA.
Energy consumption: 2W.
Installation: connected to the manifold via an adapter.
Adapter: VA 80.
Cable length: 90cm.
Operating temperature: 0°C~ +60°C.
Storage temperature: -25°C~ +65°C.
Operating humidity: < 80%RH (non-condensing).
Protection class: IP54.
Dimensions: Ø49.4mm x 56.6mm.


Warranty: 12 months.
