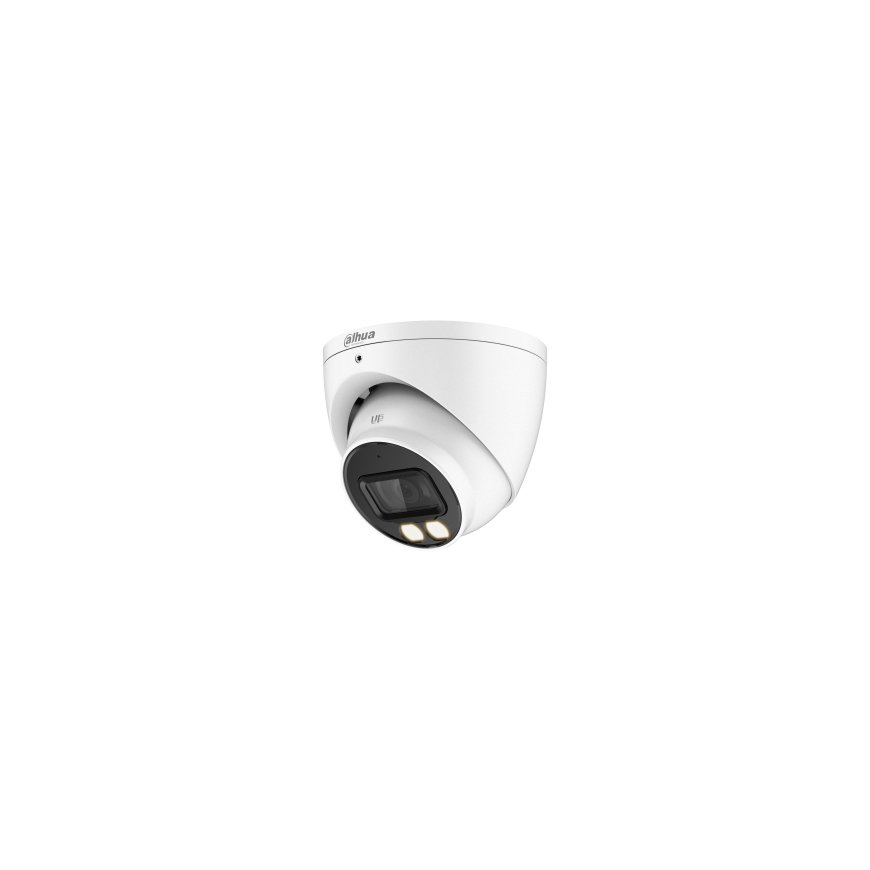

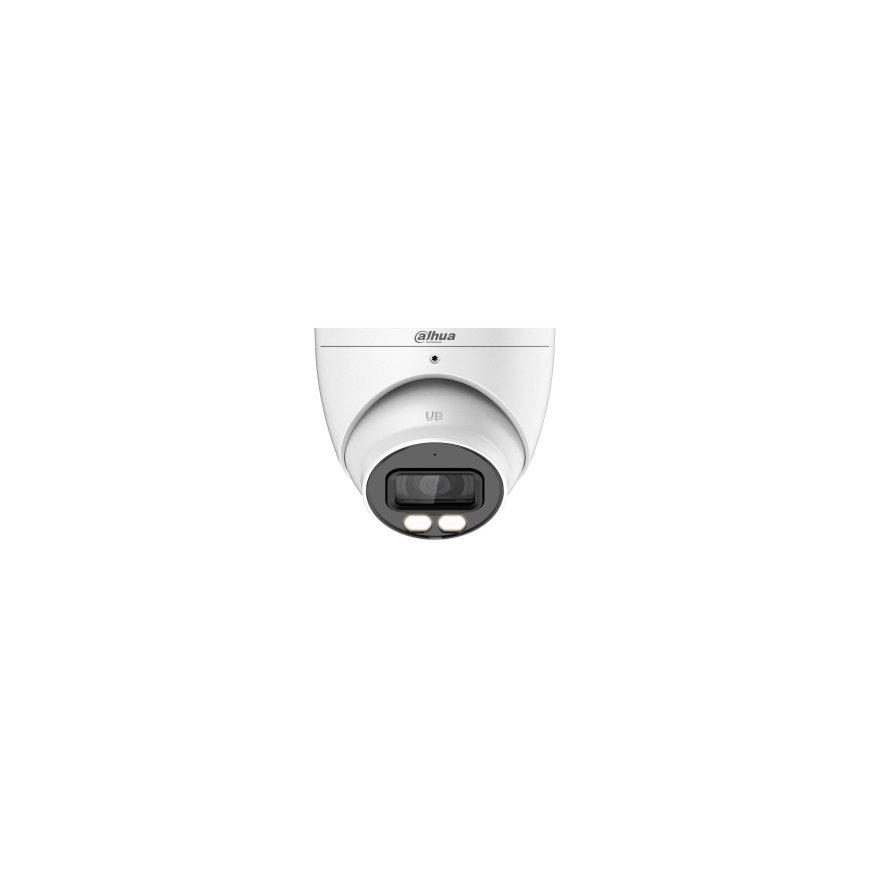

Dahua Technology Lite DH-HAC-HDW1509TP-IL-A security camera Spherical CCTV security camera Outdoor 2880 x 1620 pixels Ceiling
323,17 €
Monthly payment from 9.22 €
2384302 DH-HAC-HDW1509TP-IL-A
6923172540553
Shipping 2-5 b.d.
Pay 5x64.63€You are interested in this product?
monitoring products at a reasonable price. Its low cost and high
performance make it ideal for residential areas and SMB solutions. This
series is equipped with a wide range of technologies, such as full-color
and starlight, providing various solutions for different scenarios
Smart Dual Illuminators
With its smart dual illumination mechanism, the camera automatically
turns on the white light when Perimeter Protection/SMD Plus function
of AI XVR detects a target in therule area to capture clear, vivid images.
When the target leaves the rule area, the camera automatically switches
over from the white light to the IR illuminator to significantly reduce light
pollution.
Wide Dynamic Range
With its advanced Wide Dynamic Range technology (WDR), the camera
captures highly detailed images and produces high-definition recordings
in high-contrast lighting conditions, and in scenes with backlighting or
shadows.
Broadcast-quality Audio
Audio signal transmission over coaxial cables is supported by the
HDCVI camera. It adopts a unique audio processing and transmission
technology that restores source audio and eliminates noise, ensuring
the quality and reliability of the audio information that is collected. This
becomes important for video surveillance applications that use audio
information as a type of supplementary evidence.
Super Adapt
With its intelligent algorithm, the camera automatically adjusts its
parameters to provide optimal performance and vivid images.
Advanced 3DNR
Dahua’s advanced 3DNR technology reduces image noise with little to
no impact on image sharpness, especially in poor lighting conditions.
It detects the noise, and compares the sequential frames to effectively
reduce the noise. It also makes efficient use of bandwidth, saving on
storage space.
Protection (IP67, Wide Voltage)
IP67: The camera passed a series of rigorous dust and immersion tests.
Its enclosure is both dust-proof and waterproof, and can function
normally while being immersed in 1 m deep water for up to 30 minutes.
Wide voltage: The camera has ±30% input voltage tolerance (for some
power supplies) and a wide voltage range, making it suitable for a variety
of outdoor scenarios.
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals (video, audio*, data and power)
which are simultaneously transmitted over a coaxial cable. Dual-way
data transmission allows the HDCVI camera to interact with the XVR to
perform various actions such as sending control signals and triggering
alarms. HDCVI technology also supports PoC, which makes the camera
easy and quick to install.
* Audio input is available for select HDCVI camera models.
Long Distance Transmission
HDCVI technology provides long distance transmission in real time
without transmission loss. It supports transmission distances up to 700
m for 2-MP/5-MP/8-MP HD videos through coaxial cables, and up to 300
m through UTP cables. The results were obtained and verified through
rigorous testing in Dahua's test laboratory.
Performance | |
| Certification | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014), CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368-1:2014+A11:2017), UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14) |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Placement supported | Outdoor |
| Type | CCTV security camera |
| Remote viewing | Yes |
| Dynamic range | 120 dB |
| Built-in light | Yes |
Design | |
| Housing material | Metal |
| Mounting type | Ceiling |
| International Protection (IP) code | IP67 |
| Product colour | Black, White |
| Form factor | Spherical |
Camera | |
| Minimum illumination | 0.0001 lx |
| Camera shutter speed | 1/3 s–1/100000 s |
| Tilt angle range | 0 - 78° |
| Pan range | 0 - 360° |
| Angle of rotation | 360° |
| White balance | Auto, AWC |
| Field of view (FOV) angle | 131° |
| Camera shutter type | Electronic |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 111° |
| Lens viewing angle, vertical | 57° |
| Lens viewing angle, diagonal | 131° |
Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
Lens system | |
| Digital zoom | 4x |
| Zoom capability | Yes |
| Fixed focal length | 3.6 mm |
| Maximum aperture number | 1 |
| Detect distance | 78 m |
| Observe distance | 31.2 m |
| Recognize distance | 15.6 m |
| Identify distance | 7.8 m |
| Number of lenses | 1 |
Video | |
| Maximum resolution | 2880 x 1620 pixels |
| Frame rate | 30 fps |
| Analog signal format system | PAL, NTSC |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 2560 x 1440, 960 x 480, 960 x 576, 2880 x 1620 |
| Supported video modes | 1080p |
| Noise reduction | Yes |
| Privacy masking | Yes |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Smart IR | Yes |
| Gain control type | Auto/Manual |
| Noise reduction technology | 3D noise reduction |
| Total megapixels | 5 MP |
| Video recording | Yes |
Audio | |
| Built-in microphone | Yes |
| Signal-to-Noise Ratio (SNR) | 65 dB |
| Audio input channels | 1.0 channels |
Network | |
| Wi-Fi | No |
| Ethernet LAN | No |
| Bluetooth | No |
Storage | |
| Built-in HDD | No |
Ports & interfaces | |
| BNC output ports | 1 |
Security | |
| Mirror | Yes |
| Fire detection | Yes |
Power | |
| AC input voltage | 12 V |
| DC output voltage | 12 |
| Power consumption (max) | 5.7 W |
| Power source type | DC |
Operational conditions | |
| Operating temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions | |
| Weight | 490 g |
| Height | 93.6 mm |
| Diameter | 10.6 cm |
Packaging content | |
| Number of cameras | 1 |
Night vision | |
| Number of illumination LEDs | 2 |
| Night vision | Yes |
| LED type | IR |
Packaging data | |
| Package width | 148 mm |
| Package depth | 139 mm |
| Package height | 137 mm |
| Package weight | 660 g |
