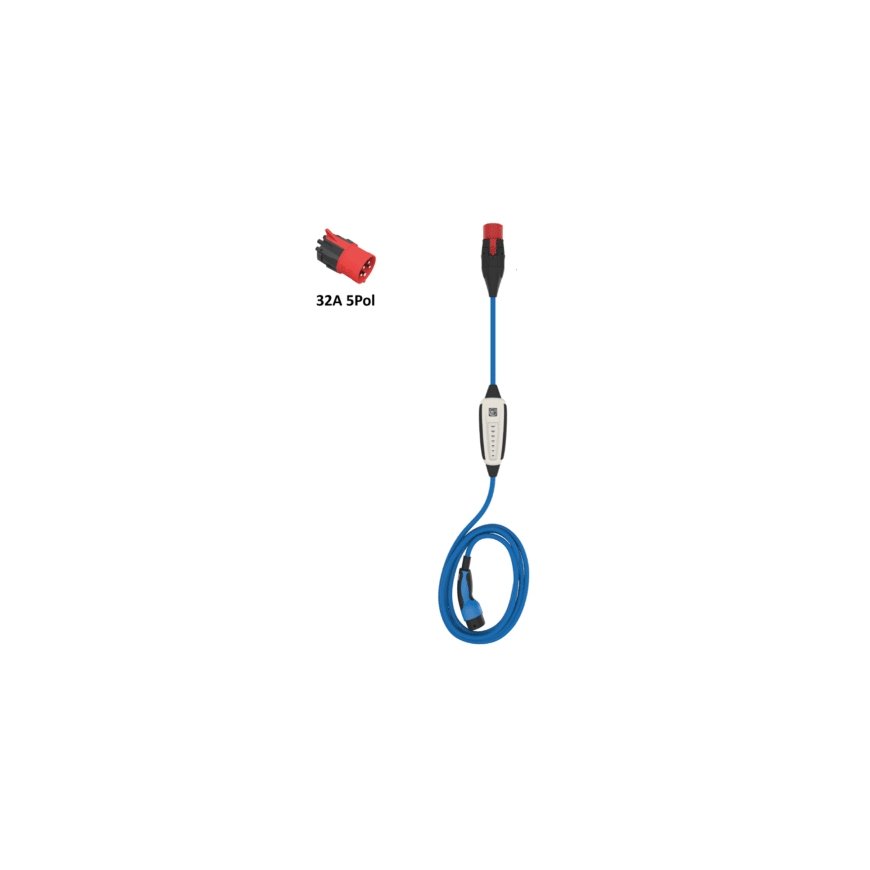

NRGkick 12501001 vehicle battery charger Black, Blue
697,26 €
Monthly payment from 18.85 €
1287154 12501001
9120075710312
Shipping 6-8 b.d.
Pay 5x139.45€You are interested in this product?
The highly innovative, transportable charging unit NRGkick is the safest charging unit on the market - and probably also the most intelligent. With NRGkick it is possible to charge as quickly as possible at any standard socket and in future even at public charging stations (with up to 22 kW, 1-/2-/3-phase). The groundbreaking, patented safety connector system with temperature monitoring on each phase pin ensures that charred sockets are excluded - regardless of whether they are CEE32, CEE16 or Schuko.
Innovations such as autonomous load management, blackout protection, locally assignable charging reports via WLAN and the option of being able to upgrade further functions via the app at any time (such as photovoltaic-led charging with phase switching) prove that with NRGkick you are not only technically only up to date, but far beyond it!
Fastest possible charging (up to 22 kW)
With NRGkick, all e-cars with a type 2 interface, whether 1-, 2- or 3-phase, can be charged at the maximum possible AC charging speed (up to 22 kW). Compared to the "emergency charging cable" for household sockets, this means that charging is up to 10 times faster and you can start your next trip fully charged in a very short time instead of many hours.
Simple and uncomplicated
With NRGkick, you don't have to bother with planning and installation for long: NRGkick can be used immediately at any standard socket and, using the optionally available type 2 plug attachment, also at public charging stations. This means you can charge your electric car wherever there is electricity and simply have your "wall box" with you if you need it! Of course, you can also leave NRGkick permanently connected to your socket without hesitation - it is absolutely temperature-resistant and even rain cannot harm it.
No installation necessary
A huge advantage of the NRGkick charging unit is that nothing more than a socket is required - in contrast to wall boxes, complicated installations are therefore unnecessary, which saves a lot of time and money. The residual current protection mechanism for AC and DC residual currents, which would otherwise have to be installed separately, is also already included.
Suitable for all sockets and charging stations
NRGkick plug attachments are available for all standard sockets and will soon also be available for public charging stations. This means that NRGkick is actually everything your e-car needs to charge.
When connecting to normal household sockets, NRGkick naturally observes the applicable country-specific regulations - for example, in Switzerland, when charging electric vehicles at household sockets, a maximum of 8A may only be charged. With NRGkick there is certainty that all specifications are correctly complied with.
With the Type 2 plug attachment, you can also use NRGkick to charge at public charging stations and thus do without the additional Mode 3 cable that would otherwise be required.
The safest charging unit on the market
NRGkick offers a wealth of safety functions, some of which have never been seen before, such as the patented safety connector system with removal detection and arc protection as well as temperature monitoring for each connector attachment on each individual phase pin! With Schuko plug attachments, the temperature is recorded on both pins.. Burnt sockets are a thing of the past!
But these are just two of an incredible number of safety functions. NRGkick offers blackout protection and undervoltage protection, overvoltage protection, phase shift detection, incorrect connection testing, switching contact diagnostics, protective conductor testing using loop impedance measurement, included residual current protection (AC, DC + 6 mA), mains frequency diagnostics, automatic self-testing and more Features many, many more!
Extremely robust
Of course, safety also means that the NRGkick is extremely resistant to external influences and manipulation by third parties. The charging unit therefore has the highest load values and a large number of functions that ensure this, such as: protection
against theft and manipulation, protection against being driven over, temperature resistance -40 to +70 °C (operating temperature), water and dust tightness (IP67), shock and impact resistance (IK10), soft components on the charging unit and connector unit for optimal haptics and scratch protection, maximum number of mating cycles thanks to silver coating of all connector attachment contact parts,...
Patented safety connector system
The patented safety connector system of the NRGkick contains unique functions that are far ahead of the market. It consists of the plug unit and plug attachments, which are available for all standard sockets as well as for public charging stations. In fact, NRGkick is everything an e-car driver ever needs to charge their vehicle anywhere there is electricity!
However, the system scores with many other functions. For example, it enables the temperature to be measured - and this for each individual plug attachment and here even for each individual phase pin. With Schuko plug attachments, the temperature is recorded at both pins. Burnt sockets are therefore excluded with NRGkick!
Another unique selling point is the system's fully automatic peel-off detection. This ensures that when the charging unit is disconnected from the power supply, no dangerous arcing can occur for you and your socket.
An additional LED display on the connector unit, haptic optimization through the use of soft components, the avoidance of any "cable clutter" and many other functions make the safety connector system an outstanding innovation!
Thermo-protect temperature management
If a socket gets too hot, this is detected on each phase pin thanks to the temperature monitoring of the plug attachments. As a result, NRGkick is able to regulate the charging current completely independently using the included temperature management and to ensure safe operation without danger. With household sockets, both pins are temperature-monitored, so there is always absolute safety for the charging unit AND socket - no matter which connection!
Autonomous load management and blackout protection
An absolute unique selling point: NRGkick brings autonomous load management and protects against power failures! This means: If NRGkick detects that the voltage drops too much due to an excessive load in the grid, the charging current is automatically regulated in such a way that the power grid can "recover" or stabilize again.
In contrast to other load management systems, no complex configuration is necessary here - the autonomous load management of the NRGkick works fully automatically and without the user having to do anything. In addition to this unique function, other load management options will also be available for NRGkick in the future.
Bluetooth and WLAN
Thanks to the large number of interfaces, it is ensured that NRGkick can be reached anytime, anywhere. Each NRGkick has a Bluetooth and WLAN interface (optional GSM/GPS/SIM) as well as access to the NRGkick Cloud and the Web API. With the free NRGkick app for iOS and Android you can access the charging unit at any time and use all the extended functions.
Full connectivity with GSM/GPS/SIM
The NRGkick variant with GSM/GPS/SIM ensures that you really have access to your NRGkick from anywhere. Not only EDGE and GPRS are used, but also 4G M1 and 4G NB-IoT - these connection types were specially developed for applications of the "Internet of Things" and designed to access your NRGkick even in communicatively difficult situations (e.g. underground car parks). have! For example, if charging costs are only reimbursed to third parties if they have taken place at certain locations, you can be sure, thanks to GSM/GPS/SIM, that the charges are securely recorded and transmitted.
Transportable and compact
Goodbye, unwieldy loading brick and unsightly giant metal cylinder! NRGkick is one of the smallest intelligent 22 kW charging units ever. The small dimensions and the "handy size" in the truest sense of the word ensure comfortable and easy handling.
In contrast to permanently installed wall boxes, NRGkick can be easily taken anywhere if required. Thanks to the extremely low weight of around four kilograms for the 5m version and the particularly flexible, high-quality charging cable, NRGkick is particularly easy to use and accompanies you on your travels in no time at all.
Intelligent functions
The free NRGkick app gives you access to a wealth of intelligent functions:
Detailed charging statistics, display of charging current costs, automatic dispatch of charging reports (PDF & CSV), overview of the amount of energy charged, definable charging start time, time-controlled charging with charging plans, energy meter, continuously adjustable charging current in 1-A steps, charging start/stop at any time, adjustable amount of charging energy,...
Charging networks – ready for billing (OCPP)
NRGkick has the option of communicating via the OCPP standard and thus joining charging networks. This makes it possible to transmit the amount of energy charged and other data via OCPP to an operator of such a charging network.
Ready for grid-friendly control
The grid-friendly control of charging units is becoming more and more important - NRGkick is already prepared here. Thanks to the versatile communication options (Bluetooth, WLAN, GSM/SIM, cloud) and standards (OCPP), you are absolutely future-proof with NRGkick.
Locally assignable charging reports via WLAN
In the NRGkick app, you can optionally specify the location of the WLAN networks set up – for example “at home” or “at work”. This information can also be seen later in the charging reports, which makes it possible to make precise statements about the amounts of energy charged at a specific location!
Charging reports with GPS coordinates (for GSM/GPS/SIM variant)
NRGkick has connectivity via Bluetooth and WLAN as standard. However, it is also available with additional communication options – GSM/GPS and integrated SIM! This means that the charging unit can in fact be accessed from anywhere, without you having to be nearby and independently of WiFi networks that may not be available.
With GPS, NRGkick also has the ability to display loads in load reports with associated geolocation data! You can then determine exactly where and how much was loaded afterwards - which in turn can be very helpful if you only want to prove charges from certain locations (e.g. for billing purposes).
Upgradable
NRGkick adapts to your wishes - so functions can be upgraded at any time even after purchase! You already have an e-car, but are only planning your photovoltaic system for the next few years? No problem with NRGkick! Get functions such as photovoltaic-led charging with phase switching for your NRGkick at any time later - without additional hardware, without buying a new charging unit! In addition to photovoltaic-led charging, there will be many other functions that you can later add to NRGkick at any time if you wish: communication via OCPP and soon also expanded load management, fleet management and much more!
Upgradable
NRGkick is not only upgradable - but also absolutely future-proof via over-the-air (OTA) updates, as new functions and improvements are automatically downloaded from your NRGkick and are immediately available.
Highest quality
NRGkick was the first mobile charging unit ever to be validated and certified by VDE and ÖVE. The VDE (Association for Electrical, Electronic & Information Technologies) is the most respected body for this. This testifies to compliance with the relevant norms and standards and is proof of the outstanding product and manufacturing quality of the NRGkick. At NRGkick, not only the products themselves, but also the production facility are certified and monitored by VDE and ÖVE!
For this reason, NRGkick proudly wears the VDE and ÖVE labels on the product.
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Product colour | Black; Blue |
| International Protection (IP) code | IP67 |
| Suitable for | Outdoor |
| Operating temperature (T-T) | -40 - 70 °C |
| Output current | 32 A |
| Power plug | Type 2 |
| Charging current | 16 A |
| Output power | 22 kW |
| Charging cable length | 5 m |
