Electric vehicle charging station socket Duosida, Type 2 (Female), 32A, 3-phase

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

Electric vehicle charging station socket Duosida, Type 2 (Female), 32A, 3-phase

127,35 €
Monthly payment from 4.18
2195111

EV200238

9990000200238

Shipping 2-4 days

Pay 5x25.47€
Quantity
You are interested in this product?
(Read terms of service)

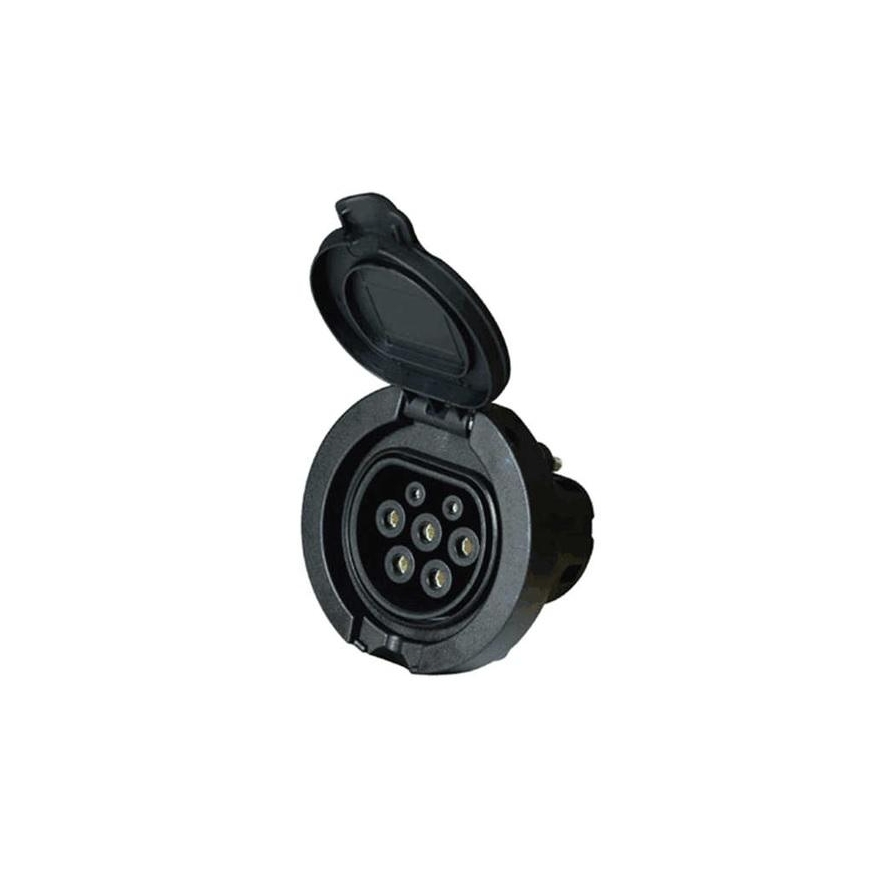

Electric vehicle charging station socket (charger side), Type 2 (Female), 32A, 3-phase, without cable.


Features:
Electric car charging socket Type 2 (62196-2).
The socket has a protective cover, is compact and easily fixed with 4 screws.
Resistant to flame, pressure, abrasion or impact.
Socket charging power up to 22 kW. Operating temperature -30° to +50°C. Current 32A/415V.
Cable contacts - copper alloy, silver plating.


Technical data:
Connector type: IEC 62196, Type 2 (European), Mennekes, 7 contacts.
Nominal current: 32A.
Voltage: 415V AC.
Cable dimensions: 3x6mm²+2x0.75mm² (for single phase); 5x6mm²+ 2x0.75mm² (for three-phase).
Operating temperature: from -30°C to +50°C.
Material: thermoplastic, fire resistance UL94 V-0.
Certificates: CE, TUV.
Color black.



Warranty: 24 months
