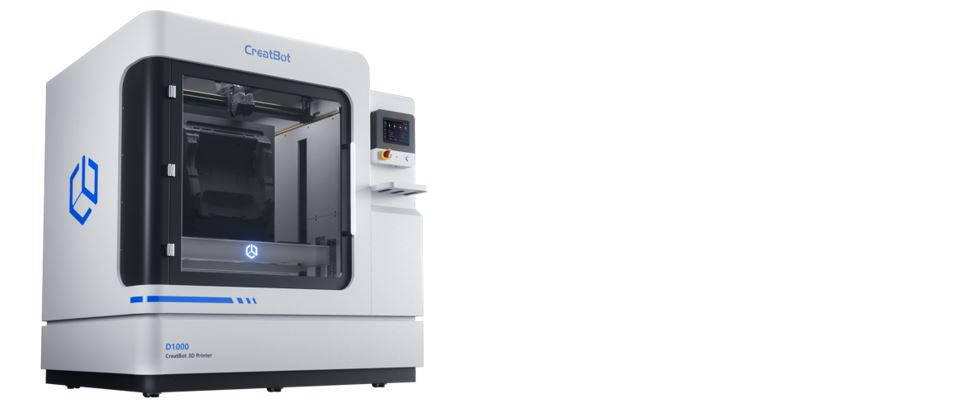

3D Printer - CreatBot D1000

One cubic meter industrial-grade large 3D printer.

The D1000 is an upgrade from the F1000. With a build volume of over 1,000 x 1,000 x 1,000 mm, it is the perfect machine for creating large and full-size parts, prototypes, tools, molds, fixtures and fixtures. You can have a fully functional high-quality prototype in a matter of days. CreatBot large rolls of PLA, ABS, ASA, PA-CF, etc. filament are perfect for your large models without having to worry about frequent filament changes. All of its features are built to the highest standards. Every time, every part, error-free.

Faurecia is a global supplier of advanced automotive systems engineering and equipment. They use the CreatBot 3D printer D1000 model to design and create car seat molds and are widely used in Audi, VW, NISSAN and GM engines. The molds in the video are a typical 3D printed product made using the D1000 3D printer. The bowl and lid must withstand 100MPa, we choose nylon-carbon fiber materials with 50% filler for production. Finally, the performance of the prints is excellent and has passed the rigorous tests!

Size without worries For high-strength prototype

The CreatBot D1000 was designed to make industrial 3D printing of large-scale objects and prototypes as easy as possible. It is equipped with many advanced technologies for extremely large, impressive prints. It will be your best choice, without a doubt, if you are looking for an industrial large-scale 3D printer for prototyping and engineering materials.

If you are tired of PLA brittleness and ABS deformation, try our revolutionary material UltraPA-CF. Print your large model with a large nozzle, you will get an oversized model with high strength of 80 MPa and temperature resistance of 150 ° C in a few days. The best choice for your prototype verification.

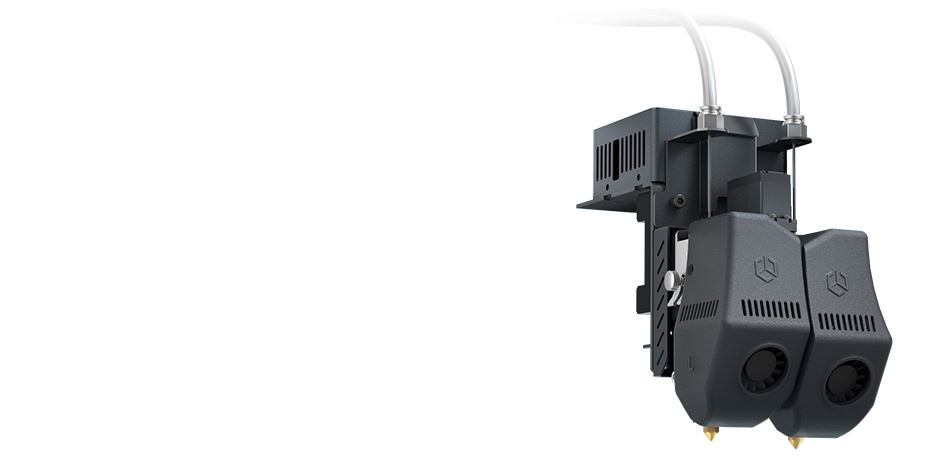

Automatic rising twin extruders 420℃

D1000 is integrated with a new intelligent auto-rising dual extruder kit, with a temperature of up to 420℃, and the hotend can be quickly changed to a different size. It can print not only large PLA + water-soluble materials for PVA prototype at the fastest speed, but also ABS, PC, nylon, carbon fiber, flexible and more high-performance materials for direct use. The dual-hotend is easy to maintain and inexpensive to replace.

Interruption recovery & thread detection

The printer will automatically memorize the current position and save the printing data. When the power is suddenly turned off, lower the platform and pull out the filament. When the power is turned on, it will continue to print from the last stop point. No trace! The printer will prevent misprints by stopping printing and warning when the filament runs out.

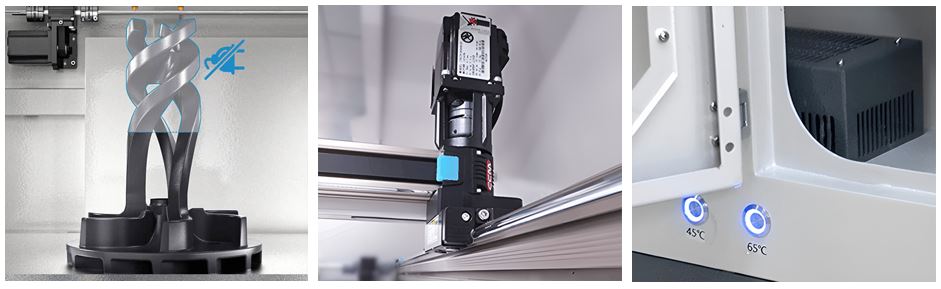

Linear rails and servo motors

When it reaches 1000mm+ length, the small rail has a large deflection. D1000 precision linear rail design is very thick and strong. It will not deform or lose accuracy after a million times of impact on the print head. With servo motors, timeliness, fast response, no inertia, no delay. Closed-loop position control overcomes the problem of step loss. Heat and noise are significantly reduced. This gives the printing model extremely high performance and high speed.

Hot chamber + filament dry room

60°C hot chamber ensures high quality printing quality of materials. The fully enclosed chamber can block all external interference. Also, this frame can reduce noise while ensuring a constant temperature to prevent the model from deforming. The filament drying room has 45°C and 65°C temperature to dry 2x5kg/roll filament such as PLA, nylon, PC, ABS and other water-absorbing materials.

Self-leveling platform

Using 100-point high-precision servo probe to preserve the original platform flatness data level, using Z-axis intelligent compensation table height in the printing process to achieve fully automatic leveling.

HEPA air filter

The air filter system can adsorb impurities and gases generated during printing special filaments such as ABS, nylon, PC, safer and more environmentally friendly, which is more suitable for homes, schools, offices.

Camera control technology

Camera control technology allows customers to remotely control printing speed, pause, temp. etc. via APP, which can get the best printing quality in the shortest time without failure. A very useful function in large model and long time printing.

Affordable and reliable large 3D printer

The CreatBot D1000 was designed to make industrial 3D printing of large-scale objects and prototypes as easy as possible. It is an industrial 3D printer that responds to market needs and is integrated with a new intelligent dual extruder assembly, a closed heated chamber, an automatic leveling system and camera control for large, impressive prints. The camera control technology allows customers to control the printing process via APP, which can obtain the best print quality in the shortest time without failures. With a fast heating platform and a hot chamber, this high-resolution large-format workhorse produces incredible results using high-quality materials. The CreatBot D1000 sets a new standard in additive manufacturing and expands the material capabilities of large-scale 3D printers, allowing more companies to significantly reduce costs and time.

The CreatBot D1000 will undoubtedly be your best choice if you are looking for an industrial large-scale 3D printer for prototyping and engineering materials.

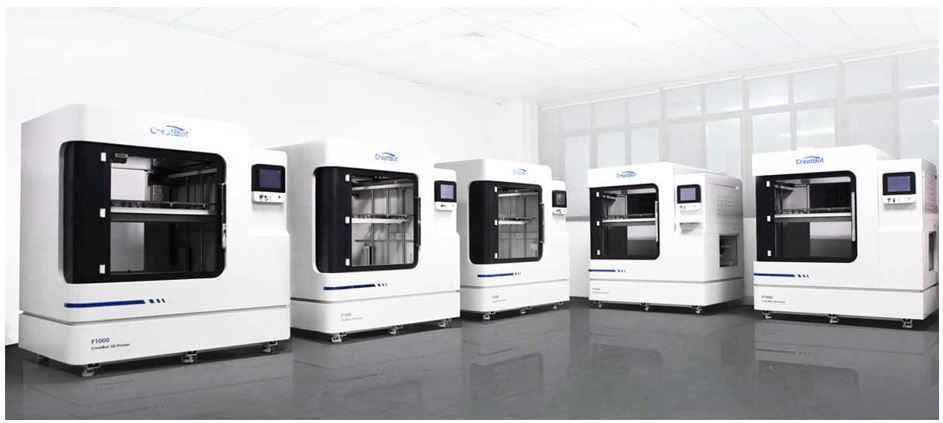

Stability

The all-steel body not only ensures stability during printing, but also greatly extends the service life. The overall structure optimization and cooperation ensure sustainable and efficient operation. The first batch of CreatBot 3D printers with all-steel body have been running for 9 years and more than 30,000 hours.

Specifications:

• Tip thread/mounting: MK8
• Compatible filament diameter: 1.75 mm
• Maximum nozzle temperature: 420 ºC
• Open thread system: Yes
• Extruder type: two-gear direct drive
• Recommended maximum print speed: 120 mm/s (depends on material)
• Construction volume: 1000x1000x1000mm
• Double building area: 940x1000x1000mm
• Maximum temperature of the mounting plate: 100 ºC
• Structure plate material: aluminum plate
• Structural panel leveling system: mechanical switch
• Creation chamber during the process: open or closed
• Construction chamber Heated: Yes, max. 60°C
• Filament chamber closed: Yes
• Number of extruders: 2
• Double extruder design type: double head with electronic lifting system
• Overall dimensions: 1810x1350x1942mm
• Net weight: 650 kg
• Maximum power consumption: 4500 W
• Voltage: AC: 220V 240V (50-60Hz)
• Emergency shutdown: Yes
• Hepa filter: Yes
• Filament leak sensor: Yes
• Safe power loss: yes
• Touchscreen: Yes
• Camera: Yes
• USB port: Yes
• Resolution: 0.05mm
• Shipping carton: 1980x1520x2200mm
• Total weight: 750 kg
