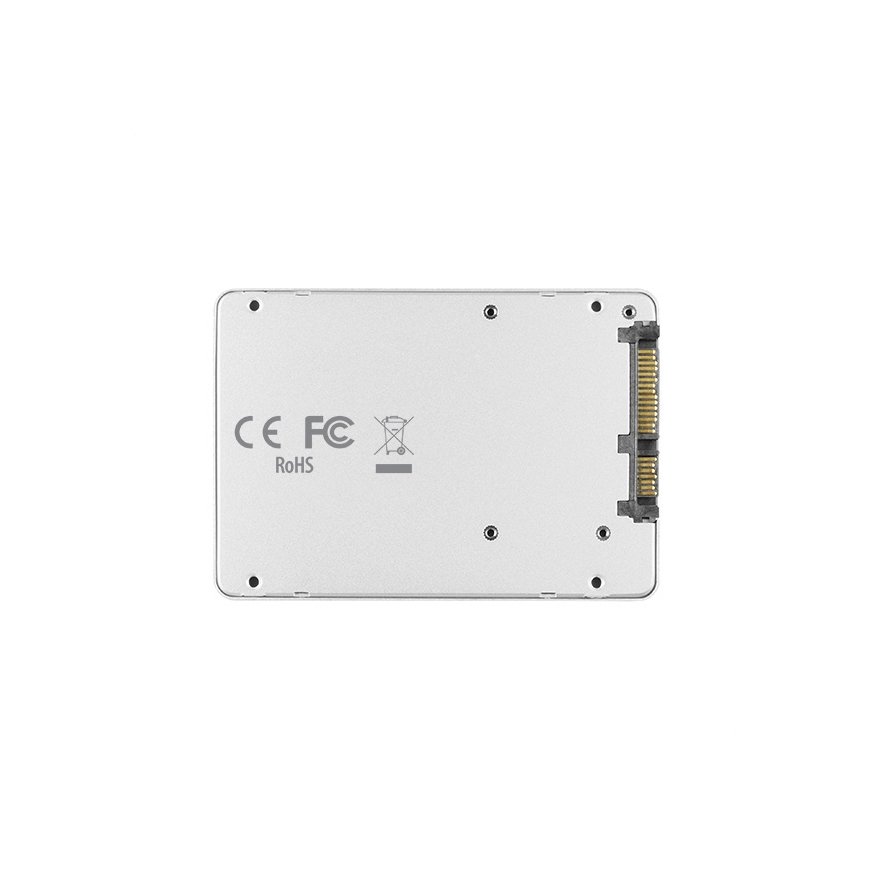

Axagon RSS-M2SD interface cards/adapter Internal SATA
20,57 €
865917 RSS-M2SD
8595247903884
Shipping 1-3 b.d.
You are interested in this product?
The SATA 6G interface will allow the user to enjoy modern M.2 SSDs with a bit rate of up to 6Gb/s. In addition, the internal M.2 box supports other modern functionalities, e.g. TRIM.
In the box, SATA M.2 SSDs with a size up to 22x80 mm can be mounted. The box does not limit SSD capacity, and inserted M.2 SSD cards may be of both one-sided and double-sided types.
In the operating system, in BIOS (UEFI) and during booting, the internal box with inserted M.2 card behaves like a standard hard disk. This reduction features both appearance and dimensions of a standard SDD. By inserting the M.2 SSD in the reduction you will easily create a very fast internal 2.5" disk.
Input:
• SATA 6G (SATA III) interface, compatible with SATA 3G (SATA II) and SATA 1.5G (SATA I).
• 22-pin (7+15) SATA data and power supply male connector to connect the box with the motherboard.
• To achieve the best possible bit rates, the use of a SATA 6G controller is recommended.
Device support:
• SATA M.2 SSDs.
• designed for B+M-key and B-key card formats,
• NGFF 75-pin B-key slot for SATA M.2 drives.
Other features:
• Support of B+M-key or B-key SATA (AHCI) M.2 SSDs without maximum capacity limitation.
• Support of M.2 drives with a size of 2230, 2242, 2260, and 2280 mm.
• Support of both one-sided and double-sided M.2 SSDs.
• Compliant with Serial ATA 3.1 specification (SATA/600), bit rates of up to 6 Gb/s (600 MB/s).
• Compliant with Serial ATA 2.0 specification (SATA/300), transfer rates as high as 3 Gb/s (300 MB/s).
• Compliant with Serial ATA 1.0 specification (SATA/150), bit rates of up to 1.5 Gb/s (150 MB/s).
• Support of TRIM functionality to limit gradual degradation of the SSD performance over time.
• SSD/HDD boot support in internal box.
• Full Plug and Play support.
• The adapter is supplied from a standard 15-pin SATA power supply connector.
• The aluminium body helps to cool the M.2 SSD.
Other data:
• Internal box dimensions 100 x 70 x 7 mm.
• Internal box weight 48 g (without M.2 SSD).
Supported operating systems:
• MS Windows 7 / 8 / 8.1 / 10 and later, Windows Server 2008 R2 / 2012 / 2016 and later (all 32-bit and 64-bit Windows OS versions are supported), Mac OS X 10.x and higher, Linux with kernel 2.6.x and higher.
• Note: This is solely a hardware reduction, no drivers are installed.
Package contains:
• internal 2.5" SATA box for SATA M.2 SSD,
• mounting material and a screwdriver,
• printed installation manual EN/CZ/DE/ESP/FR/HU/IT/PL/RO/RU/SK/BG,
• packed in a cardboard box with clearly indicated parameters.
| Product colour | Silver |
| Weight | 48 g |
| Width | 100 mm |
| Depth | 70 mm |
| Height | 7 mm |
| Quantity per pack | 1 pc(s) |
| Package type | Box |
| Package width | 175 mm |
| Package depth | 85 mm |
| Package height | 25 mm |
| Plug and Play | Yes |
| Package weight | 83 g |
| Windows operating systems supported | Windows 7; Windows 8; Windows 10; Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.6 Snow Leopard; Mac OS X 10.11 El Capitan; Mac OS X 10.12 Sierra; Mac OS X 10.14 Mojave; Mac OS X 10.13 High Sierra; Mac OS X 10.4 Tiger; Mac OS X 10.5 Leopard; Mac OS X 10.7 Lion; Mac OS X 10.8 Mountain Lion; Mac OS X 10.9 Mavericks; Mac OS X 10.10 Yosemite; Mac OS X 10.0 Cheetah; Mac OS X 10.1 Puma; Mac OS X 10.2 Jaguar; Mac OS X 10.3 Panther |
| Manual | Yes |
| Country of origin | China |
| Certification | CE, FCC |
| Host interface | M.2 |
| Data transfer rate | 6 Gbit/s |
| Other operating systems supported | Yes |
| Easy to install | Yes |
| Linux operating systems supported | Yes |
| Internal | Yes |
| NVMe | No |
| Output interface | SATA |
| Server operating systems supported | Yes |
| TRIM support | Yes |
| Number of M.2 (B) slots | 1 |
| SATA power connector type | SATA 15-pin |
| Compliance certificates | RoHS |
