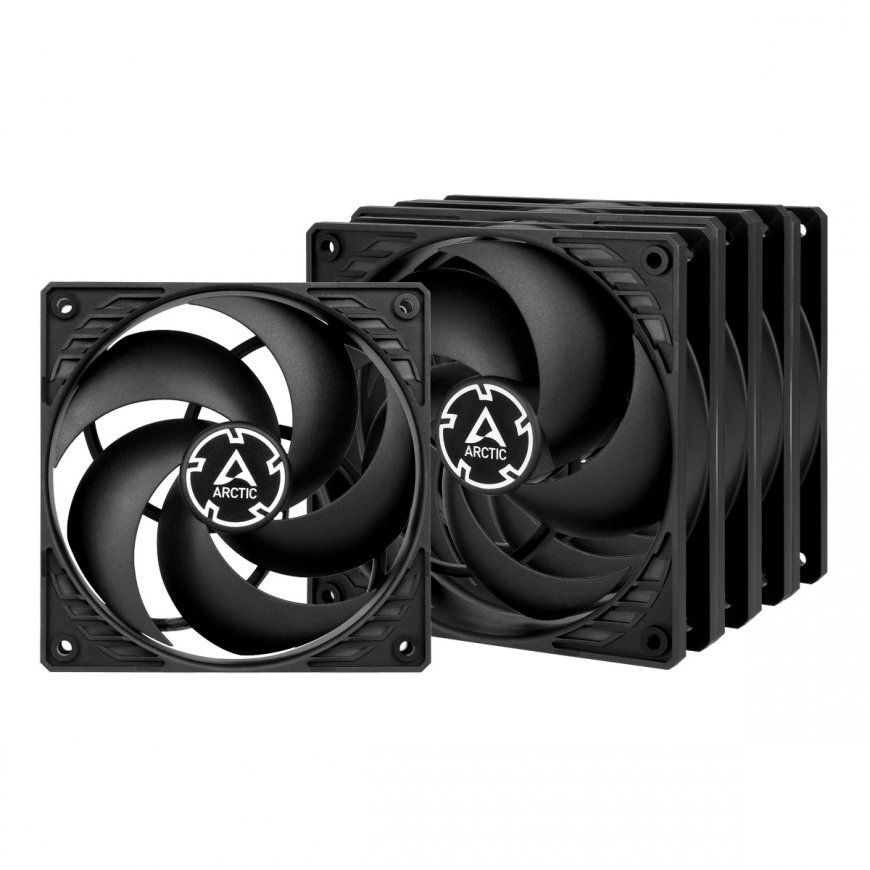

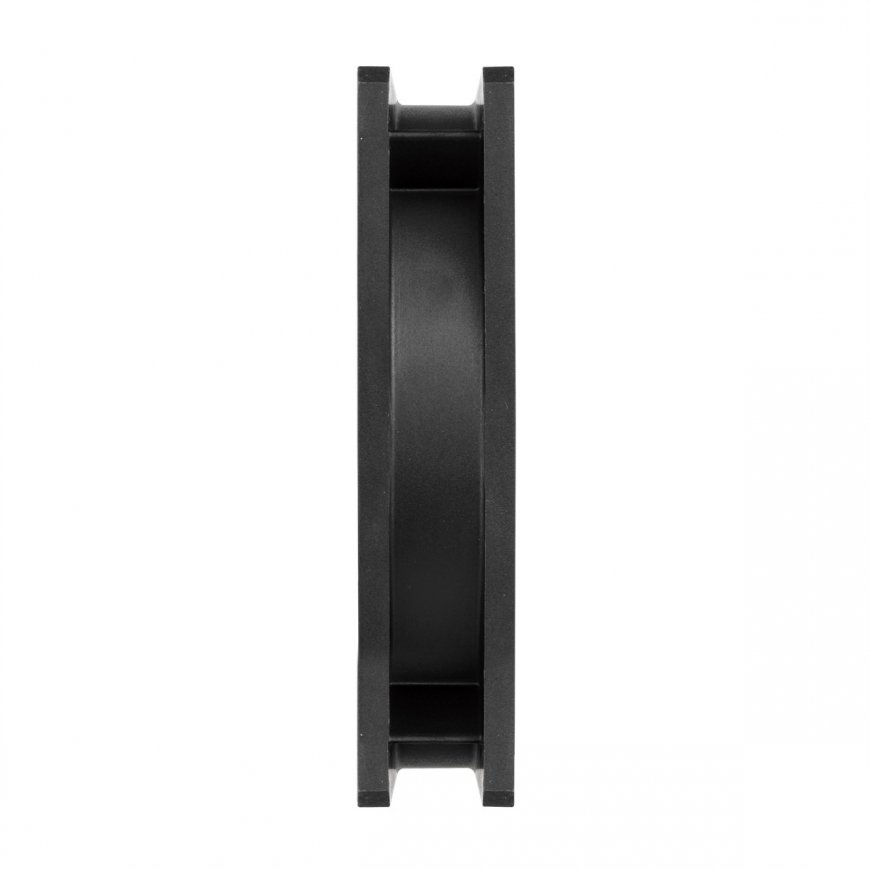

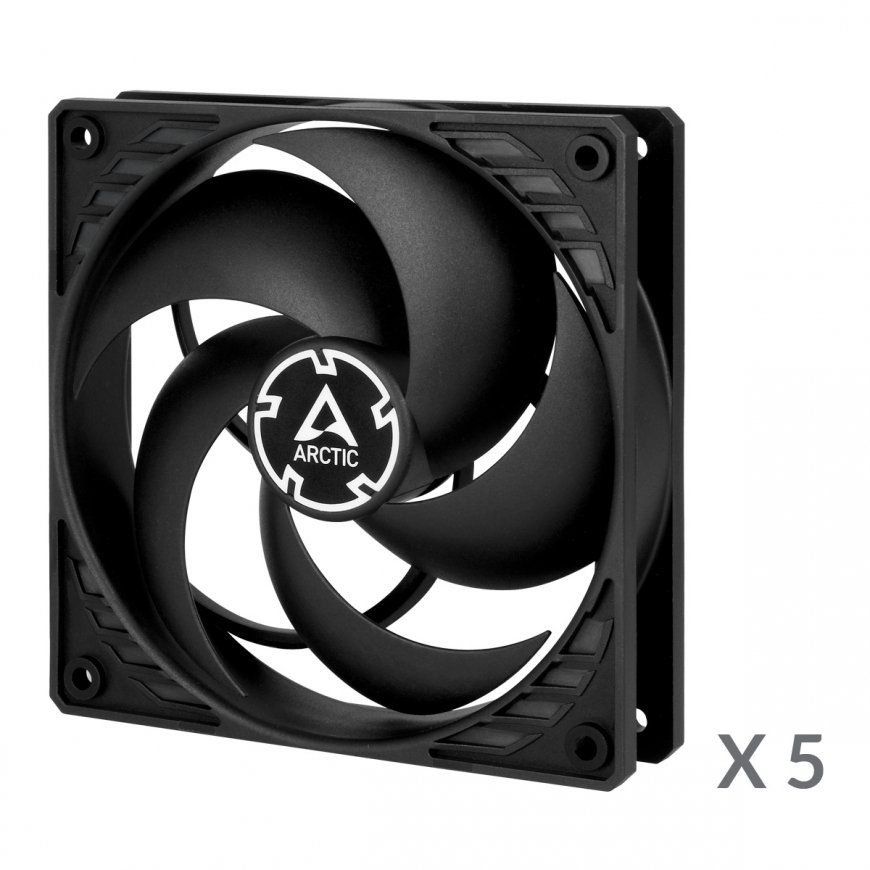

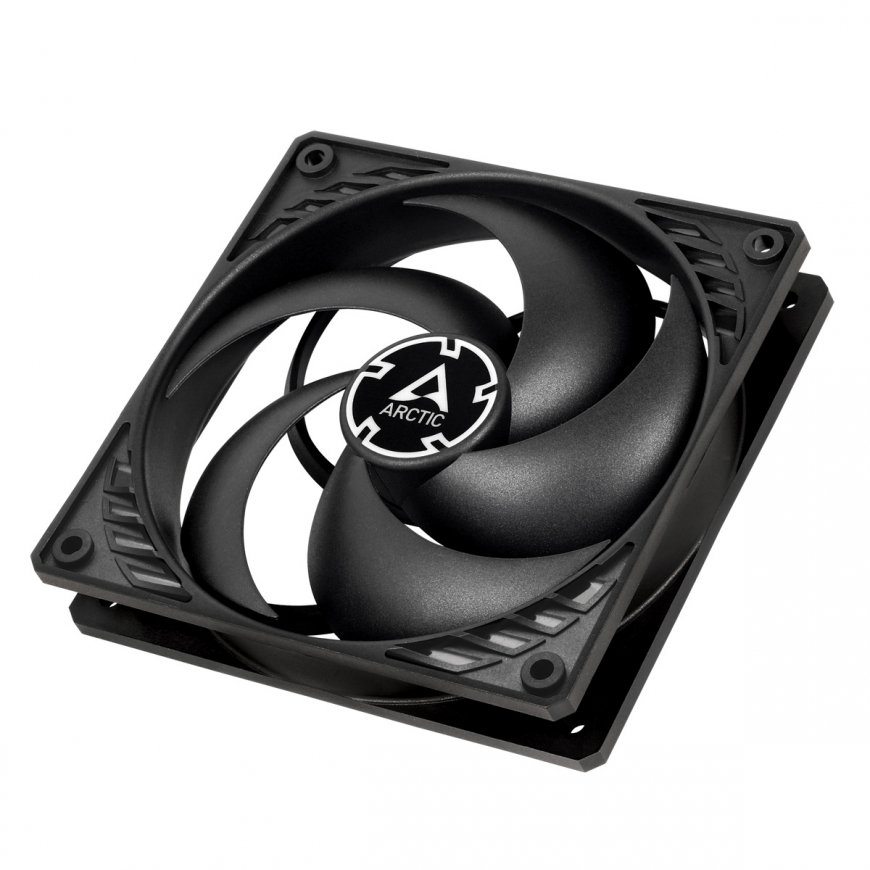

ARCTIC P12 - Pressure-optimised 120 mm Fan
534705 ACFAN00135A
4895213701617, 0872767009554
Shipping 3-5 b.d.
Optimised for Static Pressure
During the development of the new P12, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance.
Therefore, the P12 is particularly suitable for use on heatsinks and radiators.
Strong Cooling Performance
Numerous improvements, such as an updated engine technology and a newly developed fan design, have noticeably increased the performance of P-fans. In internal performance tests leveled to 28 dB (A), the new P-fans left many competitors behind.
High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Performance | |
| Supported processor sockets | Not supported |
| Type | Fan |
| Fan diameter | 12 cm |
| Airflow | 95.65 m³/h |
| Maximum airflow | 56.3 cfm |
| Compatible processor series | Not supported |
| Rotational speed (max) | 1800 RPM |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Noise level | 0.3 sone |
| Suitable location | Computer case |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan connector | 3-pin |
| Number of fan blades | 5 |
Power | |
| Rated current | 0.2 A |
| Voltage | 12 V |
| Starting voltage | 2.8 V |
Weight & dimensions | |
| Weight | 139 g |
| Package weight | 800 g |
| Height | 25 mm |
| Width | 120 mm |
| Depth | 120 mm |
| Cable length | 0.4 m |
| Package height | 123 mm |
| Package width | 130 mm |
| Package depth | 127 mm |
Packaging content | |
| Screws included | Yes |
| Number of screws | 20 |
| Package type | Box |
Other features | |
| Country of origin | China |
Logistics data | |
| Harmonized System (HS) code | 84733080 |
