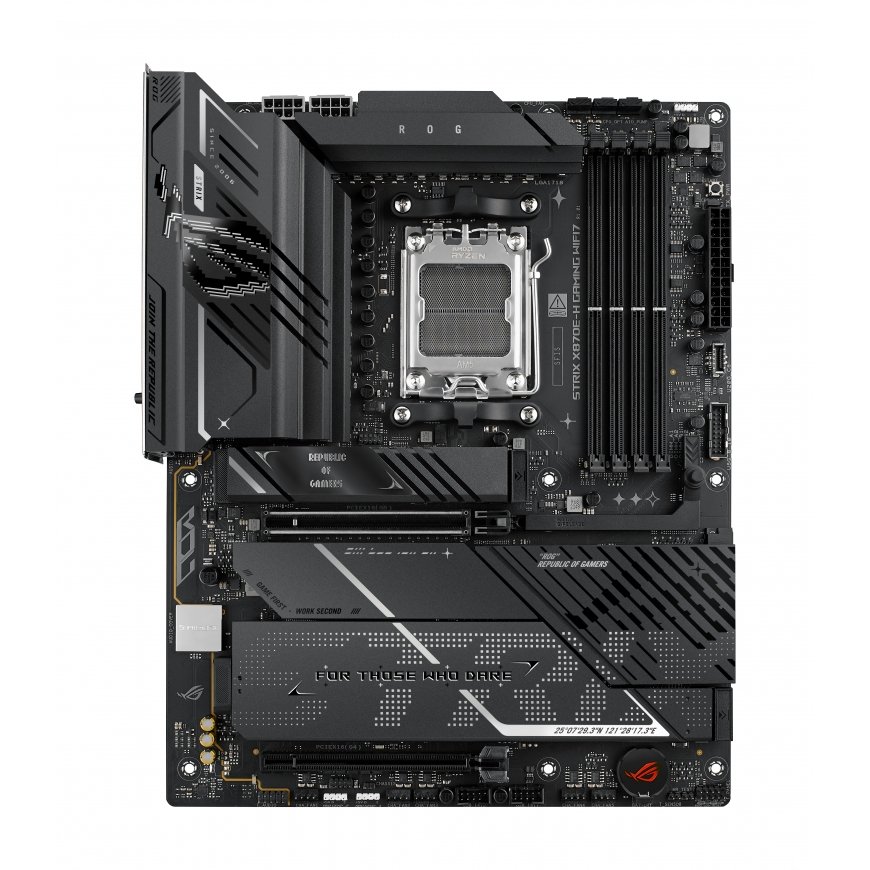

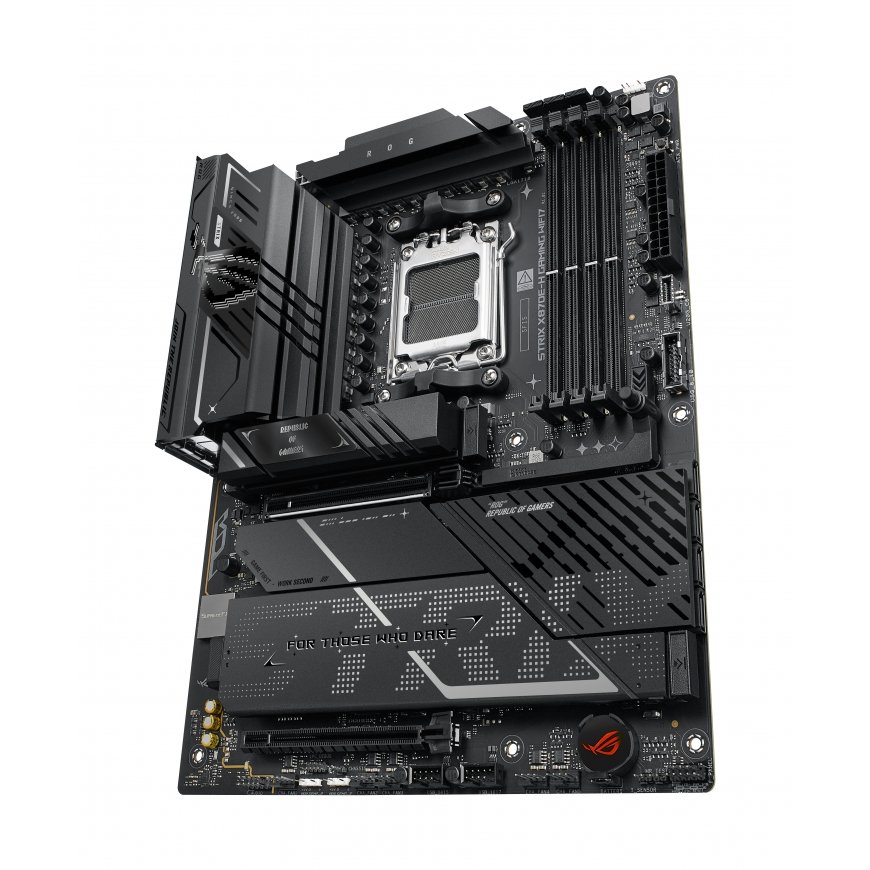

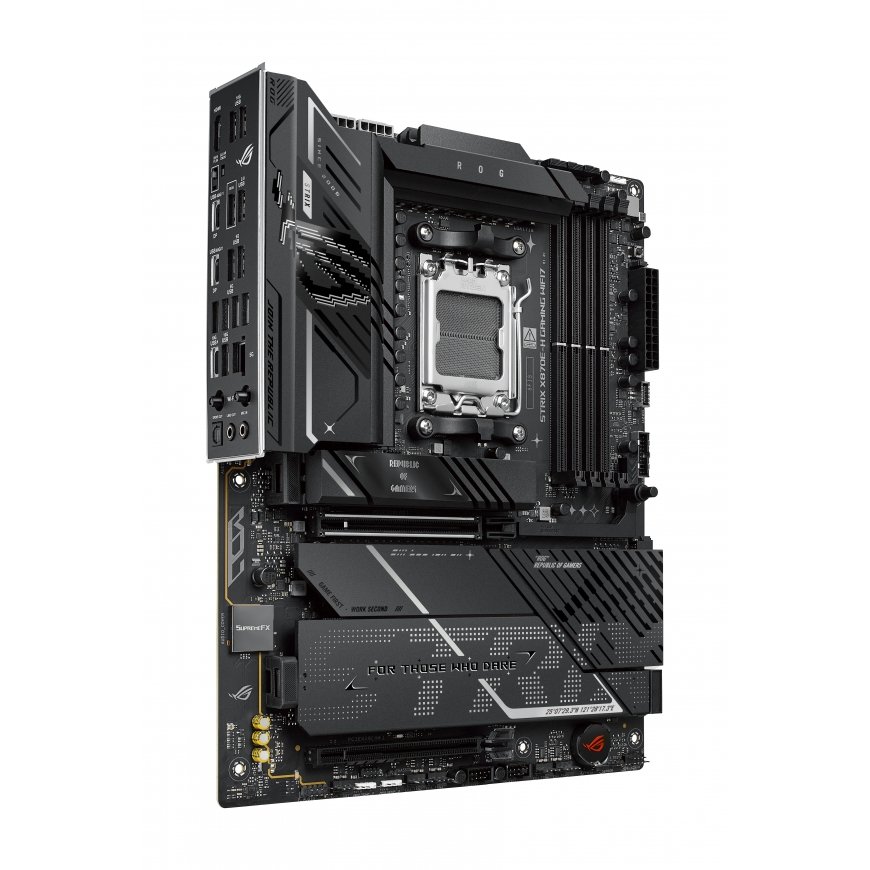

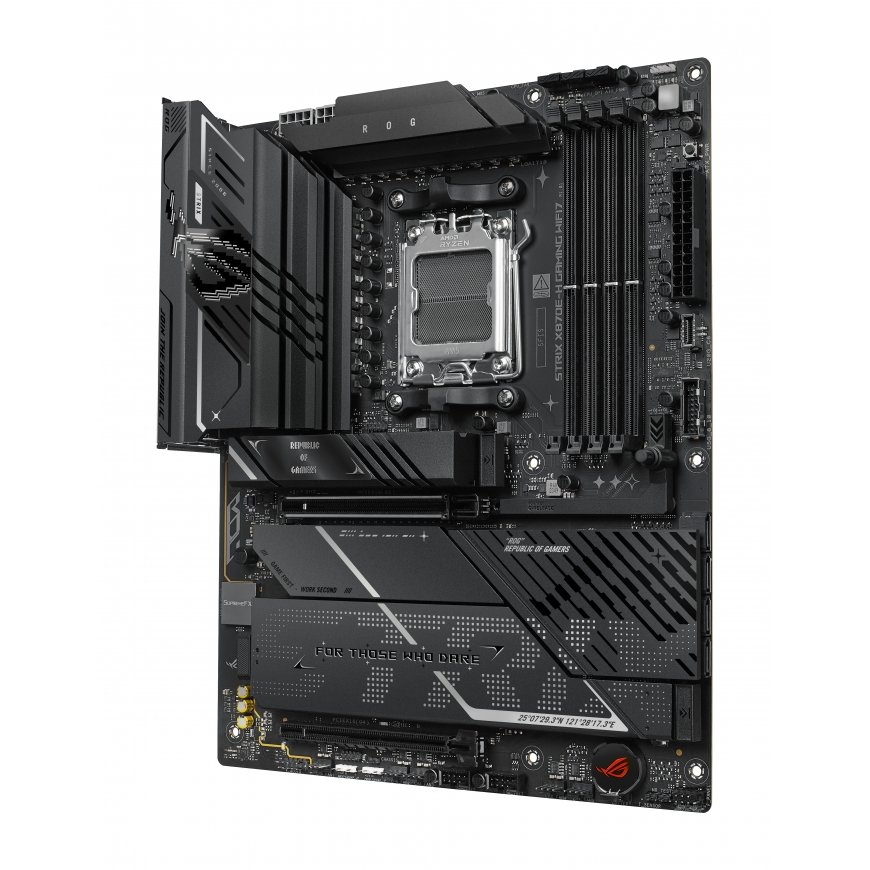

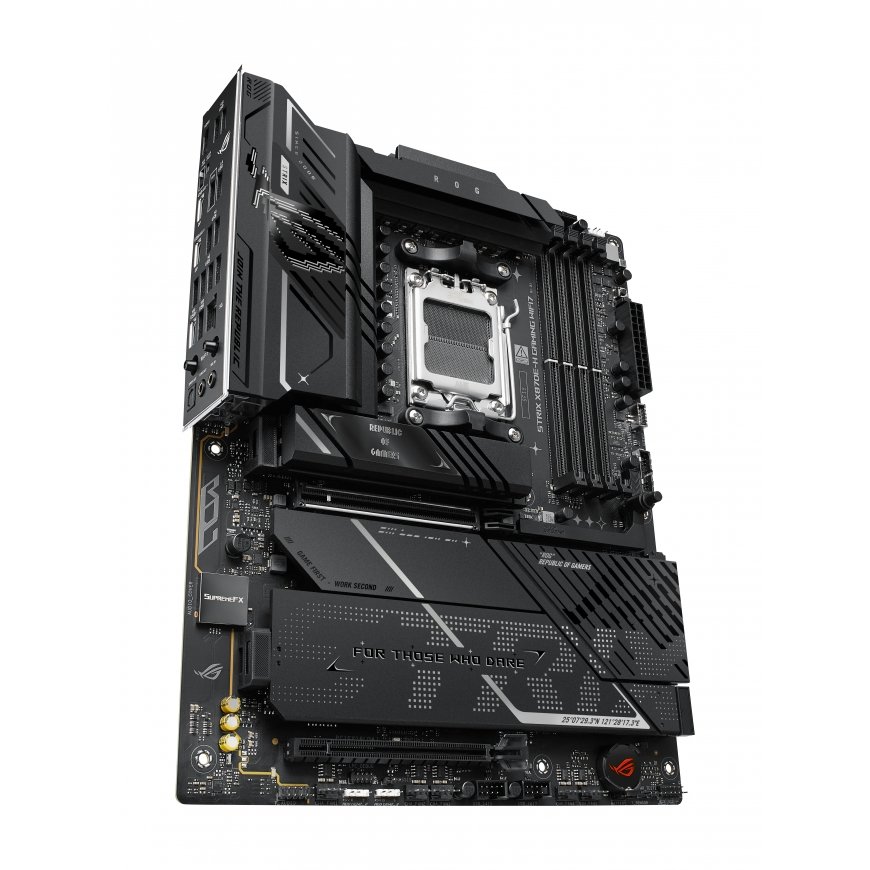

ASUS ROG STRIX X870E-H GAMING WIFI7 AMD X870E Socket AM5 ATX
459,85 €
Monthly payment from 12.74 €
3838432 90MB1M90-M0EAY0
4711636167208
Goods will arrive at the Tallinn warehouse on 03.04.26
Pay 5x91.97€You are interested in this product?
Transform your gaming experience with the ROG STRIX X870E-H GAMING WIFI7 motherboard. Engineered to dominate with AMD Ryzen™ 9000 Series Desktop Processors, this ATX powerhouse features cutting-edge power design and AI-enhanced solutions. With PCIe 5.0 x16 slots, dual USB4® Type-C ports, and WiFi 7, it delivers advanced connectivity. DIY-friendly features like M.2 Q-Release on all four M.2 slots and PCIe Slot Q-Release make building and upgrades effortless. Unleash your system's full potential with the ROG STRIX X870E-H GAMING WIFI7.
Processor | |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Processor manufacturer | AMD |
Memory | |
| Maximum internal memory | 256 GB |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
Storage controllers | |
| RAID levels | 0, 1, 5, 10 |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 8 |
| RAID support | Yes |
Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
Internal I/O | |
| Number of SATA connectors | 0 |
| USB 2.0 connectors | 2 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| Number of chassis fan connectors | 5 |
| Front panel audio connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA II connectors | 0 |
| Number of SATA III connectors | 4 |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of RGB LED pin headers | 3 |
| Number of temperature sensor headers | 1 |
Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| VGA (D-Sub) ports quantity | 0 |
| WiFi-AP antenna jack | 1 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB4 Gen 3x2 ports quantity | 2 |
Network | |
| Ethernet interface type | 5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
Features | |
| Motherboard form factor | ATX |
| Motherboard chipset | AMD X870E |
| Audio output channels | 7.1 channels |
| Motherboard chipset family | AMD |
| Component for | PC |
| Windows operating systems supported | Windows 11 |
| Audio chip | Realtek ALC1220P |
| Product colour | Black |
Expansion slots | |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 4.0 |
BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
Other features | |
| mSATA ports quantity | 0 |
Packaging content | |
| Cables included | SATA |
| Antenna included | Yes |
Packaging data | |
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 2.07 kg |
