UNIVERSAL MEASURING DEVICE UT-191T UNI-T
99,00 €
Monthly payment from 3.45 €
3836189 UT191T
6935750519110
Shipping 3-5 b.d.
Pay 5x19.80€You are interested in this product?

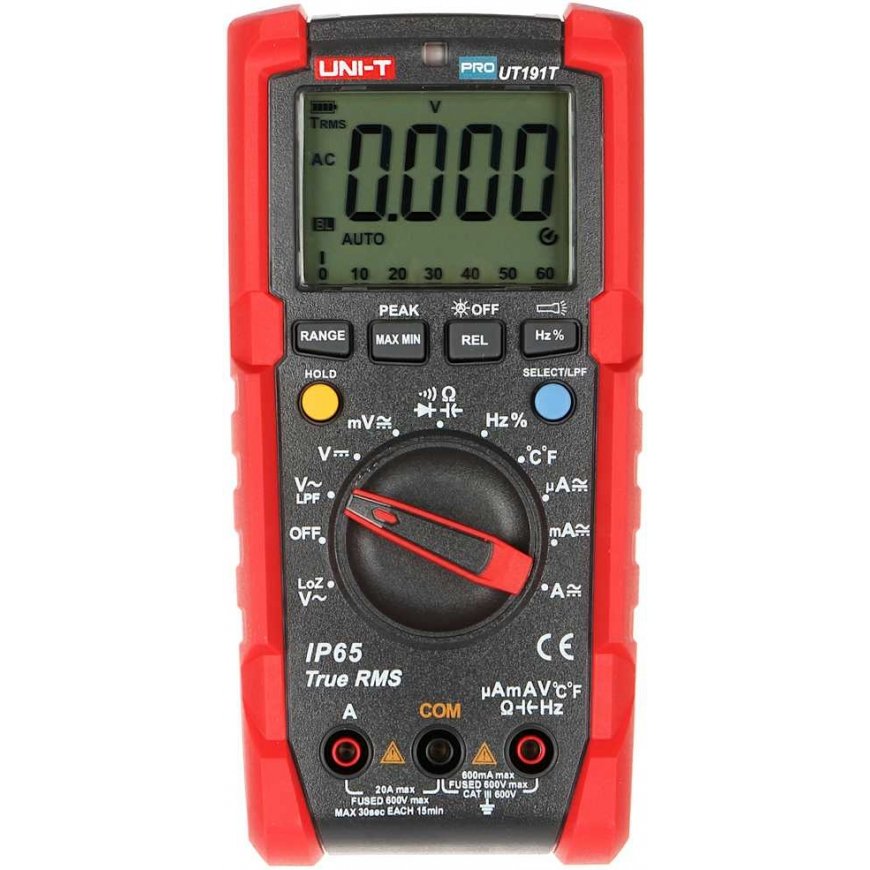

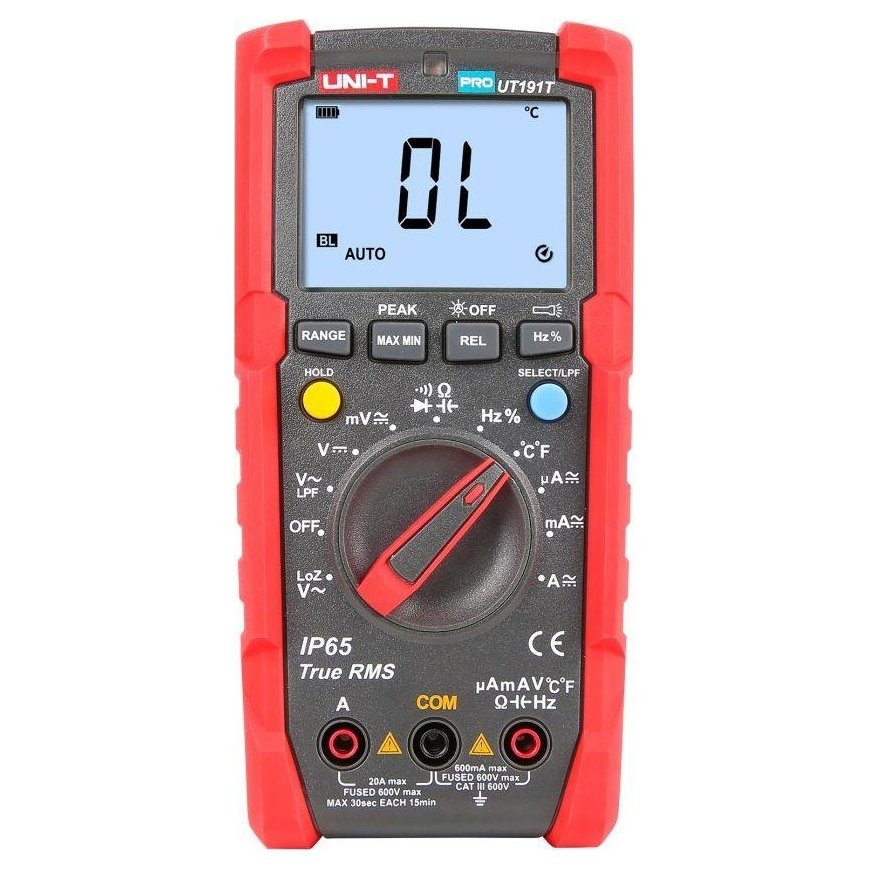

UT-191T is a universal digital multimeter designed to measure: voltage, current, resistance, capacitance, frequency, temperature, and to check if diodes are functioning properly.
The measuring device has an automatic measurement range switching function, as well as relative measurement.
The device meets the IP65 ingress protection class.
| DC voltage measurement : | 600 mV ± (0.7% + 3) @ 0.1 mV , 6 V ± (0.5% + 3) @ 0.001 V , 60 V ± (0.7% + 3) @ 0.01 V , 600 V ± (0.7% + 3) @ 0.1 V |
| AC voltage measurement : | 600 mV ± (1.0% + 4) @ 0.1 mV , 6 V ± (0.7% + 3) @ 0.001 V , 60 V ± (1.0% + 3) @ 0.01 V , 600 V ± (1.0% + 3) @ 0.1 V LPF mode : 600 V ± (2.0% + 5) @ 0.1 V LoZ mode : 600 V ± (2.0% + 5) @ 0.1 V |
| DC current measurement : | 600 µA ± (0.8% + 3) @ 0.1 µA , 6000 µA ± (0.8% + 3) @ 1 µA , 60 mA ± (0.8% + 3) @ 0.01 mA , 600 mA ± (0.8% + 3) @ 0.1 mA , 6 A ± (1.0% + 3) @ 0.001 A , 20 A ± (1.2% + 5) @ 0.01 A |
| AC current measurement : | 600 µA ± (1.0% + 3) @ 0.1 µA , 6000 µA ± (1.0% + 3) @ 1 µA , 60 mA ± (1.0% + 3) @ 0.01 mA , 600 mA ± (1.0% + 3) @ 0.1 mA , 6 A ± (1.2% + 3) @ 0.001 A , 20 A ± (1.5% + 5) @ 0.01 A |
| Resistance measurement : | 600 Ω ± (1.0% + 2) @ 0.1 Ω , 6 kΩ ± (0.8% + 2) @ 0.001 kΩ , 60 kΩ ± (0.8% + 2) @ 0.01 kΩ , 600 kΩ ± (0.8% + 2) @ 0.1 kΩ , 6 MΩ ± (1.2% + 3) @ 0.001 MΩ , 60 MΩ ± (2.5% + 5) @ 0.01 MΩ |
| Capacitance measurement : | 6 nF ± (4% + 8) + measurement lead capacitance @ 1 pF , 60 nF ... 600 µF ± (3% + 5) @ 10 pF ... 100 nF , 6 mF ... 60 mF ± 10% @ 1 µF ... 10 µF |
| Inductance measurement : | - |
| Frequency measurement : | 10 Hz ... 1 MHz ± (0.1% + 4) @ 0.01 Hz ... 0.001 MHz |
| Duty cycle measurement of rectangular signal : | 0.1 % ... 99.9 % ± (2% + 5) @ 0.1 % |
| Temperature measurement : | °C -40 ... 400 °C ± (1% + 2°C) @ 0.1 °C ... 1 °C , °F -40 ... 752 °F ± (1% + 4°F) @ 0.2 °F ... 2 °F |
| Automatic range switching : | ✔ |
| hFE : | - |
| Diode test : | ✔ |
| Acoustic continuity alarm : | ✔ |
| Logic TTL state checking : | - |
| RS-232 : | - |
| USB : | - |
| Main features : | True RMS - accurate measurement of the real values of electrical current and voltage of any waveform, AC voltage measurement using low input impedance (LoZ mode) capability, LPF function - allows measuring AC voltage value using a low-frequency filter with a cutoff frequency of 200 Hz., Solid housing meeting IP65 ingress protection requirements, Last reading hold, Built-in flashlight, Peak or low indicator freeze, REL - relative measurement mode, Analog bar graph, Large, readable LCD display with backlight, Low battery warning, Aesthetic and solid construction, Comes with a practical case |

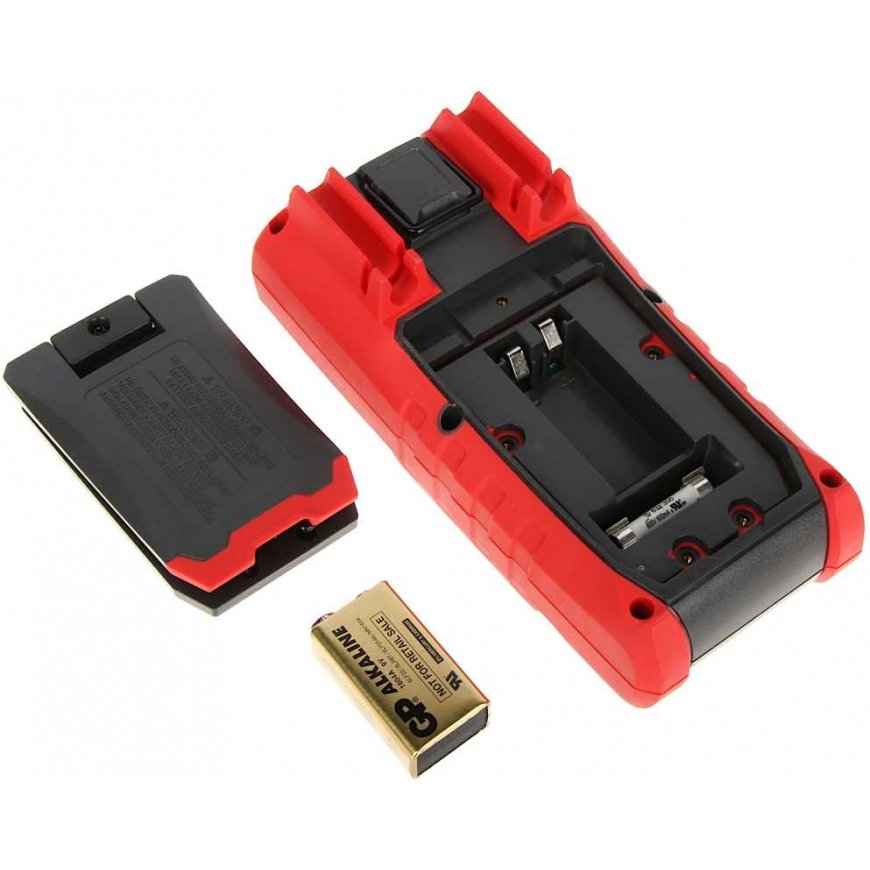

| Power supply : | 9V battery, type 6LR61 |
| Weight : | 0.4 kg |
| Dimensions : | 180 x 87 x 66 mm |
| Manufacturer / Brand : | UNI-T |
| Warranty : | 2 years |
