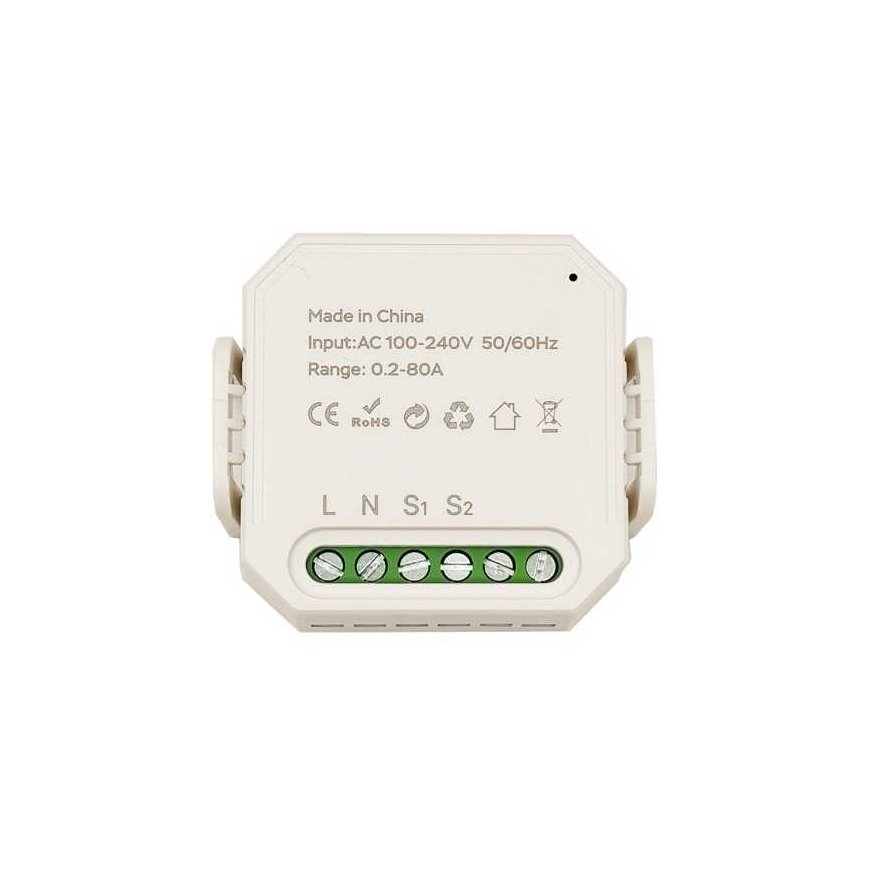

Smart energy meter, 1P+N, 80A, Wi-Fi, Tuya

Smart energy meter, 1P+N, 80A, Wi-Fi, Tuya, with CT current measurement sensor

Features:
The smart energy meter is an advanced compact device designed to efficiently and accurately monitor energy consumption. It is intended for use in a single-phase system with a neutral wire (1P+N). It has one measurement channel, so it can monitor only one circuit (e.g., household electrical outlets, lamps, small loads).
Measures voltage, current, power, and energy consumption.
Current measurement up to 80A ensures accurate monitoring of consumed energy.
Uses a 10mm diameter CT current measurement module (Split-core CT), which allows for quick and convenient installation of the system without interrupting the existing power supply.
Note: only one L or N cable must be wrapped around the module, not both, otherwise the reading will be zero.
Convenient device connection via the Tuya smart home app. The app allows you to view energy consumption history and data analysis in real time.
Uses 2.4GHz Wi-Fi connection, the Tuya app supports Android or iOS smart devices.
Voice control compatible with Amazon Alexa and Google Assistant.
With LED status indicator and pairing button.
Small, lightweight, compact. Flexibly mounted in distribution panels. Comes with a holder adapted for DIN 35mm rail or wall mounting.
Easily integrates into smart systems.
Ideal for residential and office needs.


Technical specifications:
Number of channels: 1.
Measurement current: 0.2-80 A.
Operating voltage: 100-240V AC.
Frequency: 50/60 Hz.
Energy measurement accuracy: ±2%.
Wi-Fi frequency: 2.4 GHz.
Wi-Fi standards: 802.11b/g/n.
App: Tuya Smart / Smart Life (Android, iOS).
Works with Amazon Alexa & Google Assistant.
Reset button: yes.
Indicator light: yes.
Operating temperature: -10°C~+55°C.
Measurement aperture diameter: 10.5 mm.
CT cable length: 0.7m.
Dimensions: 46x46x21.3mm.


Warranty: 24 months.
