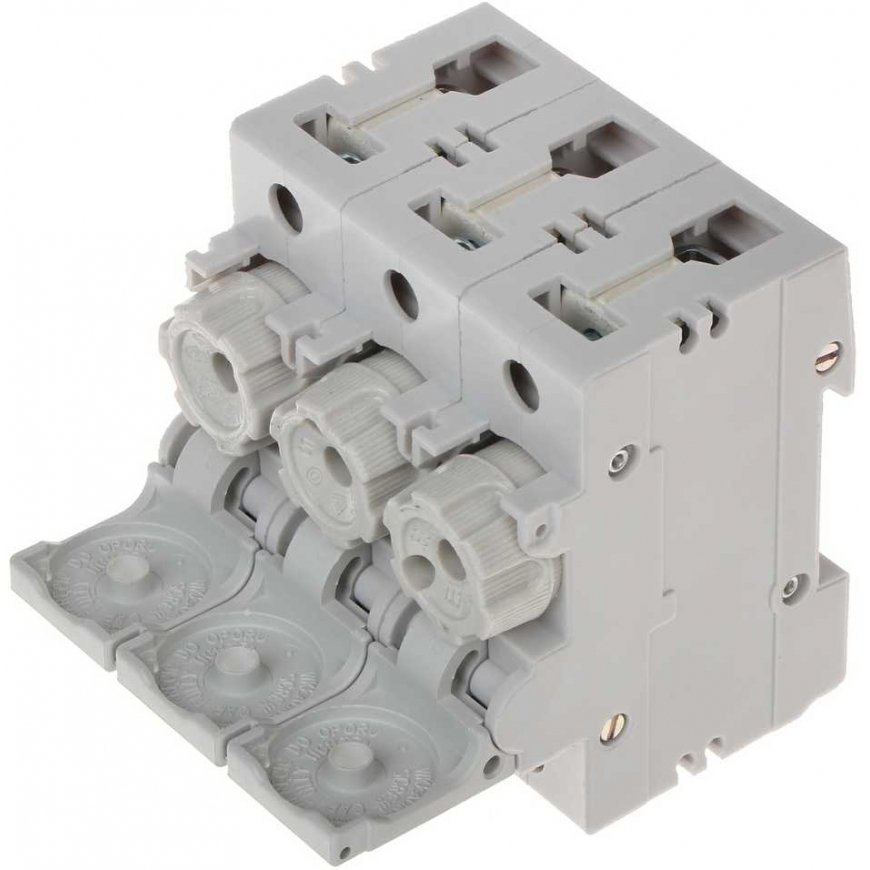

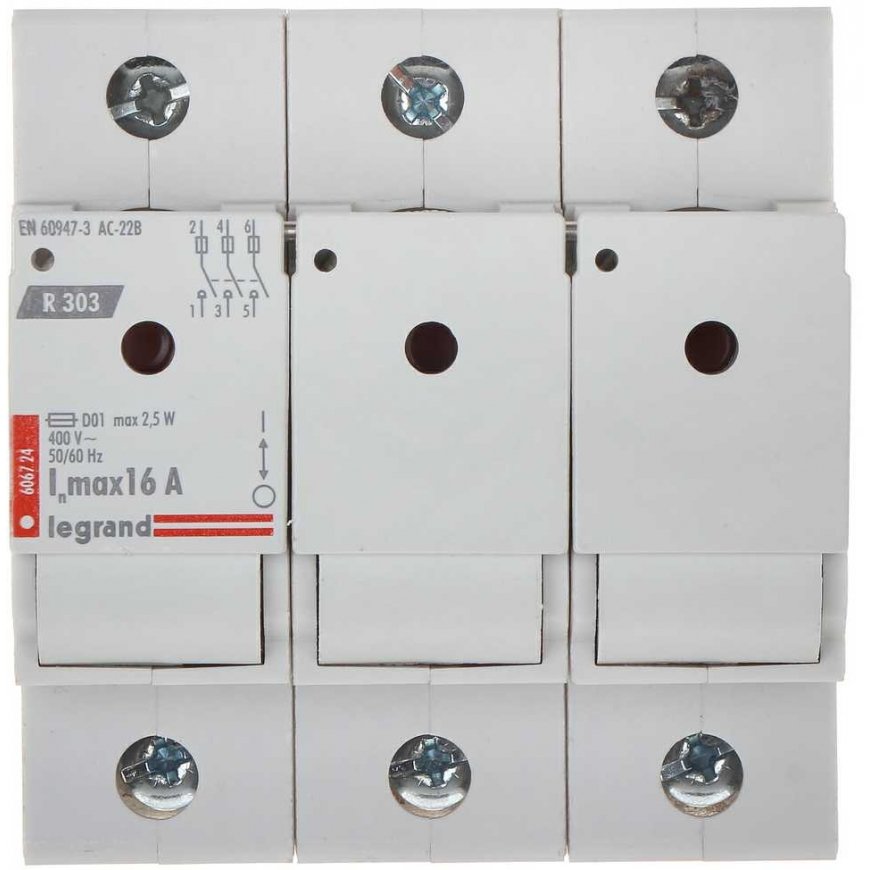

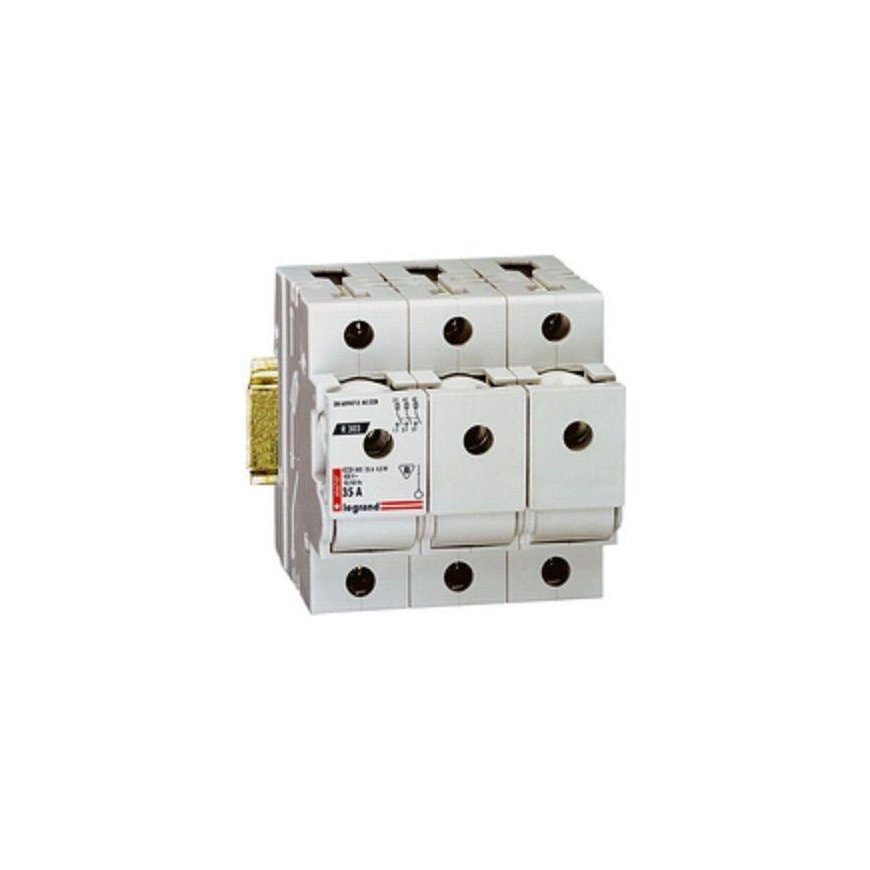

Circuit Breakers LE-606724 Three-Phase 16 A D01 LEGRAND
199,00 €
Monthly payment from 6.02 €
3789518 606724
3245066067247
Shipping 2-5 b.d.
Pay 5x39.80€You are interested in this product?
Isolated circuit breakers without fuse inserts ensure insulation spacing and allow for the selection of appropriate fuse inserts depending on needs.
Devices for inserts AD01 are installed in the equipment.
The circuit breaker LE-606724 is intended for mounting on TH-35 supports.
ATTENTION! The device requires the installation of D01 type fuse inserts (available separately), with a rated power not exceeding 16A.
| Device type : | Three-phase |
| Rated current : | 16 A |
| Number of poles : | 3 |
| Rated voltage : | 400 V AC |
| Rated insulation voltage : | 500 V |
| Rated withstand impulse voltage : | 6000 V |
| Fuse description : | - |
| Type (size) : | D01 |
| Rated short-circuit duration : | 50000 A AC |
| Connection type : | cable terminals |
| Wire cross-section : | 2.5 ... 25 mm² |
| Environmental class : | II |
| Housing : | Plastic, mounting on TH-35 support |
| Width in modules 17.5 mm : | 4.5 |
| Operating temperature : | -26 °C ... 60 °C |
| Weight : | 0.498 kg |
| Dimensions : | 83 x 70.3 x 79.5 mm |
| Manufacturer / Brand : | LEGRAND |
| Warranty : | 2 years |
