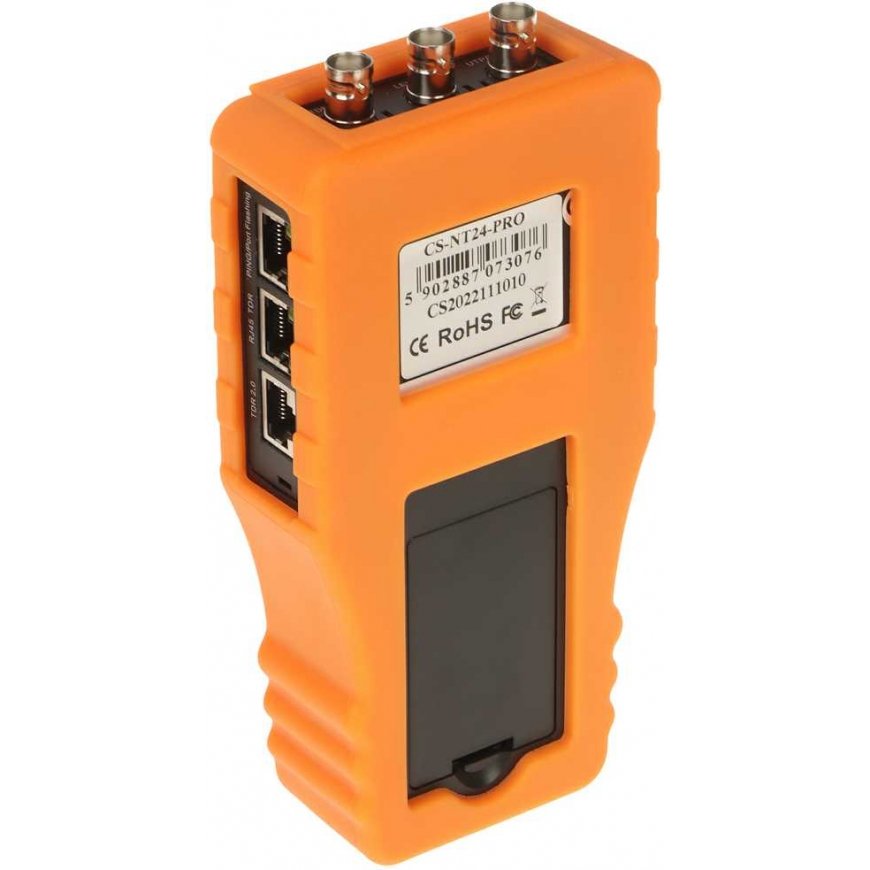

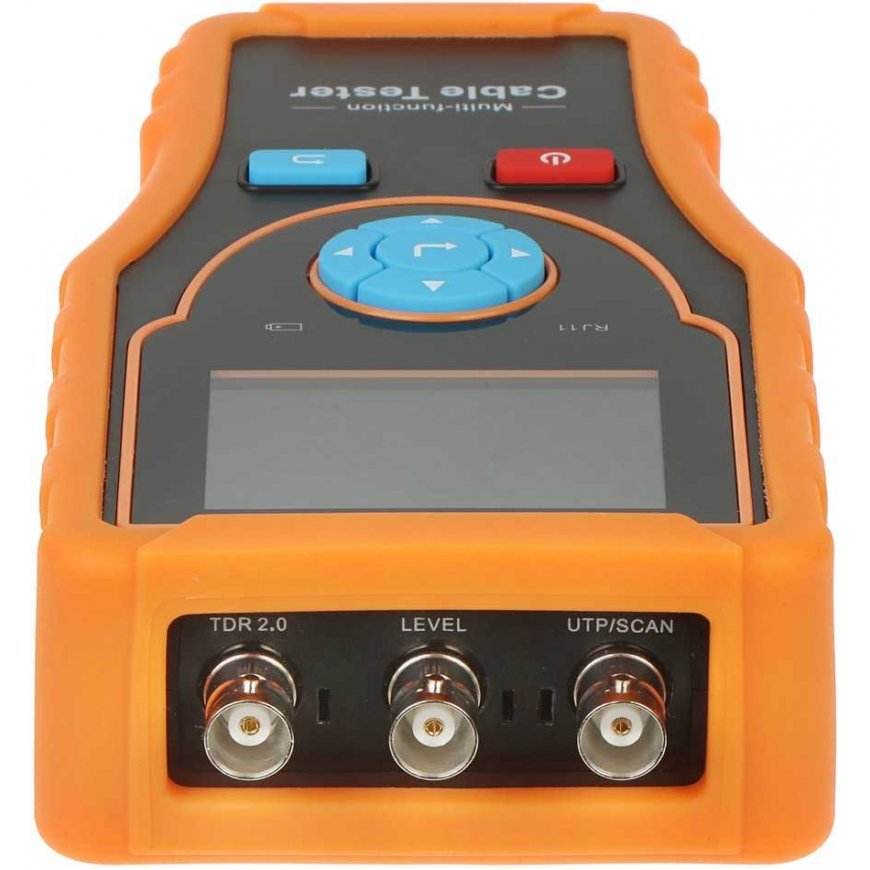

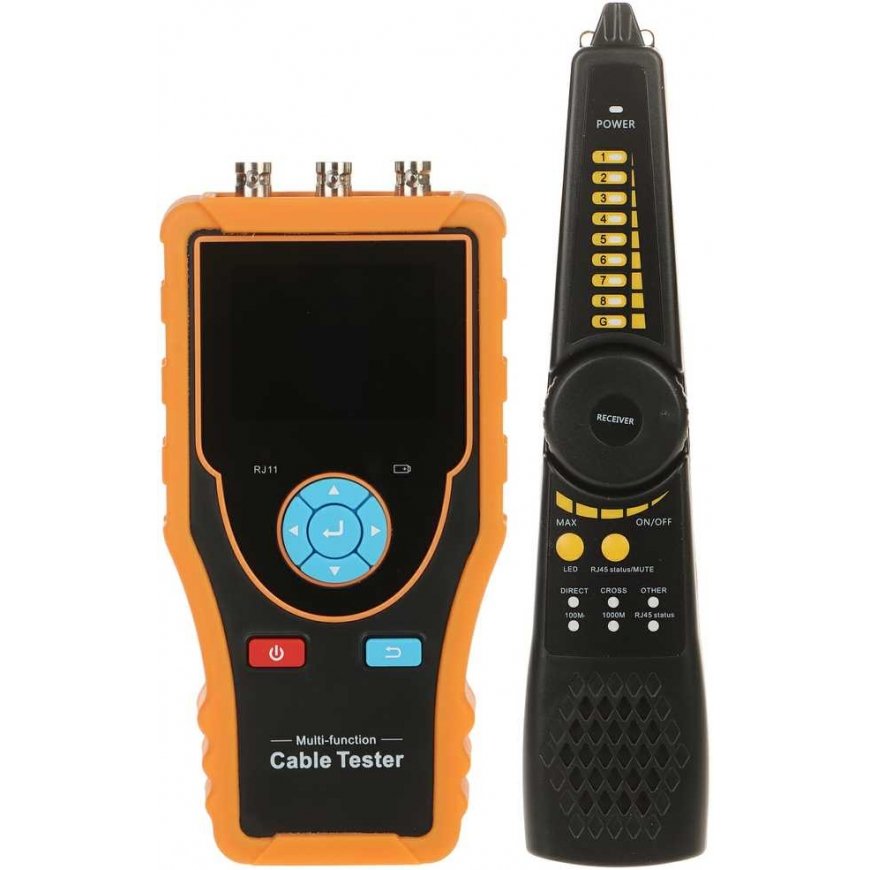

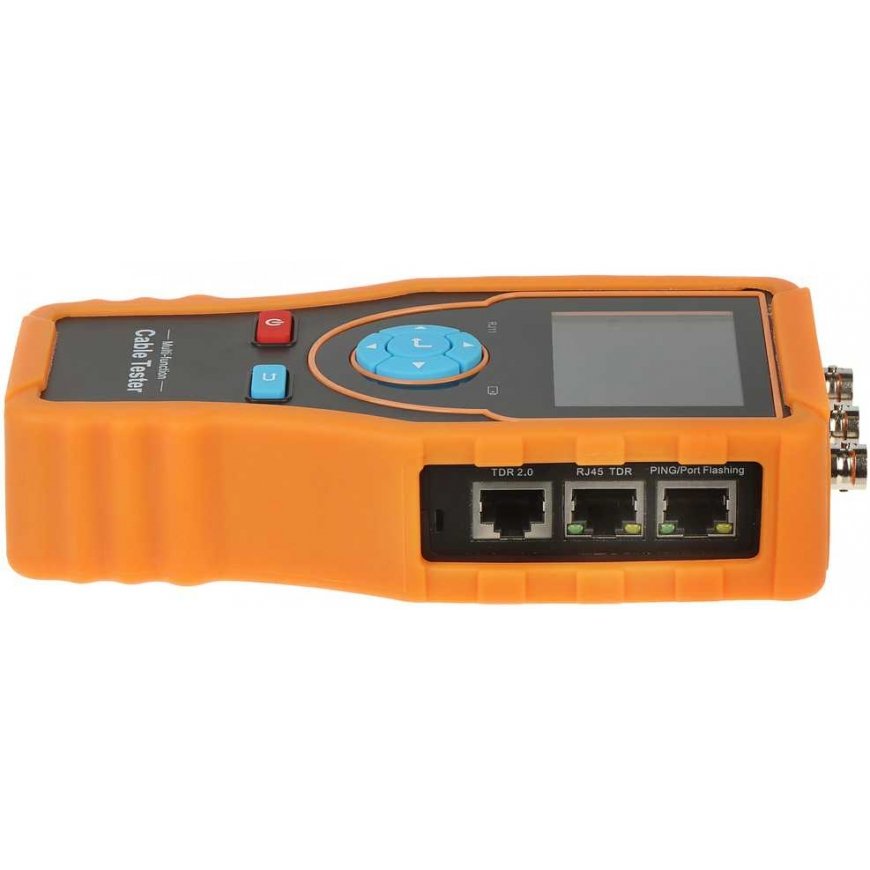

Trendnet CABLE TESTER CS-NT24-PRO
3756285 CS-NT24-PRO
5902887073076
Shipping 2-5 b.d.
Pay 5x69.80€The Testeris CS-NT24-PRO is used to measure the continuity of UTP type cables and to determine the condition of telephone lines.
The device allows measuring telephone lines, twisted pair cables, and coaxial cables.
An additional function allows searching for a specific wire among more tangled cables or in a large bundle of wires.
The tester has a built-in TDR reflectometer, allows you to test the length and attenuation of the cable and find a break or short-circuit point.
HD Coaxial video level meter, can detect TVI/CVI/AHD/CVBS signal peak value.
PING test, checks whether the Ethernet port of the IP camera or other network equipment is working properly and whether the IP address is free.
The device finds the IP address of the camera or other connected network equipment.
Large, readable LCD screen.
The device uses a built-in Li-Ion battery for operation, allowing for a maximum of 16 hours of work on a single charge.
| Tested cables : | STP / UTP Cat 5, 5e, 6, 6e - RJ45 (8P8C) , RJ11 (6P4C), Coaxial cable |
| Power : | CABLE TESTER : Li-Ion battery 3.7 V / 2000 mAh, USB DC 5V/2A power adapter (included) Probe : 2 x 1.5V battery, AA/LR6/FR6 type (not included) |
| Typical battery charging time : | 3 h |
| Battery operation time : | 16 h |
| Main features : | 2.4 " LCD display - 320 x 240 px Cable test and cable tracer : cable type, UTP cable's sequence and type test, the fault of RJ45 connector Test TDR - RJ45 : pair status, length, attenuation, reflectivity, impedance, skew - Maximum cable length 180 m Test TDR 2.0 : Line fault point search - Maximum cable length 1200 m, Built-in switch port detection Test PING : correct operation of the IP camera's Ethernet port, correct IP address IP Scan Identification of the network port and duplex mode Cable identification in a bundle Telephone line condition detection Search and identification of break points or short circuits in the cable HD coaxial video level meter Automatic shutdown : 10 ... 120 minutes |
| Weight : | 0.34 kg - CABLE TESTER 0.11 kg - Probe |
| Dimensions : | 175 x 88 x 40 mm - CABLE TESTER 220 x 47 x 32 mm - Probe |
| Warranty : | 2 years |
