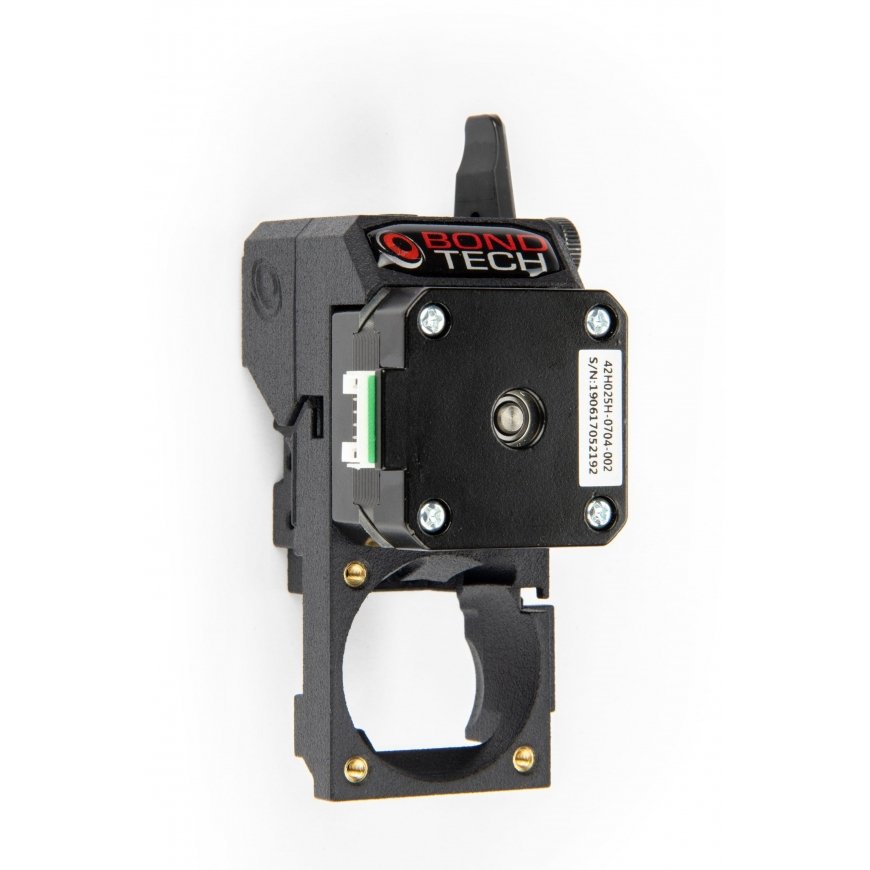

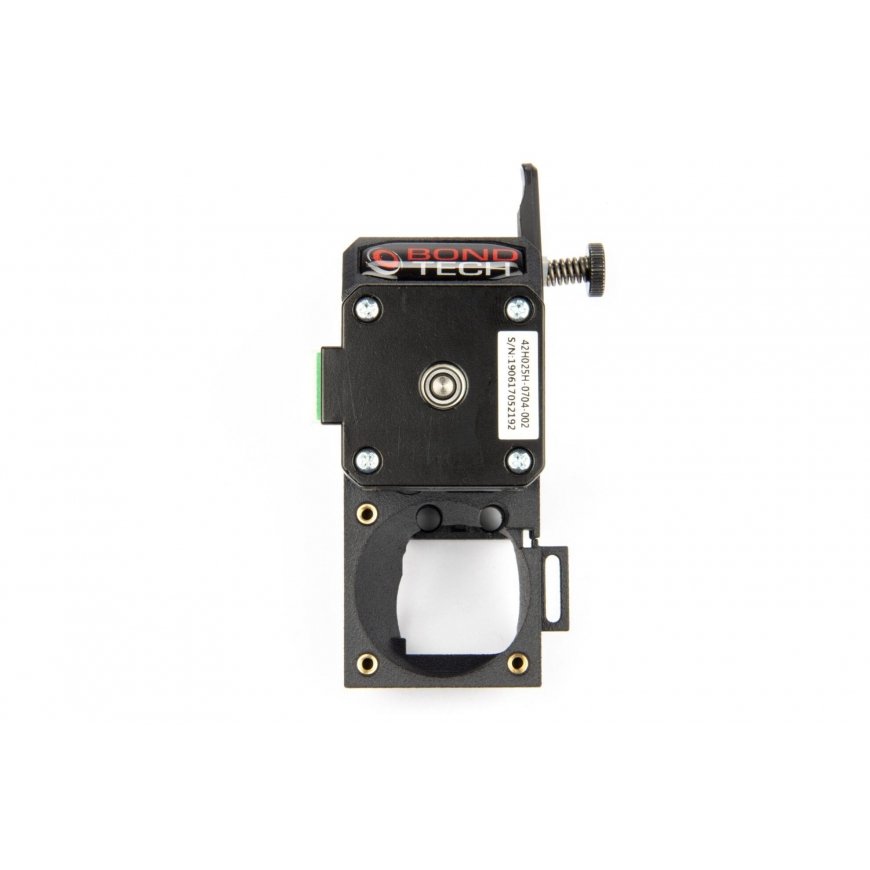

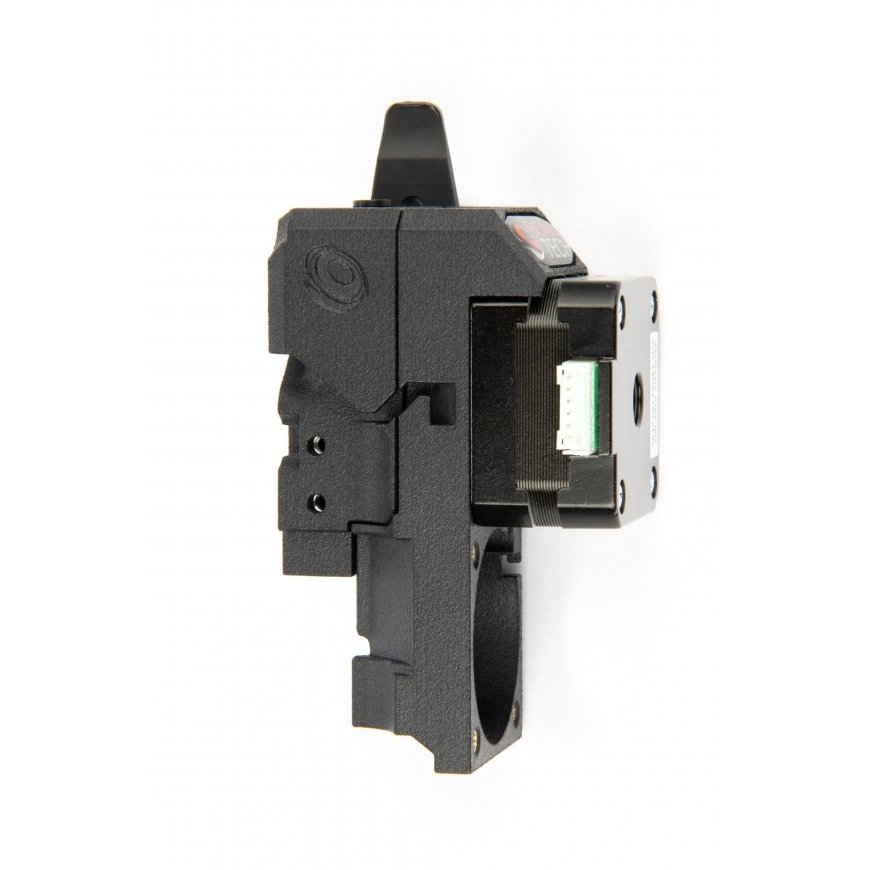

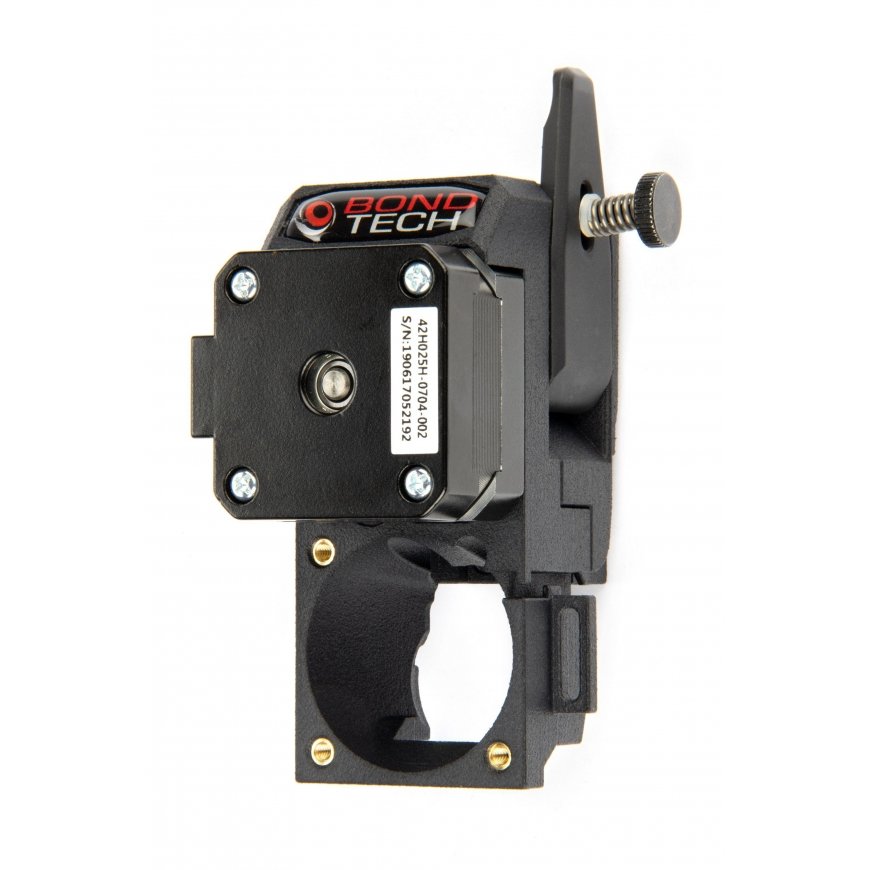

Bondtech DDX v3, designed for Creality

With the integrated fan hood and bracket included in the DDX v3 adapter kits, installing the DDX v3 is even easier. Attach the fan to the hood without using screws. Adjust the height of the hood with a front access screw.
The DDX was designed to allow the platform probe to be attached to the X carriage. In models where there is no space to attach the platform probe, such as the BL Touch, the quantity can be printed and attached to the right side of the DDX.
This Bondtech direct drive extruder is a high-performance, high-reliability 1.75 mm dual-drive extruder designed for Creality 3D printers, based on our very popular BMG. The unique Bondtech dual-drive technology, combined with a factory hotend or, for even better performance, industry-leading Slice Engineering hotend Copperhead or Mosquito, gives you a direct drive extruder with hassle-free material feeding and allows for a wider range of materials to be used. The housing parts are printed in PA12 (polyamide) to ensure maximum strength and precision using industrial-grade SLS technology.
The Bondtech DDX Direct Drive eXtruder, designed for Creality, is aimed at providing users with more options – different materials; higher flow and/or wider nozzles; thinner layers – and achieving higher print quality. The DDX is based on the BMG Bondtech Mini Geared extruder, featuring our unique Dual-Drive technology. The DDX housing design ensures efficient hotend cooling. With a 3:1 gear ratio, high-resolution prints can be achieved with small nozzles or high-flow prints with larger nozzles.
For easier setup, the kit is attached to the carriage with only 2 screws.
Compatible with the following models: Ender-3, Ender-3 v2, Ender-3 Pro, Ender-5, Ender-5 Pro, Ender-5 Plus, Ender-6, CR-10, CR-10 (Mini), CR -10S, CR-10 S4, CR-10 S5, CR-10 v2, CR-10 v3, CR-10S Pro, CR-10S Pro v2, CR-10 Max.

Included:

• 1x DDX v3 extruder
• 1x Nema17 pancake stepper motor
• 1x screw assembly
• 1x 70 cm stepper motor extension
• 1x 60 cm PTFE tube
• 1x 7 cm capricorn tube
• 4x zip ties
• 3x M3 x 12 mm screw
• 2x M3 x 20 mm screw
• 1x M3 x 10 mm sag head screw
