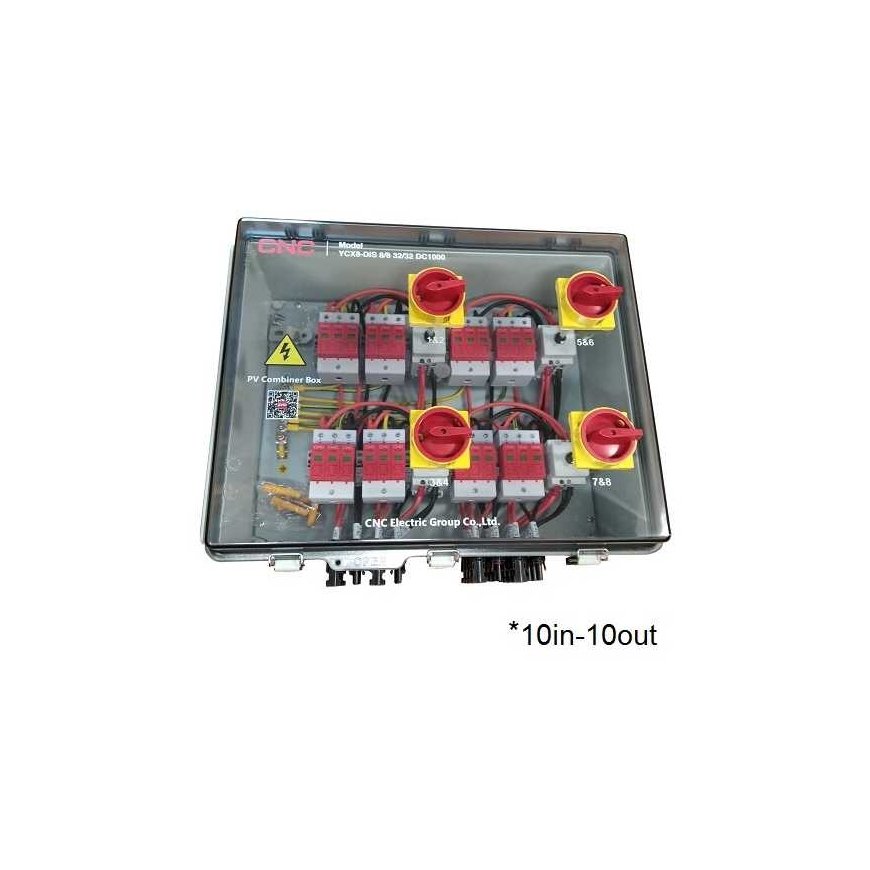

CNC PV disconnect panel, DC 10in-10out, IP66
539,00 €
Monthly payment from 14.78 €
3706821 NV822553
6978567817413
Shipping 2-4 days
Pay 5x107.80€You are interested in this product?
Features:
10 inputs 10 outputs 1000V DC.
DC input box with 10 inputs / 10 outputs for PV system.
Designed for surge protection and isolation of the solar energy DC side.
UV resistant, waterproof and dustproof IP66, impact-resistant, non-flammable V0.
With MC4 connectors. Box size 528 x 458 x 358 mm, standards IEC60529.
DC switches:
1000V DC, 50A. (4 pcs.)
DC switch locks the box cover.
Patented DC extinguishing chamber.
Standards: UL508i, IEC60947-3 Pv2.
DC surge protective devices SPD:
Model: YCX8-DIS.
1000V DC, 40kA. (10 pcs.)
Designed for the protection of photovoltaic cells.
Response time: <25ns.
Standards: IEC 61643-31, EN 50539-11+ A1.
Technical specifications:
Inputs: 10.
Outputs: 10.
Maximum voltage: 1000 V.
DC switch: 1000V, 50A. (4 pcs.)
DC SPD: 1000V, 40kA. (10 pcs.)
Short-circuit current per input (Isc): 15A-30A (adjustable).
Maximum output current: 50A.
Maximum discharge current (Imax): 40 kA.
Nominal surge discharge current (In): 20 kA.
Trigger voltage (Up): 3.6 kV.
Housing material: 100% PC (polycarbonate).
Safety class: IP66 (water and dust resistant), V0 UL94 (flame resistant).
Dimensions: 528 x 458 x 358 mm.
Input cable sizes: PG09, 2.5-16 mm.
Output cable sizes: PG21, 2.5-16 mm.
Operating temperature: from -20°C to 60°C.
Warranty:24 months.
