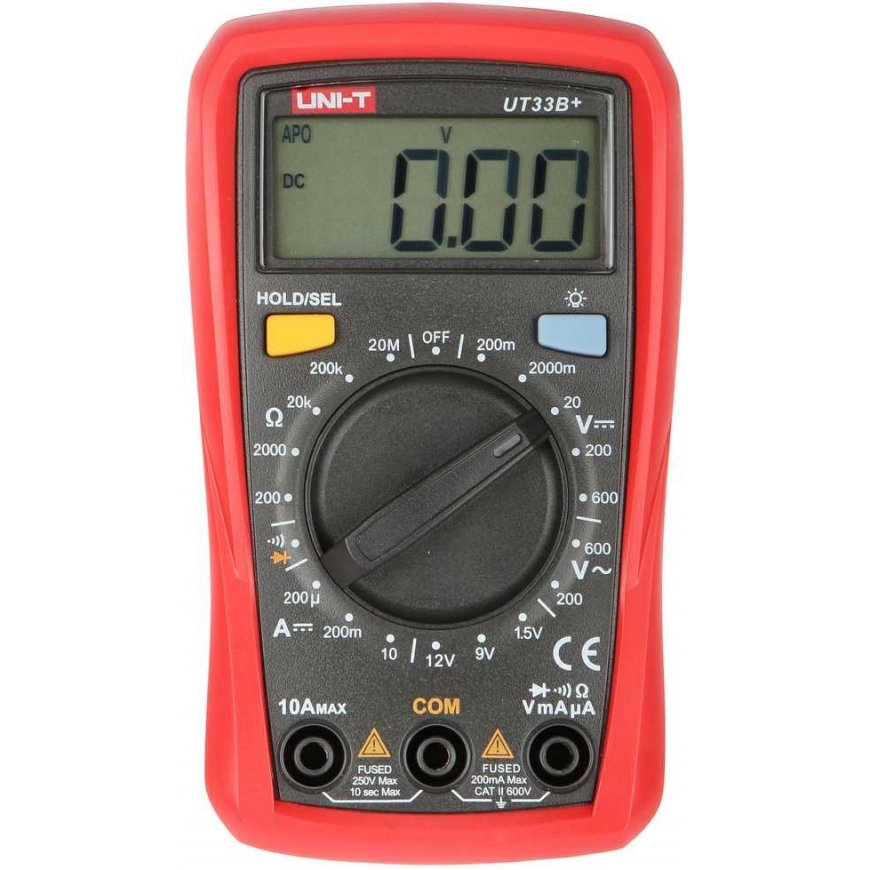

UNIVERSAL MEASURING DEVICE UT-33B+ UNI-T
26,93 €
3690010 MIE0043
6935750533161
Shipping 2-5 b.d.
You are interested in this product?
UT-33B+ is a universal digital meter designed to measure: voltage, current, resistance.
The device has a built-in battery tester.
| DC voltage measurement : | 200 mV ± (0.7% + 3) @ 0.1 mV , 2000 mV ± (0.5% + 2) @ 1 mV , 20V ± (0.7% + 3) @ 10mV, 200 V ± (0.7% + 3) @ 100 mV , 600V ± (0.7% + 3) @ 1V |
| AC voltage measurement : | 200 V ± (1.2% + 3) @ 100 mV , 600V ± (1.2% + 3) @ 1V |
| DC current measurement : | 200 µA ± (1% + 2) @ 0.1 µA , 200 mA ± (1% + 2) @ 100 µA , 10A ± (1.2% + 5) @ 10mA |
| AC current measurement : | - |
| Resistance measurement : | 200Ω ± (1% + 2) @ 0.1Ω, 2 kΩ ± (0.8% + 2) @ 1 Ω, 20 kΩ ± (0.8% + 2) @ 10 Ω , 200 kΩ ± (0.8% + 2) @ 100 Ω , 20 MΩ ± (1.2% + 3) @ 10 kΩ , 200 MΩ ± (5% + 10) @ 100 kΩ |
| Capacity measurement : | - |
| Inductance measurement : | - |
| Frequency measurement : | - |
| Temperature measurement : | - |
| Automatic change of measurement scale : | - |
| hFE : | - |
| Diode test : | ✔ |
| Audible circuit integrity alarm : | ✔ |
| Checking logical TTL states : | - |
| RS-232 : | - |
| Main features : | Battery level discharge measurement: 12V, 9V, 1.5V voltage Large, legible LCD display with backlight Last command saved Low battery signal Aesthetic and solid construction |

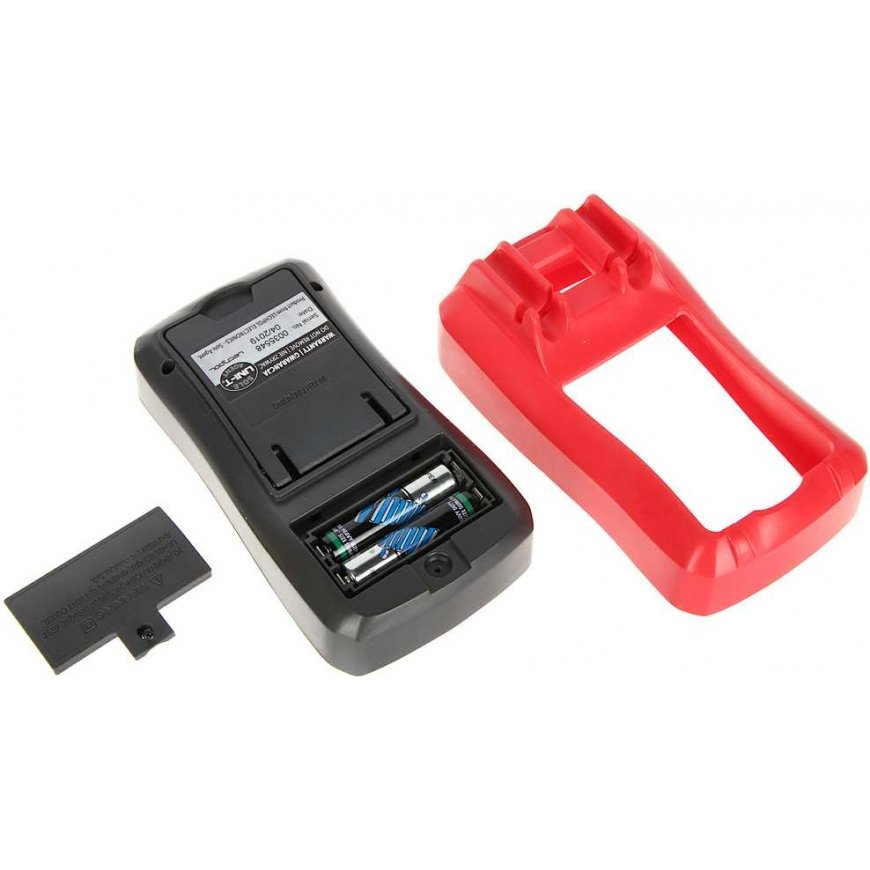

| Power supply : | 2 x 1.5V battery, type AAA/LR03 - included |
| Weight : | 0.26 kg |
| Dimensions : | 134 x 77 x 47 mm |
| Manufacturer / Brand : | UNI-T |
| Warranty : | 2 years |
