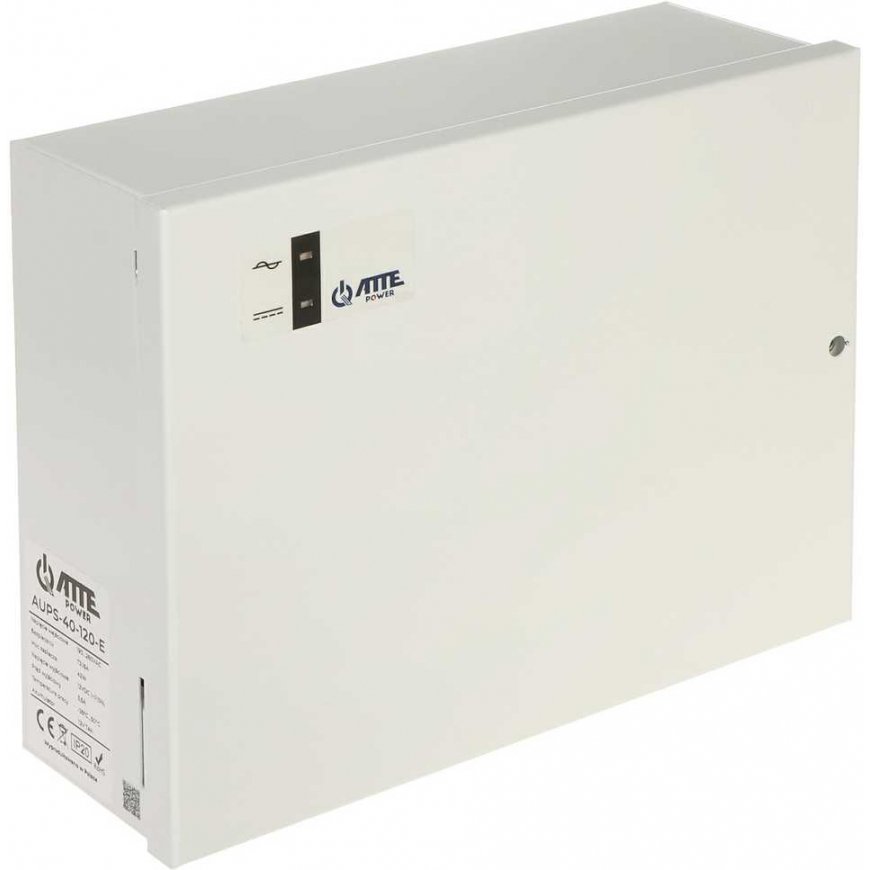

BUFFERED SWITCHING POWER SUPPLY ADAPTER AUPS-40-120-E ATTE
149,00 €
Monthly payment from 4.74 €
3688948 AUPS-40-120-E
5902143691143
Shipping 2-5 b.d.
Pay 5x29.80€You are interested in this product?
The buffer power supply is designed to power alarm control panels, sensors, code locks, cameras, manipulators, intercoms and other devices that are part of the alarm system.
It is necessary to pay special attention to proper cooling of the power supply during operation!
| Power supply type : | Transformer |
| Input voltage : | 190 ... 260 V AC / 50 Hz |
| Output voltage : | 10.8 ... 13.8 V DC (buffer operation) |
| Maximum output current (total) : | 3.5 A (continuous operation) |
| Battery charging current : | max. 1.5 A |
| Power : | 42 W (continuous operation) |
| Number of outputs : | 2 |
| Main features : | LED indication Efficiency : 92% @ 40 W OC type technical outputs signaling about voltage loss at the power supply output (OUF) and voltage loss in the 230V network (ACF) Main cable entries at the back of the housing Module raster assembly system (compatible with ATTE brand devices) - 10.8 mm raster Wall mounting For indoor use Sealing class : IP20 |
| Protective measures : | From short circuit From overloads From overvoltages Overheating Anti-sabotage Reverse connection From excessive discharge From overload |
| Adapter operation control : | AC mains power presence signaling DC output voltage presence signaling Battery charging signaling (internal) |
| Battery compartment : | 12V / 7Ah |
| Max. Battery Dimensions : | 220 x 120 x 80 mm |
| Working temperature : | -25 ... 50 °C |
| Weight : | 1.4 kg |
| Dimensions : | 255 x 205 x 95 mm |
| Manufacturer / Brand : | ATTE |
| Warranty : | 3 years |
