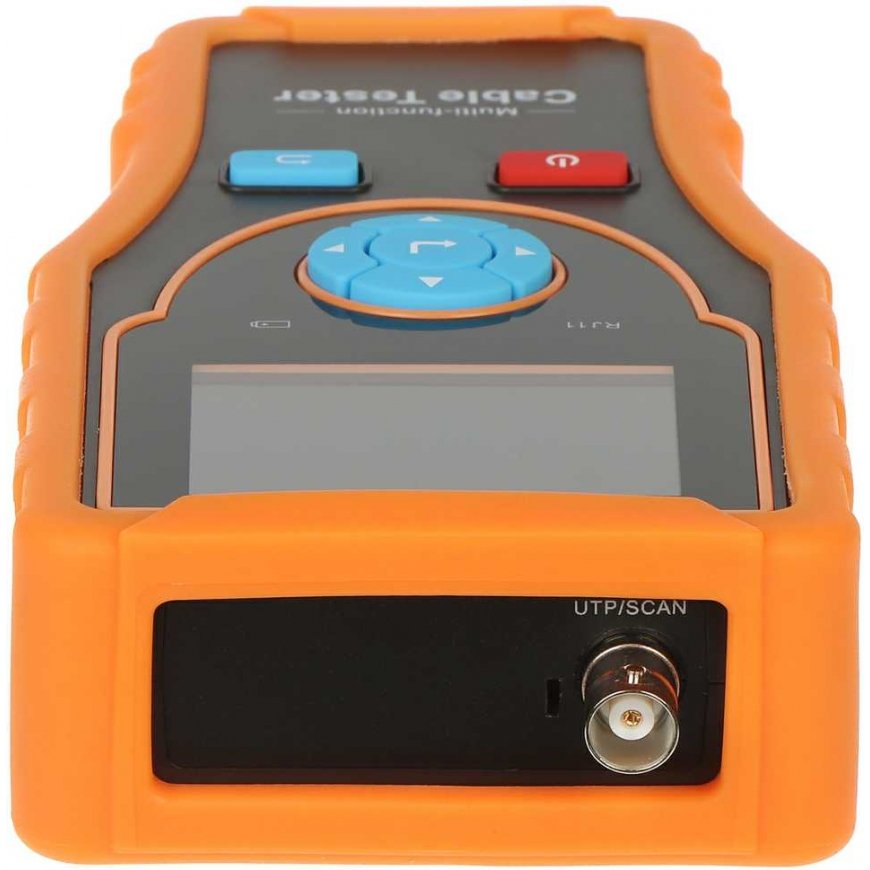

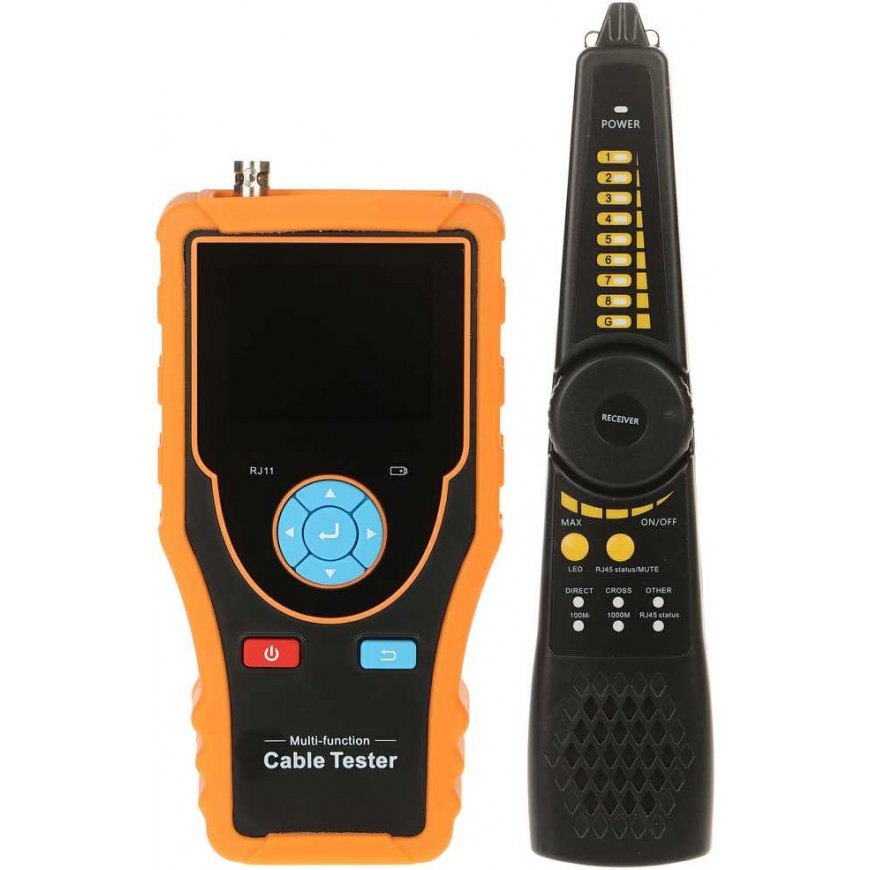

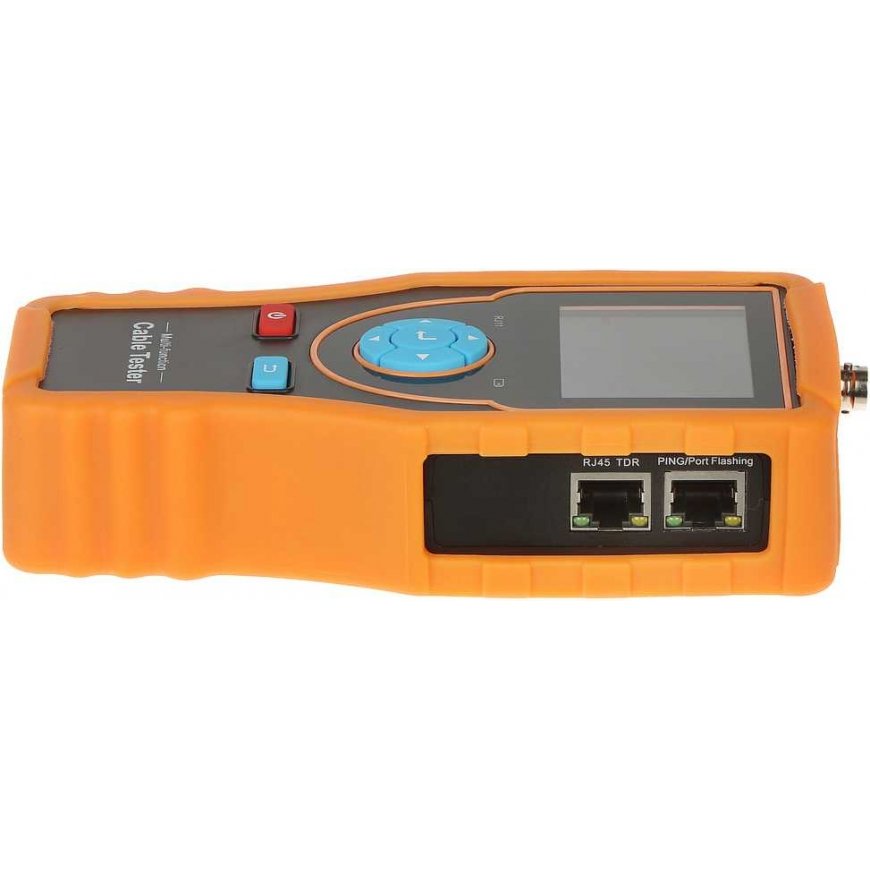

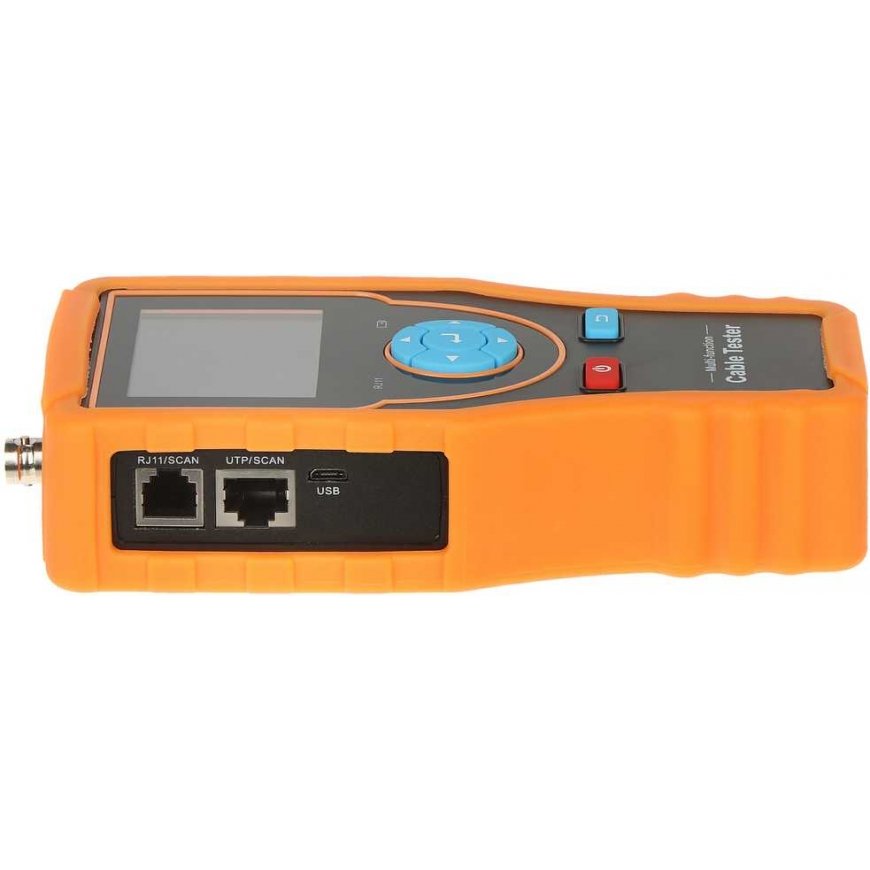

TST CABLE TESTER CS-NT24
3681376 5902887073069
Shipping 2-5 b.d.
Pay 5x45.80€The CS-NT24 tester is used to measure cable continuity, check UTP type cables, and determine the condition of the telephone line.
The device allows you to measure telephone lines, twisted pair cables and coaxial cables.
An additional function allows you to search for a specific wire in more tangled cables or in a large bundle of wires.
The tester has a built-in TDR reflectometer, allows you to test the length and attenuation and other parameters of the cable.
PING test, checks whether the Ethernet port of the IP camera or other network equipment is working properly and whether the IP address is free.
The device finds the IP address of the camera or other connected network equipment.
Large, legible LCD display.
The device uses a built-in Li-Ion battery for operation, allowing for a maximum of up to 16 hours of operation on a single charge.
| Tested cables : | STP / UTP 5, 5e, 6, 6e cat. - RJ45 (8P8C) , RJ11 (6P4C), Coaxial cable |
| Power supply : | CABLE TESTER: Li-Ion battery 3.7 V / 2000 mAh, USB DC 5V/2A power adapter (included) Probe: 2 x 1.5V battery, AA/LR6/FR6 type (not included) |
| Typical battery charging time : | 3 hours |
| Battery life : | 16 hours |
| Main features : | 2.4 " LCD display - 320 x 240 px Cable test and cable tracer: cable type, UTP cable's sequence and type test, the fault of RJ45 connector Test TDR - RJ45: pair status, length, attenuation, reflectivity, impedance, skew - Cable length max. 180 m Detection of the built-in switch port Test PING: correct operation of the IP camera's Ethernet port, correct IP address IP Scan Identification of the network port and duplex mode Cable identification in the cable bundle Telephone line condition detection Automatic shutdown: 10 ... 120 minutes |
| Weight : | 0.28 kg - CABLE TESTER 0.11 kg - Probe |
| Dimensions : | 175 x 88 x 40 mm - CABLE TESTER 220 x 47 x 32 mm - Probe |
| Warranty : | 2 years |
