Terra MULTISWITCH TT-9/32-FT 9 INPUTS / 32 OUTPUTS TELMOR
Terra MULTISWITCH TT-9/32-FT 9 INPUTS / 32 OUTPUTS TELMOR
Terra MULTISWITCH TT-9/32-FT 9 INPUTS / 32 OUTPUTS TELMOR
Terra MULTISWITCH TT-9/32-FT 9 INPUTS / 32 OUTPUTS TELMOR
Terra MULTISWITCH TT-9/32-FT 9 INPUTS / 32 OUTPUTS TELMOR

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

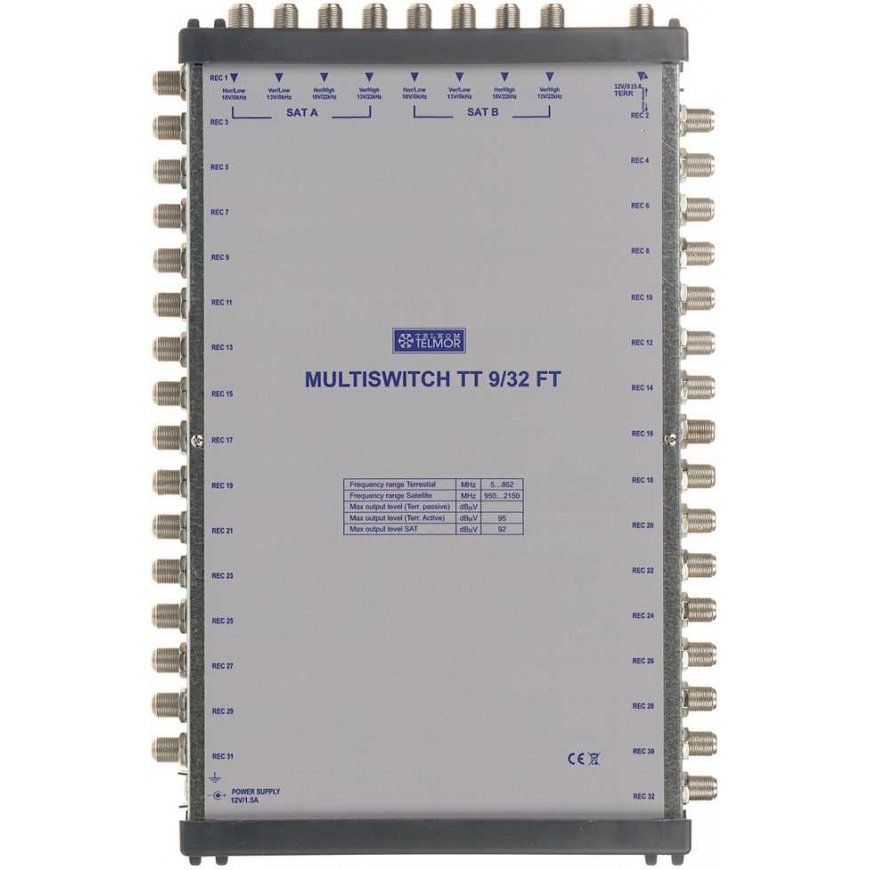

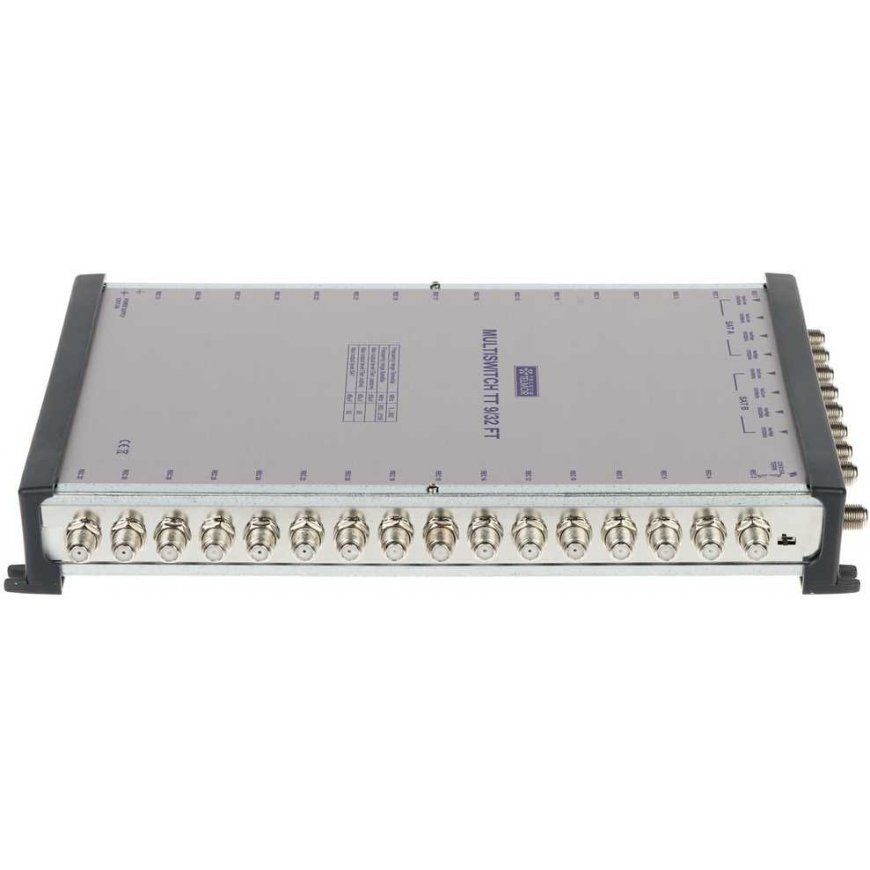

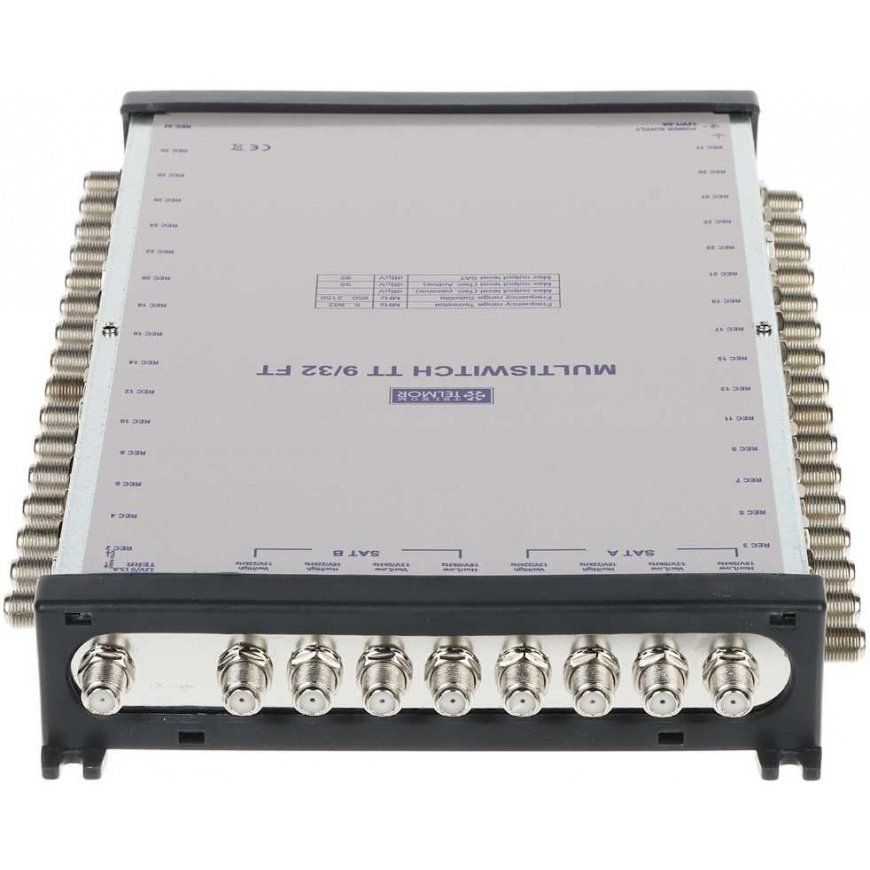

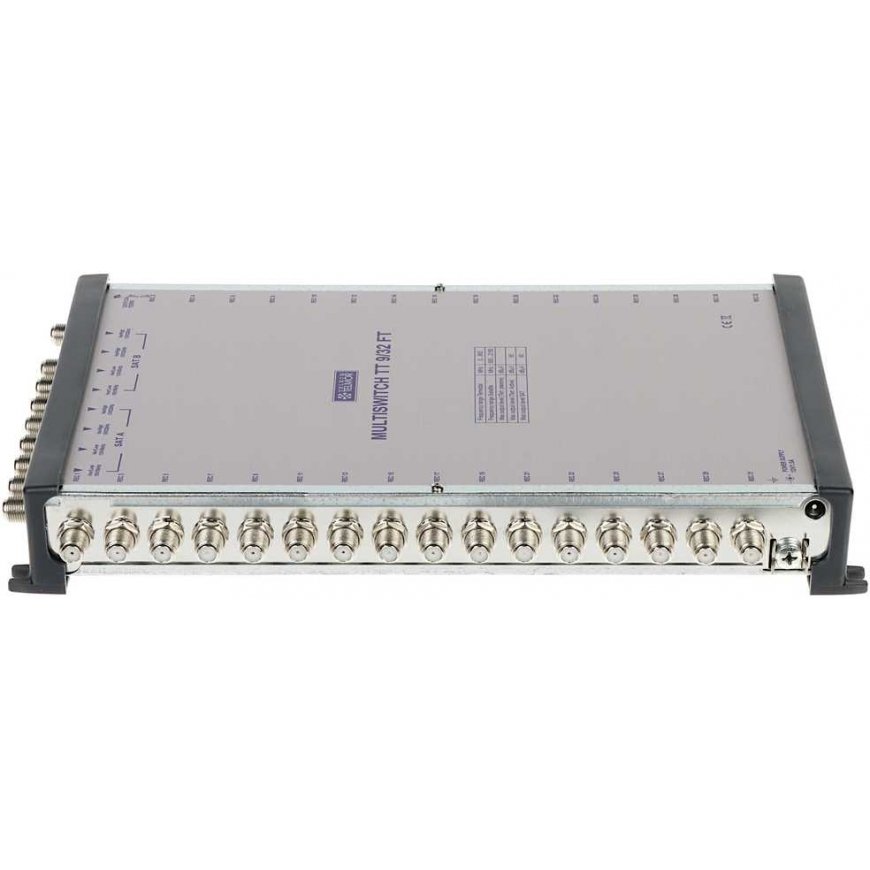

Terra MULTISWITCH TT-9/32-FT 9 INPUTS / 32 OUTPUTS TELMOR

459,47 €
Monthly payment from 12.73
3656772

TT-9/32-FT

5902887085574

Shipping 2-5 b.d.

Pay 5x91.89€
Quantity
You are interested in this product?
(Read terms of service)
Inputs :
  • 8x 950MHz ... 2150MHz,
  • 1x 5MHz ... 862MHz
  • Outputs : 32
    Switching signals :
  • 13V / 18V,
  • 0Hz / 22kHz,
  • DiSEqC 2.0
  • SAT branch suppression : -2 ... +1 dB
    TV branch suppression :
  • Passive: -25 ... -19 dB
  • Active: -5 ... +1 dB
  • Reversible losses :
  • TV input: 10 dB
  • SAT input: 8 dB
  • Maximum output level SAT : 92 dBµV
    Maximum output level TV : 95 dBµV
    Separation :
  • Between TV/SAT inputs: > 24 dB
  • Between SAT/TV inputs: > 60 dB
  • H/V interpolarization : > 30 dB
  • Preamplifier power supply : 12V DC / 150mA

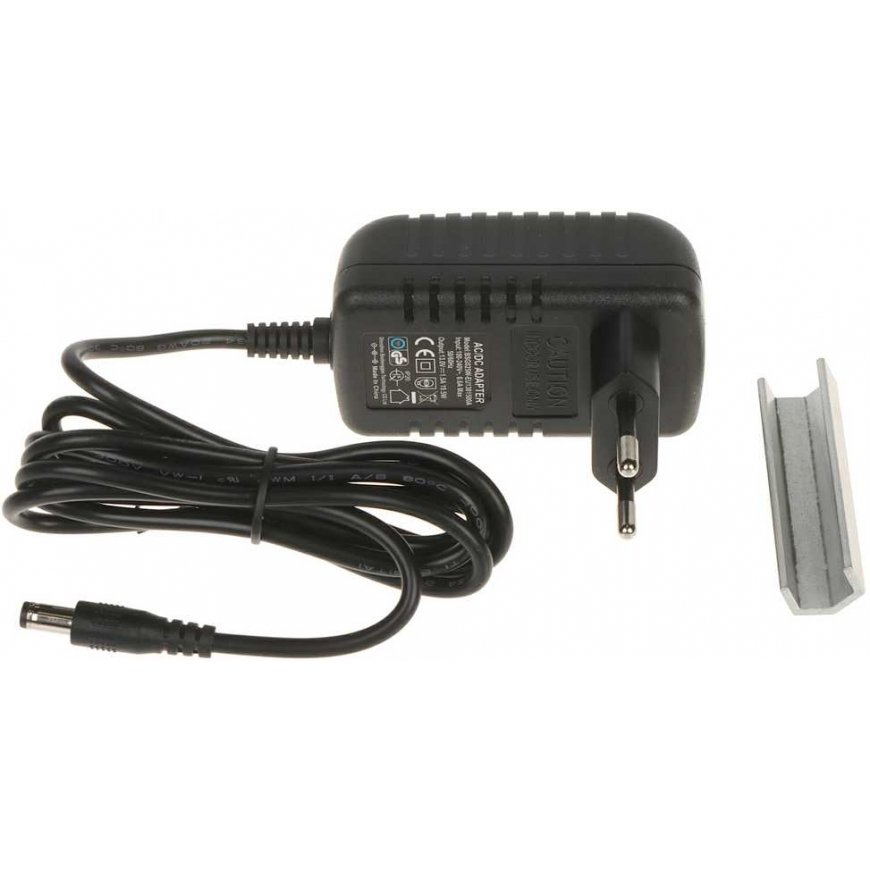

    Power supply : 12 V DC / 1.5 A (power supply included)
    Dimensions : 190 x 290 x 40 mm
    Weight : 0.88 kg
    Manufacturer / Brand : TELMOR
    Warranty : 2 years
