The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

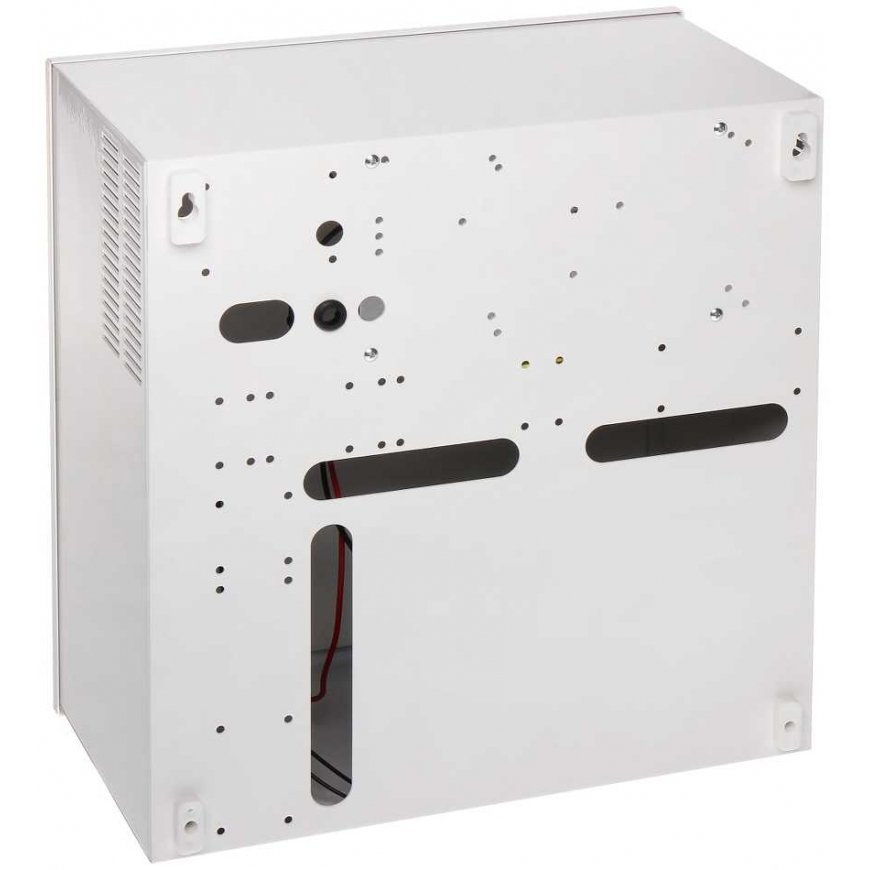

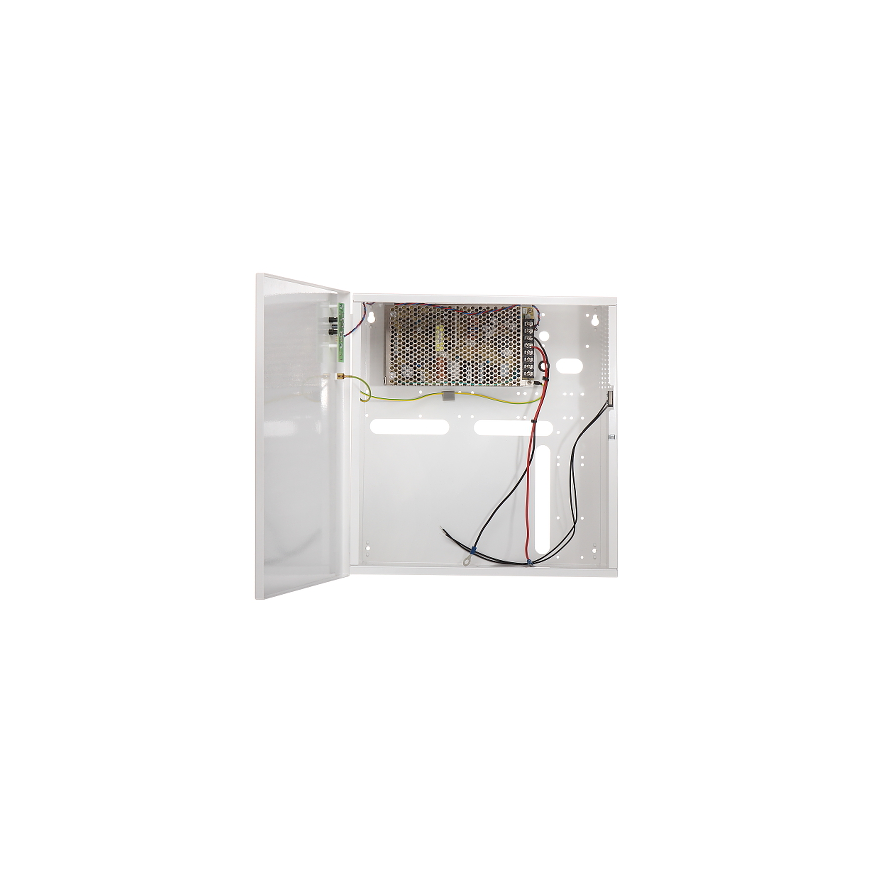

TST BUFFERED SWITCHING POWER ADAPTER ZBF-12V/10A
209,00 €
Monthly payment from 6.28 €
3639134 ZBF-12V/10A
5901885205434
Shipping 2-5 b.d.
Pay 5x41.80€You are interested in this product?
The buffer power supply is designed to power alarm control panels, sensors, code locks, cameras, manipulators, intercoms and other devices that are part of the alarm system.
Attention! If the power supply is designed for continuous operation (24H), its nominal current must not exceed 80% of the maximum current.
| Power supply type : | Impulse |
| Input voltage : | 85 ... 264 V AC |
| Output voltage : | 13.8 V DC (mains mode) 10.5 ... 13.8 V DC (battery mode) |
| Maximum output current (total) : | 10 A |
| Power : | 151 W |
| Battery charging current : | 4 A |
| Protective measures : | Short circuit From overloads From overvoltages From excessive discharge |

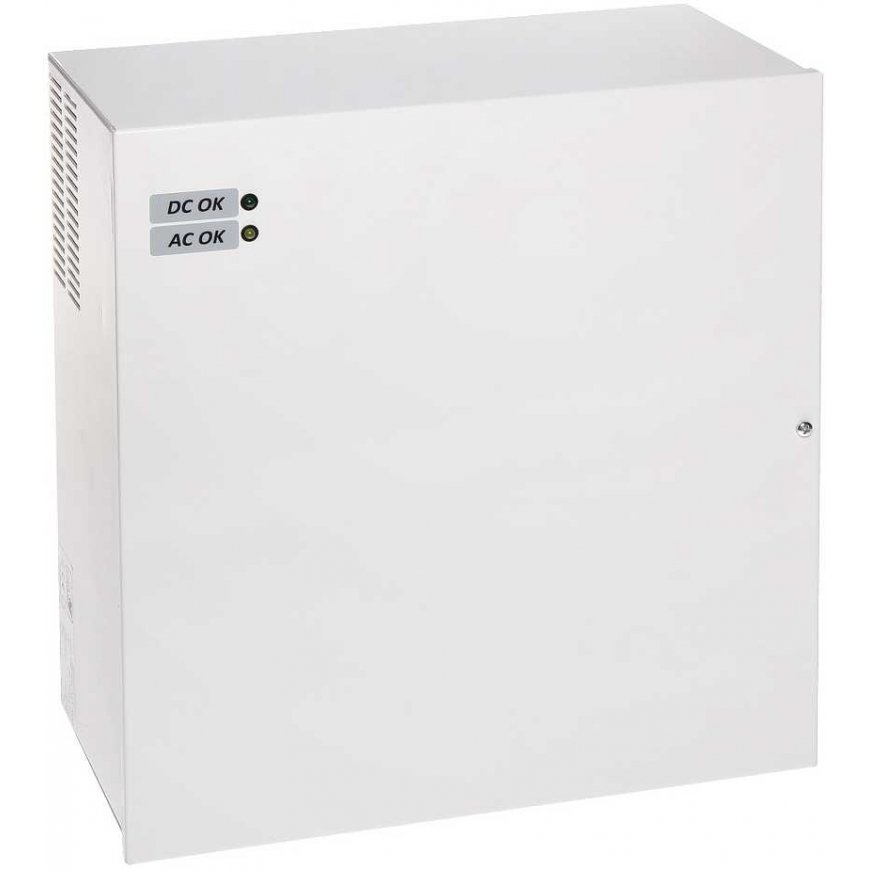

| Adapter operation control : | Signaling of the presence of mains power Signaling of the presence of output voltage |
| Battery compartment : | 12V/33Ah, 12V/40Ah |
| Max. Battery Dimensions : | 370 x 230 x 170 mm |
| Weight : | 3.9 kg |
| Dimensions : | 330 x 350 x 175 mm |
| Warranty : | 2 years |
