The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

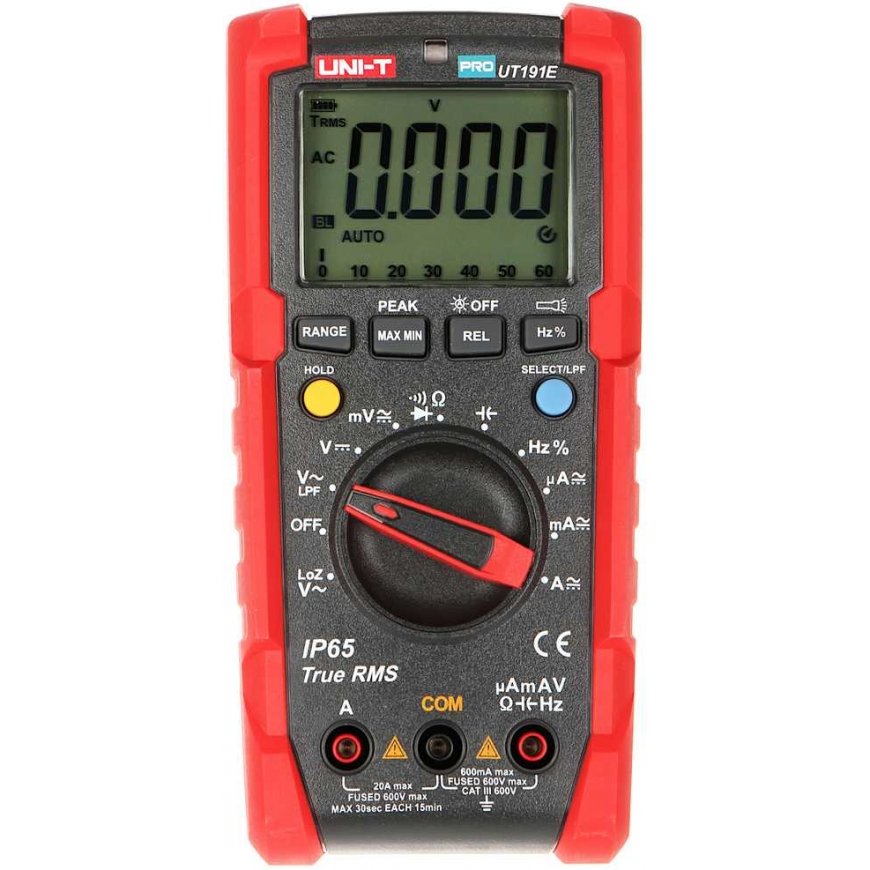

UNIVERSAL MEASURING DEVICE UT-191E UNI-T
69,01 €
Monthly payment from 2.68 €
3612707 UT191E
6935750519103
Shipping 3-5 b.d.
Pay 5x13.80€You are interested in this product?
The UT-191E is a universal digital multimeter used to measure: voltage, current, resistance, capacitance, frequency or to check the correct operation of diodes.
The measuring device has an automatic measurement change function, as well as relative measurement.
The device complies with IP65 sealing class.
| DC voltage measurement : | 600 mV ± (0.7% + 3) @ 0.1 mV , 6V ± (0.5% + 3) @ 0.001V, 60V ± (0.7% + 3) @ 0.01V, 600V ± (0.7% + 3) @ 0.1V |
| AC voltage measurement : | 600 mV ± (1.0% + 4) @ 0.1 mV , 6V ± (0.7% + 3) @ 0.001V, 60V ± (1.0% + 3) @ 0.01V, 600V ± (1.0% + 3) @ 0.1V LPF mode: 600V ± (2.0% + 5) @ 0.1V LoZ mode: 600V ± (2.0% + 5) @ 0.1V |
| DC current measurement : | 600 µA ± (0.8% + 3) @ 0.1 µA , 6000 µA ± (0.8% + 3) @ 1 µA , 60 mA ± (0.8% + 3) @ 0.01 mA , 600 mA ± (0.8% + 3) @ 0.1 mA , 6A ± (1.0% + 3) @ 0.001A, 20A ± (1.2% + 5) @ 0.01A |
| AC current measurement : | 600 µA ± (1.0% + 3) @ 0.1 µA , 6000 µA ± (1.0% + 3) @ 1 µA , 60 mA ± (1.0% + 3) @ 0.01 mA , 600 mA ± (1.0% + 3) @ 0.1 mA , 6A ± (1.2% + 3) @ 0.001A, 20A ± (1.5% + 5) @ 0.01A |
| Resistance measurement : | 600 Ω ± (1.0% + 2) @ 0.1 Ω , 6 kΩ ± (0.8% + 2) @ 0.001 kΩ , 60 kΩ ± (0.8% + 2) @ 0.01 kΩ , 600 kΩ ± (0.8% + 2) @ 0.1 kΩ , 6 MΩ ± (1.2% + 3) @ 0.001 MΩ , 60 MΩ ± (2.5% + 5) @ 0.01 MΩ |
| Capacity measurement : | 6 nF ± (4% + 8) + measurement lead capacitance @ 1 pF, 60 nF ... 600 µF ± (3% + 5) @ 10 pF ... 100 nF , 6 mF ... 60 mF ± 10% @ 1 µF ... 10 µF |
| Inductance measurement : | - |
| Frequency measurement : | 10 Hz ... 1 MHz ± (0.1% + 4) @ 0.01 Hz ... 0.001 MHz |
| Measuring the duty cycle of a rectangular signal : | 0.1% ... 99.9% ± (2% + 5) @ 0.1% |
| Temperature measurement : | - |
| Automatic change of measurement scale : | ✔ |
| hFE : | - |
| Diode test : | ✔ |
| Audible circuit integrity alarm : | ✔ |
| Checking logical TTL states : | - |
| RS-232 : | - |
| USB : | - |

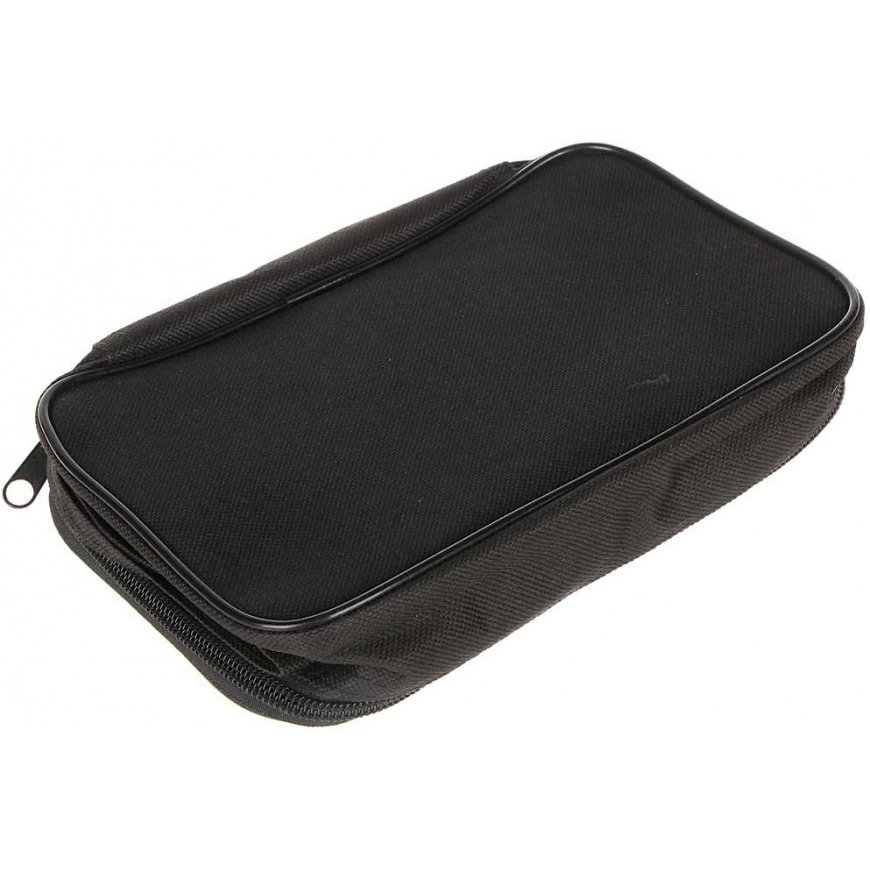

| Main features : | True RMS - accurate measurement of the real value of any form of electric current and voltage flow, Possibility of AC voltage measurement using low impedance (LoZ mode), LPF function - allows you to measure the AC voltage value using a low-pass filter with a cut-off frequency of 200 Hz., Solid housing that meets the requirements of the IP65 tightness class, Saving the last reading, Built-in flashlight, Freezing the highest or lowest reading, REL - relative measurement mode, Analog bargraph, Large, legible LCD display with backlight, Low battery signal, Aesthetic and solid construction, A practical case is included |

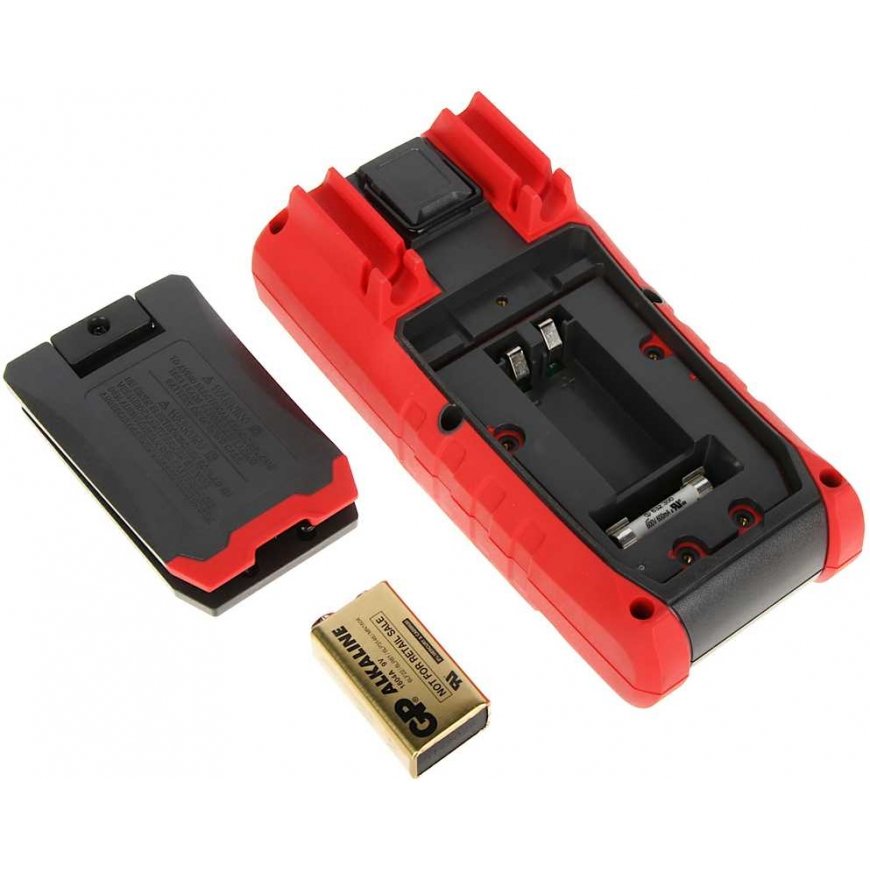

| Power supply : | 9V battery, type 6LR61 |
| Weight : | 0.4 kg |
| Dimensions : | 180 x 87 x 66 mm |
| Manufacturer / Brand : | UNI-T |
| Warranty : | 2 years |
