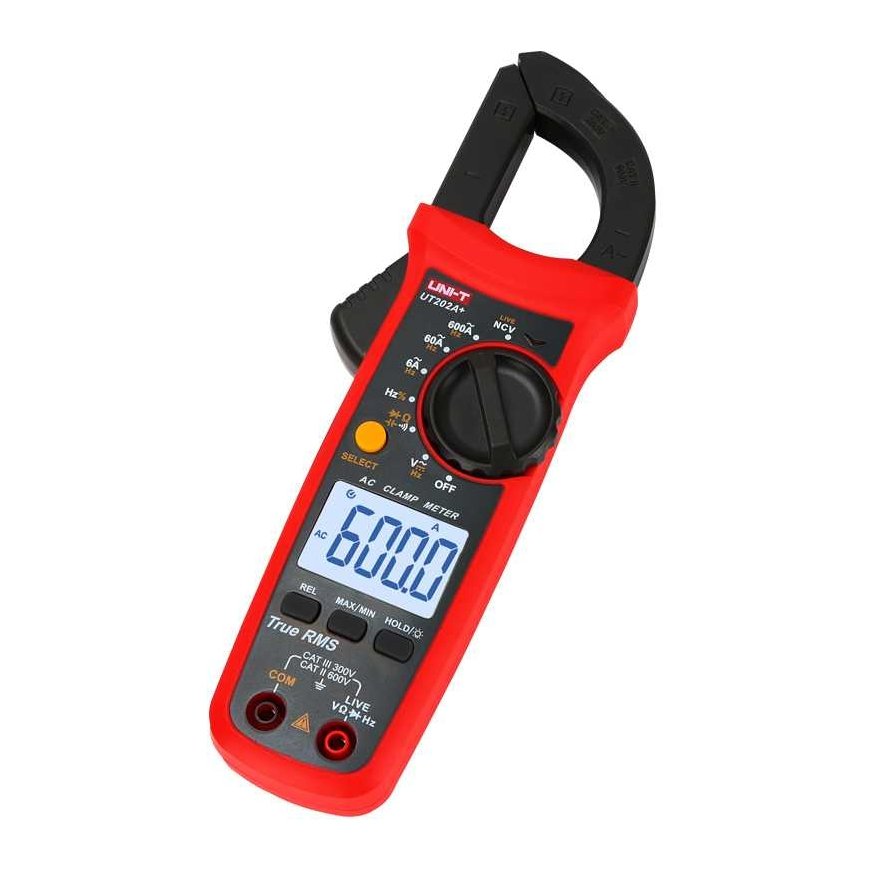

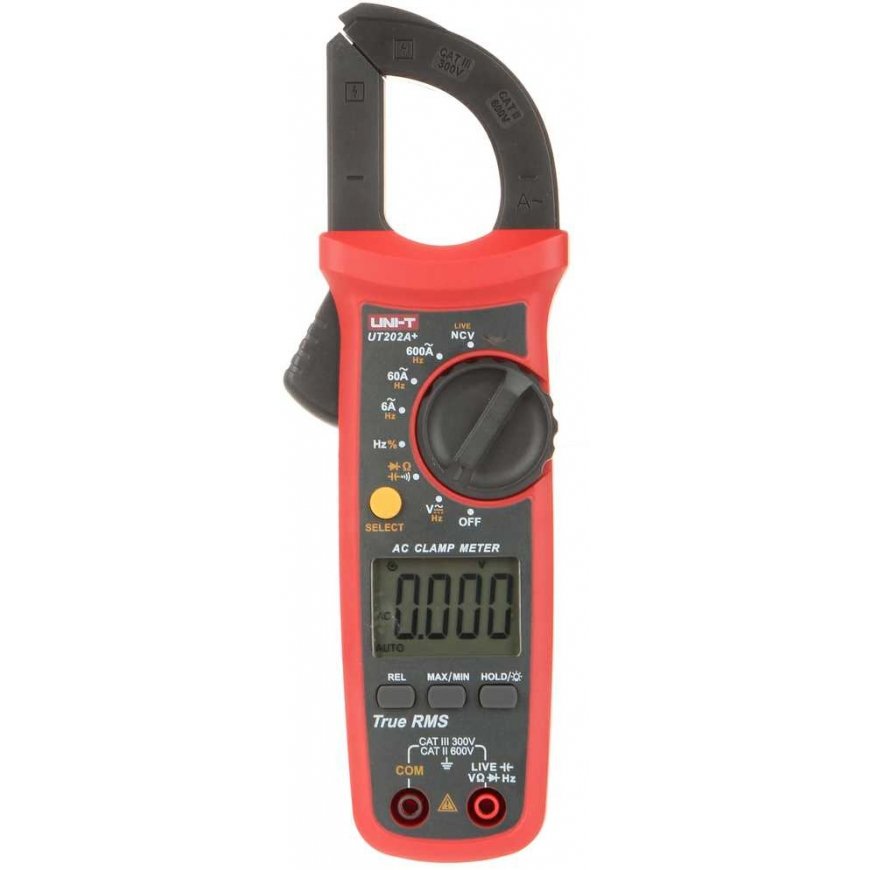

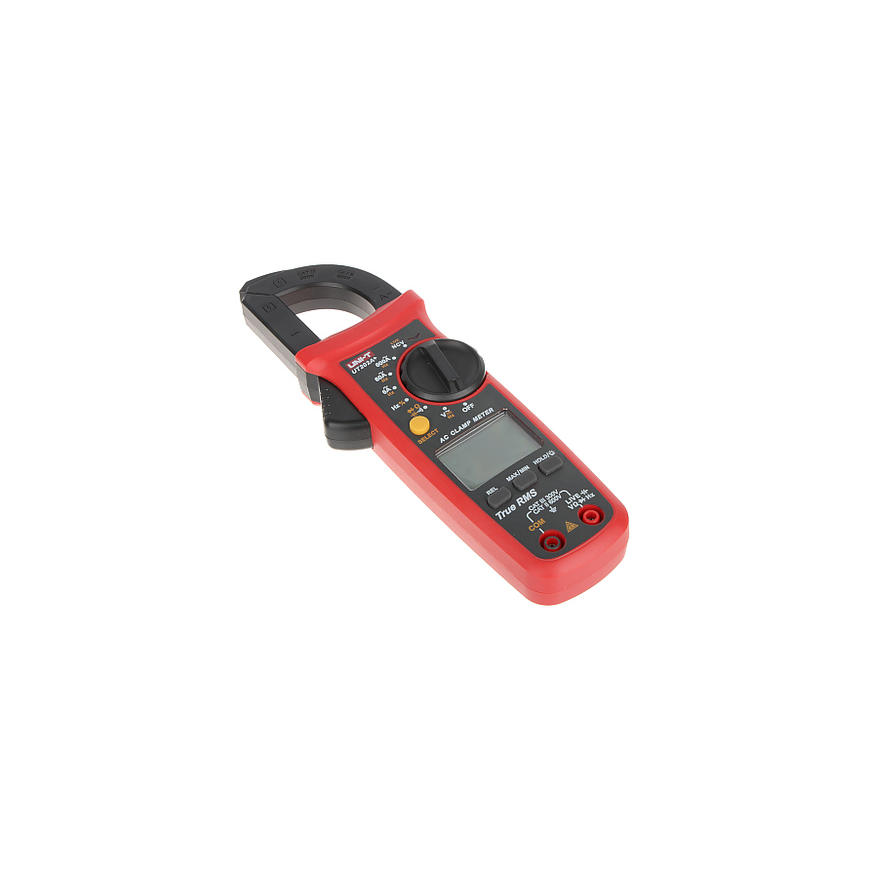

CLAMP METER UT-202A+ UNI-T
55,56 €
43,10 €
Monthly payment from 2.01 €
3552224 UT202A+
6935750520277
Shipping 2-5 b.d.
You are interested in this product?
The UT-202A+ is a universal digital meter with clamps that can measure high voltages.
The device measures: voltage, electric current, frequency, resistance and capacitance.
In addition, the meter has an electric field (NCV) detection function.
The meter has a True RMS converter, thanks to which accurate measurement of the efficiency value of electric current and voltage, sinusoidal as well as shapeless flows is possible.
| DC voltage measurement : | 600 mV ± (0.7% + 3) @ 0.1 mV , 6V ± (0.5% + 2) @ 0.001V, 60V ± (0.7% + 3) @ 0.01V, 600V ± (0.7% + 3) @ 0.1V |
| AC voltage measurement : | 6V ± (1% + 5) @ 0.001V, 60V ± (0.8% + 5) @ 0.01V, 600V ± (0.8% + 5) @ 0.1V |
| DC current measurement : | - |
| AC current measurement : | 6A ± (4% + 10) @ 0.001, 60A ± (2% + 10) @ 0.01A, 600A ± (2% + 10) @ 0.1A |
| Resistance measurement : | 600Ω ± (1% + 2) @ 0.1Ω, 6 kΩ ± (0.8% + 2) @ 0.001 kΩ , 60 kΩ ± (0.8% + 2) @ 0.01 kΩ , 600 kΩ ± (0.8% + 2) @ 0.1 kΩ , 6 MΩ ± (2% + 5) @ 0.001 MΩ , 60 MΩ ± (0.8% + 2) @ 0.01 MΩ |
| Capacity measurement : | 6 nF ± (4% + 10) @ 0.001 nF , 60 nF ± (4% + 10) @ 0.01 nF , 600 nF ± (4% + 10) @ 0.1 nF , 6 µF ± (4% + 5) @ 0.001 µF , 60 µF ± (4% + 5) @ 0.01 µF , 600 µF ± (4% + 5) @ 0.1 µF , 6 mF ± (10%) @ 0.001 mF, 60mF ± (10%) @ 0.01mF |
| Inductance measurement : | - |
| Frequency measurement : | 10 Hz ... 10 MHz ± (0.1% + 4) @ 0.01 Hz ... 0.01 MHz 0.1% 99.9% ± (3% + 5) |
| Temperature measurement : | - |
| Automatic change of measurement scale : | ✔ |
| Diode test : | ✔ |
| Audible circuit integrity alarm : | ✔ |
| RS-232 : | - |
| USB : | - |
| Main features : | True RMS - accurate measurement of the real value of any form of electric current and voltage flow, NCV - electric field detection function, REL - relative measurement mode, Writing the value MAX / MIN, Hold - stopping the meter reading, Integrated flashlight, Large, legible LCD display with backlight, Low battery indicator, Aesthetic and solid construction, Practical case included |

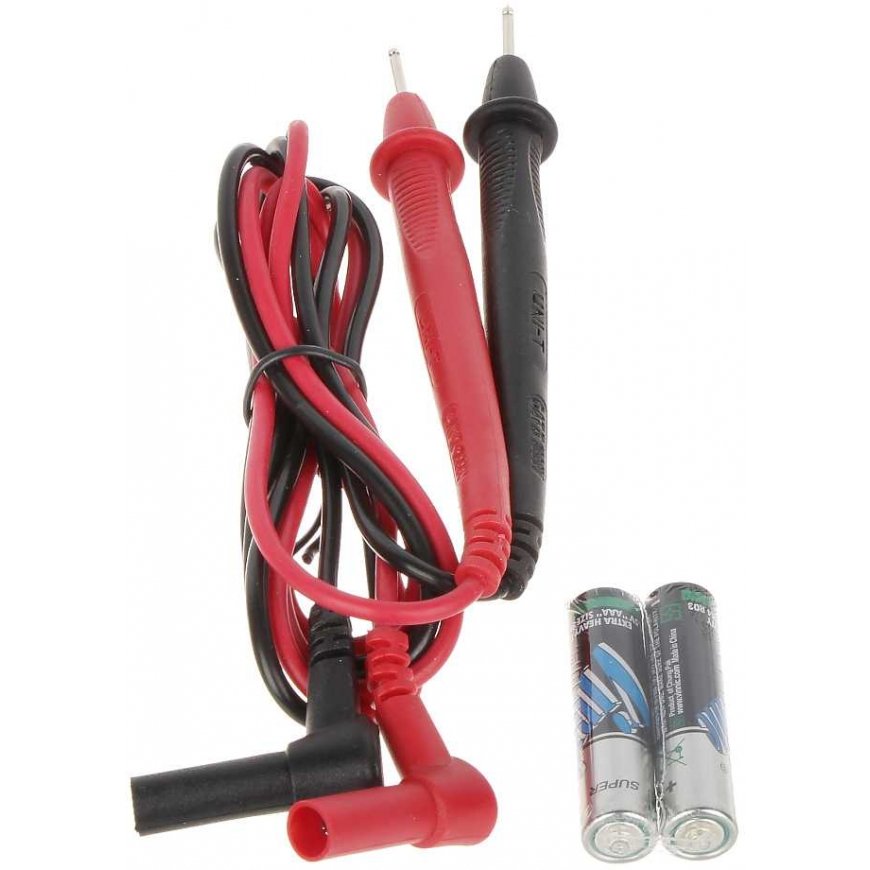

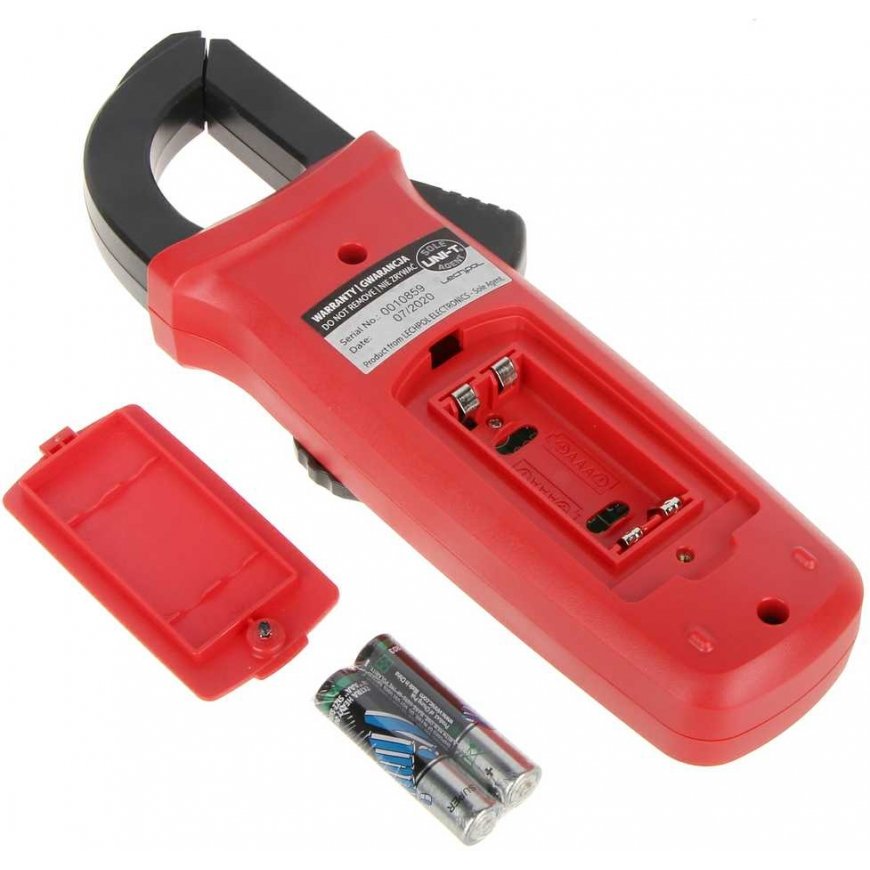

| Power supply : | 2 x 1.5V battery, type AAA/LR03 - included |
| Weight : | 0.23 kg |
| Dimensions : | 216 x 71 x 35 mm |
| Manufacturer / Brand : | UNI-T |
| Warranty : | 2 years |
