LANCOM YS-7154CF-F2B
29 399,00 €
Monthly payment from 757.92 €
3475012 61907
4044144619076
Shipping 4-6 w.d.
Pay 5x5879.80€You are interested in this product?

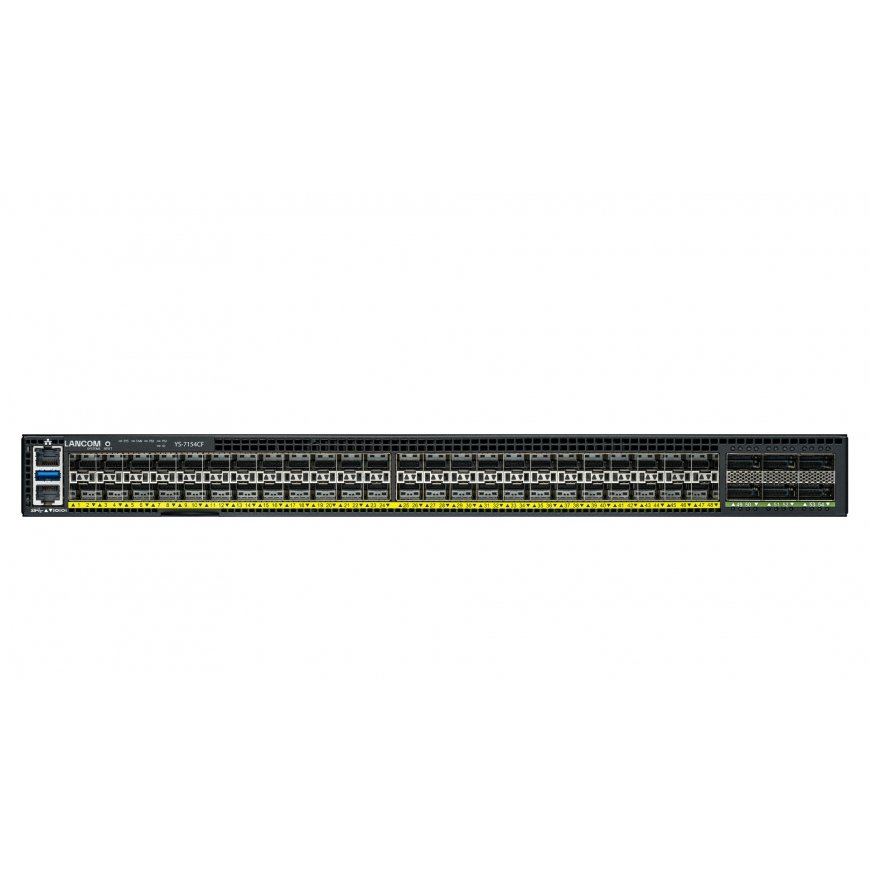

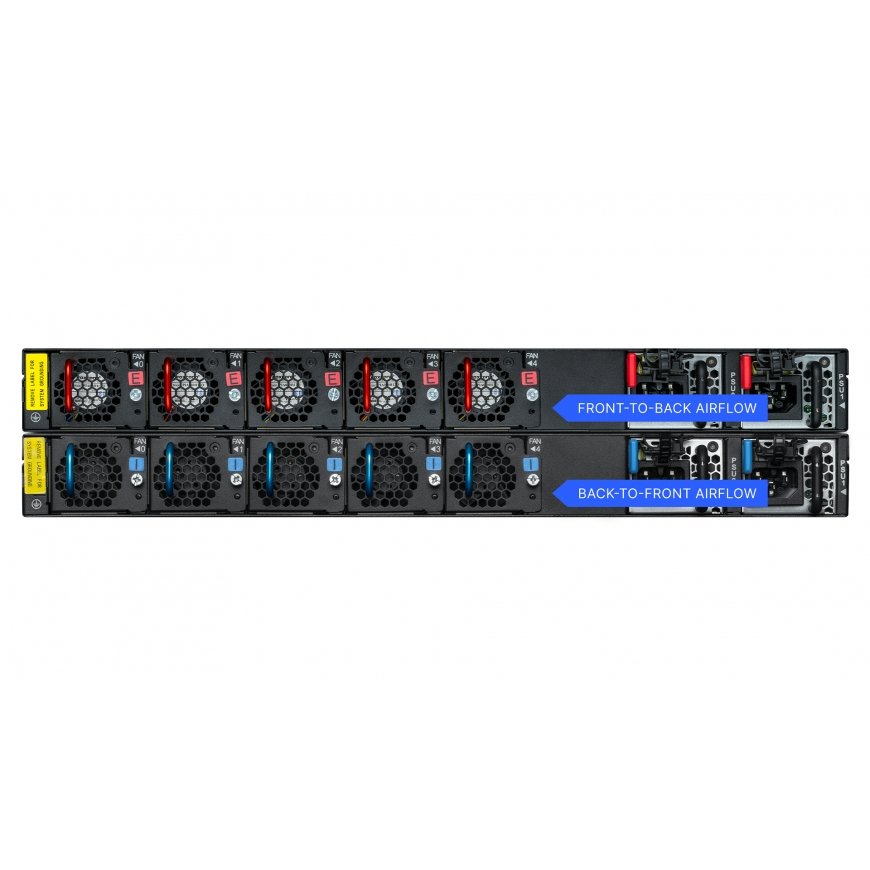

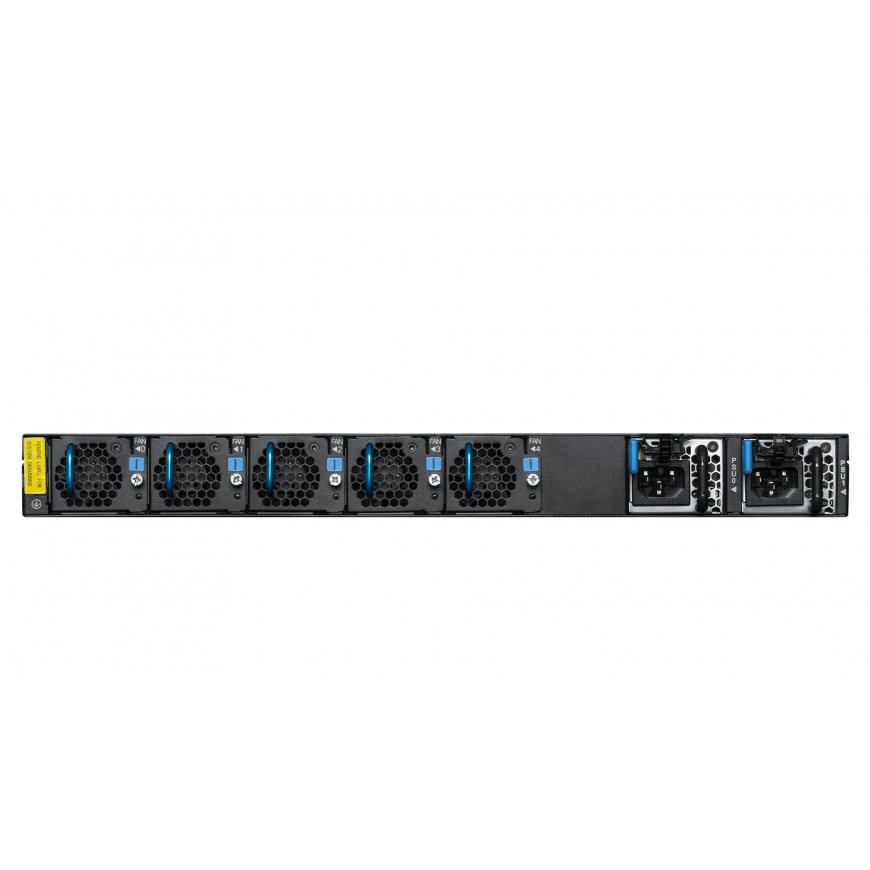

In data-intensive, distributed campus networks, the LANCOM YS-7154CF ensures the necessary performance and high availability of network resources. With 48x 25G SFP28 and 6x 100G QSFP28 ports, the switch offers maximum connection flexibility in mixed 1G-100G environments, providing a total of 3.6 Tbps switch capacity. Depending on the size of the installation, the LANCOM YS-7154CF can be integrated either as an aggregation switch (distribution base) between core and access switches (three-tier design) or as a core switch resp. “collapsed backbone” at the top level to the WAN (two-tier design) to create hierarchical switch infrastructures. Reliable, high-performance operation even in bandwidth-intensive networks is ensured by Virtual Port Channel (VPC) or stacking. Additional fail-safety is provided by two redundant power supply units, five hot-swappable fan modules, and a selectable cooling concept. Centralized network management with real-time monitoring of the device status is automated and location-independent via the LANCOM Management Cloud or using the industry-standard web GUI and CLI.
Network | |
| Networking standards | IEEE 802.1x, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p |
| Flow control support | Yes |
| Full duplex | Yes |
| Static route | Yes |
| Multicast support | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12288 |
| Port mirroring | Yes |
| Number of VLANs | 4093 |
Management features | |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
Security | |
| Security algorithms | SNMP, SNMPv2 |
| MAC address table | 32000 entries |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
Protocols | |
| Routing protocols | BGP4, OSPFv2, OSPFv3 |
| Management protocols | SNMP |
Design | |
| LED indicators | Yes |
| Product colour | Black |
Features | |
| Built-in processor | Yes |
| Processor frequency | 1600 MHz |
| Firmware upgradeable | Yes |
| Heat dissipation | 750 BTU/h |
| Internal memory | 8192 MB |
Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions | |
| Width | 440 mm |
| Depth | 440 mm |
| Height | 43.8 mm |
| Weight | 8.7 kg |
Packaging data | |
| Package width | 540 mm |
| Package depth | 660 mm |
| Package height | 180 mm |
| Package weight | 8.7 kg |
Other features | |
| Form factor | 1U |
| Rack mounting | Yes |
Logistics data | |
| Country of origin | Taiwan |
| Customs product code (TARIC) | 85176200 |
Packaging content | |
| Manual | Yes |
