The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

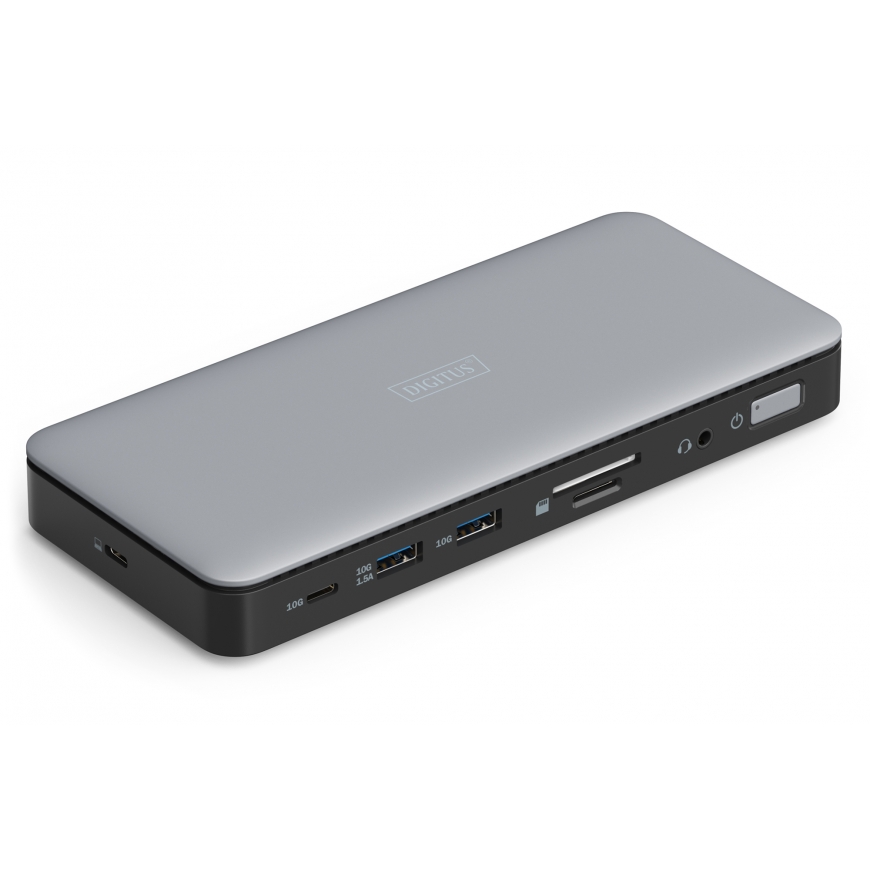

Digitus USB-C docking station, 11-port
129,00 €
Monthly payment from 4.22 €
3414160 DA-70917
4016032497769
2026-04-30
Pay 5x25.80€You are interested in this product?
- 2x HDMI port + 1x DP port (4K/60Hz) - Extend your workstation to up to 3 external monitors
- Supports dual monitor (2x 4K/60Hz) & triple monitor (1x 4K/60Hz + 2x 4K/30Hz) in MST mode (expand screen) - Windows, ChromeOS, Linux
- Supports dual monitor (2x 4K/60Hz) & triple monitor (3x 4K/60Hz) in SST mode (screen mirroring) - All common operating systems
- 2x USB-A 3.2 Gen 2 (10 Gbit/s) connection for ultra-fast data transfer - one port with additional charging function (1.5A) for mobile devices
- 1x USB-C 3.2 Gen 2 (10 Gbit/s) port for ultra-fast data transfer and with additional charging function (1.5A) for mobile devices
- 1x Gigabit Ethernet connection (RJ45) - connect your notebook to the network via cable
- 2x card reader (SD/MicroSD) - transfer speed of 104 MBps
- 1x DC-Jack - connection for charging the notebook
- 1x 3.5 mm audio jack
- Reversible USB-C 3.2 Gen 2 connection cable (100 cm) - Flexible connection to the host PC
Expand your workplace with our USB-C docking station. Expand your screen with three external monitors thanks to the 2x HDMI ports and 1x DP port. The docking station supports both dual monitor mode (2x 4K/60Hz) and triple monitor mode (3x 4K/60Hz) in SST mode (screen mirroring) and (1x 4K/60Hz + 2x 4K/30Hz) in MST mode (screen extending). Use the 2x USB-A 3.2 Gen 2 ports (10 Gbit/s) for ultra-fast data transfers, with one port also offering a 1.5A charging function for mobile devices. The USB-C 3.2 Gen 2 port (10 Gbit/s) provides extended connectivity, while the Gigabit Ethernet port (RJ45) enables a stable network connection. Two card readers (SD/MicroSD) offer a transfer speed of 104 MBps. The DC jack charges your notebook using a powerful power supply unit, and the 3.5mm audio jack rounds off the features. A reversible 100 cm USB-C connection cable ensures a flexible connection to the host. The docking station also supports DP 1.4 Alt Mode and HDR.
Ports & interfaces | |
| DC-in jack | Yes |
| USB 2.0 ports quantity | 0 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Ethernet LAN (RJ-45) ports | 1 |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 1 |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Features | |
| LED indicators | Yes |
| Product colour | Black, Grey |
| Plug and Play | Yes |
| Housing material | Plastic, Aluminium |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| Maximum refresh rate | 60 Hz |
| High Dynamic Range (HDR) supported | Yes |
Power | |
| Power consumption (max) | 150 W |
| Power source type | DC |
System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
Weight & dimensions | |
| Weight | 282 g |
| Depth | 180 mm |
| Height | 23 mm |
| Width | 80 mm |
Packaging data | |
| Quantity per pack | 1 pc(s) |
Packaging content | |
| Cables included | USB Type-C, AC |
| AC adapter included | Yes |
| Quick start guide | Yes |
Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
Network | |
| Ethernet LAN data rates | 10, 100, 1000 |

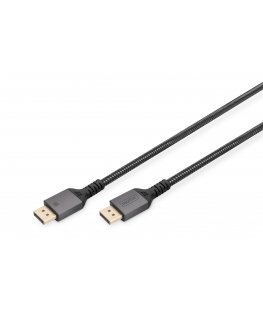

806728MPN: AK-340100-020-SCable length: 2 mConnector 1: DisplayPortConnector 2: DisplayPort
