Digitus Wall Mounting Cabinets Dynamic Basic Series - 600x600 mm (WxD)
Digitus Wall Mounting Cabinets Dynamic Basic Series - 600x600 mm (WxD)
Digitus Wall Mounting Cabinets Dynamic Basic Series - 600x600 mm (WxD)
Digitus Wall Mounting Cabinets Dynamic Basic Series - 600x600 mm (WxD)
Digitus Wall Mounting Cabinets Dynamic Basic Series - 600x600 mm (WxD)
Digitus Wall Mounting Cabinets Dynamic Basic Series - 600x600 mm (WxD)

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

Digitus Wall Mounting Cabinets Dynamic Basic Series - 600x600 mm (WxD)

189,00 €
Monthly payment from 5.77 €
3182621

DN-19 09U-6/6-EC

4016032221746

Shipping 4-6 w.d.

Pay 5x37.80€
Quantity

You are interested in this product?
(Read terms of service)
- Optimized air ventilation and exhaustion
- Lockable glass door ensures safety
- 483 mm (19“) profile rails mounted on the front- and rear side inside of the rack, galvanized

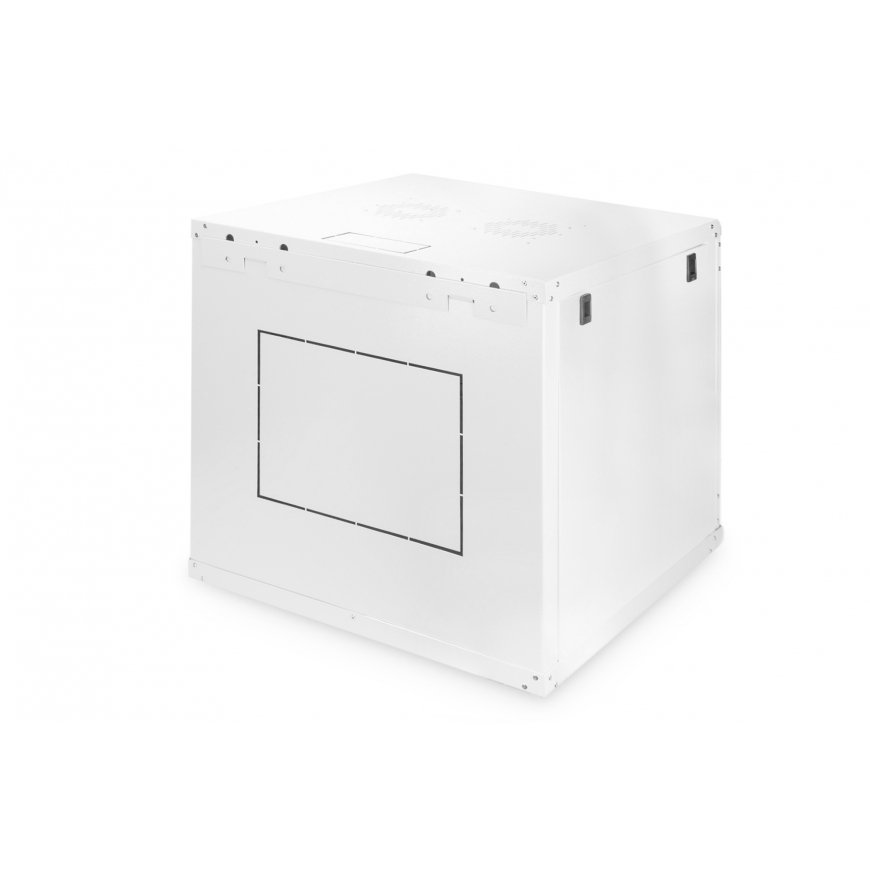

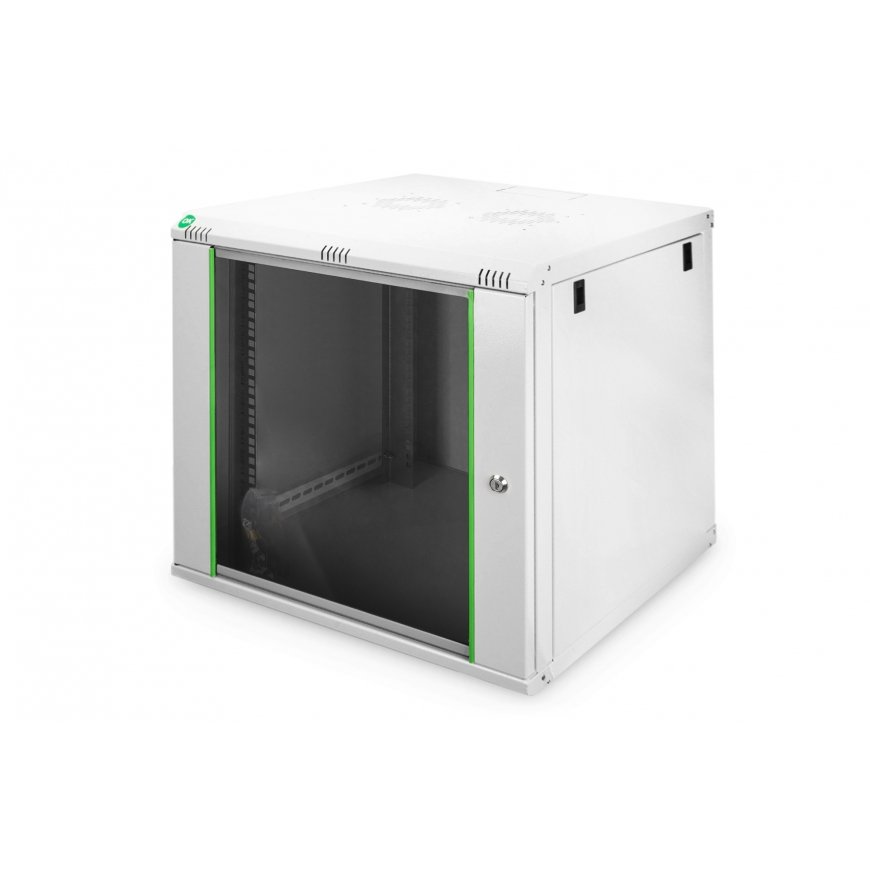

The network cabinets for wall installation from the Dynamic series were developed for easy and especially cost-optimized network expansion. The roof, floor and back wall of each cabinet are equipped with a pre-cut cable inlet. To accommodate a fan module, the roof structure is also equipped with a pre-cut area. Two pairs of galvanized 483 mm (19”) profile rails labeled with rack units readable in both directions are installed on the inside. Their depth can be adjusted. Each cabinet is made of up to 1.5 mm thick sheet steel. Coloring is done with electrostatic powder coating in the standard colors gray (RAL 7035) or jet black (RAL 9005). Removable side walls as well as lockable and removable front door improve accessibility. The door hinges can be switched. Wall installation is accomplished in two easy work steps: The mounting plate provided is bolted on the wall and then connected with the housing.
Features
Product colour Grey
Material Glass, Zinc steel
International Protection (IP) code IP20
Key lock Yes
Size (imperial) 48.3 cm (19")
Maximum weight capacity 60 kg
Design
Rack capacity 9U
Logistics data
Country of origin China
UK Trade Tariff code 94032080
Harmonized System (HS) code 85381000
Weight & dimensions
Package weight 20 kg
Depth 600 mm
Height 505 mm
Package depth 520 mm
Package height 505.1 mm
Package width 630 mm
Width 600 mm
Technical details
Package volume 203112 cm³
Other features
Type Wall mounted rack
