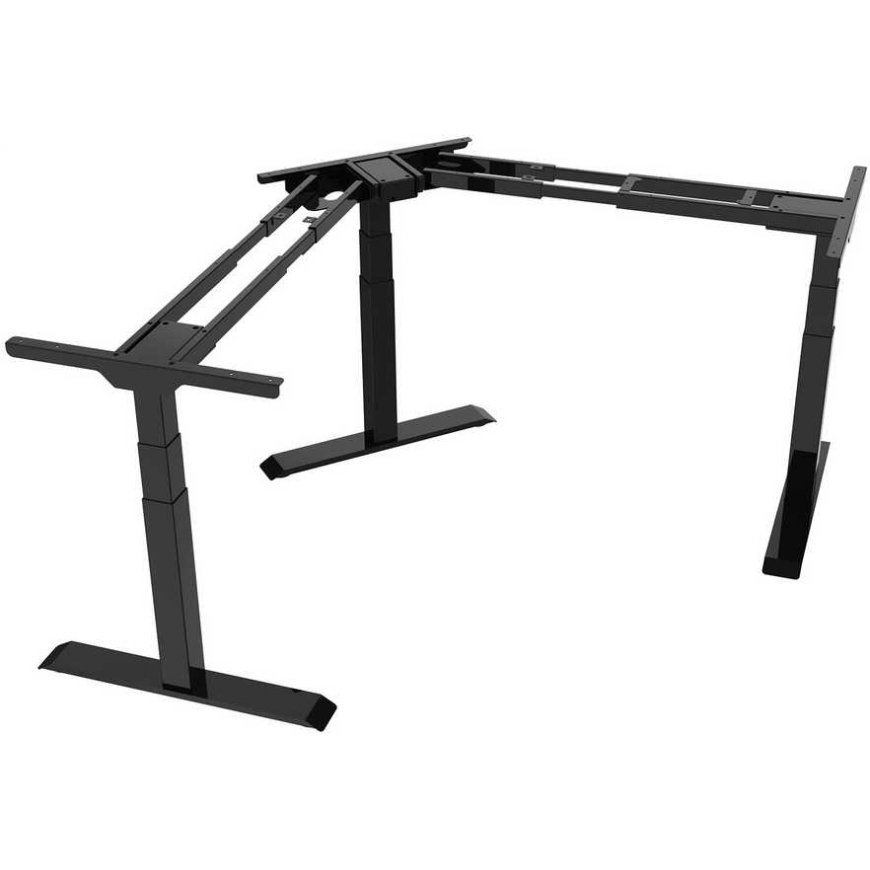

Spacetronik SPE-323TB electric table frame

Spacetronik SPE-323TB Electric Table Frame with 3 Setting Options (Black)

Create an ergonomic and modern workplace with the Spacetronik SPE-323TB in black. It is a table frame with an electric height adjustment mechanism. It has three motors that ensure efficient and smooth tabletop height changes. Regulation provides a sense of comfort and the ability to meet the individual needs of an employee, and can also affect work efficiency. The 3-in-1 design allows you to adjust the frame layout according to your preference - V, L or I shape. For office, home, production stations.

A three-in-one table that is user-friendly

It is a unique table frame that allows it to be customized according to the needs of the user. Set it to an "L" shape (corner table), "V" or "I" shape (standard). Ideal for larger countertops, so you get a large work surface.

1. "L" shape 2. "V" shape 3. "I" shape

Strong and stable construction

Designed for maximum structural integrity, our frame ensures that the table remains stable even at its highest height. The thicker and more durable powder coating is scratch, water and stain resistant.   The maximum load capacity is 150 kg.

Quick, quiet and smooth adjustment

The three-motor Spacetronik system allows for faster and more stable adjustments and facilitates the transition from sitting to standing in less than 10 seconds. The high-quality 3-stage height-adjustable column construction ensures a smooth and comfortable transition.   The maximum adjustment speed is 38 mm/s. The frame is characterized by quiet operation, not exceeding 50 dB.

Work standing or sitting due to height adjustment

With an electric frame, your workplace will become a hybrid. If you find that sitting becomes tiring, change the sitting position to standing and the desk will do it with you.   Adjust the height in the range of 580-1230 mm.

Advanced controller with position memory and alarm

Up/down buttons make it easy to adjust to the perfect height. Thanks to three programmable buttons, you can save your favorite positions and return to each of them with one click, for example when you want to work while standing. The display shows the current height of the ergonomic desk, which automatically dims to reduce power consumption when the desk is stationary. A reminder alarm will allow you to maintain a "healthy balance" between standing and sitting while working. You can turn it on or off at any time.

1. LED display 2. Up/down buttons 3. Programmable buttons to save 3 positions 4. Alarm button 5. Memory button

Personalize your table and choose the right top

In addition to the up/down adjustment and three-way transformation, the universal electric frame allows for double manual horizontal (sideways) adjustment. You can easily expand the structure to the size of your tabletop. Suggested table top dimensions: 90° 1300 - 1900 mm (2 sides), 600 - 800 mm; Due to   120° 1100 - 1800 mm, 600 - 800 mm; 180° 1700 - 2900 mm, 600 - 1000 mm.

Product features

- 3-stage column design
- three engine system
- adjustment range 580 - 1230 mm
- maximum carrying capacity 150 kg
- Suggested table top dimensions: 90° 1300 - 1900 mm (2 sides), 600 - 800 mm; Due to   120° 1100 - 1800 mm, 600 - 800 mm; 180° 1700 - 2900 mm, 600 - 1000 mm
- maximum speed 38 mm/s
- Very quiet ride; noise level below 50 dB
- Power supply 100 V - 240 V
- advanced controller with 3-position memory and alarm
- security software including automatic fault detection
- constant speed, precise height adjustable with an error of 2 mm
- reliable management system
- easy installation and management
- black color
- the product does not have a table top
- 3 in 1 design: 90°, 120° and 180°
