Spacetronik SPE-114MW elbow table frame

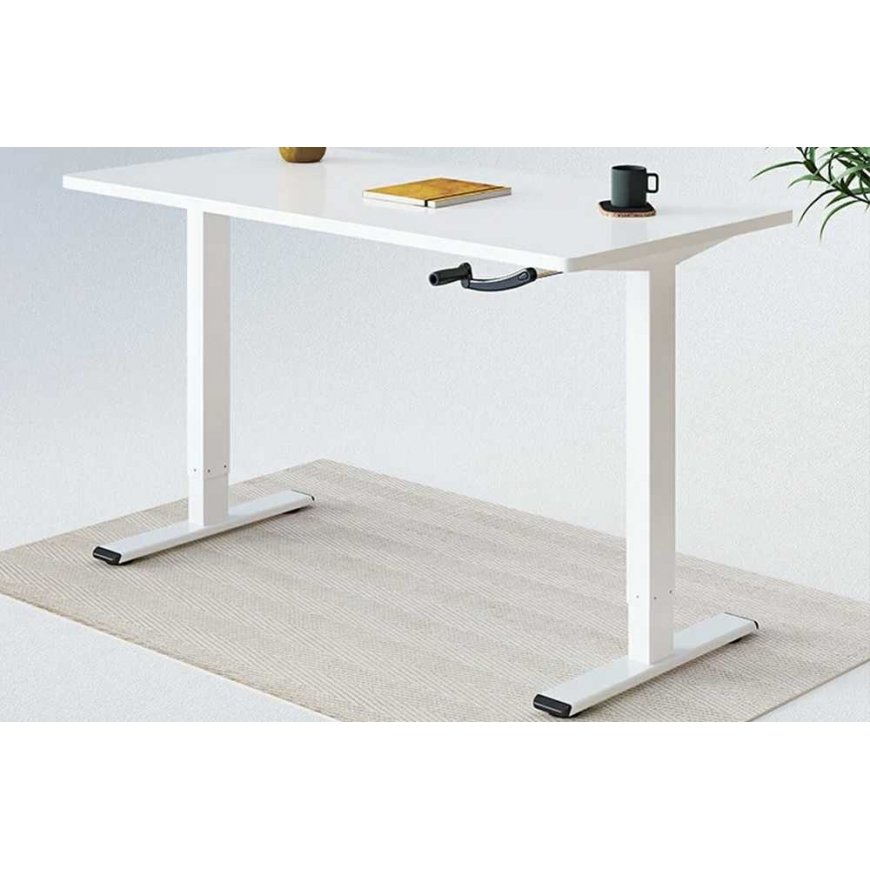

Create an ergonomic and modern workplace with the Spacetronik SPE-114MW Desk Frame with Crank (White)

The SPE114M from the Spacetronik ERGOLINE series is a frame with a manual height adjustment mechanism. It has a crank that ensures efficient and smooth tabletop height changes. Regulation provides a sense of comfort and the ability to meet the individual needs of an employee, and can also affect work efficiency. Perfect for simple tables and desks. For office, home, production stations.

Strong and stable construction

Designed for maximum structural integrity, our frame ensures that the table remains stable even at its highest height. The thicker and more durable powder coating is scratch, water and stain resistant. The maximum load capacity is 70 kg.

Work standing or sitting due to height adjustment

With a hand frame, your workplace will become a hybrid. If you find that sitting becomes tiring, change the sitting position to standing and the desk will do it with you.   Adjust the height in the range of 710-1210 mm.

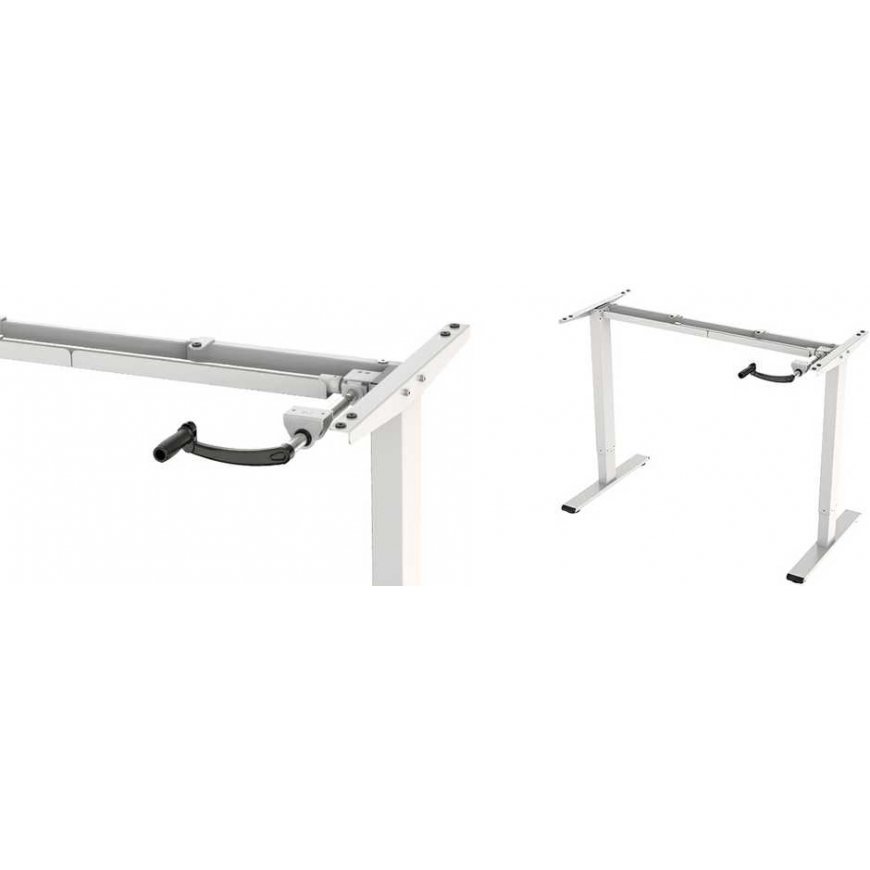

The handle is easy to adjust

One turn of the crank raises the tabletop approximately 6mm. The important thing is that the knob works smoothly. The adjustment is very intuitive.

Personalize your table and choose the right top

The universal electric frame frame allows for manual horizontal (sideways) adjustment in addition to up/down adjustment. You can easily expand the structure to the size of your tabletop. Suggested table top dimensions: 1000-1600 mm (width) ,   600-800 mm (depth).

5 year warranty

The frame with manual height adjustment comes with a 5-year warranty (protection does not apply to mechanical damage or damage caused by improper use of the product).

Product features

- 2-stage column design
- adjustment with a knob
- adjustment range 710 - 1210 mm (500 mm)
- maximum carrying capacity 70 kg
- the proposed table top width is 1000 - 1600 mm
- the suggested tabletop depth is 600 - 800 mm
- speed 6 mm / revolution
- Very quiet and smooth ride
- easy installation and management
- White color
- the product does not have a table top
- 5-year warranty

Download

User manual (Polish)
User Guide (English)
