The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.
Shuttle DS50U PC/workstation barebone
369,00 €
Monthly payment from 10.40 €
3107778 DS50U
0887993006574, 0887993006208
2026-05-07
Pay 5x73.80€You are interested in this product?

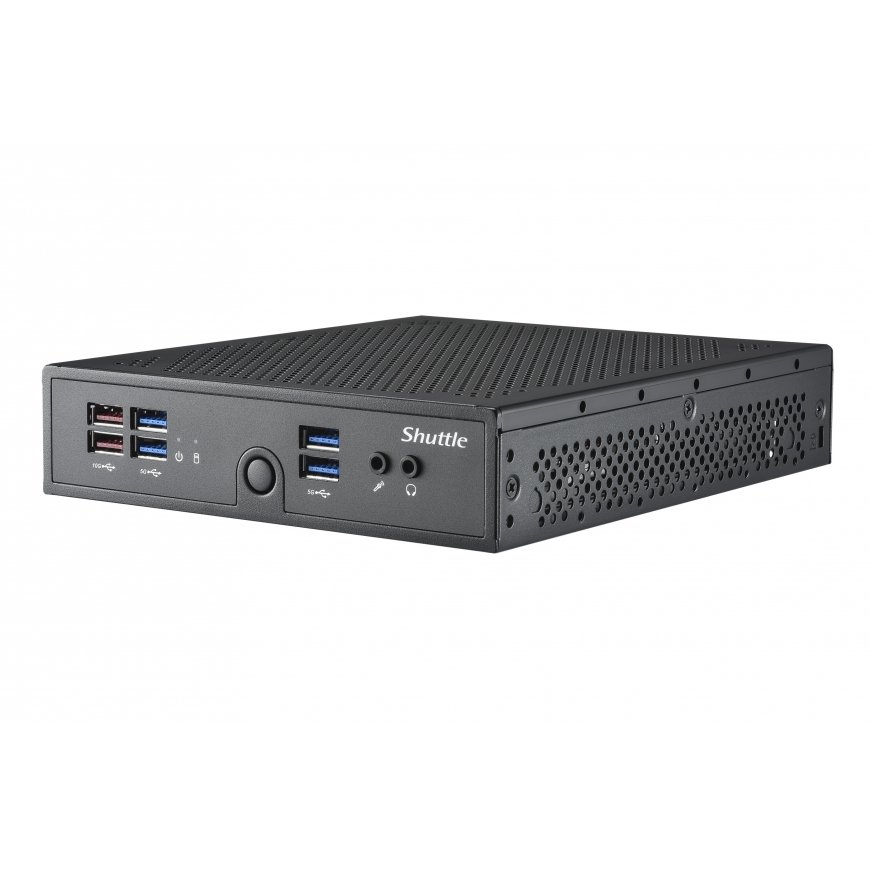

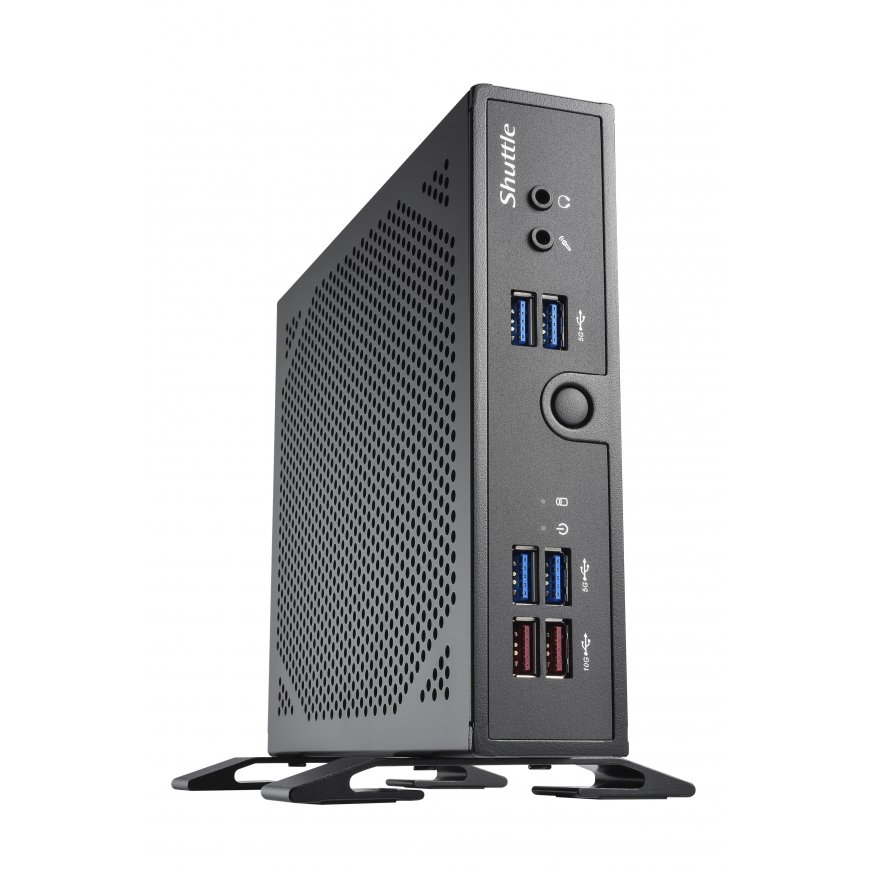

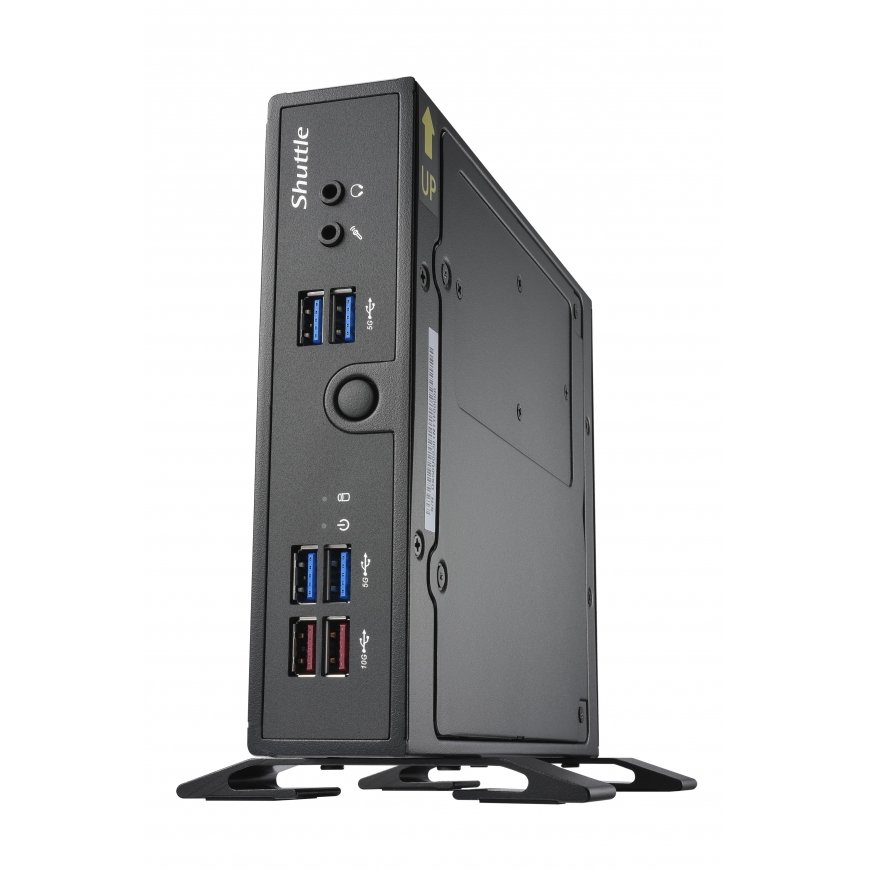

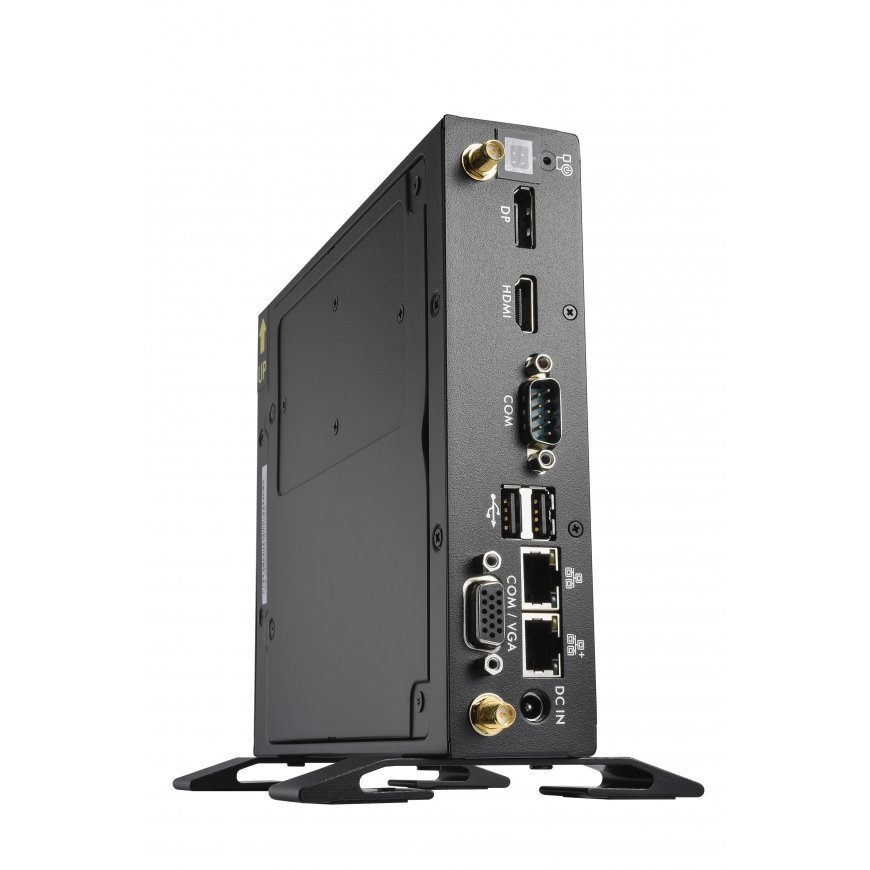

The DS50U-series is a fanless slim PC with a robust 1.3-litre metal chassis and exceptional connectivity. It supports two digital video outputs for UHD/4K displays and one traditional D-Sub/VGA connector. The built-in Intel Gen 12/13 processor provides ample performance for playback of 2160p/60 videos. Installation of components goes straight forward, as there is plenty of interior space for two DDR5 memory modules, one 2.5" drive and two M.2-2280 SSD cards.
Optionally, an 4G/5G module can be fitted in the second M.2 slot using the optional WWN04 accessory. Thanks to its passive cooling, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS50U series is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Office PC and Multimedia.
| Operating system installed | No |
| Wi-Fi | No |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75; 100 x 100 |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Processor family | Intel® Celeron® |
| Processor model | 7305 |
| Processor cores | 5 |
| Weight | 1.6 kg |
| Width | 200 mm |
| Depth | 165 mm |
| Height | 39.5 mm |
| AC adapter included | Yes |
| Memory voltage | 1.1 V |
| Cooling type | Passive |
| Package weight | 2.3 kg |
| Sustainability certificates | ENERGY STAR; ErP |
| Windows operating systems supported | Windows 10; Windows 11 |
| Quick start guide | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| LED indicators | Power; HDD |
| Housing material | Steel |
| AC input voltage | 100 - 240 V |
| Product type | Mini PC barebone |
| Built-in speaker(s) | No |
| On/off switch | Yes |
| AC input frequency | 50/60 Hz |
| Number of storage drives supported | 3 |
| HDMI version | 2.0b |
| Power supply type | External AC adapter |
| Linux operating systems supported | Yes |
| NVMe | Yes |
| VGA (D-Sub) ports quantity | 1 |
| Power supply | 90 W |
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Maximum internal memory | 64 GB |
| On-board graphics card | Yes |
| On-board graphics card model | Intel® UHD Graphics |
| Chassis type | 1.3L sized PC |
| Trusted Platform Module (TPM) | Yes |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Harmonized System (HS) code | 84733080 |
| Processor threads | 5 |
| LAN controller | Intel® I219; Intel I226-LM |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Audio chip | RealTek ALC888S |
| Number of processors supported | 1 |
| ECC supported by processor | No |
| Supported memory types | DDR5-SDRAM |
| Storage drive sizes supported | 2.5; M.2 |
| Supported storage drive types | HDD & SSD |
| Trusted Platform Module (TPM) version | 2.0 |
| BIOS type | UEFI AMI |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Serial ports quantity | 1 |
| Memory channels | Dual-channel |
| AC adapter output voltage | 19 V |
| Number of power supply units | 1 |
| AC adapter output current | 1.6 A |
| Sustainability compliance | Yes |
| Storage drive interface | Serial ATA III; PCI Express |
| Supported memory clock speeds | 5200 MHz |
| Power cord included | Yes |
| Graphics card family | Intel |
| Performance cores | 1 |
| Efficient cores | 4 |
| Compliance certificates | CE; RoHS; Federal Communications Commission (FCC); VCCI; BSMI; CB; RCM; cTUVus |
