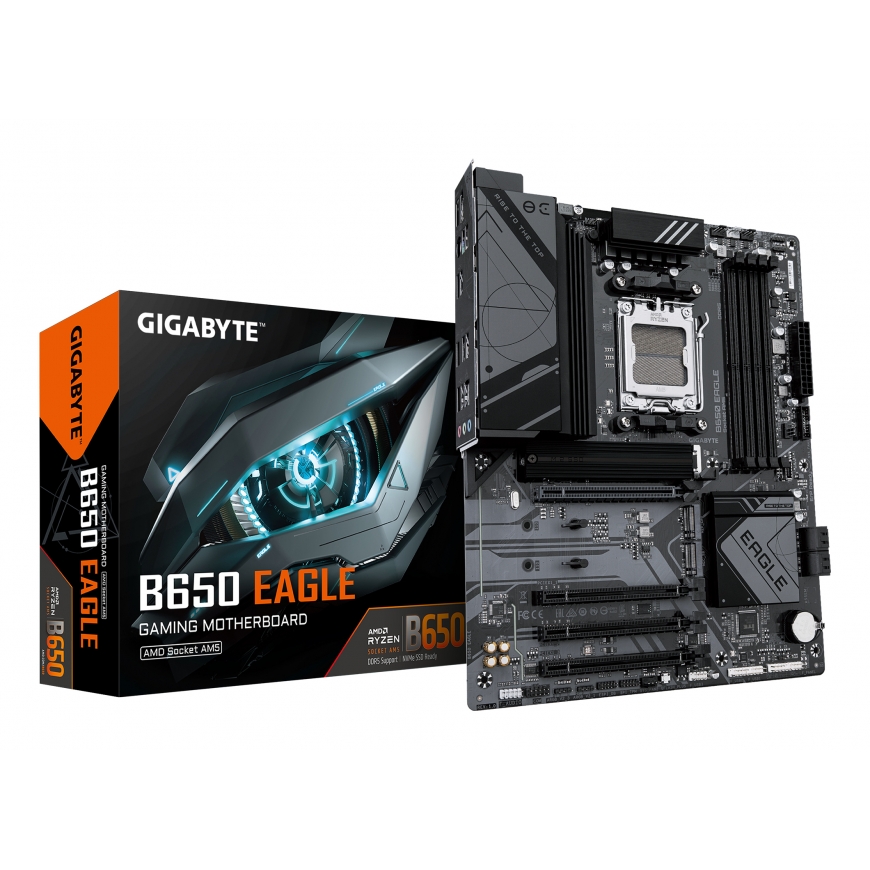

GIGABYTE B650 EAGLE motherboard
137,14 €
Monthly payment from 4.43 €
2934906 B650 EAGLE
4719331863081
2026-03-24
Pay 5x27.43€You are interested in this product?
Processor | |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Processor manufacturer | AMD |
Memory | |
| Maximum internal memory | 256 GB |
| Supported memory clock speeds | 4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7600 |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 7600 MHz |
| Maximum internal memory per slot | 64 GB |
| ECC сompatibility | Non-ECC |
Storage controllers | |
| RAID levels | 0, 1, 10 |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 7 |
| RAID support | Yes |
Graphics | |
| Parallel processing technology support | Not supported |
| HDCP | Yes |
| DirectX version | 12.0 |
| Maximum resolution | 4096 x 2160 pixels |
| Discrete graphics support | Yes |
Internal I/O | |
| USB 2.0 connectors | 3 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 3 |
| Front panel audio connector | Yes |
| TPM connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| EPS power connector (8-pin) | Yes |
| Serial port headers | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 2 |
| Number of RGB LED pin headers | 4 |
| Number of water pump connectors | 2 |
Rear panel I/O ports | |
| PS/2 ports quantity | 1 |
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Line-in | Yes |
Network | |
| LAN controller | Realtek RTL8111H |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
Features | |
| Motherboard form factor | ATX |
| Motherboard chipset | AMD B650 |
| Audio output channels | 7.1 channels |
| Motherboard chipset family | AMD |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Component for | PC |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Power source type | ATX |
| Audio chip | Realtek ALC897 |
| Product colour | Brown |
Expansion slots | |
| PCI Express x16 (Gen 3.x) slots | 3 |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| 1st M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 4.0 |
BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
| Height | 35 mm |
Technical details | |
| Warranty period | 3 year(s) |
Packaging content | |
| Bundled software | Norton Internet Security (OEM version), LAN bandwidth management software |
| Batteries included | Yes |
| Screws included | Yes |
Packaging data | |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1.82 kg |
Logistics data | |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
