Danfoss Link Regulator For Warm Floors 5 outlets

Danfoss Link™ controls underfloor heating

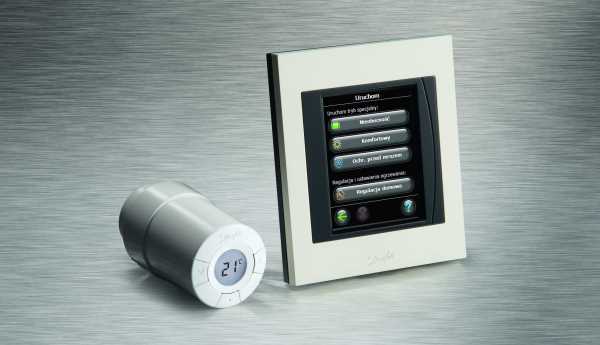

For this, we use the HC floor heating controller and Icon system wireless room thermostats with the central controller.

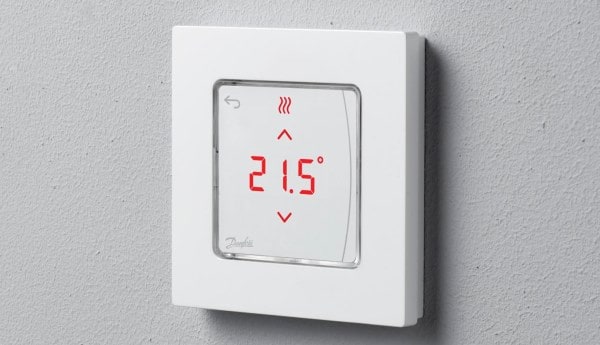

Danfoss Icon wireless room thermostat is an electronic sensor - freely selectable position and easy replacement of room thermostats. It has a display that shows the set and actual temperature. Power - 2 x AA batteries, enough for two years.

Functions of wireless thermostats with display:

• Temperature limitation
• Wireless two-way communication
• Control by touching the screen
• Navigation using characters
• Silent switching
• Powered by batteries (2x1.5V)
• There are two versions: standard wireless or wireless with an infrared temperature sensor

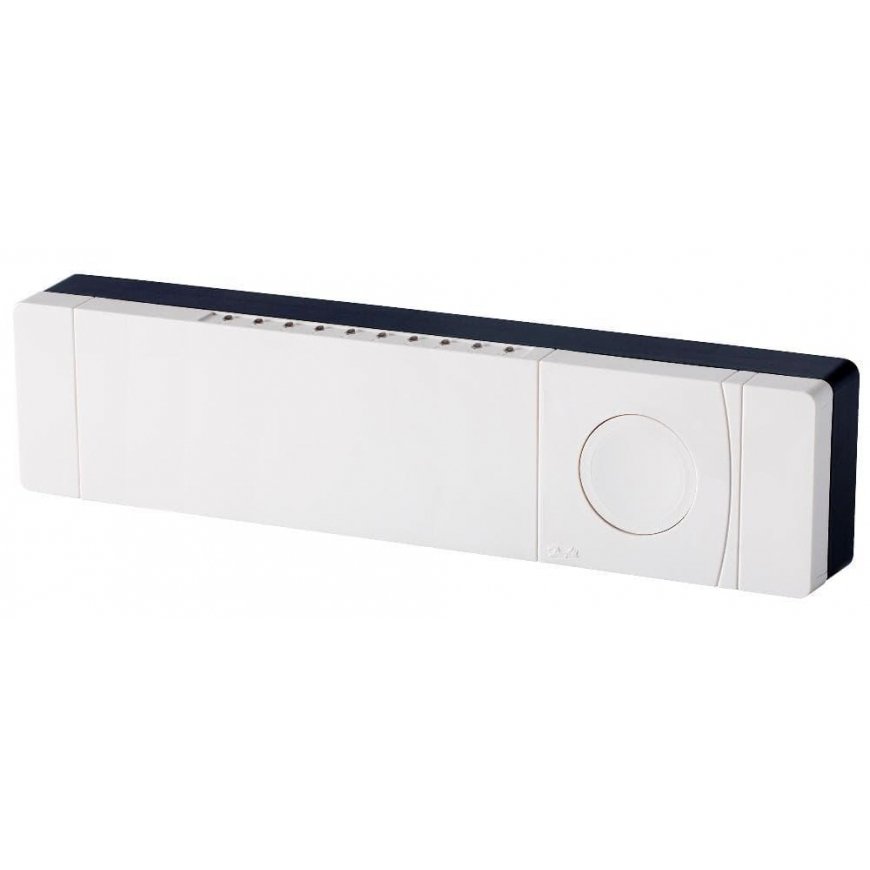

The Danfoss Link™ HC controller controls water-based floor heating systems. The system has many control functions to achieve optimal comfort and energy savings by individually regulating the temperature.

The most important features of HC:

• Wireless two-way communication, 868 MHz
• 24V outputs with LED, with short-circuit protection
• Gear outputs are suitable for various wiring connections
• Automatic self-diagnosis function with error message
• Switching relay for pump and boiler control

There is also a solution to control Devi electric floor heating mats with the help of the FT thermostat.

How will this save you money?

Mechanical systems generally cannot be as accurate as electronic ones. As a result, the temperature in the house constantly fluctuates - from "a little too hot" to "cool".

By accurately measuring the temperature and programming it with a daily or weekly timer, you can set a lower temperature when you are not at home or while you are sleeping, and a higher temperature when you are at home.

Every time you reduce the temperature by 1°C, you save 6% of energy.

Therefore , by controlling the temperature accurately and precisely, you control your heating costs.

For example, with Living Connect™ electronic thermostats you will save up to 16%* of energy if you used mechanical thermostats before installing them. Up to 23%* - if you used 15-year-old thermostats and even up to 46%* of energy if you didn't use thermostats at all.

* Calculations are based on an example of an average German house. Therefore, the insulation of an individual house, building materials, windows or the year of construction of the house are not compared. In addition, external factors such as outdoor air temperature, fireplace, wind strength and others are not taken into account.
