Electric Spacetronik SPE-223G table frame

Create an ergonomic and modern workplace with the SPE-223G with anti-collision system (grey)

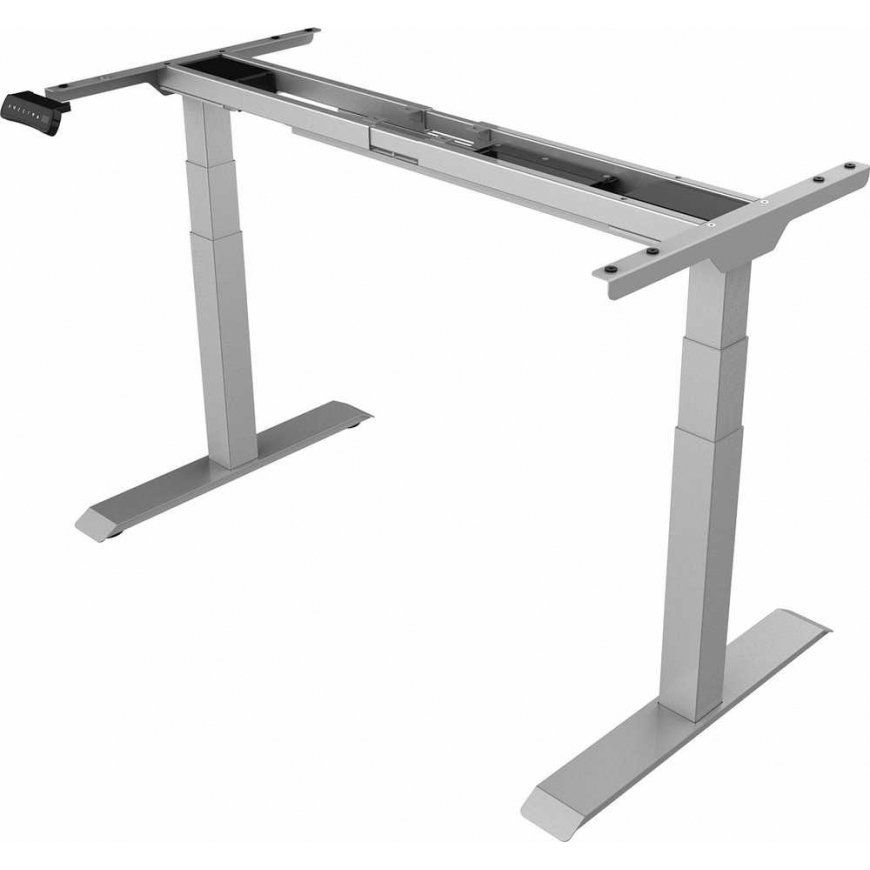

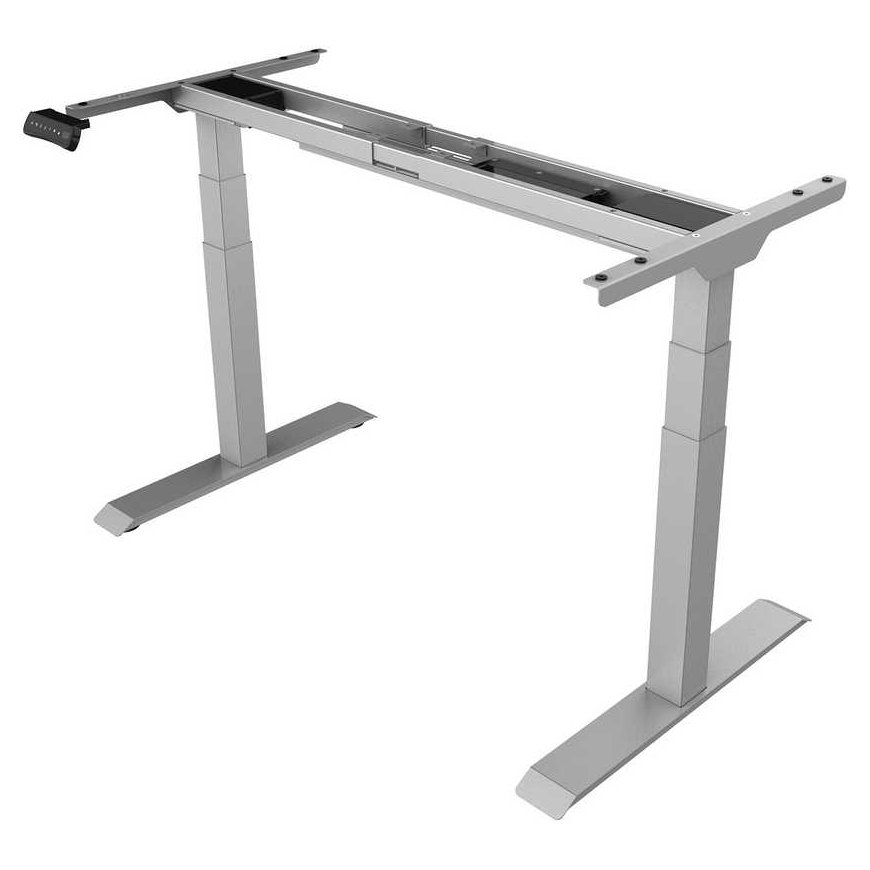

The SPE223G AC from the Spacetronik ERGOLINE series is a frame with an electric height adjustment mechanism. It has two motors that ensure an efficient and smooth change of the height of the table top. Regulation provides a sense of comfort and the ability to meet the individual needs of an employee, and can also affect work efficiency. Perfect for simple tables and desks. For office, home, production stations. Our product has been designed and tested for compatibility with European ERP systems.

Strong and stable construction

Designed for maximum structural integrity, our frame ensures that the table remains stable even at its highest height. The thicker and more durable powder coating is scratch, water and stain resistant.   The maximum load capacity is 125 kg.

Quick, quiet and smooth adjustment

The two-motor Spacetronik Ergoline system allows for faster and more stable adjustments and facilitates the transition from sitting to standing in less than 10 seconds. The high-quality 3-stage height-adjustable column construction ensures a smooth and comfortable transition.   The maximum adjustment speed is 38 mm/s. The frame is characterized by quiet operation, not exceeding 45 dB.

Work standing or sitting due to height adjustment

With an electric frame, your workplace will become a hybrid. If you find that sitting becomes tiring, change your sitting position to standing and the desk will do it with you.   Adjust the height in the range of 580-1230 mm.

Advanced controller with position memory and alarm

Up/down buttons make it easy to adjust to the perfect height. Thanks to three programmable buttons, you can save your favorite positions and return to each of them with one click, for example when you want to work while standing. The display shows the current height of the ergonomic desk, which automatically dims to reduce power consumption when the desk is stationary. A reminder alarm will allow you to maintain a "healthy balance" between standing and sitting while working. You can turn it on or off at any time.

Innovative collision protection system

Frame with electric height adjustment   is equipped with advanced anti-collision technology.   Thanks to this innovative system, the table automatically moves back when the height changes if it encounters an obstacle in the way. This is a great feature for those who have children or pets that come to your workplace.

Personalize your table and choose the right top

The universal electric frame frame allows manual horizontal (sideways) adjustment in addition to up/down adjustment. You can easily expand the structure to the size of your tabletop.   Suggested table top dimensions: 1200-2000 mm (width), 600-800 mm (depth).

There is much more to Ergoline

Create a real ergonomic workplace and include special Spacetronik Ergoline accessories such as: tabletop, cable guide, computer holder, mediaport, Sit-Stand and many more...

Product features

- 3-stage column design
- two engine system

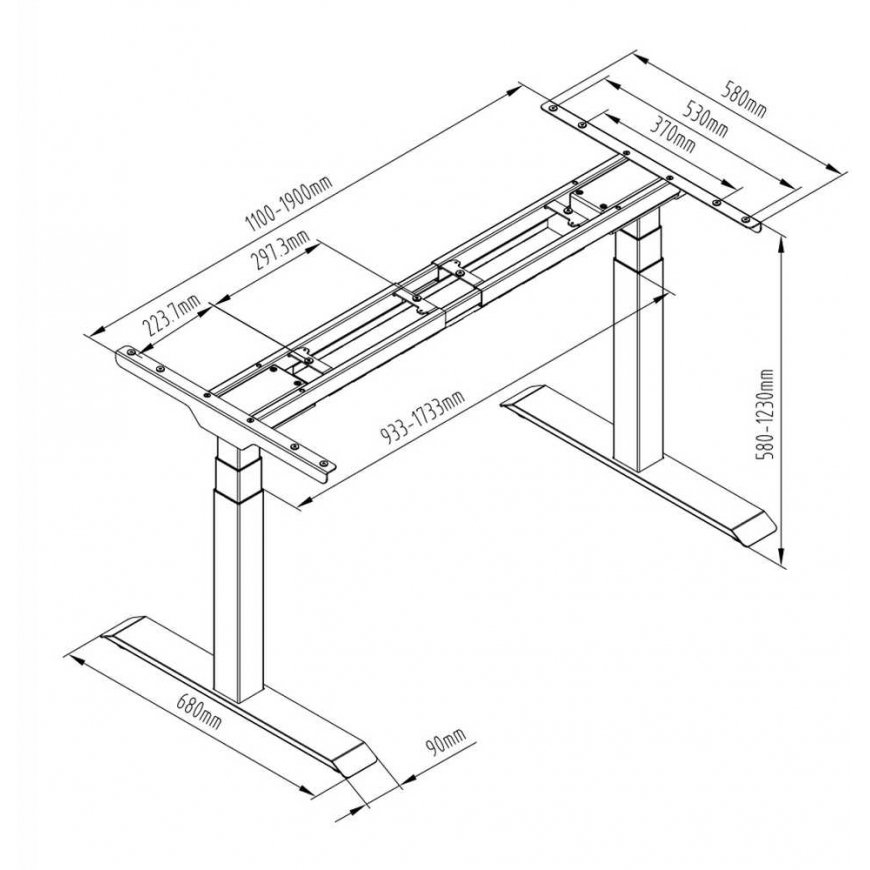

- adjustment range 580 - 1230 mm (650 mm)
- maximum carrying capacity 125 kg
- the proposed table top width is 1200 - 2000 mm
- the suggested tabletop depth is 600 - 800 mm
- maximum speed 38 mm/s
- Very quiet ride; noise level below 45 dB
- Power supply 100 V - 240 V
- advanced controller with 3-position memory and alarm
- security software including automatic fault detection
- constant speed, precise height adjustable with 2 mm error
- reliable management system
- innovative collision protection system
- easy installation and management
- grey color
- the product does not have a table top
