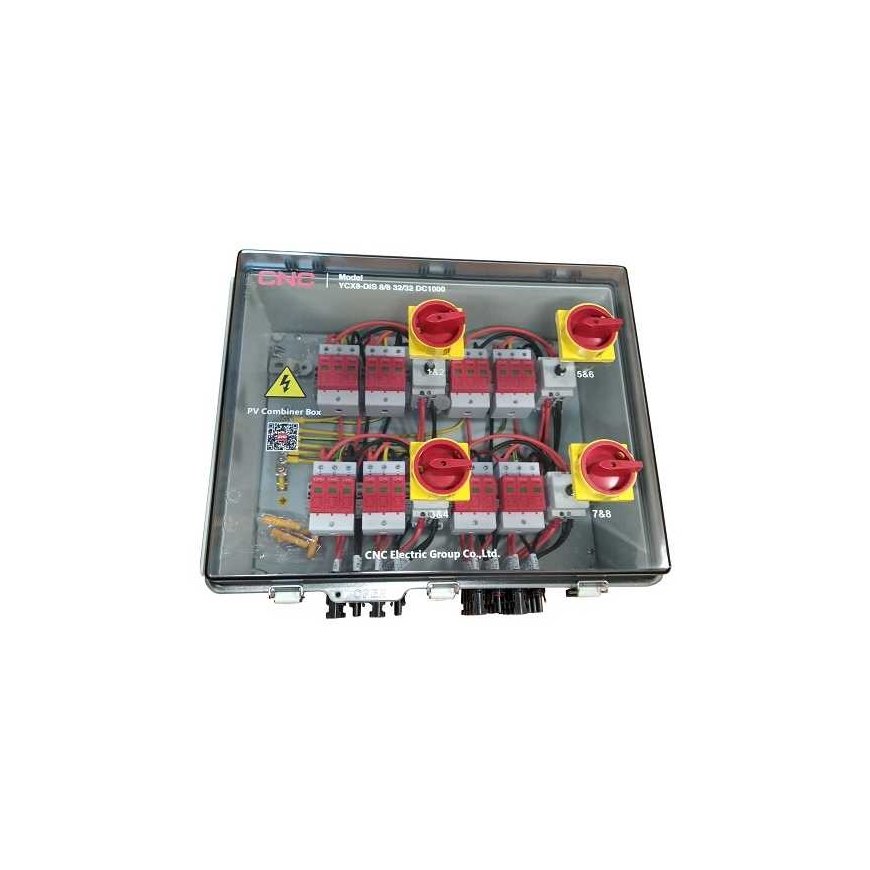

CNC PV disconnect panel, DC 8in-8out, IP66
499,00 €
Monthly payment from 13.75 €
2725217 NV822331
6942367528787
Shipping 2-4 days
Pay 5x99.80€You are interested in this product?
Features:
8 inputs 8 outputs 1000V DC.
DC junction box for 8-in/8-out PV system.
Designed for surge protection and isolation of the DC side of solar power.
Resistant to UV rays, water and dust IP66, shockproof, non-flammable V0.
With MC4 connectors. Box size 528 x 458 x 358 mm, standards IEC60529.
DC switches:
1000V DC, 25A. (4 pcs.)
The DC switch locks the box lid.
Patented DC extinguishing chamber.
Standards: UL508i, IEC60947-3 Pv2.
Direct current surge arresters SPD:
Model: YCS8.
1000V DC, 40kA. (8 pcs.)
Intended for the protection of photovoltaic cells.
Response time: <25ns.
Standards: IEC 61643-31, EN 50539-11+ A1.
Technical data:
Entrances: 8.
Exits: 8.
Maximum voltage: 1000V.
DC switch: 1000V, 25A. (4 pcs.)
DC SPD: 1000V, 40kA. (8 pcs.)
Short circuit current per input (Isc): 15A-30A (changeable).
Maximum output current: 25A.
Maximum discharge current (Imax): 40 kA.
Nominal surge discharge current (In): 20 kA.
Trigger voltage (Up): 3.6 kV.
Body material: 100% PC (polycarbonate).
Safety class: IP66 (waterproof and dustproof), V0 UL94 (flammproof).
Dimensions: 528 x 458 x 358 mm.
Input cable thicknesses: PG09, 2.5-16 mm.
Output cable thicknesses: PG21, 2.5-16 mm.
Operating temperature: from -25°C to 60°C.
Warranty: 24 months
