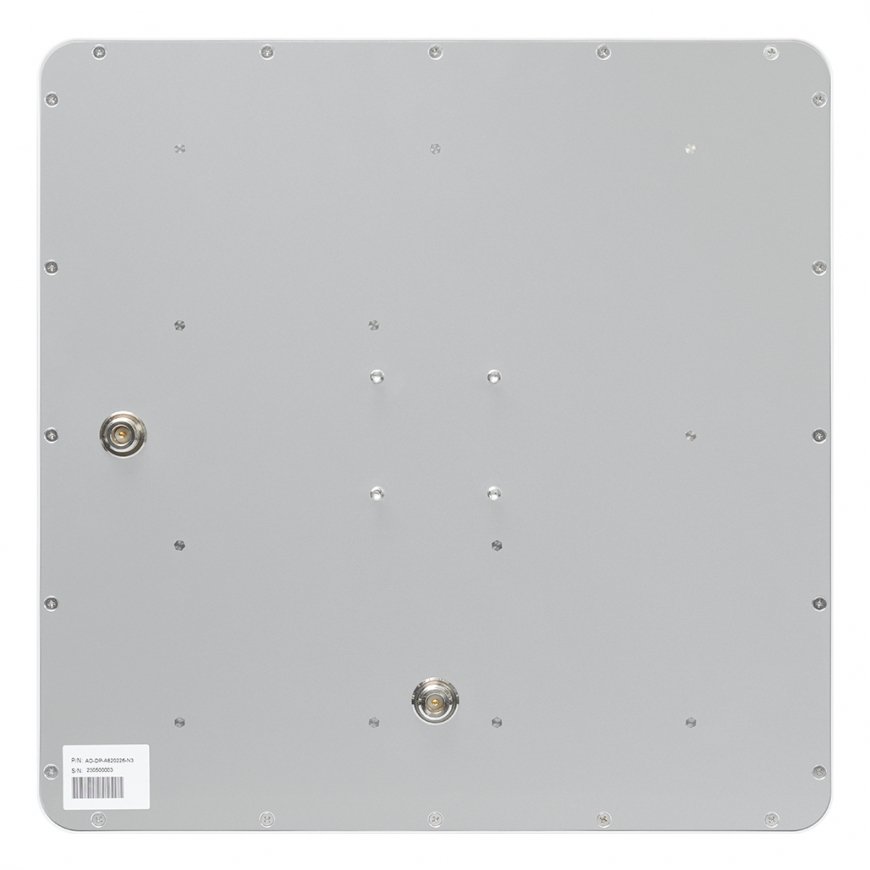

AirLancer ON-D8a
839,00 €
Monthly payment from 22.50 €
2709842 61708
4044144617089
Shipping 4-6 w.d.
Pay 5x167.80€You are interested in this product?
The weatherproof LANCOM outdoor directional antenna AirLancer ON-D8a is ideal for establishing high-speed point-to-point links for bridging long distances via Wi-Fi in outdoor areas. Thanks to 2x2 MIMO technology, radio links with reliably high performance can be established, especially in combination with the LANCOM Outdoor Access Point OW-602. Cables and adapters are included in the mounting kit for attachment to walls or masts.
Application scenario
High-speed point-to-point connections (P2P)
With P2P connections, extensive areas with long distances can be bridged outdoors in a targeted manner and thus buildings located at different distances can be securely connected to each other via Wi-Fi. By setting up a wireless network with directional antennas, neither complex cabling nor an expensive dedicated line for network expansions are required.
Comparison of the LANCOM Wi-Fi outdoor antennas
In which application scenario and with which LANCOM access points are the LANCOM Wi-Fi accessories best suited? What is the safest way to connect access points and antennas outdoors?
Get to know the different types of antennas in the AirLancer portfolio and compare features such as frequency bands, antenna gain, connectors, and cables.
Design | |
| Product colour | Light grey |
| Housing material | Plastic |
Antenna | |

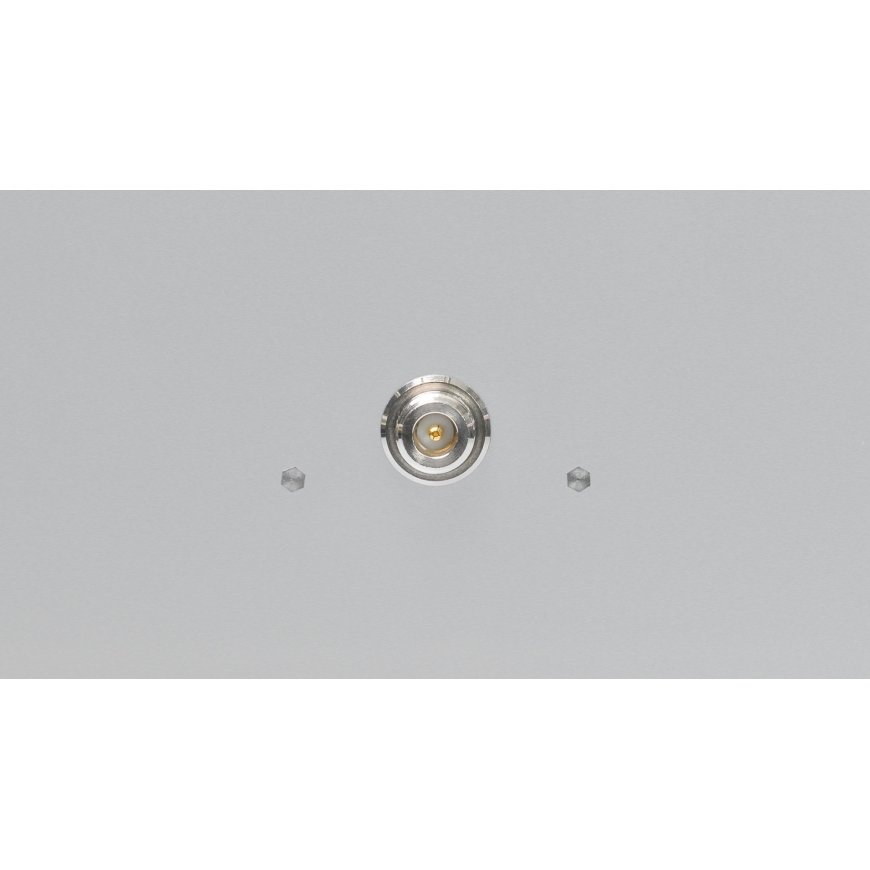

| Antenna connector type | N-type |
| Antenna gain level (max) | 21 dBi |
| Antenna type | Directional antenna |
Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
Weight & dimensions | |
| Width | 370 mm |
| Depth | 30 mm |
| Height | 370 mm |
| Weight | 1.9 kg |
Packaging data | |
| Package width | 385 mm |
| Package depth | 385 mm |
| Package height | 105 mm |
| Package weight | 2.8 kg |
Other features | |
| Frequency band | 4.9 - 5.9 GHz |
| Cable length | 1 m |
| Mounting | Wall/Pole |
Logistics data | |
| Country of origin | Taiwan |
| Quantity per pack | 1 pc(s) |
| Customs product code (TARIC) | 85177000 |
Packaging content | |

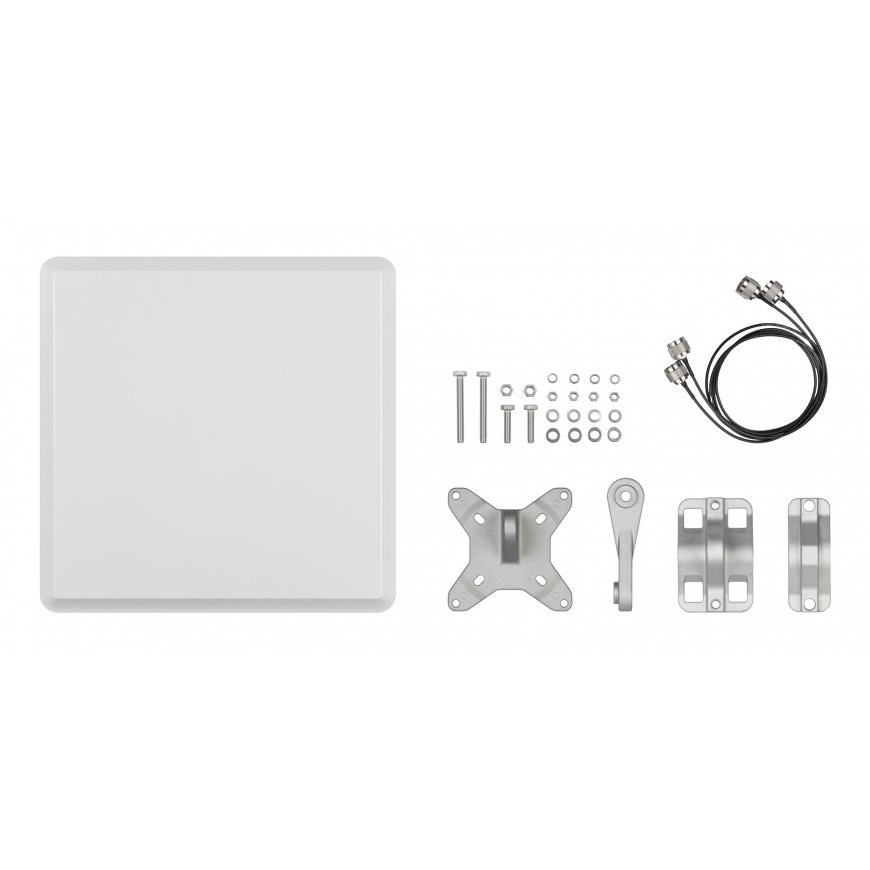

| Mounting kit | Yes |
