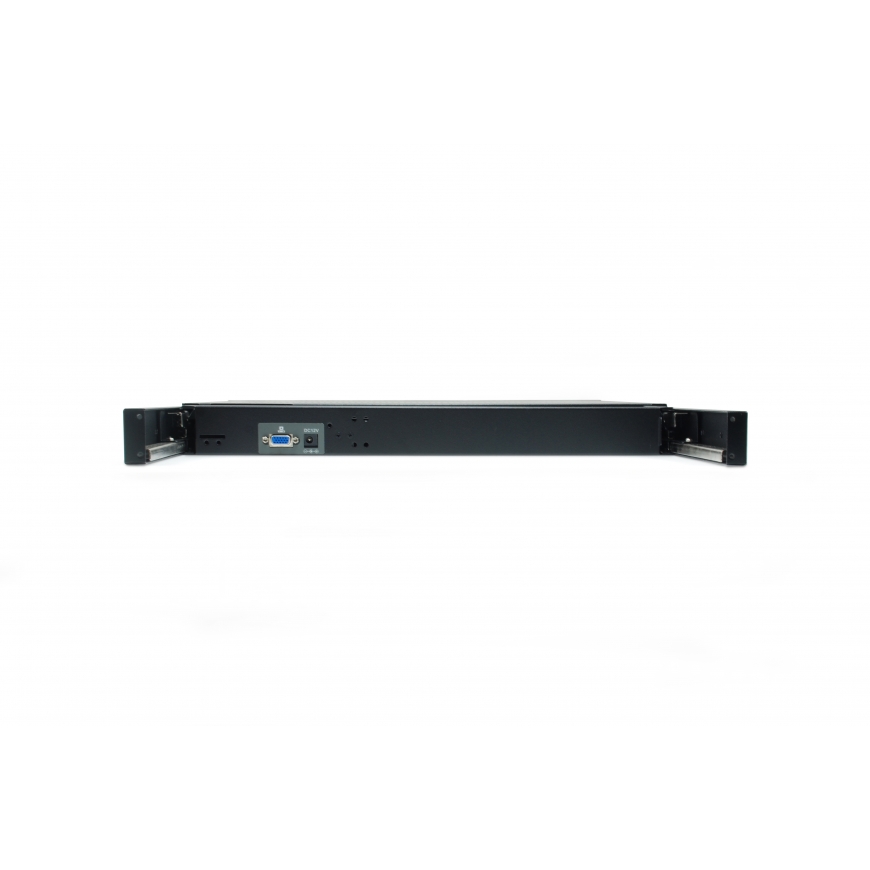

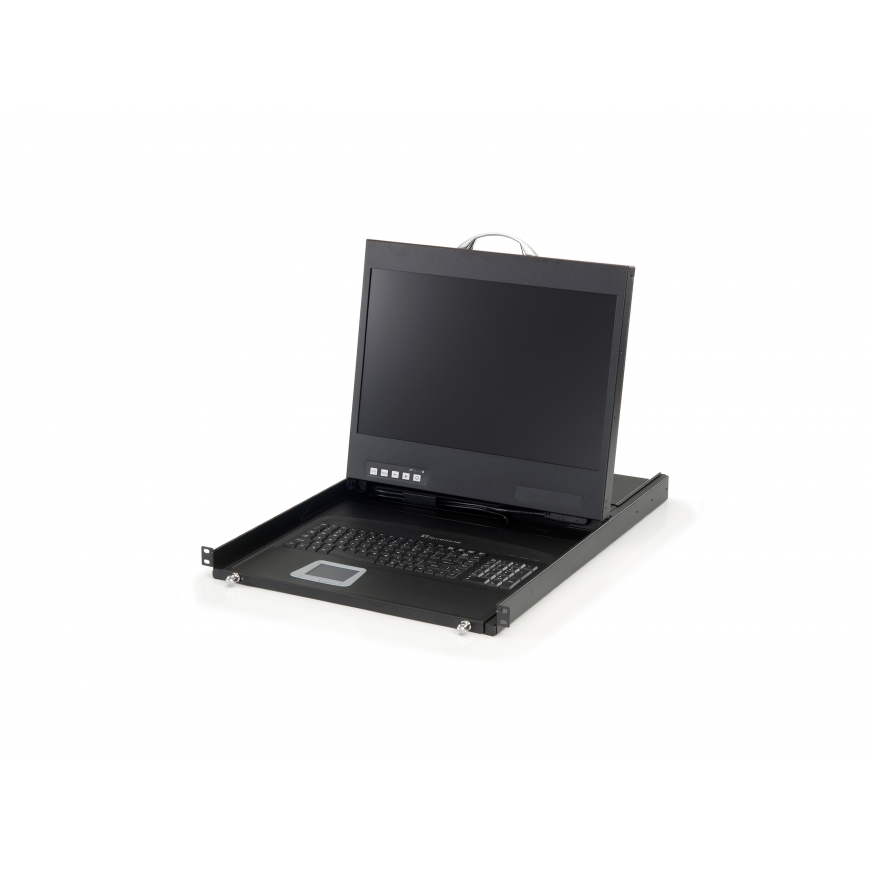

LevelOne 19" Widescreen LCD KVM Rack Console, DE Keyboard
LevelOne 19" Widescreen LCD KVM Rack Console, DE Keyboard
LevelOne 19" Widescreen LCD KVM Rack Console, DE Keyboard
LevelOne 19" Widescreen LCD KVM Rack Console, DE Keyboard
LevelOne 19" Widescreen LCD KVM Rack Console, DE Keyboard
LevelOne 19" Widescreen LCD KVM Rack Console, DE Keyboard

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

LevelOne 19" Widescreen LCD KVM Rack Console, DE Keyboard

1 979,65 €
Monthly payment from 51.88 €
2610646

KVM-8901DE

4015867186220

2026-04-07

Pay 5x395.93€
Quantity

You are interested in this product?
(Read terms of service)
The LevelOne KVM-8901 is a compact and modular KVM console drawer designed to be used in a standard 19-inch server rack. It offers connectivity to 8 or 16 computers by depending on the LevelOne KVM module that is installed (KCM-0832 or 1632). It features a 19-inch retractable LCD(19:10) high video quality up to 1440 x 900 monitor and keyboard with built-in touchpad. Users can daisy chain up to eight units of KCM-0832/1632 together, providing control of up to 128 computers in total, support Auto Scan Mode for monitoring PCs and flexible and easy PC selection via KVM-OSD manual or hot Keys.

Key Features
- Modular design for optional KVM switches, enabling management of up to 128 computers
- Supports video resolutions up to 1440 x 900
- Dual Interface for PS/2 and USB keyboard/mouse
- Easy switching between computers with keyboard hotkeys/On Screen Display (OSD) menus
- Auto scan mode for non-stop monitoring of selected computer
- Password protection prevents unauthorized access
- Multi-platform support: Windows, Mac OS X, Sun, Linux
Display diagonal48.3 cm (19")
Display resolution1440 x 900 pixels
Product colourBlack
Display typeLCD
Display number of colours16.78 million colours
Weight20 kg
Width482 mm
Depth610 mm
Height44 mm
Cables includedAC; KVM
Package typeBox
Package width742 mm
Package depth576 mm
Package height167 mm
Package weight1.3 kg
Windows operating systems supportedYes
Mac operating systems supportedYes
ManualYes
Country of originTaiwan
CertificationCE, FCC, REACH
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)10 - 90%
Power consumption (typical)19.2 W
Other operating systems supportedSolaris 8; Solaris 9
Quick installation guideYes
DisplayTFT
Contrast ratio (typical)500:1
Viewing angle, horizontal85°
Viewing angle, vertical85°
On Screen Display (OSD)Yes
Display brightness250 cd/m²
Screws includedYes
Linux operating systems supportedYes
Keyboard layoutQWERTZ
Keyboard languageGerman
Keyboard number of keys105
Package dimensions (WxDxH)600 x 210 x 780 mm
Aspect ratio16:10
Built-in touchpadYes
Relative humidity10 - 90%
Console portVGA
Daisy chainYes
Compliance certificatesRoHS
