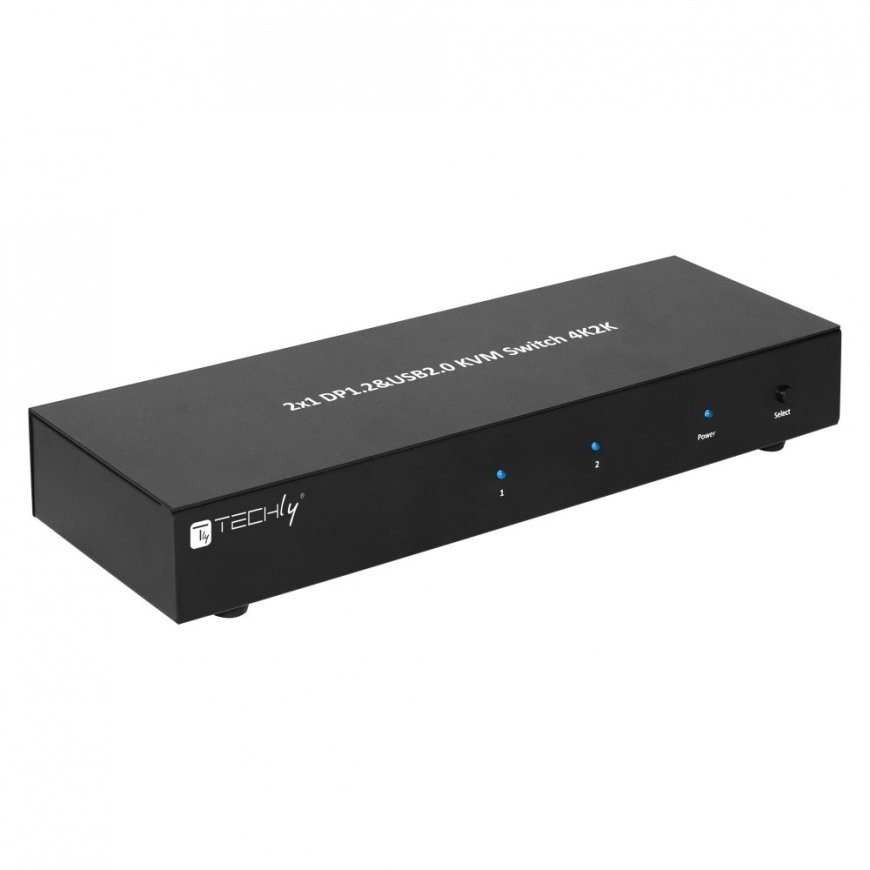

Techly IDATA DP-KVM2 KVM switch Black
140,84 €
Monthly payment from 4.53 €
2428128 IDATA DP-KVM2
8051128101928
2026-03-18
Pay 5x28.17€You are interested in this product?
Features
- Switch KVM control on two connected dual-head computers from one workstation with two DisplayPort monitors, one USB keyboard and one USB mouse
- DisplayPort 1.2 compliant
- Integrated 2 port hub for USB 2.0 peripheral sharing
- Supports resolutions of up to 3840*2160@30Hz with video link rate up to 21.6Gbps
- Supports Dolby True HD and DTS HD Master Audio formats
- Hotkey and push-button switching
- Housing: metal
- Color: black
Technical specifications
- Saves space and equipment cost
- Share an HDTV or display, USB keyboard & mouse with audio and microphone between 2 USB/DP computer and devices*
- Provides an additional USB 2.0 ports with over-current detection and protection
- Switch between devices via front push button or hotkey
- Supports Dolby True HD and DTS HD Master Audio formats
- Metal housing for increased RF shielding
- 1 of the 2 connected devices has to be a computer with a USB connection to enable the switching mechanism
Requirements
- Windows, Mac, Linux computers
- Game consoles, BIu-Ray DVD players and other Consumer Electronics devices
Connections
- Input: 4x DisplayPort, Female
- Input: 2x 4-pin, Type B, USB 2.0 Female
- Output: 2x DisplayPort, Female (Dual head)
- Output: 4-pin, USB 2.0, Type A, Female (for keyboard) x 1
- Output: 4-pin, USB 2.0, Type A, Female (for mouse) x 1
- Output: 4-pin, USB 2.0, Type A, Female x 2
- Output: Microphone jack (to microphone) x 1
- Output: stereo audio jack (to earphone) x 1
Power adapter
- Input: 100 - 240V, 50/60Hz
- Output: 5V DC, 2.0A
Package contents
- 2-Port DisplayPort1.2 Dual-Monitor KVM Switch
- User Manual
- 5V/2A Power Supply
| HD type | 4K Ultra HD |
| Product colour | Black |
| USB connector type | USB Type-A |
| Weight | 1.01 kg |
| AC adapter included | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Manual | Yes |
| Certification | CE, RoHS |
| DC-in jack | Yes |
| Output voltage | 5 V |
| Output current | 2 A |
| Number of microphone inputs | 1 |
| Built-in display | No |
| AC input frequency | 50-60 Hz |
| Input voltage | 100 - 240 V |
| DisplayPorts quantity | 6 |
| DisplayPort version | 1.2 |
| Harmonized System (HS) code | 85176200 |
| USB hub | Yes |
| Rack mounting | No |
| Video port type | DisplayPort |
| Data transfer rate (max) | 21.6 Gbit/s |
| Audio support | Yes |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Audio connections | Yes |
| USB 2.0 Type-A hub ports quantity | 4 |
| Compliance certificates | CE; RoHS |
