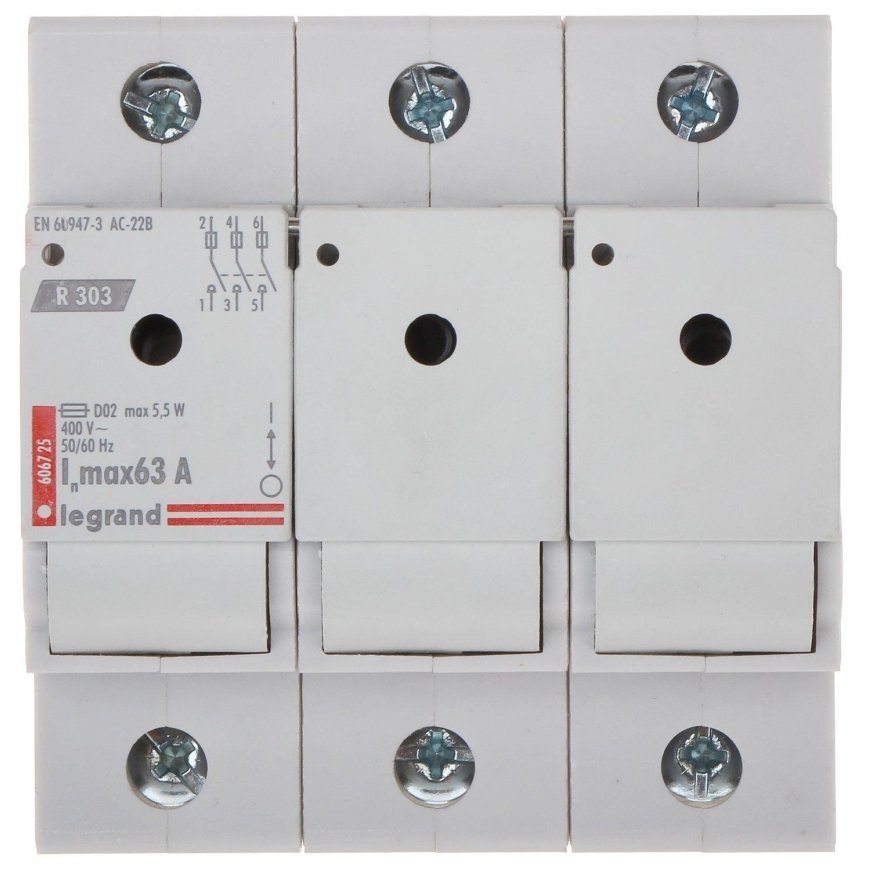

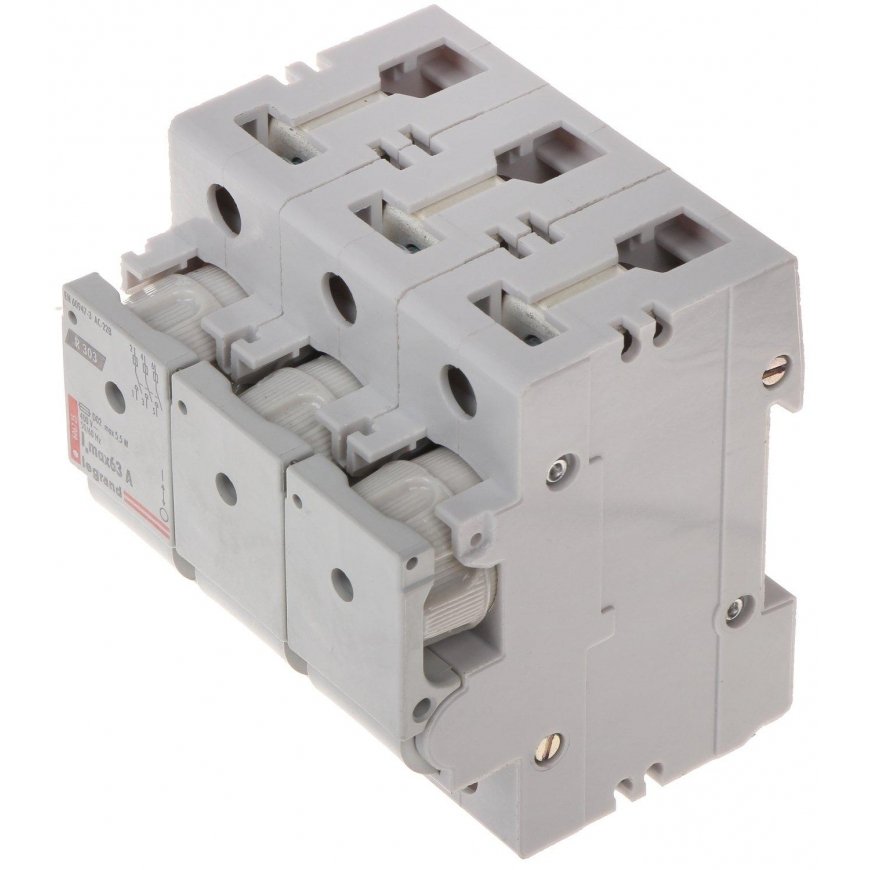

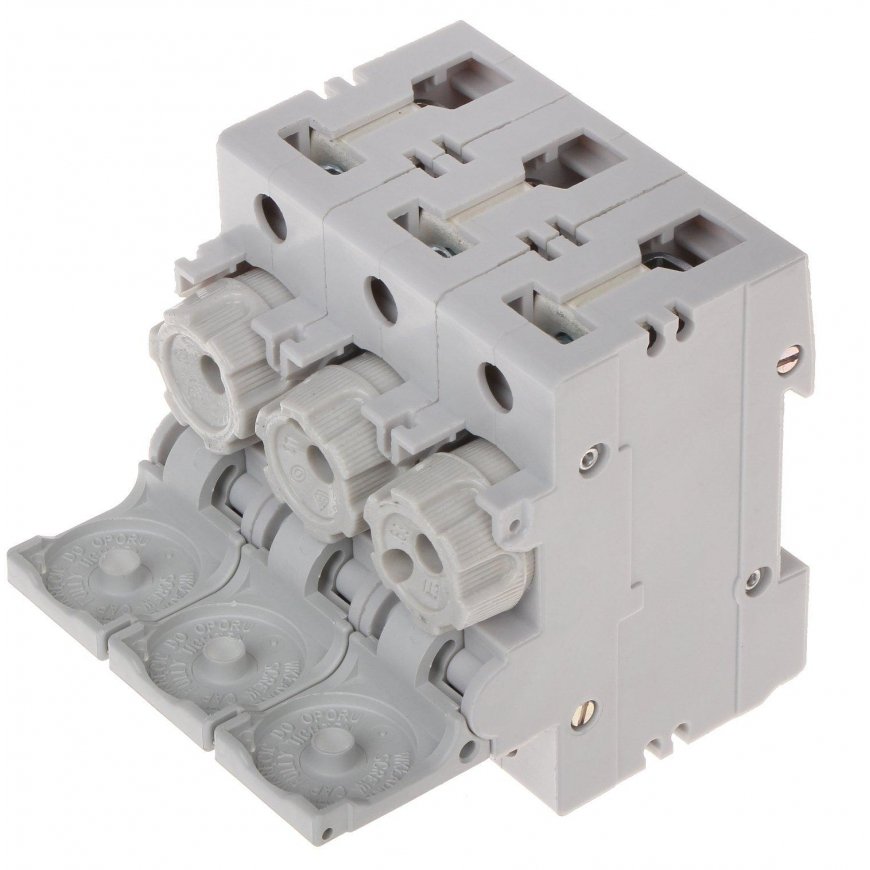

FUSE SWITCH LE-606725 THREE-PHASE 63 A D02 LEGRAND
199,00 €
Monthly payment from 6.02 €
2340403 606725
3245066067254
Shipping 2-5 b.d.
Pay 5x39.80€You are interested in this product?
Insulated circuit breakers without fusible links ensure an insulation gap and allow selection of appropriate fusible links depending on needs.
The devices are equipped with devices for inserts AD02.
The circuit breaker LE-606725 is intended for installation on supports TH-35.
ATTENTION! The device requires the installation of type D02 fusible link fuses (available separately) with a rating not exceeding 63A.
| Device Type : | Three-phase |
| Nominal current : | 63 A |
| Number of poles : | 3 |
| Nominal voltage : | 400 V AC |
| Rated insulation voltage : | 500 V |
| Rated withstand impulse voltage : | 6000 V |
| Description of fuse : | - |
| Type (size) : | D02 |
| Rated short-circuit duration : | 50000 A AC |
| Type of connectors : | cable clamps |
| Wire cross-section : | 2.5 ... 25 mm² |
| Environmental class : | II |
| Body : | Plastic, installation on support TH-35 |
| Width in modules 17.5 mm : | 4.5 |
| Working temperature : | -26 °C ... 60 °C |
| Weight : | 0.49 kg |
| Dimensions : | 83 x 70.3 x 79.5 mm |
| Manufacturer / Brand : | LEGRAND |
| Warranty : | 2 years |
