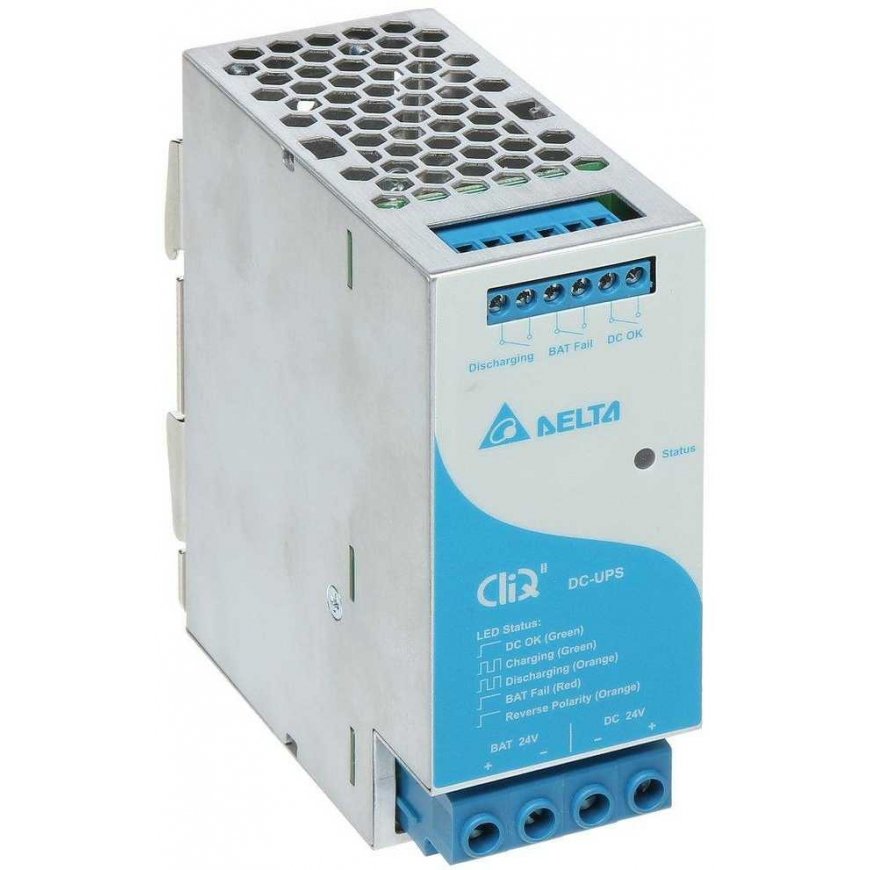

BUFFER POWER SUPPLY DRU-24V40ABN
129,00 €
Monthly payment from 4.22 €
2325707 DRU-24V40ABN
5902887043376
Shipping 2-5 b.d.
Pay 5x25.80€You are interested in this product?
The buffer power supply in the DIN housing is designed for systems powered by 24V voltage.
It is necessary to pay special attention to the proper cooling of the power supply during work!.
| Supply voltage : | 24 ... 28 V DC |
| Output voltage : | 23 ... 28 V DC |
| Maximum current : | 40 A |
| Output voltage regulation : | - |
| Battery charging current : | 2 A ± 1 A |
| Working with the battery : | 24V/7.5Ah, 24V/12Ah, 24V/15Ah |
| Efficiency : | > 70% |
| Protective measures : | Against overvoltages Protection against overcurrents |
| Operating temperature / relative humidity : | -20 °C ... 60 °C / 20 % ... 90 % |

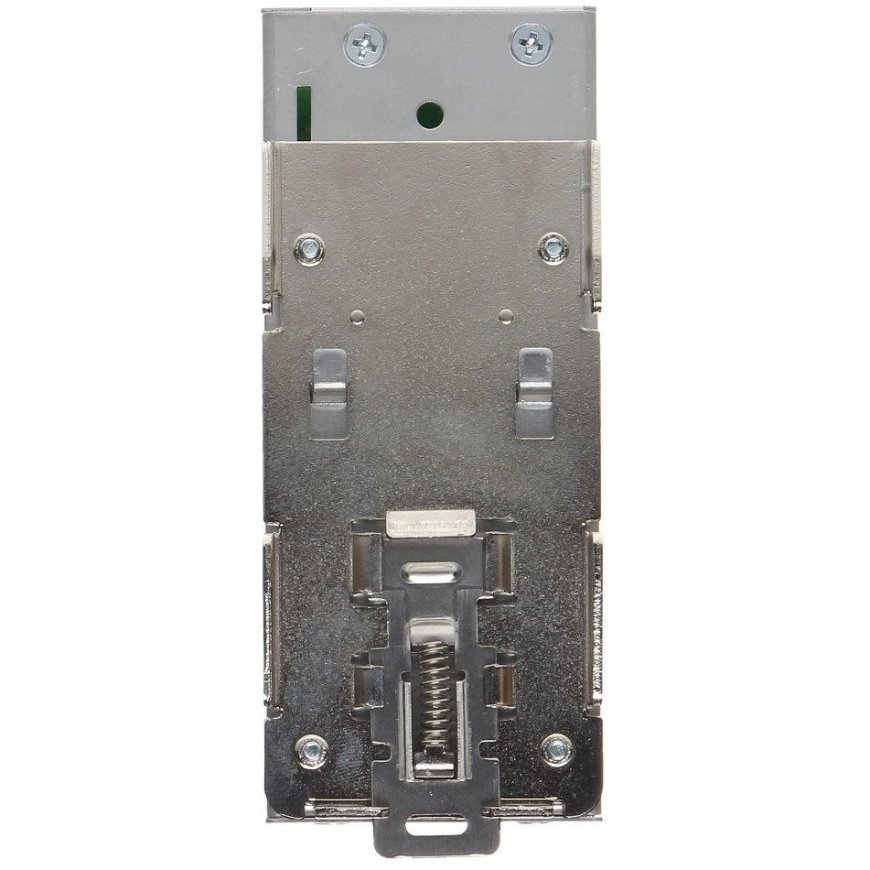

| Body Type : | DIN |
| Weight : | 0.38 kg |
| Dimensions : | 50 x 121 x 117 mm |
| Warranty : | 5 years |
