The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

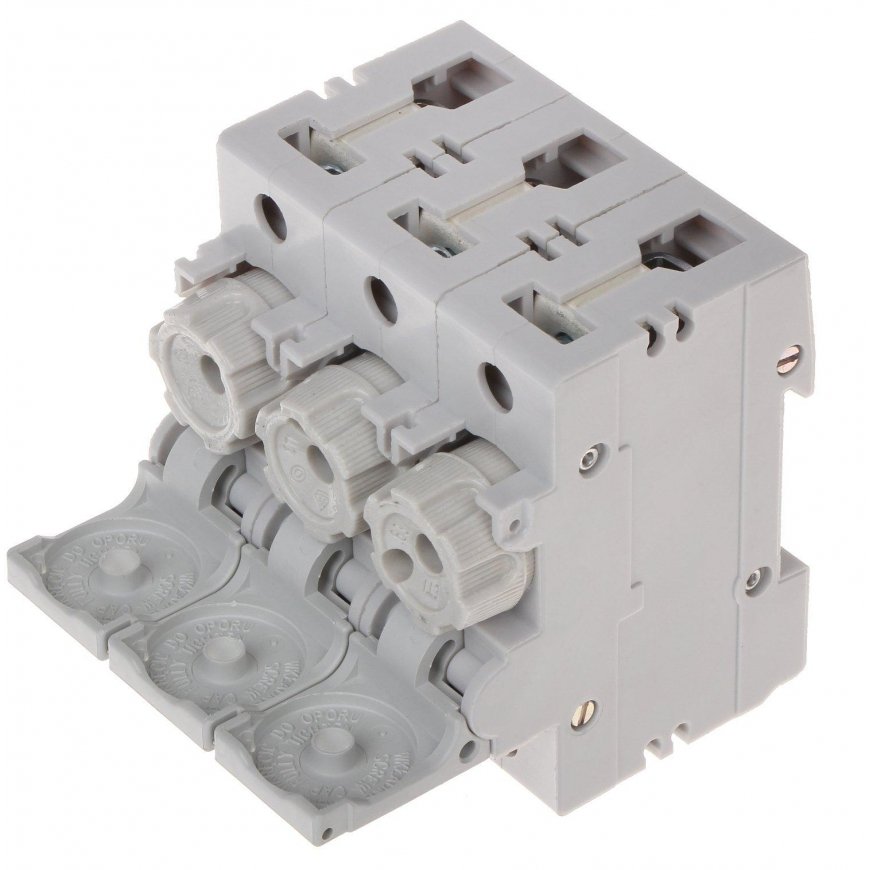

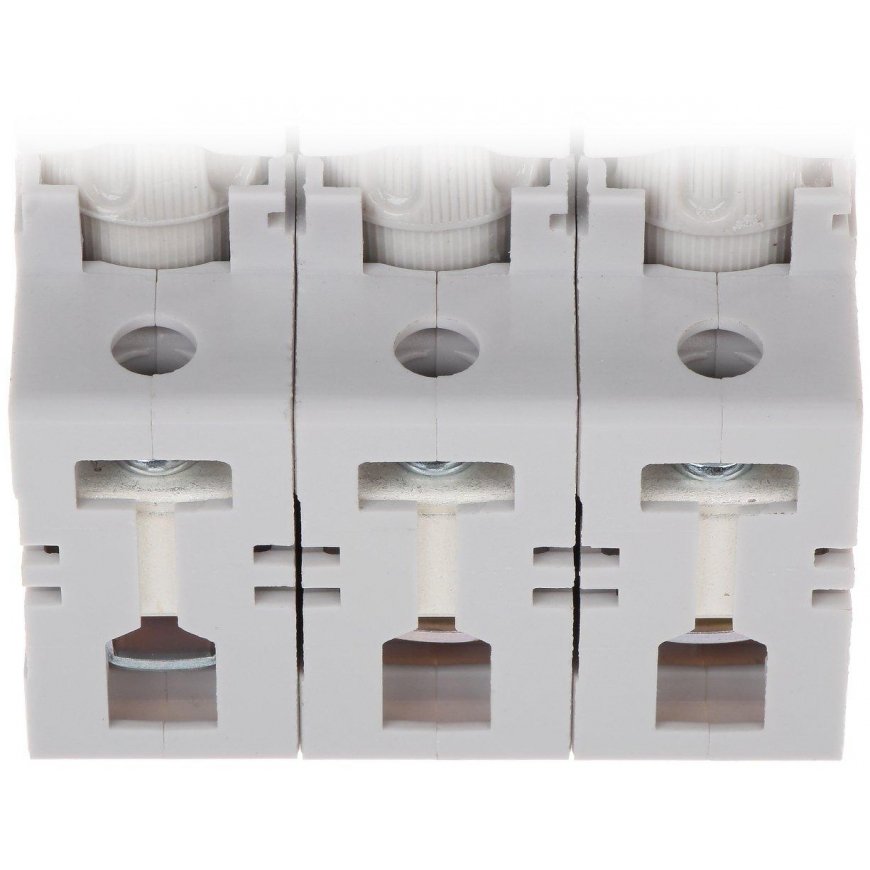

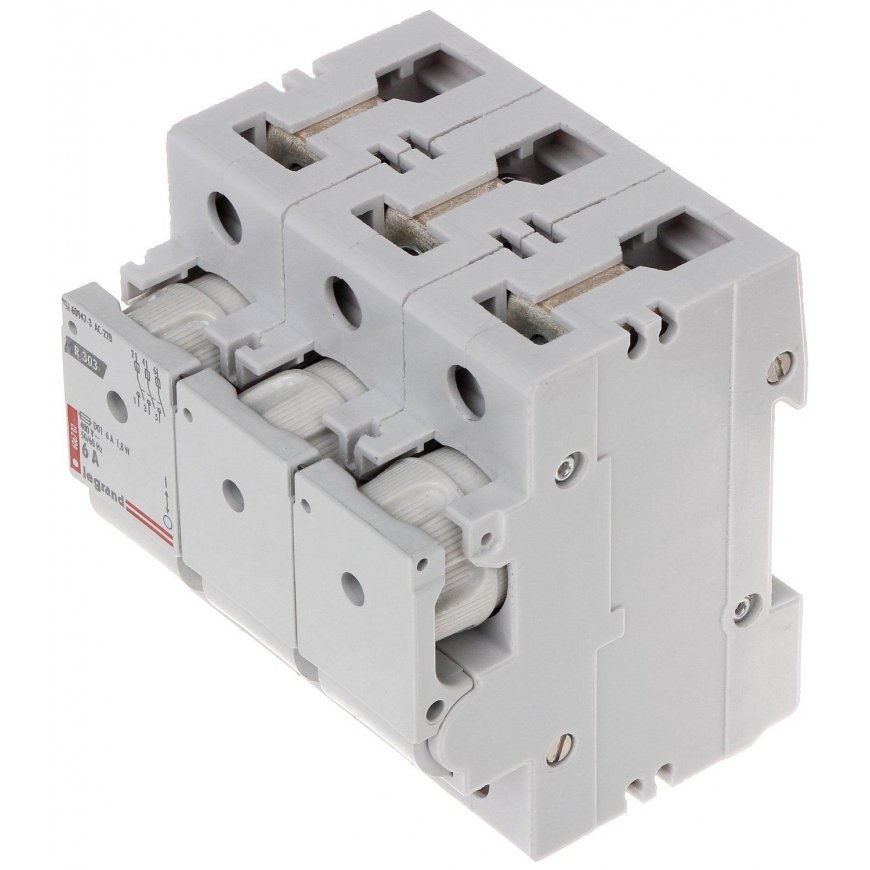

FUSE SWITCH LE-606702 THREE-PHASE 6 A D01 LEGRAND
288,99 €
Monthly payment from 8.34 €
2292681 3245066067025
Shipping 2-5 b.d.
Pay 5x57.80€You are interested in this product?
Isolated circuit breakers with fused fuse inserts, this is a two-function device in one device - an isolated circuit breaker and a surge protector operating through fused fuse inserts.
The devices protect the electrical installation from short circuits and overloads, and when the insert is removed, a visible insulation gap is ensured.
The circuit breaker LE-606702 is intended for installation on supports TH-35.
| Device Type : | Three-phase |
| Nominal current : | 6 A |
| Number of poles : | 3 |
| Nominal voltage : | 400 V AC |
| Rated insulation voltage : | 500 V |
| Rated withstand impulse voltage : | 6000 V |
| Description of fuse : | gL/gG |
| Type (size) : | D01 |
| Rated short-circuit duration : | 50000 A AC |
| Type of connectors : | cable clamps |
| Wire cross-section : | 2.5 ... 25 mm² |
| Environmental class : | II |
| Body : | Plastic, installation on support TH-35 |
| Width in modules 17.5 mm : | 4.5 |
| Working temperature : | -26 °C ... 60 °C |
| Weight : | 0.51 kg |
| Dimensions : | 83 x 70.3 x 79.5 mm |
| Manufacturer / Brand : | LEGRAND |
| Warranty : | 2 years |
