The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

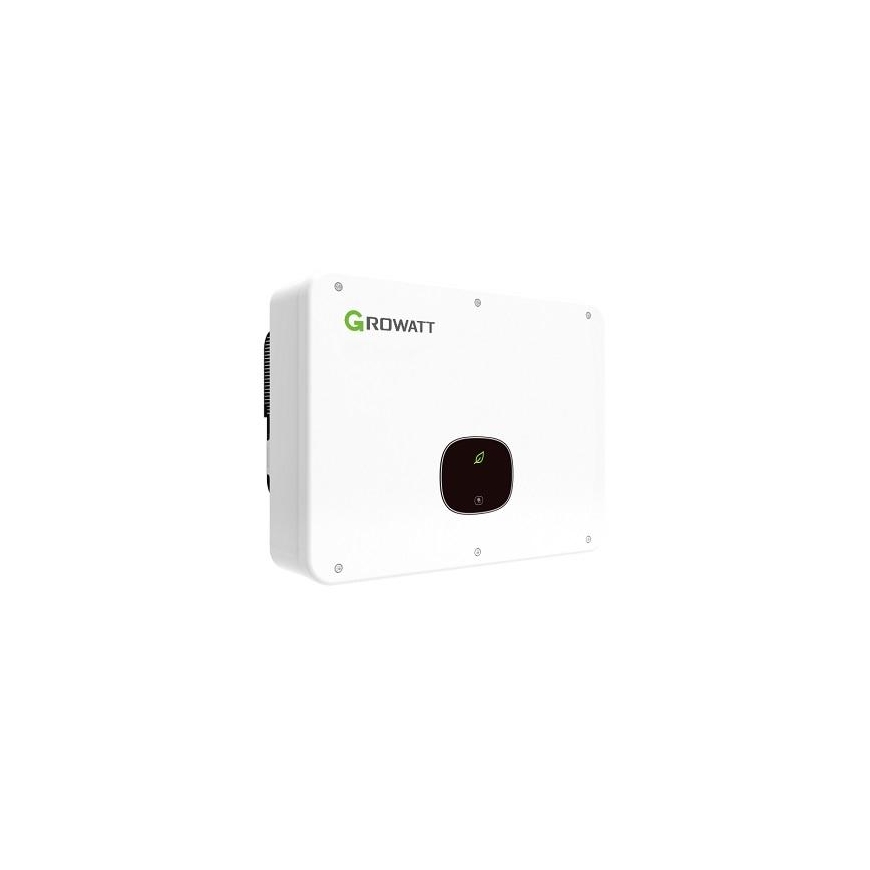

Inverter GROWATT MID 25KTL3-X1, 25kW, 3-phase, 3 MPPT inputs
2 199,00 €
Monthly payment from 57.52 €
2148865 NV820290
9990000820290
Shipping 2-4 days
Pay 5x439.80€You are interested in this product?
Features:
High performance inverter. Maximum inverter efficiency up to 98.8%.
Interfaces: USB, RS-485.
Control via smartphone app is supported.
Safe and durable. Built-in type II DC and AC SPD.
The inverter has a compact design.
Technical data:
Output AC power: 25000W.
Output voltage: AC 220V/380V; 230/400V.
Number of phases: 3.
Output frequency: 50/60 Hz.
Nominal input voltage: DC 600V.
Max. PV input current per input: 26A.
Number of independent MPPT inputs: 3.
Max. PV input power: 37500W.
MPPT voltage range: DC 200V – 1000V.
Communication: RS485.
Interface: USB.
Safety class: IP66.
Surge protection: DC Type II / AC Type II.
Screen: OLED.
Operating temperature: -25°C ~ +60°C.
Dimensions: 580x435x230mm.
Weight: 29.5 kg.
Warranty: 5 years.
Specifications
| Input (DC) | |
| Recommended max. PV input power | 37500 W |
| Max. PV input voltage | 1100 V |
| Start-up input voltage | 250 V |
| Rated input voltage | 600 V |
| MPP voltage range | 200 V - 1000 V |
| Well of independent MPP inputs | 3 |
| Well of PV strings via MPP | 2 |
| Max. input current via MPP tracker | 26 A |
| Max. short-circuit current through the MPP tracker | 32 A |
| Output (AC) | |
| Rated AC output power | 25000 W |
| Max. AC output apparent power | 27700 VA |
| Rated AC voltage(range) | 220/380 V, 230/400 V (340-440 V) |
| Max. output current | 40 A |
| AC grid frequency | 50 Hz / 60 H |
| AC grid frequency range | 45 - 55 Hz / 55 - 65 Hz |
| Harmonic (THD) | < 3% (at rated power) |
| Adjustable power factor | 0.8 leading - 0.8 lagging |
| AC grid connection type | 3 W + N + PE |
| Efficiency | |
| Max. efficiency | 98.8% |
| European efficiency | 98.5% |
| MPPT efficiency | 99.9% |
| Protection devices | |
| Grid monitoring | yes |
| DC reverse polarity protection | yes |
| AC short-circuit protection | yes |
| Insulation resistance monitoring | yes |
| Surge Protection | DC Type II / AC Type II |
| Ground fault monitoring | yes |
| DC switch | yes |
| String monitoring | yes |
| Arc fault circuit interrupter (AFCI) | optional |
| Anti-islanding protection | yes |
| Residual-current monitoring unit | yes |
| General Date | |
| Dimensions(W*H*D) | 580*435*230 m |
| Weight | 29.5 kg |
| Topology | Transformerless |
| Degree of protection | IP66 |
| Night power consumption | < 1W |
| Operating ambient temperature range | -25 °C to +60 °C |
| Allowable relative humidity range (non-condensing) | 0% - 100% |
| Cooling method | Smart air cooling |
| Max. operating altitude | 4000 |
| Display | OLED + LED / Wi-Fi + app |
| Interfaces | RS-485 / USB |
| Optional interfaces | Wi-Fi / GPRS / RF / LAN |
| DC connection | H4 / MC4 (optional) |
| AC connection | Cable gland + OT terminal |
| Certification | CE, VDE0126, Greece, EN50549, C10/C11, UTE C 15-712, IEC62116, IEC61727, IEC 60068, IEC 61683, CEI0-21, CEI0-16, N4105, TOR Erzeuger G98/G99, G100, AS/NZS 3100 , AS4777, UNE217001, UNE206007, PO12.2, KSC8565 |
