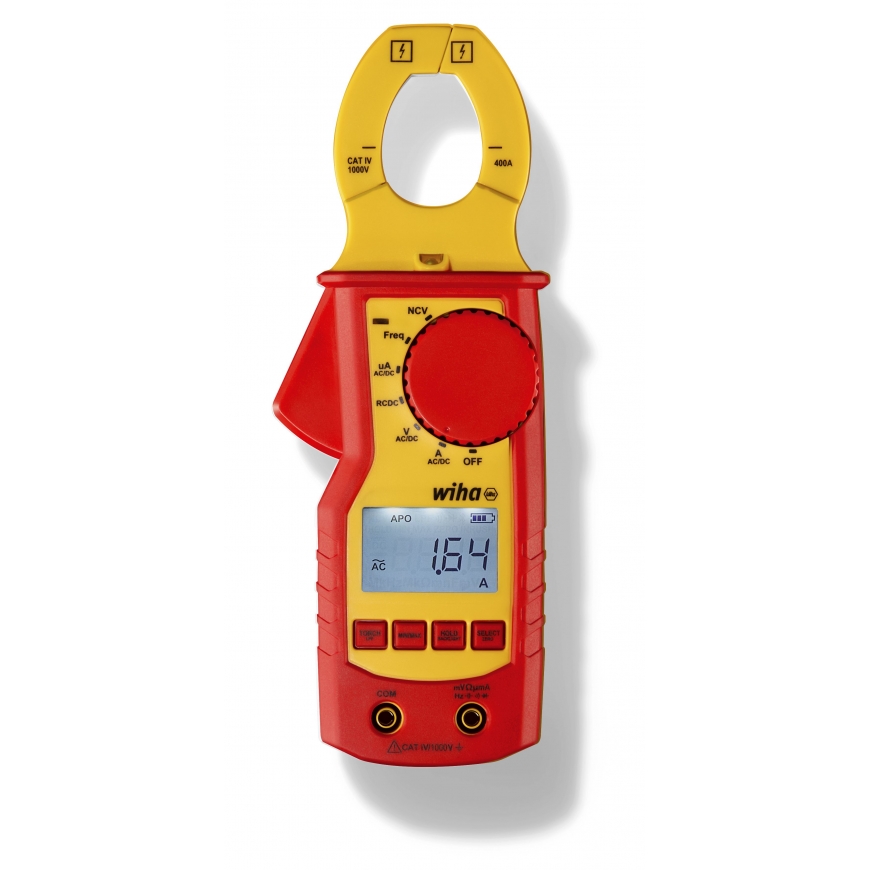

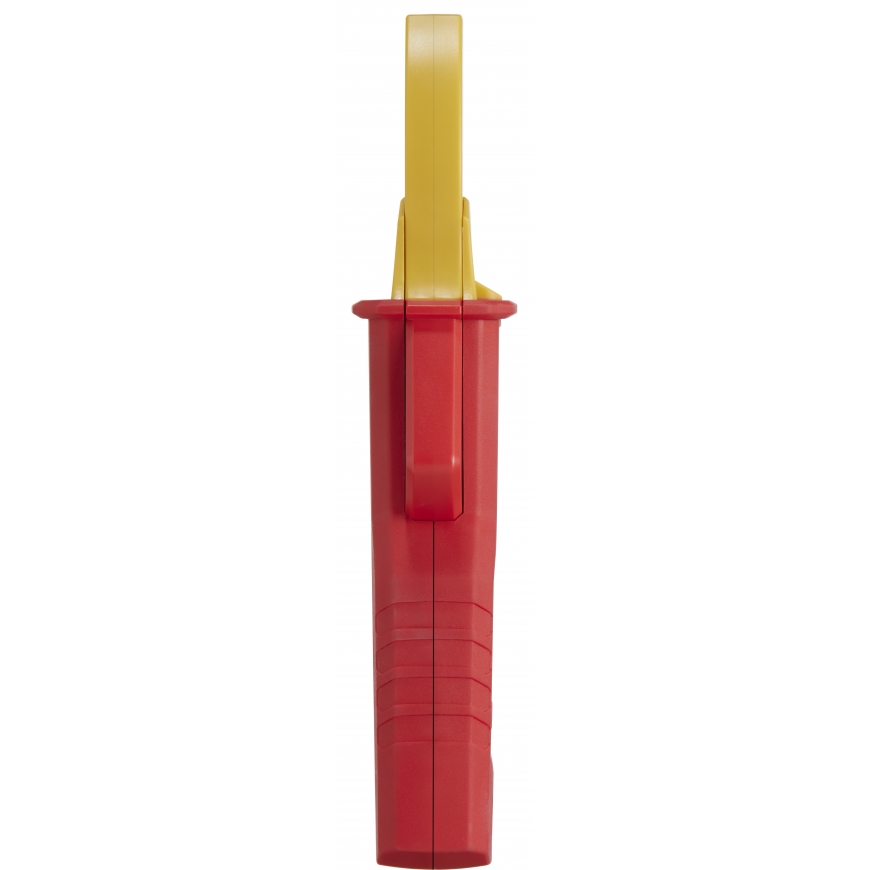

Wiha 45219 clamp meter
Wiha 45219 clamp meter
Wiha 45219 clamp meter
Wiha 45219 clamp meter
Wiha 45219 clamp meter
Wiha 45219 clamp meter
Wiha 45219 clamp meter
Wiha 45219 clamp meter
Wiha 45219 clamp meter
Wiha 45219 clamp meter
Wiha 45219 clamp meter
Wiha 45219 clamp meter
Wiha 45219 clamp meter
Wiha 45219 clamp meter
Wiha 45219 clamp meter

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

Wiha 45219 clamp meter

278,06 €
Monthly payment from 8.06 €
2119000

45219

4010995452193

Shipping 6-8 b.d.

Pay 5x55.61€
Quantity

You are interested in this product?
(Read terms of service)
When working, for example, on electrical systems that cannot be switched off, current measurement is a major challenge. With the measuring caliper from Wiha, the caliper bracket can be used to carry out measurements without interrupting the electrical circuit. Handling is greatly facilitated by the remote single-hand testing. The test tips allow additional tests, voltage measurement in the AC and DC range, as well as resistance, frequency, and capacity measurements. They also allow continuity and diode tests. This multi-functionality significantly increases the efficiency. A large LCD display with background illumination and data hold function makes the measurement results immediately readable even beyond the measurement process. An additional signal sound indicates the current flow during the continuity check. In addition, the measuring caliper from Wiha has an integrated flashlight function, providing optimal illumination conditions even in poorly lit work environments. The LPF function, coupled with the True-RMS function increase the process safety of your test by providing interference-free effective values. According to the measurement category CAT IV up to 1,000 V the measuring caliper offers maximum safety for working directly on the sources of low-voltage installations.

Simplifies your work
Large LCD display with background illumination for easy to read measurement results.

Increases your safety
Measure live electrical wires without open contacts.

Makes handling easier
Easy one-hand testing without electrical circuit interruption.

Increases your efficiency
All measurement functions relevant for electricians in a single measuring device.

Simplifies your work
An integrated flashlight function ensures optimal illumination.

Increases your process reliability
Precise measurement results thanks to LPF and TRUE-RMS measurement.
Product colourRed; Yellow
Weight260 g
Width81 mm
Depth43 mm
Height220 mm
Battery typeAAA
Number of batteries supported2
Country of originGermany
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)0 - 80%
Battery voltage1.5 V
Backlight displayYes
DisplayLCD
Storage relative humidity (H-H)0 - 80%
Operating altitude0 - 2000 m
Display digits4000 digits
DC voltage1500 V
DC current (max)400 A
RF transmission frequency5 MHz
Measuring categoryCAT IV 1000V
Easy to readYes
AC voltage1000 V
Resistance (max)40 Ω
Continuity30 Ω
Data holdYes
Polarity indicationYes
AC voltage resolution (min)0 V
DC voltage resolution (min)0 V
