LANCOM GS-3652XUP
4 039,00 €
Monthly payment from 104.90 €
2102023 61879
4044144618796
Shipping 4-6 w.d.
Pay 5x807.80€You are interested in this product?
Multi-Gigabit PoE++ access switch with power redundancy
For scenarios with data-intensive network components that need to get by without complex electrical installations, this 52-port multi-Gigabit access switch with the latest IEEE 802.3bt Power over Ethernet standard is a perfect choice. 12 of a total of 48 Gigabit Ethernet ports support 2.5 Gigabit Ethernet and thus form the necessary high-performance basis, e.g. for the operation of Wi-Fi 6E access points and other network components with high-performance requirements. With an additional hot-swappable power supply, either full PoE performance is achieved on all 48 Gigabit Ethernet ports or maximum fail-safety is created. Four additional SFP+ ports and basic Layer 3 functions such as static routing and DHCP server make this device a reliable basis for large networks.
Highlights
High performance on 52 ports

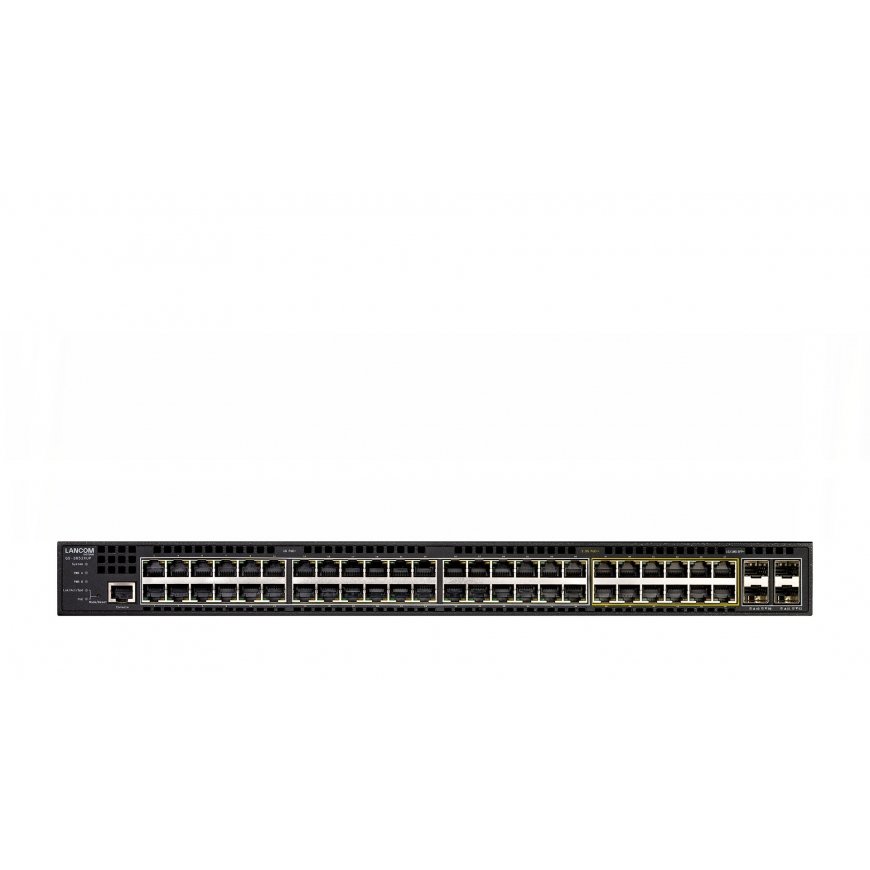

The LANCOM GS-3652XUP is equipped with 12 2.5 Gigabit Ethernet ports, 36 Gigabit Ethernet ports, and 4 SFP+ ports supporting transfer rates of up to 10 Gbps. In addition, with a data throughput of 212 Gbps on the backplane, it offers full performance even under heavy load. The access switch thus forms the powerful basis for large network infrastructures in all industries and areas of application.
Central power supply without additional electrical installation
As a high-performance PoE switch, the LANCOM GS-3652XUP supplies connected PoE end devices without additional power supplies or power cabling. It supports the Power over Ethernet standards IEEE 802.3at/af (PoE+) and IEEE 802.3bt (PoE++, Type 4) with up to 90 W per port. Thanks to high power reserves with a total output of 1,440 watts, it is thus ideal for efficient power supply of end devices with the highest energy requirements. In addition to Wi-Fi 6E access points, this also includes end devices such as lighting tubes or touch screens, which can be operated via Power over Ethernet for the first time.
A high-performance basis for Wi-Fi 6E
Thanks to 12 powerful 2.5 Gigabit Ethernet ports including PoE in accordance with IEEE 802.3bt (PoE++), the LANCOM GS-3652XUP is the ideal basis for integrating the new WLAN standard Wi-Fi 6E into modern infrastructures. This is because Wi-Fi 6E access points such as the new LANCOM LX-6500 with 4 streams and 3 bands each mean on the one hand increased performance requirements that exceed simple Gigabit Ethernet, and on the other hand, the power consumption of these access points exceeds the threshold of classic PoE+ with 30 W for the first time.
Advantages

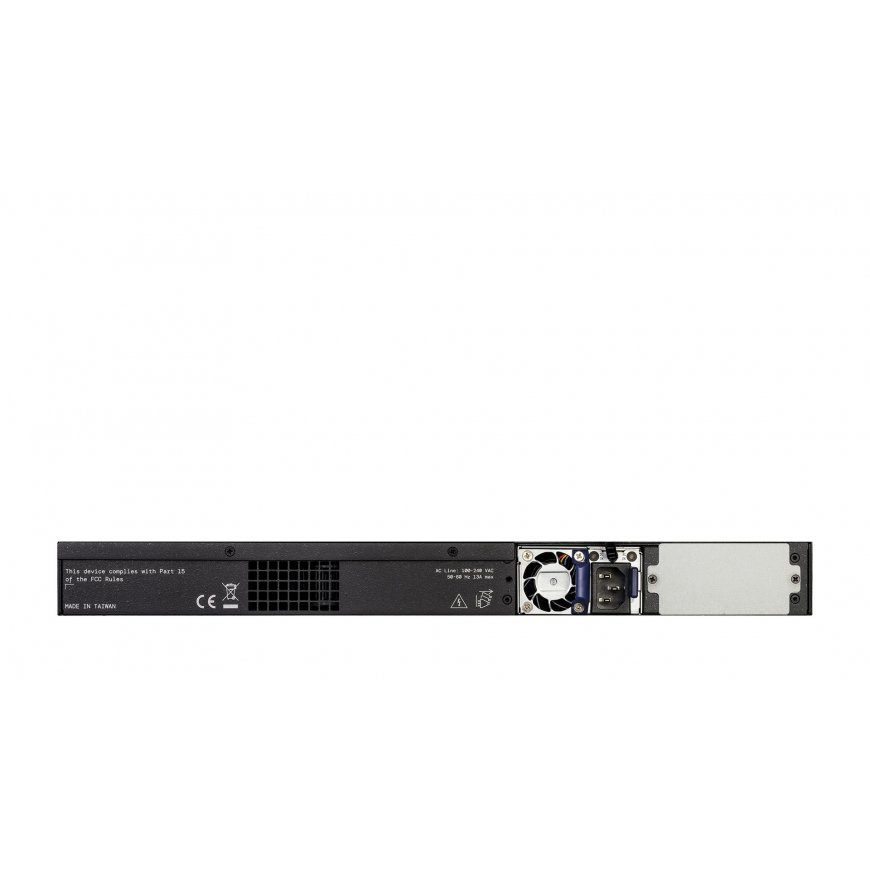

Hot-swappable PSU
The LANCOM GS-3652XUP with "hot-swappable" PSU enables fast and uninterrupted replacement of the power supply in the event of a defect. A separate plug-in module allows the addition of a second PSU. With the integration of 2 redundant PSUs, highly fail-safe scenarios can be realized or PoE power can be bundled and thus increased.
Front-to-back design
The LANCOM GS-3652XUP protects your investment with an innovative front-to-back ventilation design. This allows for optimal cooling even in 19" racks and maximizes the lifespan of the device.
Static routing for unburdened networks
The LANCOM GS-3652XUP supports the basic Layer 3 feature static routing, shifting certain routing tasks from the router to the switch. The predefinition of network routes through one or more network segments enables faster data exchange, especially in the case of high internal data traffic, and leads to a relief of the router. Freed-up router capacity is then additionally available for handling external data traffic. This increases the efficiency of the entire network.
DHCP server functionality
As a DHCP server, the switch can independently and automatically assign IP addresses to clients. The LANCOM GS-3652XUP supports this basic Layer 3 function and thus takes over the IP management of the connected network.
Configurable access control
The LANCOM GS-3652XUP ensures that no unauthorized clients gain access to the network. This is made possible by secure access control on all ports in accordance with IEEE 802.1X (port-based, single-, multi-, and MAC-based).
Secure remote management
Thanks to secure communication protocols such as SSH, SSL, and SNMPv3, the LANCOM GS-3652XUP enables professional remote management of the network. In addition, the switch supports the TACACS+ protocol for authentication, authorization, and accounting. An optimal solution that promises maximum security, especially for the management and monitoring of multi-site networks.
Cloud-managed LAN
With the LANCOM Management Cloud, the LANCOM GS-3652XUP offers fast and easy network integration as well as automatic configuration assignment. Cloud-managed LAN replaces individual device configuration with holistic network orchestration and enables automatic VLAN assignment to the desired switch ports. This allows all configurations to be rolled out at the click of a mouse, making even more complex networking scenarios easy to administer.
IPv6 and IPv4 support
Thanks to its dual-stack implementation, the LANCOM GS-3652XUP can be used in pure IPv4, pure IPv6, or mixed networks. Numerous applications such as SSL, SSH, Telnet, or TFTP can thus also be run over IPv6 networks. IPv6 features such as stateless autoconfiguration, neighbor device discovery, and MLD snooping round out the IPv6 features.
Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3z, IEEE 802.1AX, IEEE 802.3ae, IEEE 802.3bt, IEEE 802.1ak |
| Flow control support | Yes |
| Static route | Yes |
| Multicast support | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10240 |
| Port mirroring | Yes |
| Number of VLANs | 4093 |
Management features | |
| Web-based management | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
Security | |
| MAC address table | 32000 entries |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
Design | |
| Product colour | Black |
| Housing material | Metal |
Features | |
| Firmware upgradeable | Yes |
| Heat dissipation | 683 BTU/h |
Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power over Ethernet (PoE) | Yes |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions | |
| Width | 442 mm |
| Depth | 440 mm |
| Height | 44 mm |
| Weight | 6.3 kg |
Other features | |
| Form factor | 1U |
| Rack mounting | Yes |
Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
Logistics data | |
| Country of origin | Taiwan |
| Customs product code (TARIC) | 85176200 |
Packaging content | |
| Cables included | AC, Serial |
| Quick start guide | Yes |
