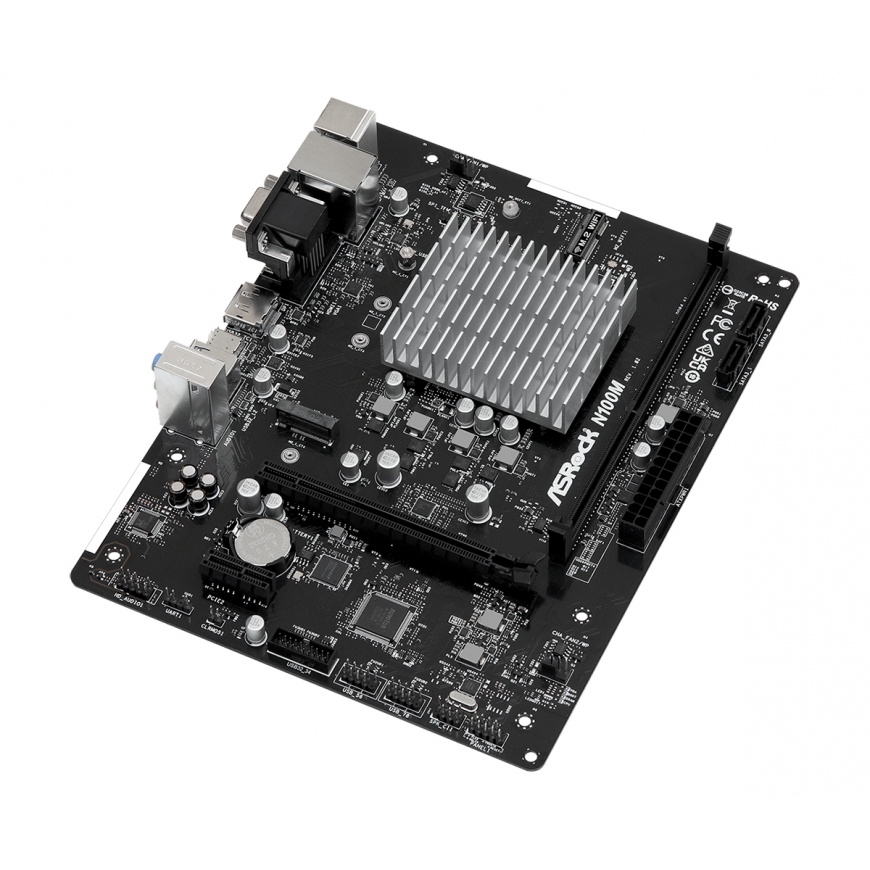

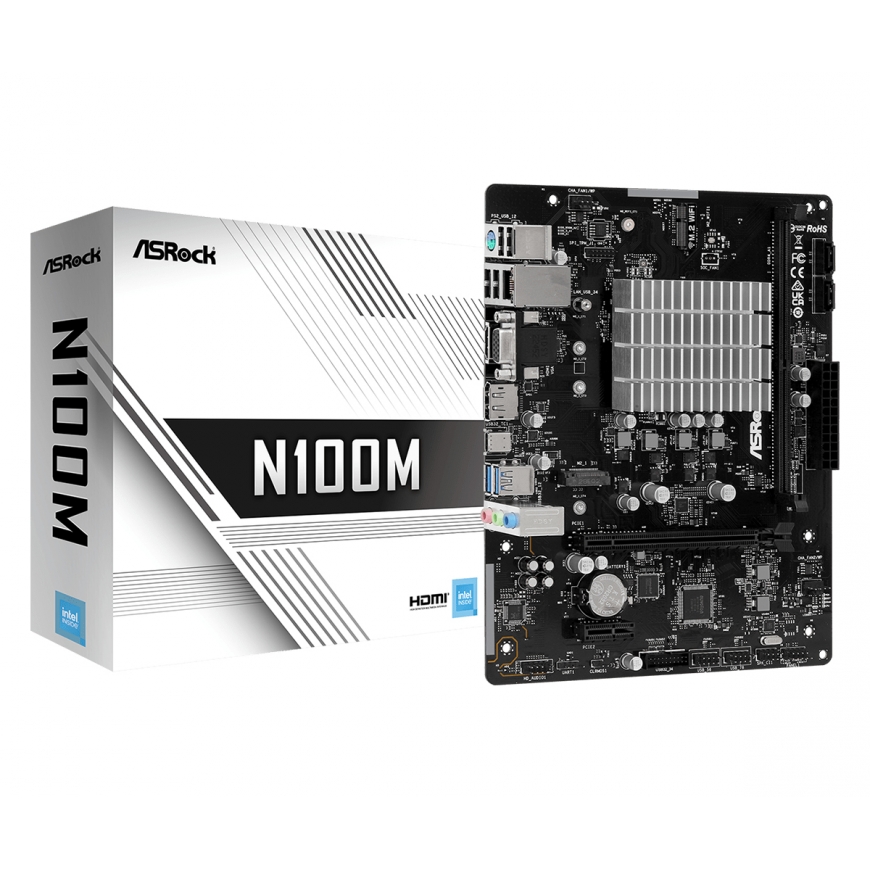

Asrock N100M NA (integrated CPU) micro ATX
124,31 €
Monthly payment from 4.10 €
2058091 90-MXBK80-A0UAYZ
4710483943058
In stock
Pay 5x24.86€You are interested in this product?
The newest Intel® N100 processor, built on the Gracemont CPU microarchitecture using the Intel® 7 process, features 4 E-cores with a turbo frequency of 3.4GHz and Intel® UHD Graphics with 24 EUs. It is suitable for affordable, entry-level computing.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
*Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.
Fanless Design
The CPU is covered by a specially designed heatsink which allows advanced heat dissipation. Utilizing an ultra quiet fanless design, this ASRock motherboard provides the most silent computing environment.
AV1 Decoding + 4K
Supports 10-bit HEVC & VP9 encoding/decoding, hardware-accelerated AV1 decoding, and a max. resolution of up to 4K x 2K 60Hz.
USB 3.2 Gen1 Type-C
USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!
Processor | |
| Compatible processor series | Intel Processor N |
| Processor socket | NA (integrated CPU) |
| Supported processor sockets | BGA 1264 |
| Processor cores | 4 |
| Processor model | N100 |
| Processor manufacturer | Intel |
Memory | |
| Maximum internal memory | 32 GB |
| Supported memory types | DDR4-SDRAM |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Number of memory slots | 1 |
| Supported memory clock speed (max) | 3200 MHz |
| ECC сompatibility | Non-ECC |
Storage controllers | |
| Number of HDDs supported | 2 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 3 |
Graphics | |
| Graphics card | Intel® UHD Graphics |
| HDCP | Yes |
| Graphics card family | Intel |
| Maximum resolution | 4096 x 2160 pixels |
| Number of displays supported | 3 |
Internal I/O | |
| USB 2.0 connectors | 2 |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| TPM connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |

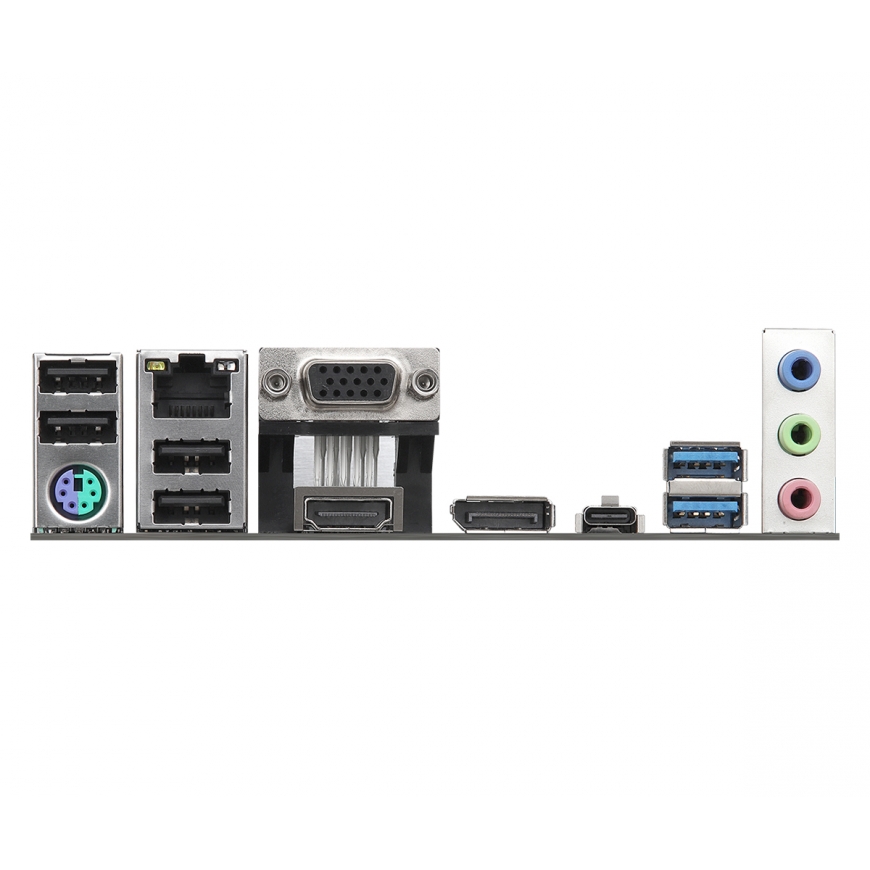

Rear panel I/O ports | |
| PS/2 ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Line-in | Yes |
Network | |
| LAN controller | Realtek 8111H |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
Features | |
| Motherboard form factor | micro ATX |
| Audio output channels | 7.1 channels |
| Certification | - FCC, CE, - ErP/EuP ready (ErP/EuP ready power supply is required) |
| Motherboard chipset family | Intel |
| Component for | PC |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Audio chip | Realtek ALC897 |
Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
Weight & dimensions | |
| Width | 226 mm |
| Depth | 178 mm |
Technical details | |
| Compliance certificates | Federal Communications Commission (FCC) |
Packaging content | |
| Cables included | SATA |
| Bundled software | - ASRock Motherboard Utility (A-Tuning), - ASRock XFast LAN |
| Drivers included | Yes |
