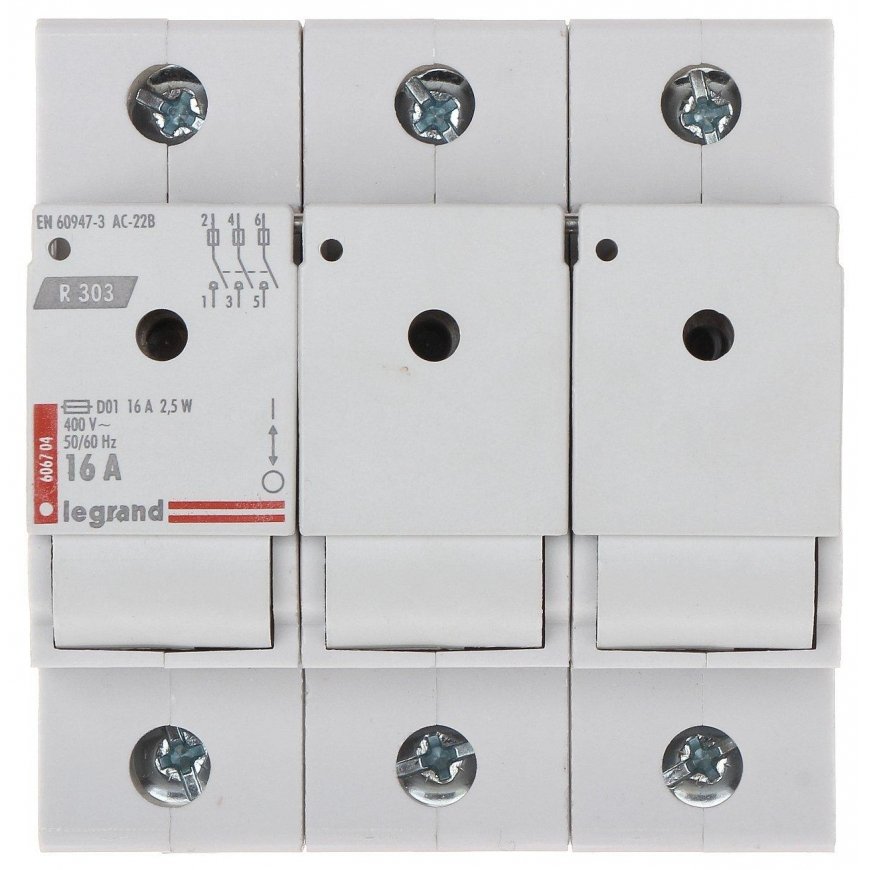

FUSE SWITCH LE-606704 THREE-PHASE 16 A D01 LEGRAND
178,99 €
Monthly payment from 5.51 €
1935181 3245066067049
Shipping 2-5 b.d.
Pay 5x35.80€You are interested in this product?
Isolated circuit breakers with fused fuse inserts, this is a two-function device in one device - isolated circuit breaker and current surge protection operating through fused fuse inserts.

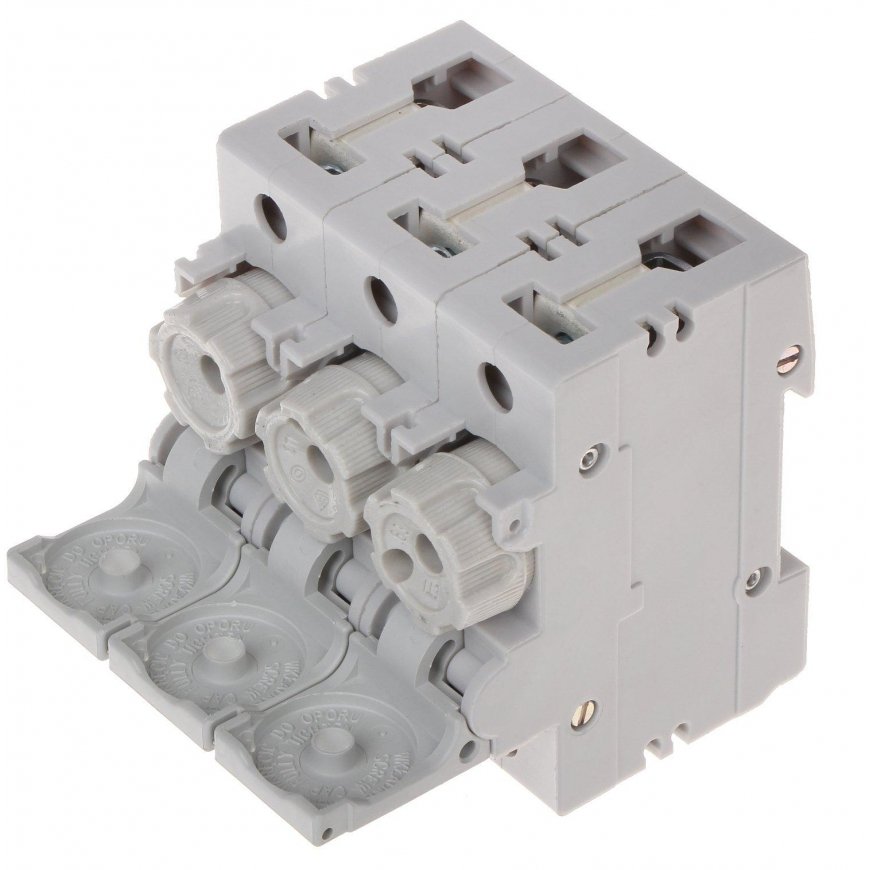

The devices protect the electrical installation from short circuits and overloads, and when the insert is removed, a visible insulation gap is ensured.
The circuit breaker LE-606704 is intended for installation on supports TH-35.
| Device Type : | Three-phase |
| Nominal current : | 16 A |
| Number of poles : | 3 |
| Nominal voltage : | 400 V AC |
| Rated insulation voltage : | 500 V |
| Rated withstand impulse voltage : | 6000 V |
| Description of fuse : | gL/gG |
| Type (size) : | D01 |
| Rated short-circuit duration : | 50000 A AC |

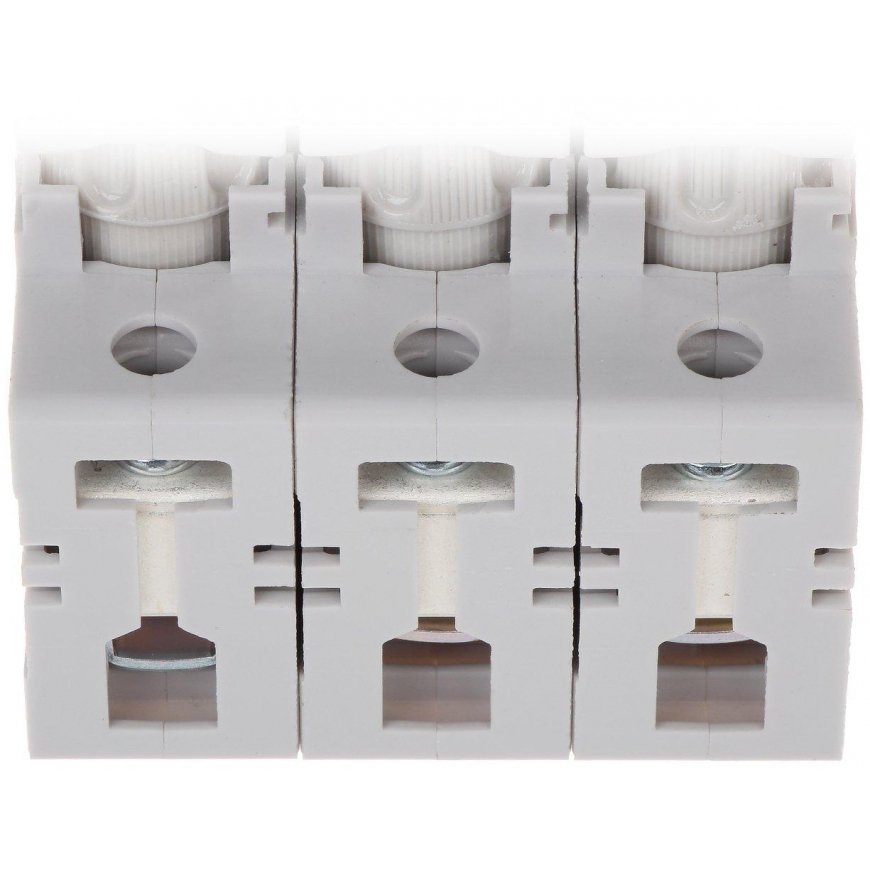

| Type of connectors : | cable clamps |
| Wire cross-section : | 2.5 ... 25 mm² |
| Environmental class : | II |
| Body : | Plastic, installation on support TH-35 |
| Width in modules 17.5 mm : | 4.5 |
| Working temperature : | -26 °C ... 60 °C |
| Weight : | 0.512 kg |
| Dimensions : | 83 x 70.3 x 79.5 mm |
| Manufacturer / Brand : | LEGRAND |
| Warranty : | 2 years |
