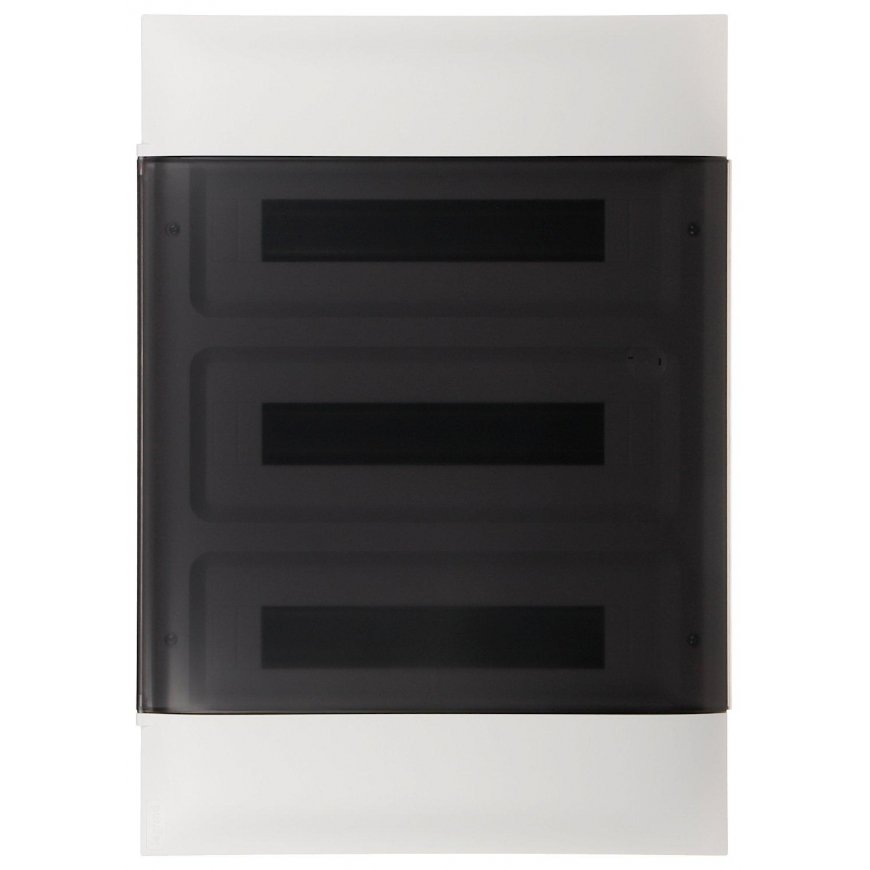

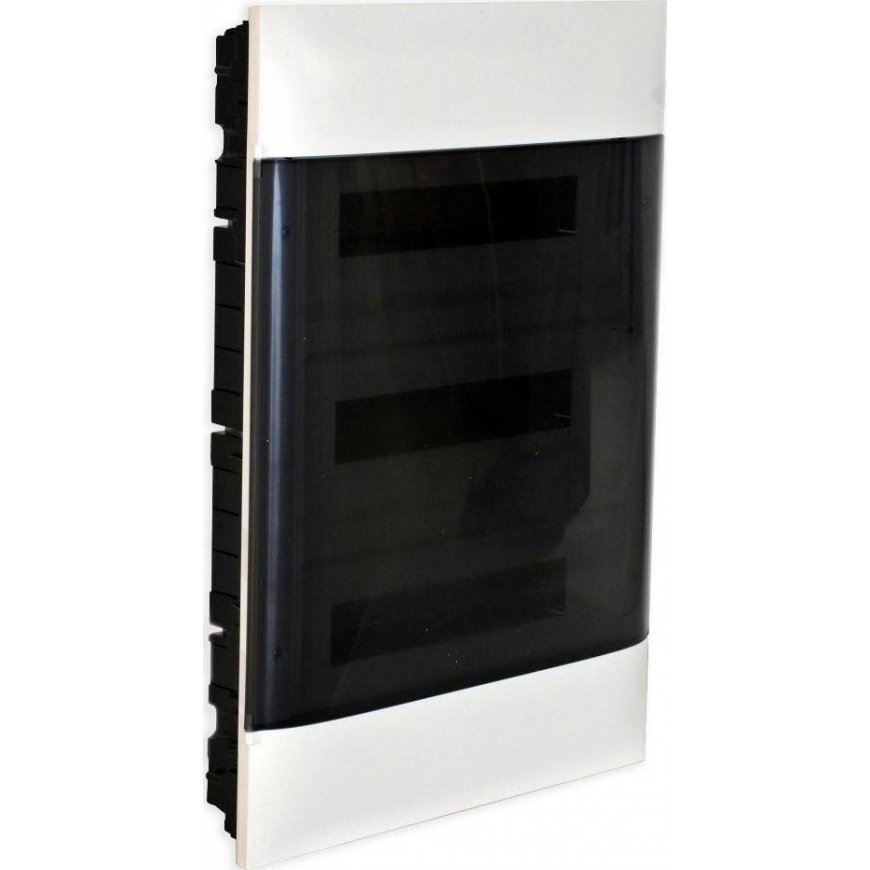

PLASTER UNIT 54-MODULE LE-137378 Practibox S LEGRAND
149,00 €
Monthly payment from 4.74 €
1895396 137378
3414971199118
Shipping 2-5 b.d.
Pay 5x29.80€You are interested in this product?
Electric distributor under the plaster 3-row 54-module.
| Method of attachment : | The subliminal |
| Number of installed models : | 18 x 3 rows, 17.5 mm |

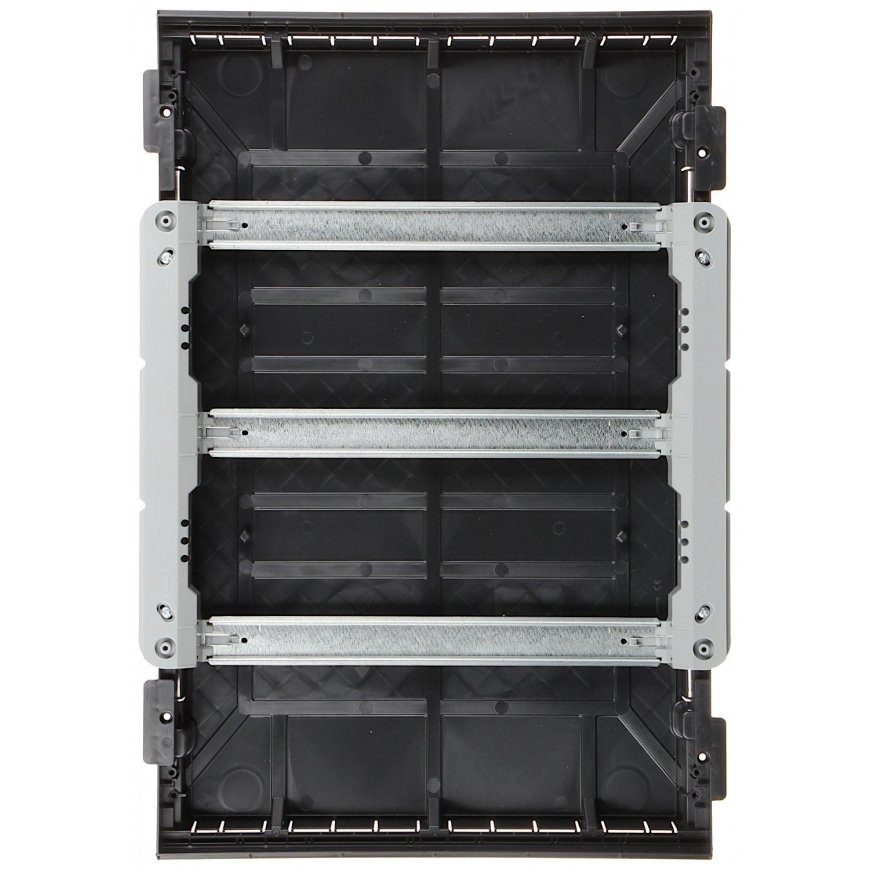

| Distance between holders TH 35 : | 150 mm |
| Transparent door : | ✔ |
| Main features : | Removable bracket TH 35 Revolving door Detachable front guards for each row of the switchboard Nominal voltage : 400 V AC , 50 / 60 Hz Max. Current : 125 A Short-circuit current short-circuit : 10 kA Storage straps are included in the set |
| Equipment : | Connecting strips: 2 pcs. : 1 x 25 mm² + 12 x 16 mm² 1 pc. : 1 x 25 mm² + 34 x 16 mm² |
| Material : | Self-extinguishing plastic |
| Color : | White |
| Sealing class : | IP40 |
| Mechanical resistance class : | IK07 |
| Compliance with standards : | IEC/EN 60670-24, IEC/EN 61439-3 |
| Working temperature : | -10 °C ... 60 °C |
| Weight : | 2.78 kg |
| Dimensions : | 430 x 615 x 105 mm, 420 x 535 x 85 mm - box under plaster |
| Manufacturer / Brand : | LEGRAND |
| Warranty : | 2 years |
