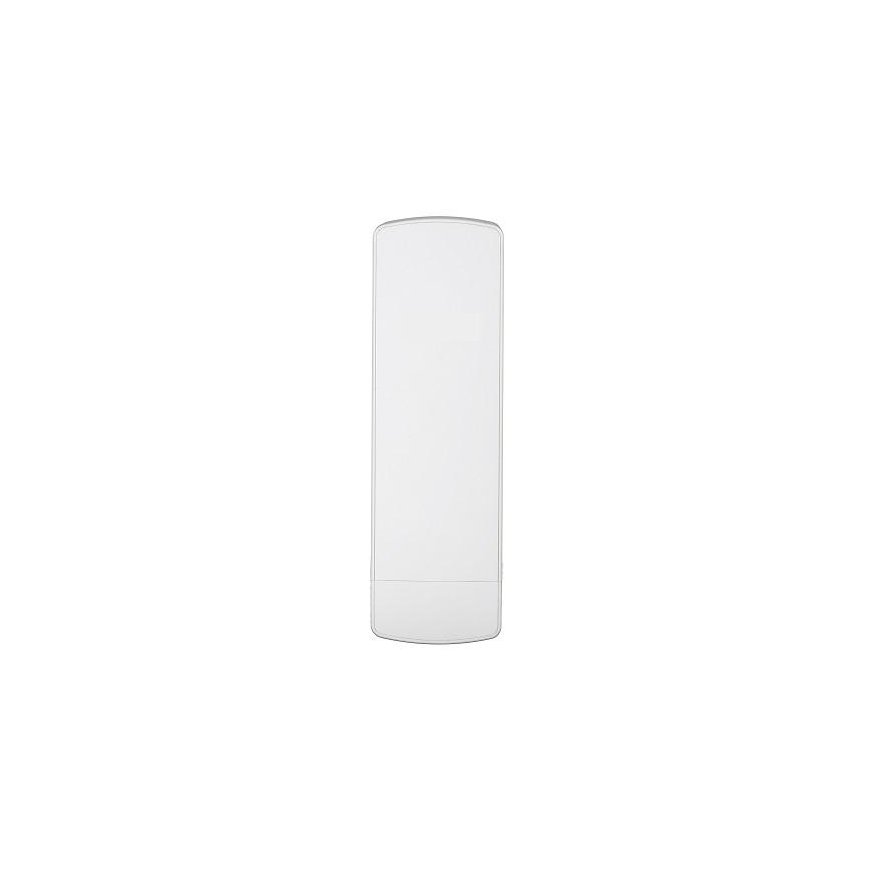

Dahua Outdoor CPE - wireless bridge, 5.8Ghz, 300Mbps, 3km
69,01 €
Monthly payment from 2.68 €
1837648 9990000990375
Shipping 2-4 days
Pay 5x13.80€You are interested in this product?
Features:
The Wireless Bridge is designed to create a long-distance wireless network, providing a seamless reliable network connection without wires, such as for IP cameras remote from the recorder.
The recommended distance is up to 3 km.
Lightning protection 15KV ESD.
Automatic selection of distance between antennas. The distance between the client and the base station is displayed in real time.
5G mode supports 5745~5825MHz (extended range: 4920~6100MHz).
Supports flow control, effectively controls input and output flow control of base station and client.
802.1x authentication, effective user access control, access security is ensured.
Supports client prioritization, better distributes each client when the mode is point-to-multipoint.
Multi-channel (5MHz/ 10MHz/ 20MHz/ 40MHz) option, effectively improved anti-interference.
Adapted to outdoor conditions, -30°C~+70°C, industrial design.
Technical data:
Data transfer speed: 300Mb/s; 5.8GHz.
Wireless standards: IEEE802.11A, IEEE802.11N.
Operating frequency: 5745~5825MHz (extended range: 4920~6100MHz).
Reception sensitivity: -74dBm@65Mbps, -96dBm@1Mbps.
LAN ports: 1x LAN RJ45 + 1x LAN RJ45 PoE.
Wireless direction angle: horizontal 40°, vertical 15°.
Supply voltage: 48V PoE (0.5A).
Power consumption: <8W.
Antenna: Built-in 15dBi.
Transmission power: 27dBm (max.).
Network protocols: TCP/ UDP/ ARP/ ICMP/ DHCP/ HTTP/ NTP.
Encryption: WEP/ WPA-PSK/ WPA2/ CCMP(AES)/ TKIP.
Long-distance traffic bandwidth: up to 40Mbps@3km.
Supported wireless communication channels: 5MHz/ 10MHz/ 20MHz/ 40MHz.
Working modes: access point / client / WDS AP / WDS client / WDS repeater.
Working environment: -30°C~+70°C, 5-95%RH.
Diameter of fixing clamps (included): 40mm~60mm.
Size: 280x30x80mm.
Weight: 0.45kg.
Color: white.
Warranty: 24 months
