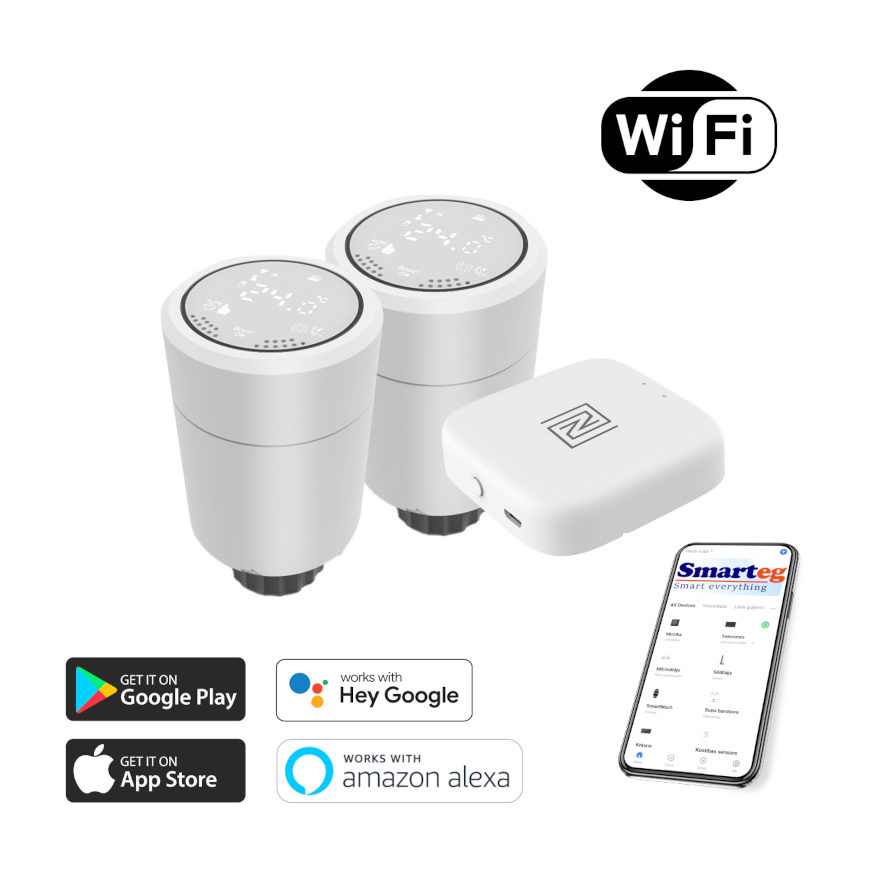

Smart radiator valve set + hub (Zigbee+Wi-Fi)

• Smarteg.lv Zigbee thermostat Family Member


• A Smarteg Zigbee Gateway is required to use this product


• Works well with all other Smarteg devices


• Works with voice control service of Amazon Alexa

Smarteg.lv makes the smart home of the future a reality today. A range of smart products pave the way for a smarter future and create the exciting prospect of app and voice control over existing technology you already have in your home.

• Digital smart self-learning thermostat to keep the temperature in the room at the desired level

• Smart Life app control to set a schedule or change the temperature remotely with your smartphone

• Google Assistant, Amazon Alexa or Siri voice control to set up scenes and control it with a simple voice command

• With the integrated LED dislplay and the intuitive knob you can change, monitor and control the temperature directly on the device

• Child lock to prevent unauthorized temperature changes

• Control multiple radiators at once so no room is ever forgotten

• Combine with other Tuya Smart products to create a more intelligent and energy efficient environment

• Easy installation where no special skills or knowledge (electrical or plumbing) is required

With its solid build quality and full accessory kit included can fit all popular devices in Europe.

You will need the Smart Life app.

Launch the app "Smart Life".

Create a new account or log in to your existing account.

Tap "+" to add the device

Use automatic search or select from the list of products.

Switch on the power.

Confrm the Wi-Fi network and password.

Enter the device name.

Technical specification of thermostatic head:

Protocol: ZigBee 3.0

Frequency: 2400MHz ~ 2483.5MHz

Maximum RF output power: ZigBee: 10dBm - max 19dBm

Compatible with valves: RA, RAV, RAVL

Thermostat operating voltage: 2 x AA1.5 V, alkaline batteries.

Temperature setting range: 5 ° C - 35 ° C, in 0.5 ° C steps

Accuracy: ± 1 ° C

Control: PID

Thermostat dimensions: 53 x 89.5 mm

Max. extension: 4.5 mm

Thread Size: M30 * 1,5

Color: White

Degree of protection: IP20

Certification: CE, RoHs

Technical specifications BRIDGE:

Functions supporting security logic: YES

Color: White

Protocol: ZigBee 3.0, Wi-Fi

Frequency: 2400MHz ~ 2483.5MHz

Maximum RF output power: WiFi: 20dBm ZigBee: 10dBm - max 19dBm

Power consumption: max. 4.2W

Power supply input voltage: AC 230V 50-60Hz

Smart gate input voltage: 5V 1A

Dimensions: 16.1 x 60.5 x 60.5 mm

Weight: 50g
