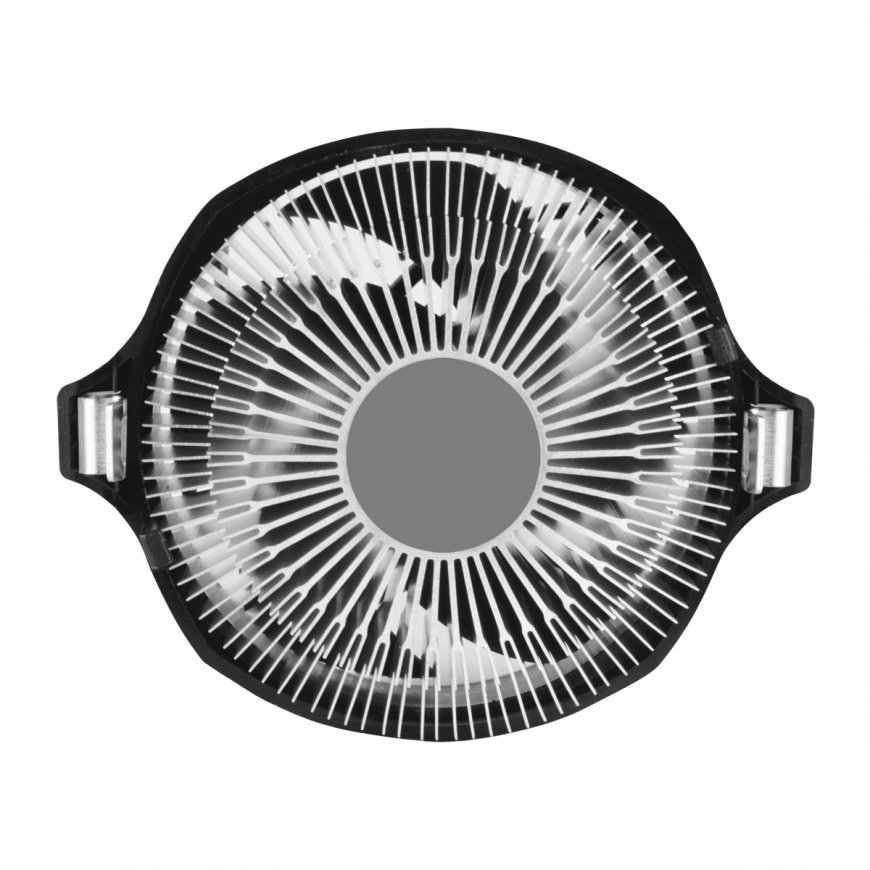

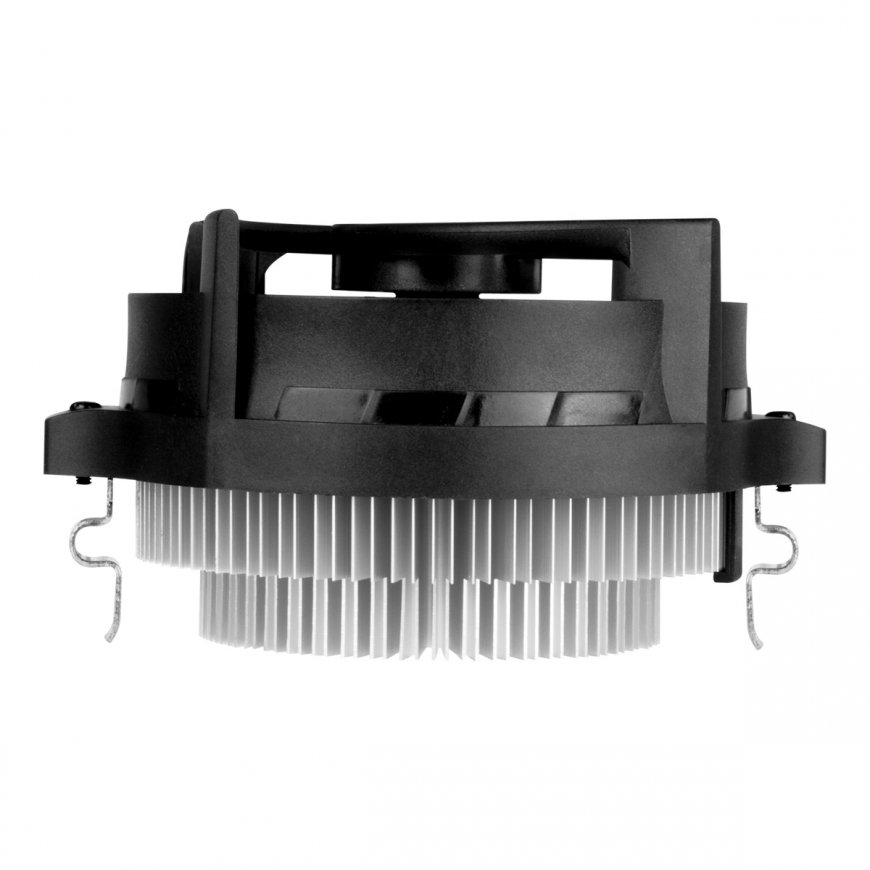

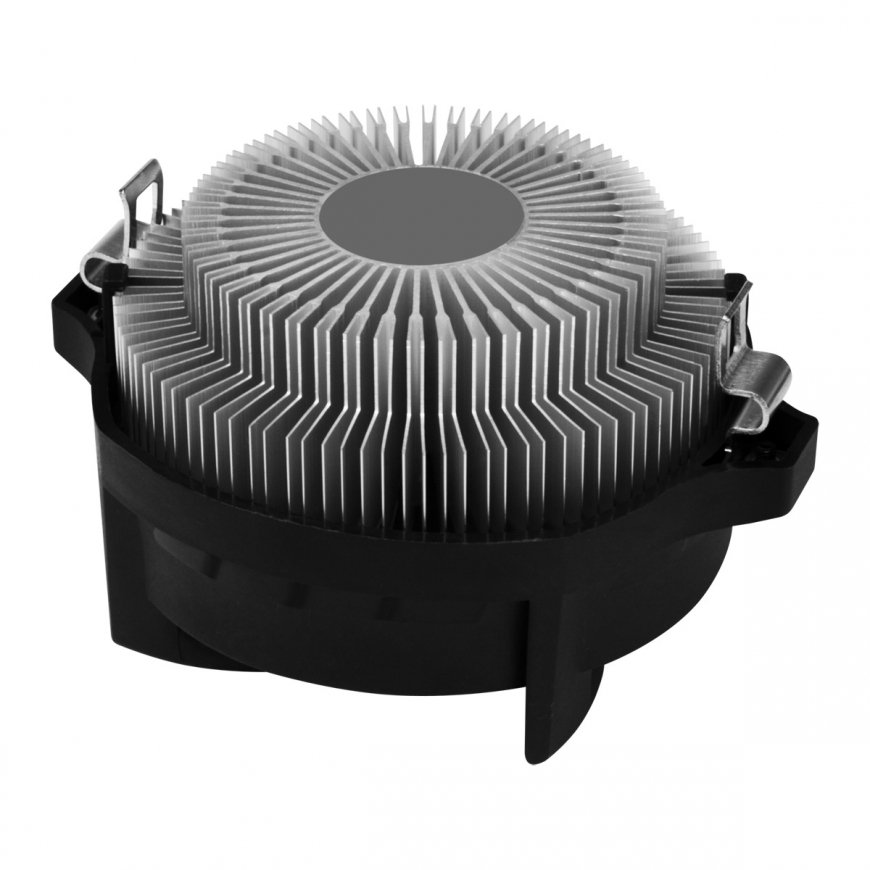

ARCTIC Alpine 23 CO - Compact AMD CPU-Cooler for continuous operation
1657977 ACALP00036A
4895213702836, 0840033400633
Shipping 4-6 w.d.
Improved Cooling Performance by New Production Process
The high thermal conductivity of aluminum is fully retained by a new type of extrusion. This new production process creates a powerful yet very compact radial heat sink. The particularly thin cooling fins of the new Alpine are fanned out in a Y-shape. This increases the surface area of the heat sink and therefore the cooling capacity.
Wide RPM Range
The Alpine 23 CO features a new motor technology with a very wide, PWM-controlled RPM range. This keeps the noise level at a minimum while guaranteeing maximum cooling performance when needed.
Lower Power Consumption & Minimum Vibration
The new Alpine 23 is powered by an updated motor and runs much more efficiently than its predecessors. Due to sinus-magnetizing the new motor creates just 5 % of the vibration from commutation of a regular DC-motor. These factors contribute towards saving energy, lowering the coil temperature and reducing vibrations to a minimum without compromising performance.
FOR CONTINUOUS OPERATION
The premium quality Japanese dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearings and thus make it the perfect choice when reliability is essential.
Extended Life Span
A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature.
Pre-applied MX-2 Thermal Paste
The pre-applied, high-performance MX-2 thermal compound ensures fast and clean installation.
Easy and fast Installation
Thanks to the mounting clips, the installation is really easy. Alpine 23 is simply plugged onto the existing AMD retention modules and screwed tight.
Performance | |
| Supported processor sockets | Socket AM4, Socket AM5 |
| Type | Air cooler |
| Fan diameter | 9 cm |
| Rotational speed (min) | 200 RPM |
| Rotational speed (max) | 2700 RPM |
| Bearing type | Dual ball bearing |
| Noise level | 0.3 sone |
| Quantity per pack | 1 pc(s) |
| Suitable location | Processor |
Design | |
| Product colour | Black, Aluminium |
| Material | Plastic, Aluminium |
| Number of fans | 1 fan(s) |
| Fan connector | 4-pin |
| Number of fins | 50 |
| Fins material | Aluminium |
| Number of fan blades | 5 |
| Radiator material | Aluminum |
Power | |
| Rated current | 0.09 A |
Weight & dimensions | |
| Weight | 275.5 g |
| Height | 65 mm |
| Width | 121 mm |
| Depth | 98.6 mm |
| Package height | 76 mm |
| Package width | 111 mm |
| Package depth | 111 mm |
Packaging content | |
| Thermal pad included | Yes |
| Package type | Box |
Other features | |
| Country of origin | Hong Kong |
Logistics data | |
| Harmonized System (HS) code | 84733080 |
